Performance
Power24–35 W
Luminous Flux2,880–4,200 lm
Catalogue Efficiency>120 lm/W
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.

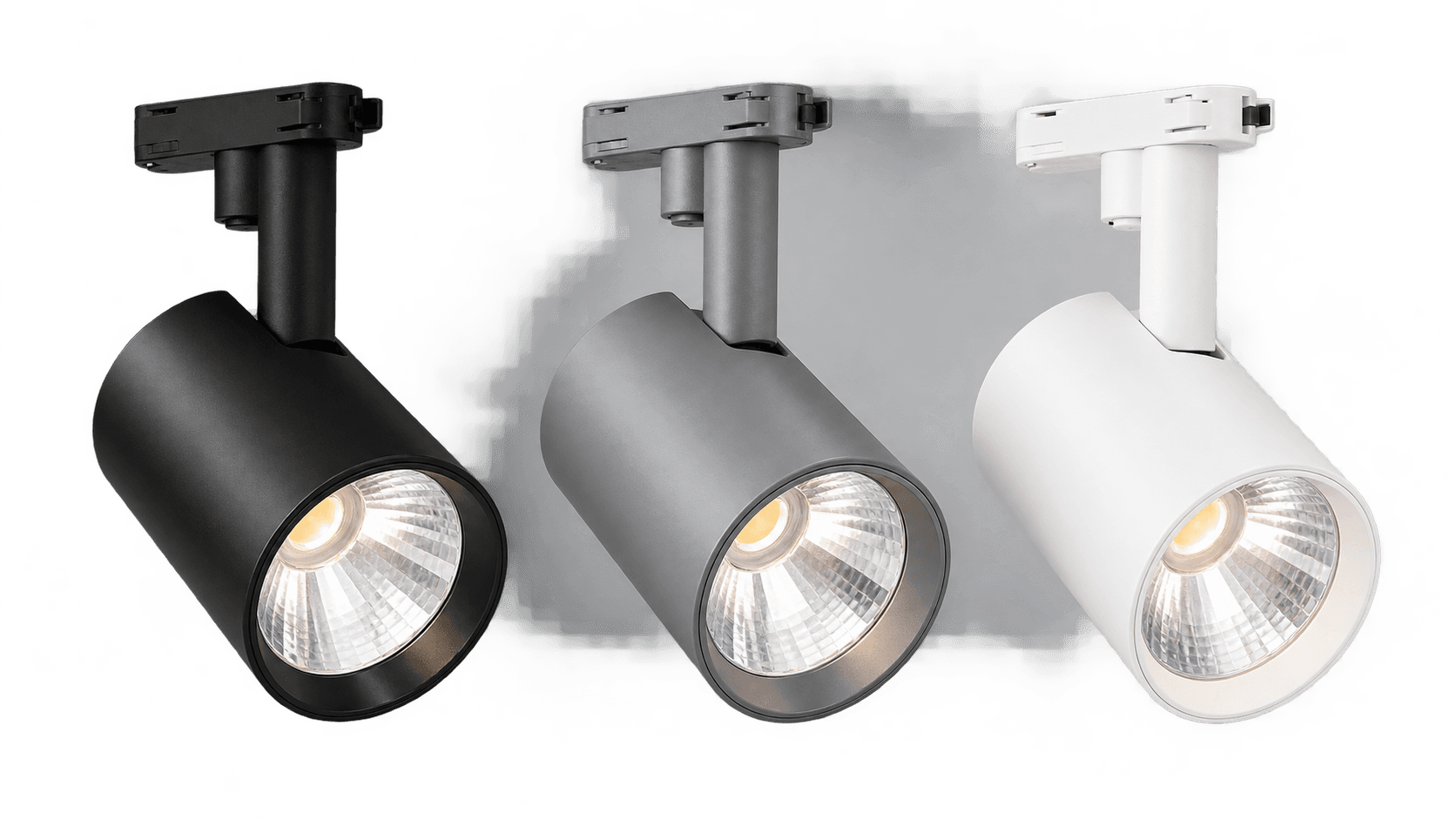

STN120
Track & Downlight
Commercial track-spot family with five genuine body and optical configurations.
Exact STN120 catalogue schedule.
| Model / Catalogue Code | Power | Luminous Flux | Voltage | Efficiency | CRI | CCT | Beam Options | Dimensions | IP | Enquiry |
|---|---|---|---|---|---|---|---|---|---|---|
| LDB-STN120.24.02 | 24 W | 2,880 lm | 48 V DC | >120 lm/W | >80 | 2700–6500 K | 20° · 30° · 40° · 60° | 120 × 197 × 242 mm | IP20 | |
| LDB-STN120.28.02 | 28 W | 3,360 lm | 48 V DC | >120 lm/W | >80 | 2700–6500 K | 20° · 30° · 40° · 60° | 120 × 197 × 242 mm | IP20 | |
| LDB-STN120.31.02 | 31 W | 3,720 lm | 48 V DC | >120 lm/W | >80 | 2700–6500 K | 20° · 30° · 40° · 60° | 120 × 197 × 242 mm | IP20 | |
| LDB-STN120.35.02 | 35 W | 4,200 lm | 48 V DC | >120 lm/W | >80 | 2700–6500 K | 20° · 30° · 40° · 60° | 120 × 197 × 242 mm | IP20 |
Functions shown here are catalogue-listed project options, not standard equipment on every order code.

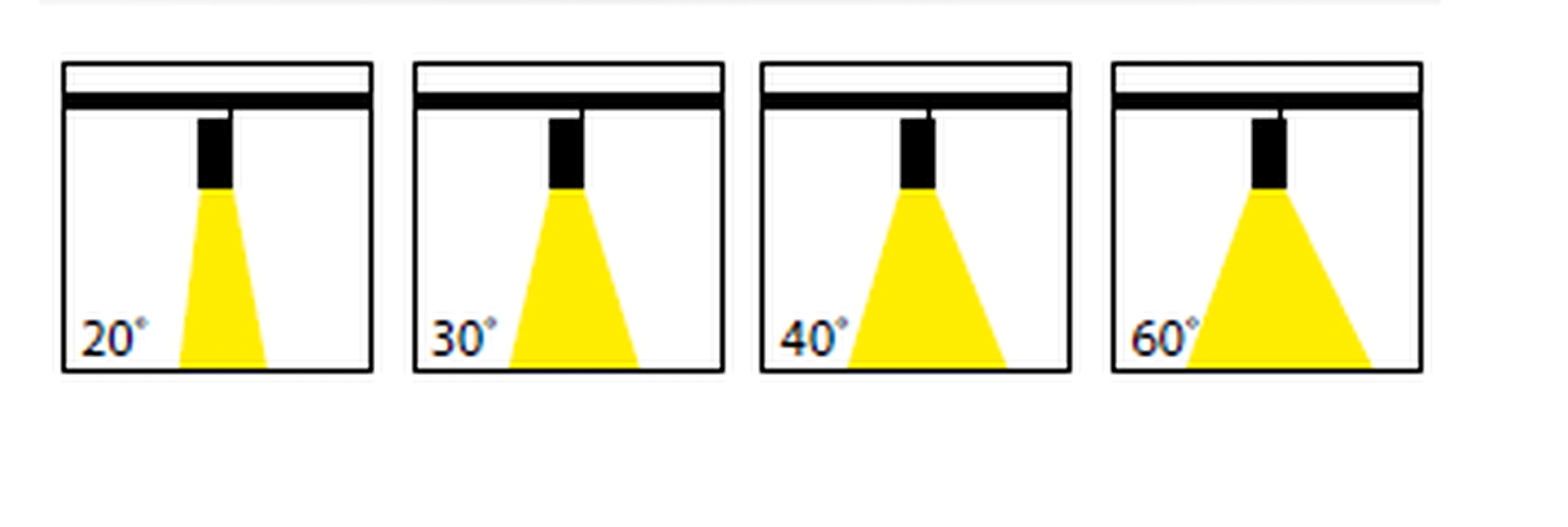

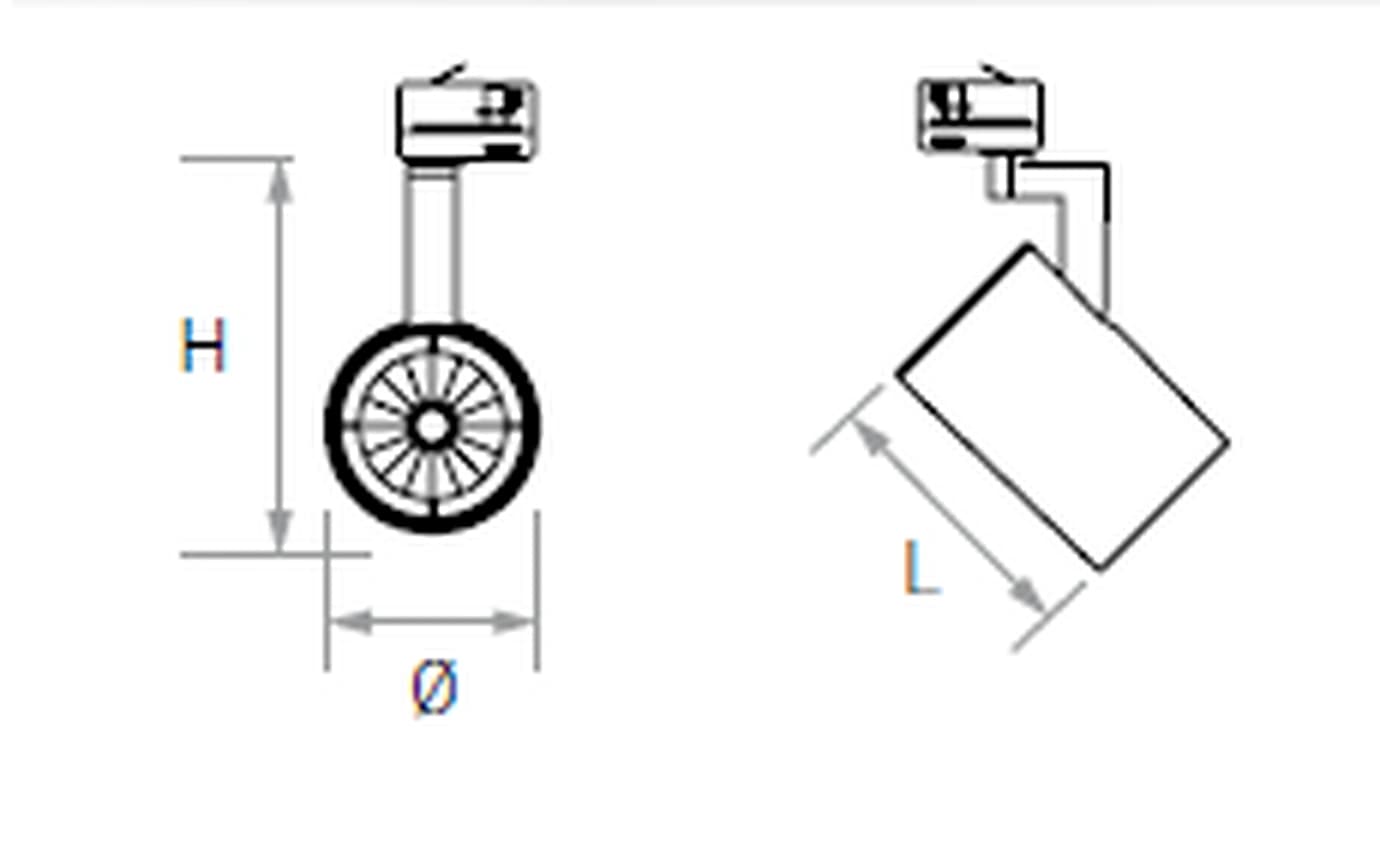

Prepared catalogue photometric and dimensional reference material — shared across configurations of this Product Series.
Focused accent lighting for products and displays.
Adjustable lighting for product presentation and focal points.
Precise accent lighting for artwork and changing displays.
Track lighting for reception, dining and guest environments.
Flexible accent and general lighting for project interiors.
Focused accent lighting for products and displays.
Discuss the exact configuration, output and project options with our technical team.
