Performance
Power32 or 42 W
Luminous Flux2,528 or 3,402 lm
Catalogue Efficiency79+ or 81+ lm/W
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.

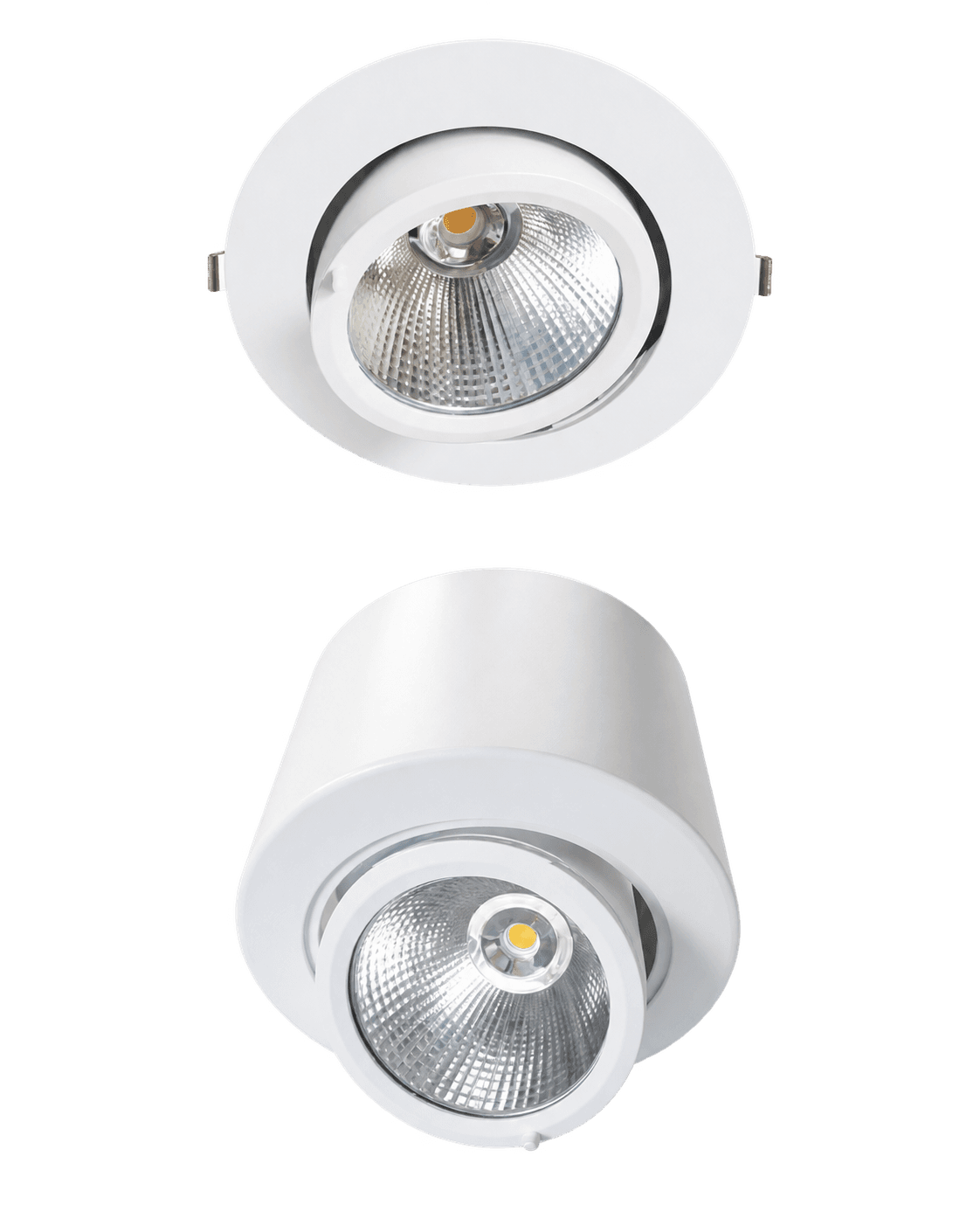

MOON 4
Track & Downlight
MOON 4 recessed/surface forms and JPT / JUPITER recessed downlights, using their exact published order codes.
Exact MOON 4 catalogue schedule.
| Model / Catalogue Code | Power | Luminous Flux | Voltage | Frequency | Efficiency | CRI | CCT | Dimensions | Enquiry |
|---|---|---|---|---|---|---|---|---|---|
| LDB-MOON4-32 | 32 W | 2,528 lm | 220–240 Vac | 50–60 Hz | 79+ lm/W | 80+ | 2700–6500 K | Ø178 mm | |
| LDB-MOON4-42 | 42 W | 3,402 lm | 220–240 Vac | 50–60 Hz | 81+ lm/W | 80+ | 2700–6500 K | Ø178 mm |
SA and SU are catalogue physical configurations; ambiguous code-to-mounting mapping is not fabricated.
Functions shown here are catalogue-listed project options, not standard equipment on every order code.

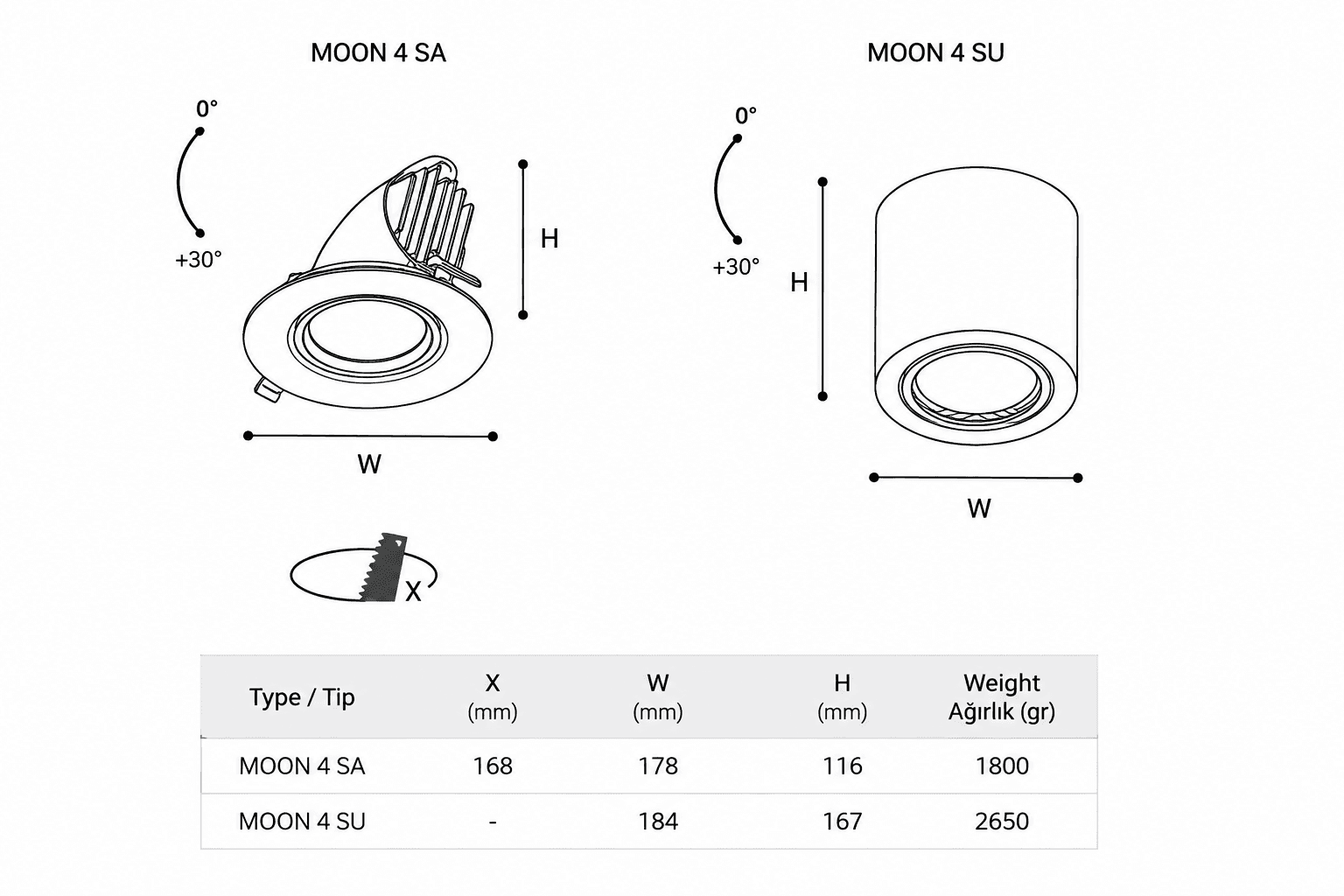

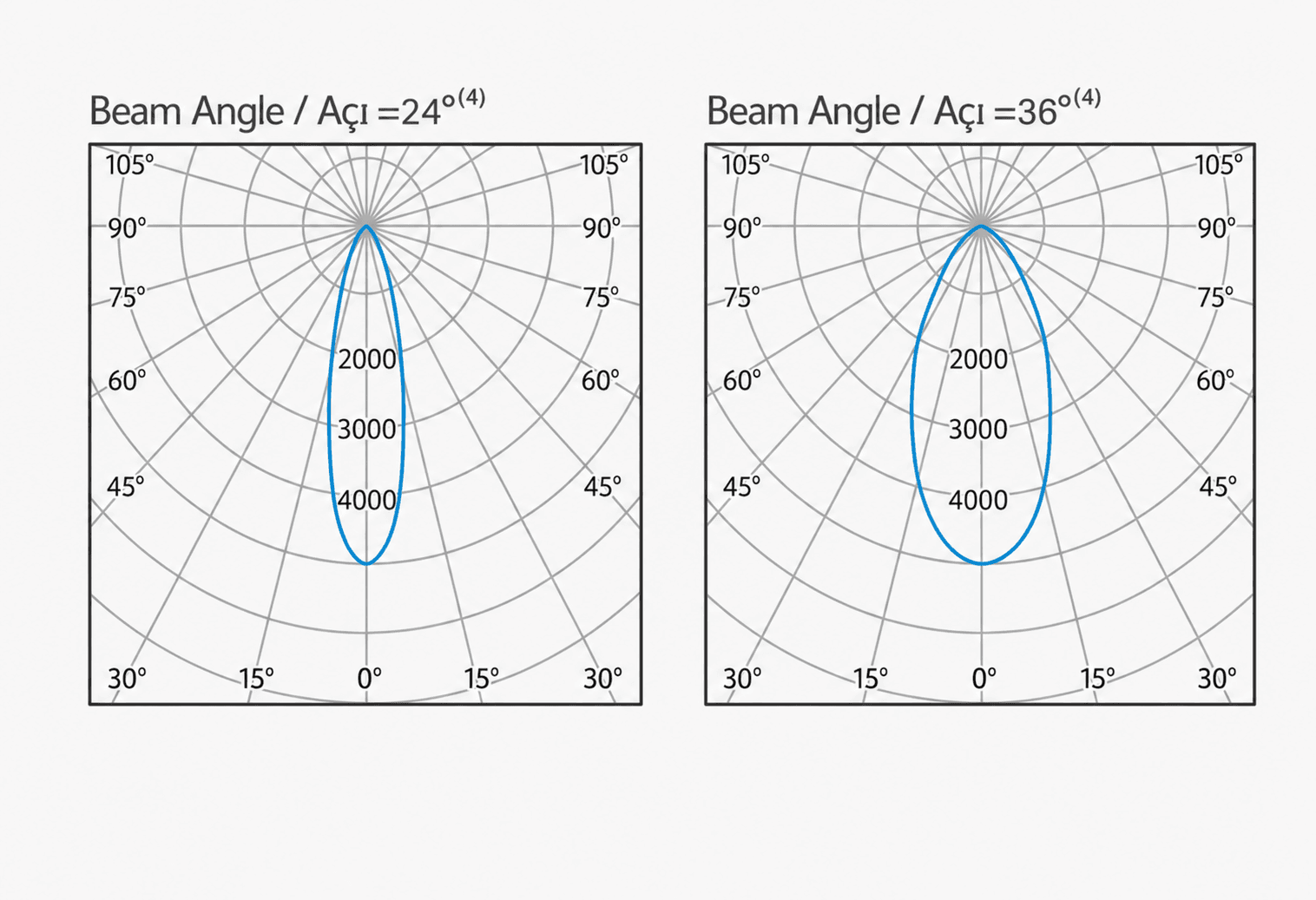

Prepared catalogue photometric and dimensional reference material — shared across configurations of this Product Series.

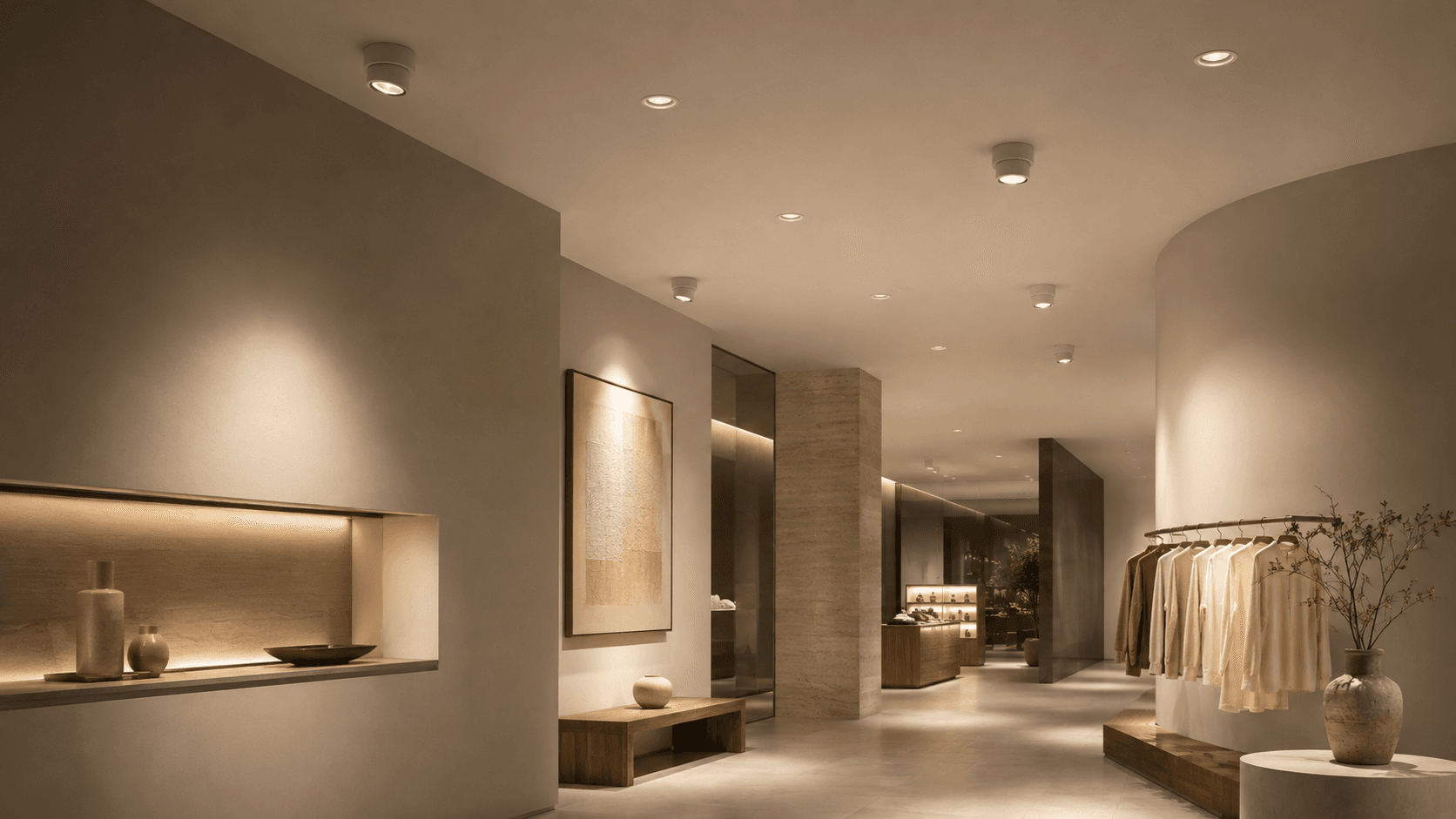

Recessed and adjustable lighting for sales areas.
General and accent lighting for workspaces.
Interior lighting for classrooms and shared learning areas.
General lighting for hospital circulation and public areas.
Project downlighting for designed commercial interiors.
Recessed and adjustable lighting for sales areas.
Discuss the exact configuration, output and project options with our technical team.
