Performance
Power20–32 W
Luminous Flux2,400–3,840 lm
Catalogue Efficiency>120 lm/W
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.

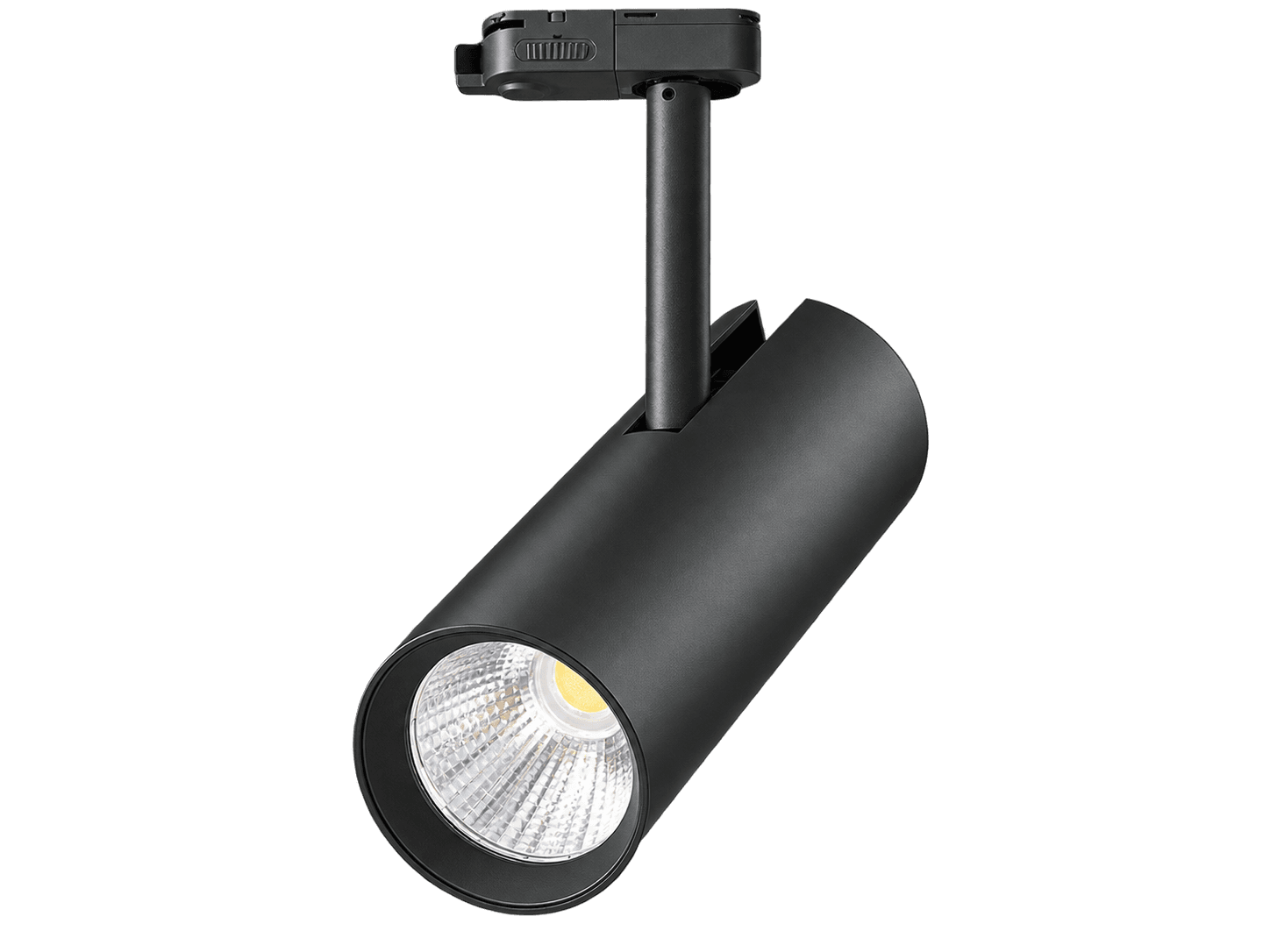

CYL85
Track & Downlight

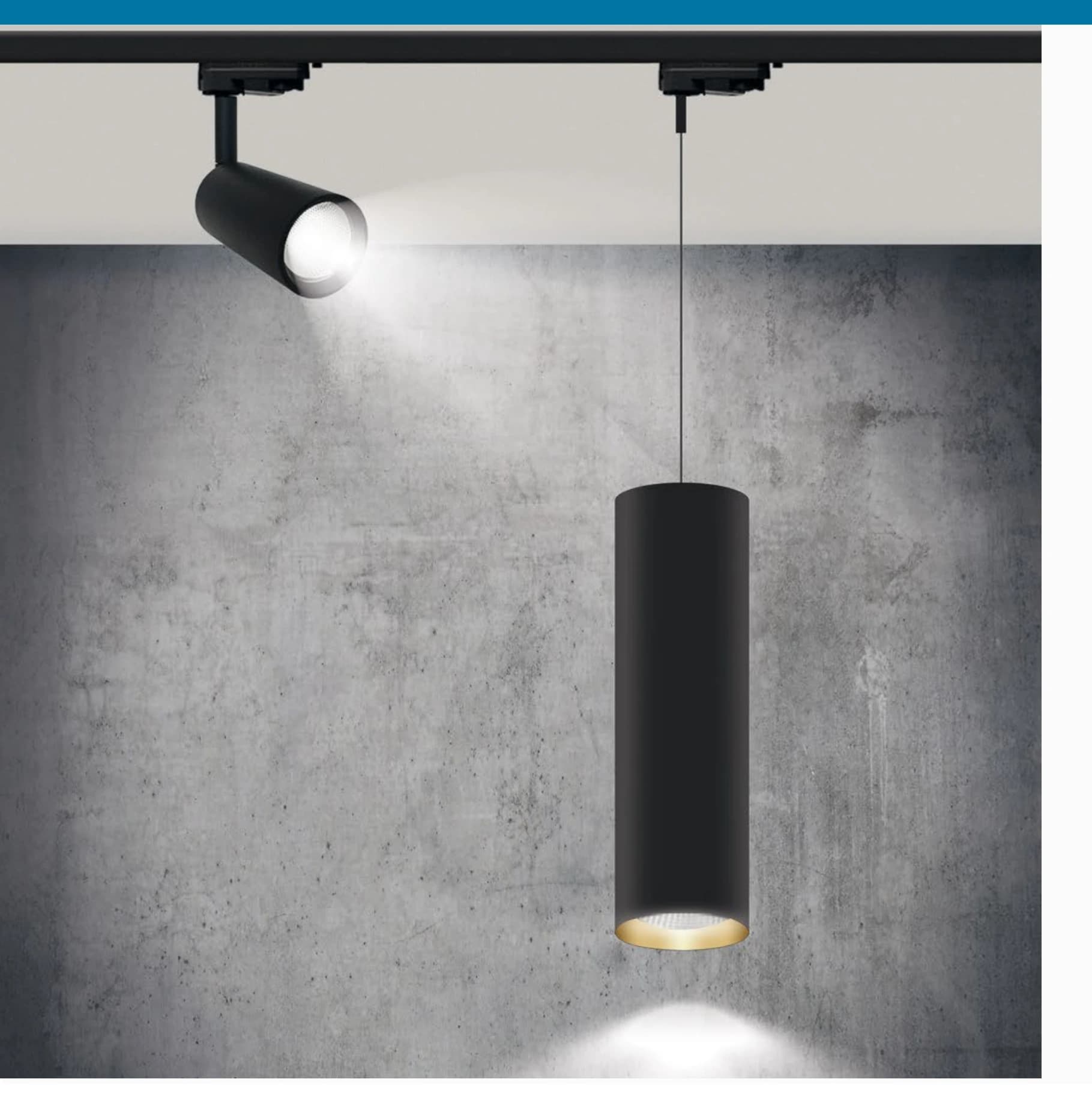

Adjustable magnetic-track spotlights for precise accent and display lighting, available in CYL85 and CYL70 body sizes with configuration-specific beam options.
Exact CYL85 catalogue schedule.
| Model / Catalogue Code | Power | Luminous Flux | Voltage | Operating Temp. | Efficiency | CRI | CCT | Beam Options | Dimensions | IP | Enquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LDB-CYL85.20.02 | 20 W | 2,400 lm | 48 V DC | −20 to +35 °C | >120 lm/W | >80 | 2700–6500 K | 20° · 30° · 60° | 85 × 235 × 258 mm | IP20 | |
| LDB-CYL85.24.02 | 24 W | 2,880 lm | 48 V DC | −20 to +35 °C | >120 lm/W | >80 | 2700–6500 K | 20° · 30° · 60° | 85 × 235 × 258 mm | IP20 | |
| LDB-CYL85.28.02 | 28 W | 3,360 lm | 48 V DC | −20 to +35 °C | >120 lm/W | >80 | 2700–6500 K | 20° · 30° · 60° | 85 × 235 × 258 mm | IP20 | |
| LDB-CYL85.32.02 | 32 W | 3,840 lm | 48 V DC | −20 to +35 °C | >120 lm/W | >80 | 2700–6500 K | 20° · 30° · 60° | 85 × 235 × 258 mm | IP20 |
Functions shown here are catalogue-listed project options, not standard equipment on every order code.

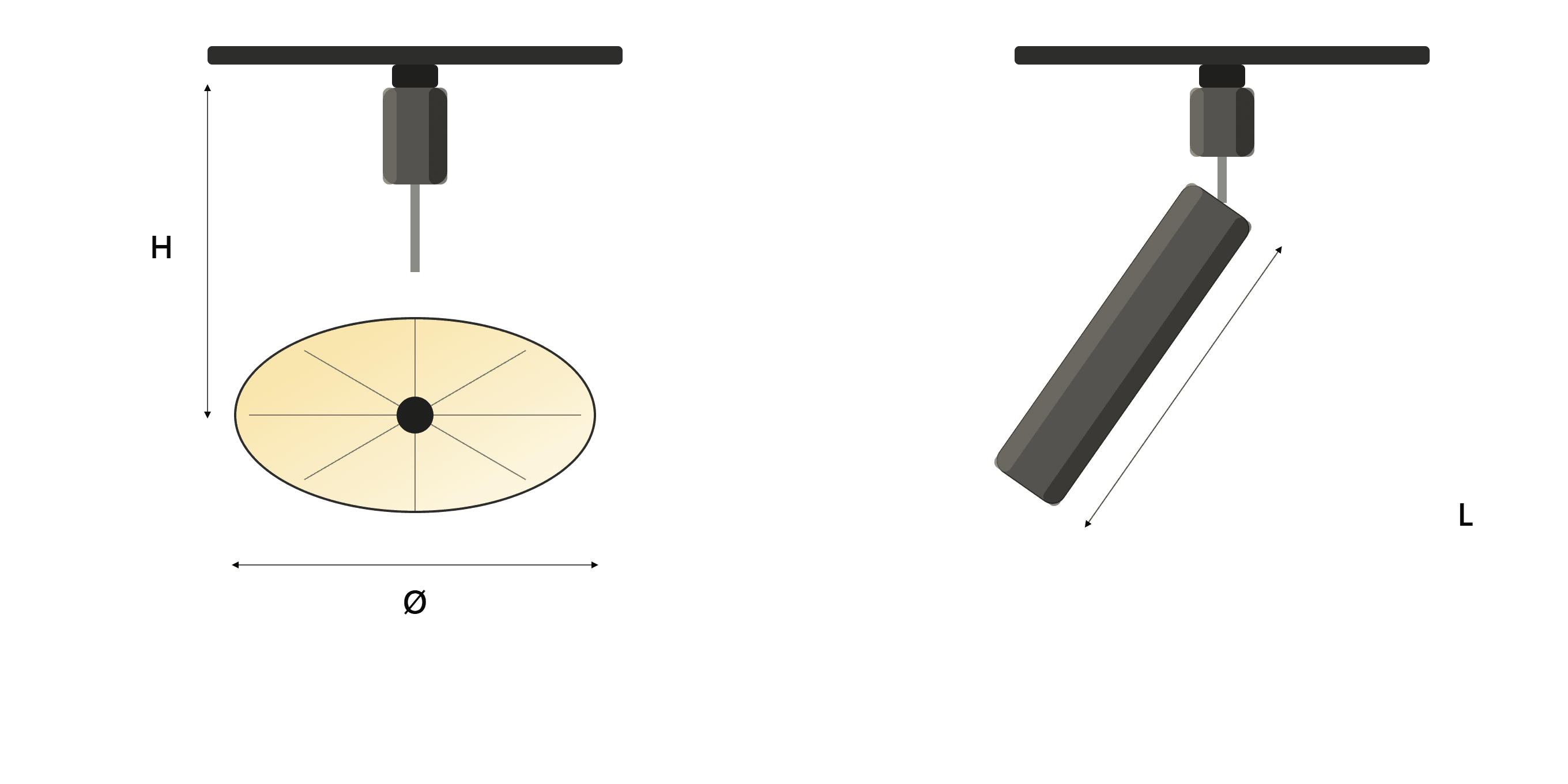

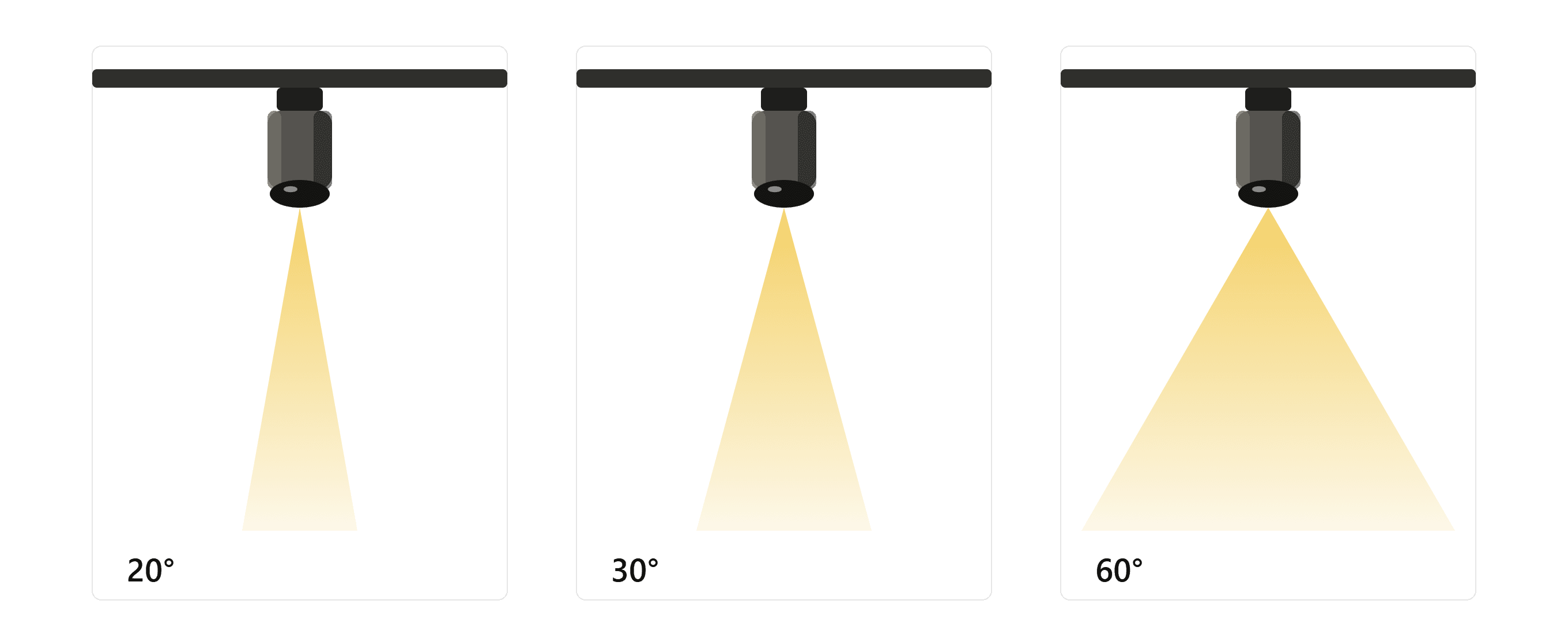

Prepared catalogue photometric and dimensional reference material — shared across configurations of this Product Series.
Focused accent lighting for products and displays.
Adjustable lighting for product presentation and focal points.
Precise accent lighting for artwork and changing displays.
Track lighting for reception, dining and guest environments.
Flexible accent and general lighting for project interiors.
Focused accent lighting for products and displays.
Discuss the exact configuration, output and project options with our technical team.
Talk to Our Technical Team
