Performance
Power8–42 W
Luminous Flux856–3,276 lm
Catalogue Efficiency78+ to 111+ lm/W by model
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.

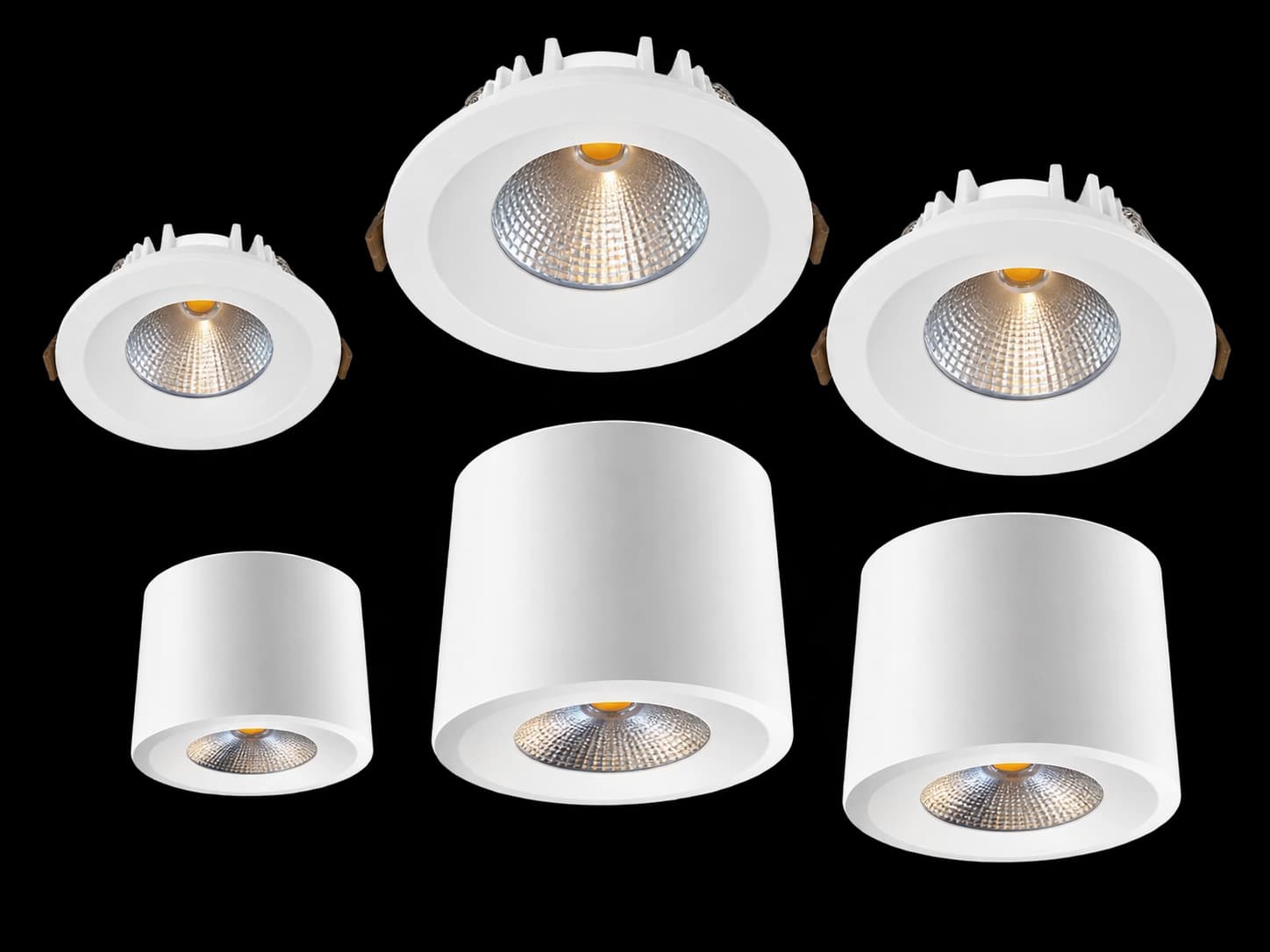

MCRH Round
Track & Downlight
Catalogue-verified round MCRH and square MCRKS recessed downlight forms; no codes are inferred between the two tables.
Exact MCRH Round catalogue schedule.
| Model / Catalogue Code | Power | Luminous Flux | Voltage | Frequency | Operating Temp. | Efficiency | CRI | CCT | Enquiry |
|---|---|---|---|---|---|---|---|---|---|
| LDB-MCRH3-8 | 8 W | 856 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 107+ lm/W | 80+ | 2700–6500 K | |
| LDB-MCRH3-12 | 12 W | 1,272 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 106+ lm/W | 80+ | 2700–6500 K | |
| LDB-MCRH3-19 | 19 W | 1,843 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 97+ lm/W | 80+ | 2700–6500 K | |
| LDB-MCRH4-12 | 12 W | 1,332 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 111+ lm/W | 80+ | 2700–6500 K | |
| LDB-MCRH4-19 | 19 W | 1,957 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 103+ lm/W | 80+ | 2700–6500 K | |
| LDB-MCRH4-26 | 26 W | 2,834 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 109+ lm/W | 80+ | 2700–6500 K | |
| LDB-MCRH4-32 | 32 W | 3,104 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 97+ lm/W | 80+ | 2700–6500 K | |
| LDB-MCRH5-19 | 19 W | 1,634 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 86+ lm/W | 80+ | 2700–6500 K | |
| LDB-MCRH5-26 | 26 W | 2,340 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 90+ lm/W | 80+ | 2700–6500 K | |
| LDB-MCRH5-32 | 32 W | 2,784 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 87+ lm/W | 80+ | 2700–6500 K | |
| LDB-MCRH5-42 | 42 W | 3,276 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 78+ lm/W | 80+ | 2700–6500 K |
Family IP references are not converted into universal per-code protection ratings.
Functions shown here are catalogue-listed project options, not standard equipment on every order code.

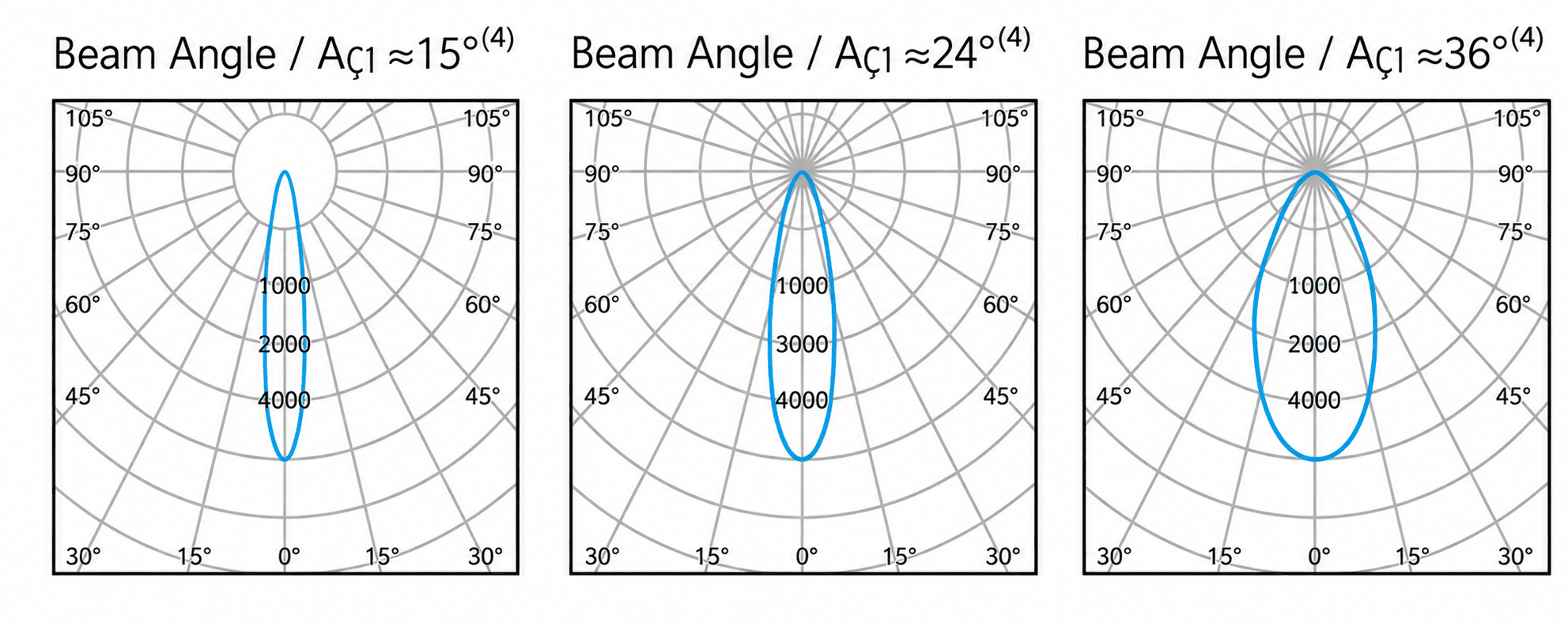

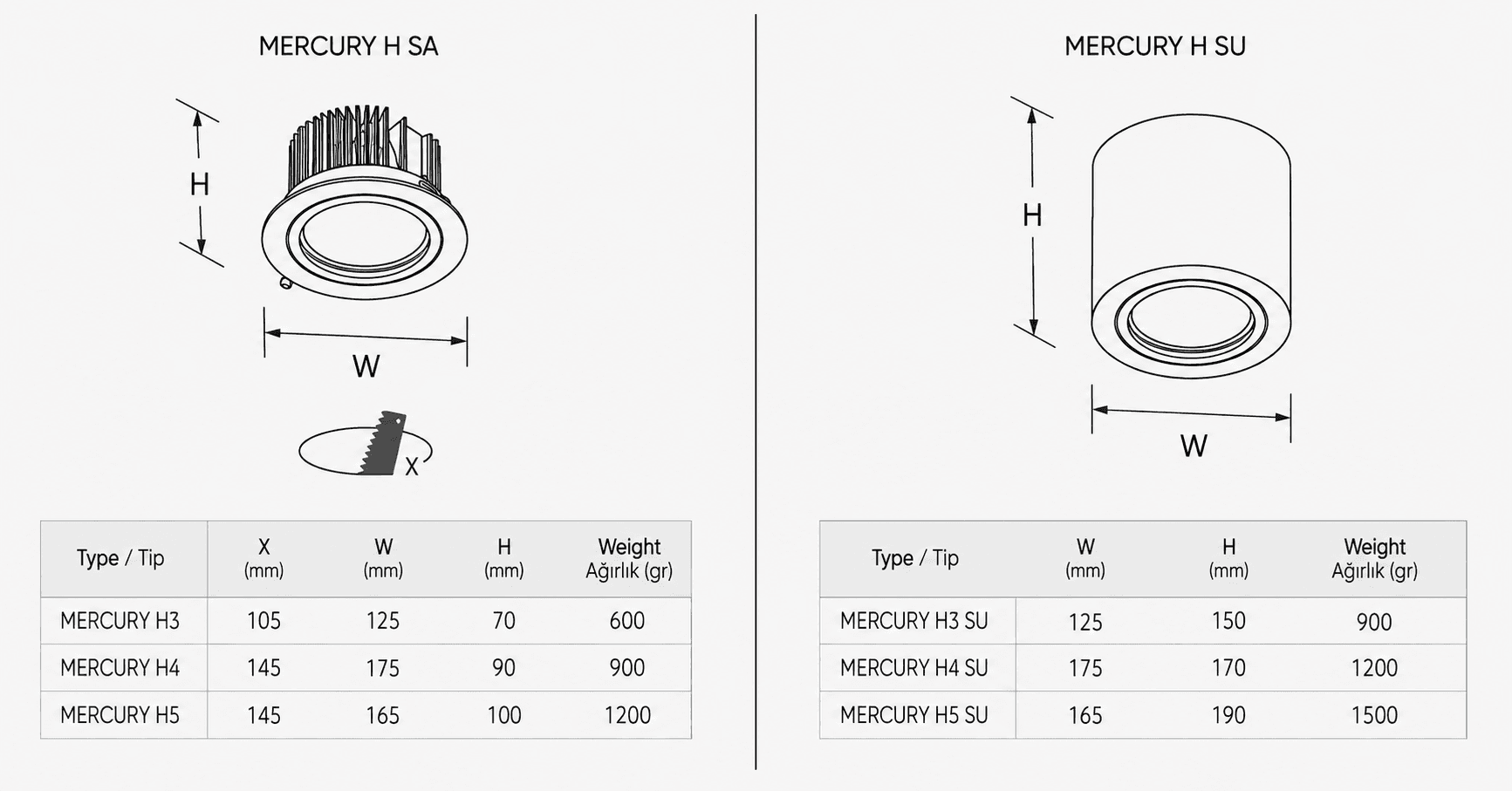

Prepared catalogue photometric and dimensional reference material — shared across configurations of this Product Series.
Recessed and adjustable lighting for sales areas.
General and accent lighting for workspaces.
Interior lighting for classrooms and shared learning areas.
General lighting for hospital circulation and public areas.
Project downlighting for designed commercial interiors.
Recessed and adjustable lighting for sales areas.
Discuss the exact configuration, output and project options with our technical team.
