Performance
Power8–25 W
Luminous Flux1,206–1,600 lm
Catalogue Efficiency64+ to 69+ lm/W
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.
STRN

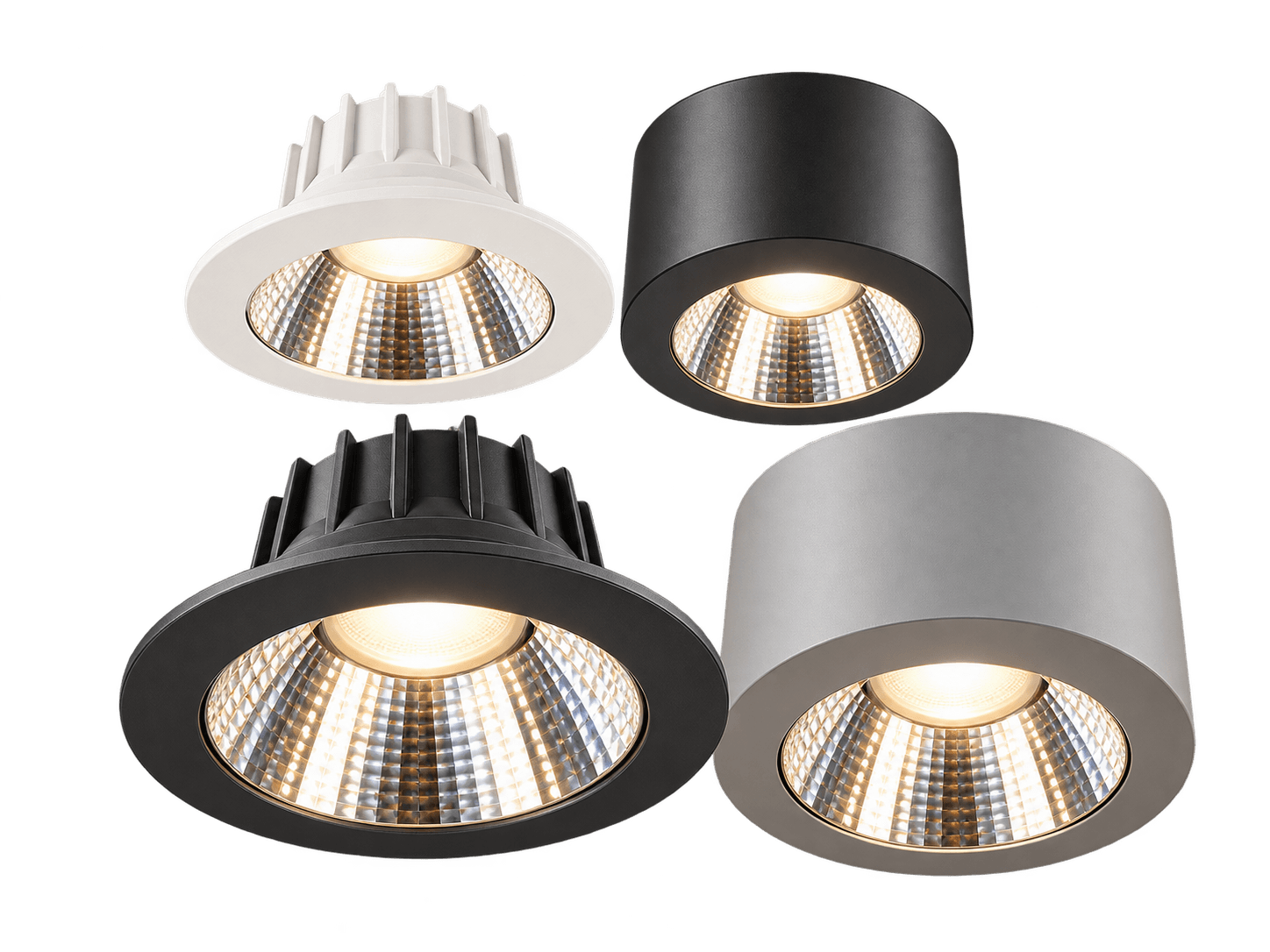

Track & Downlight
Source-backed STRN and SIGMA compact downlight configurations from catalogue pages 87 and 88.
Exact STRN catalogue schedule.
| Model / Catalogue Code | Power | Luminous Flux | Voltage | Frequency | Operating Temp. | Efficiency | CRI | CCT | Dimensions | Enquiry |
|---|---|---|---|---|---|---|---|---|---|---|
| LDB-STRN6-8 | 8 W | 1,206 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 67+ lm/W | 80+ | 2700–6500 K | Ø225 mm | |
| LDB-STRN6-12 | 12 W | 1,408 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 64+ lm/W | 80+ | 2700–6500 K | Ø225 mm | |
| LDB-STRN6-15 | 15 W | 1,305 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 69+ lm/W | 80+ | 2700–6500 K | Ø225 mm | |
| LDB-STRN6-25 | 25 W | 1,600 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 64+ lm/W | 80+ | 2700–6500 K | Ø225 mm |
No verified IP rating is assigned to the STRN order codes.

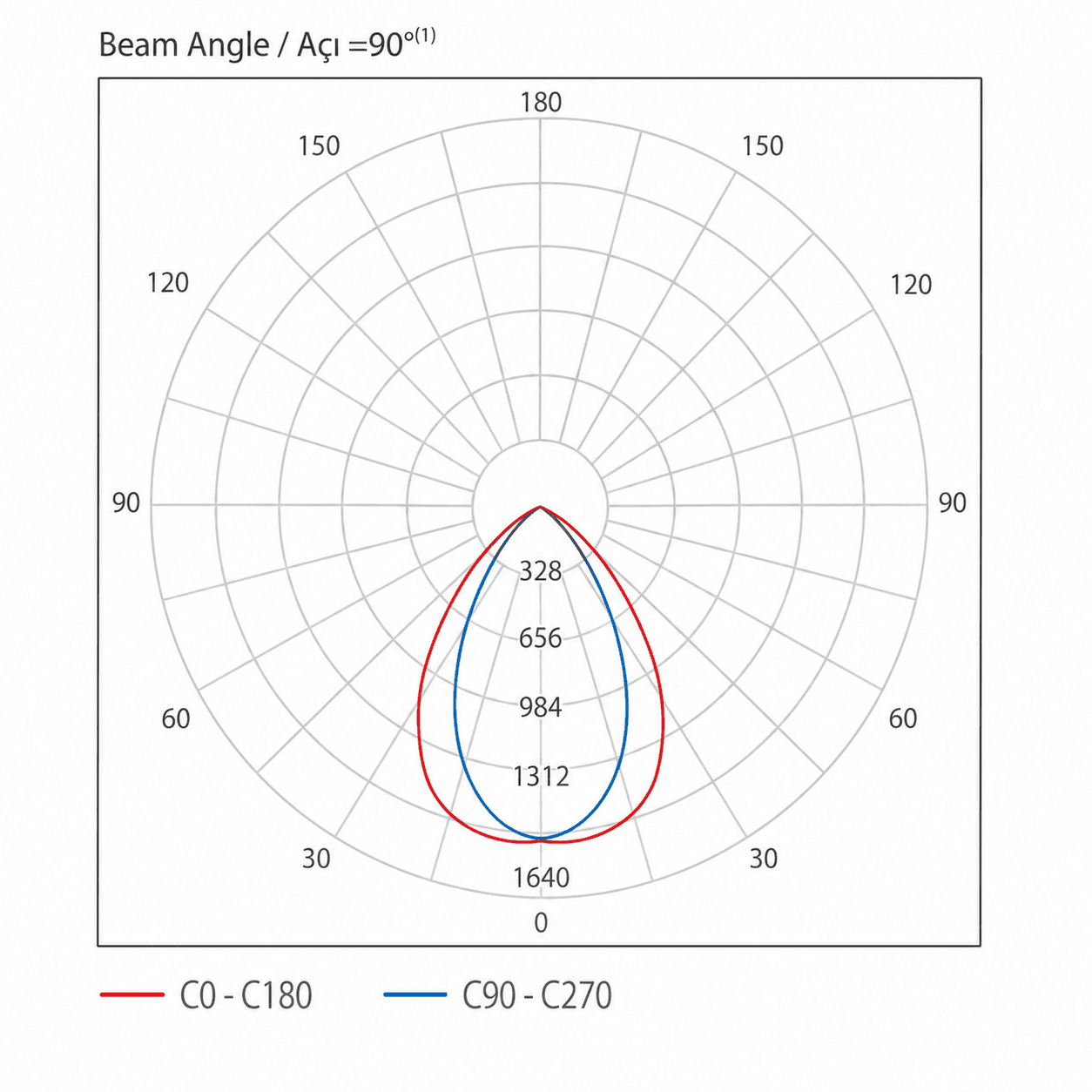

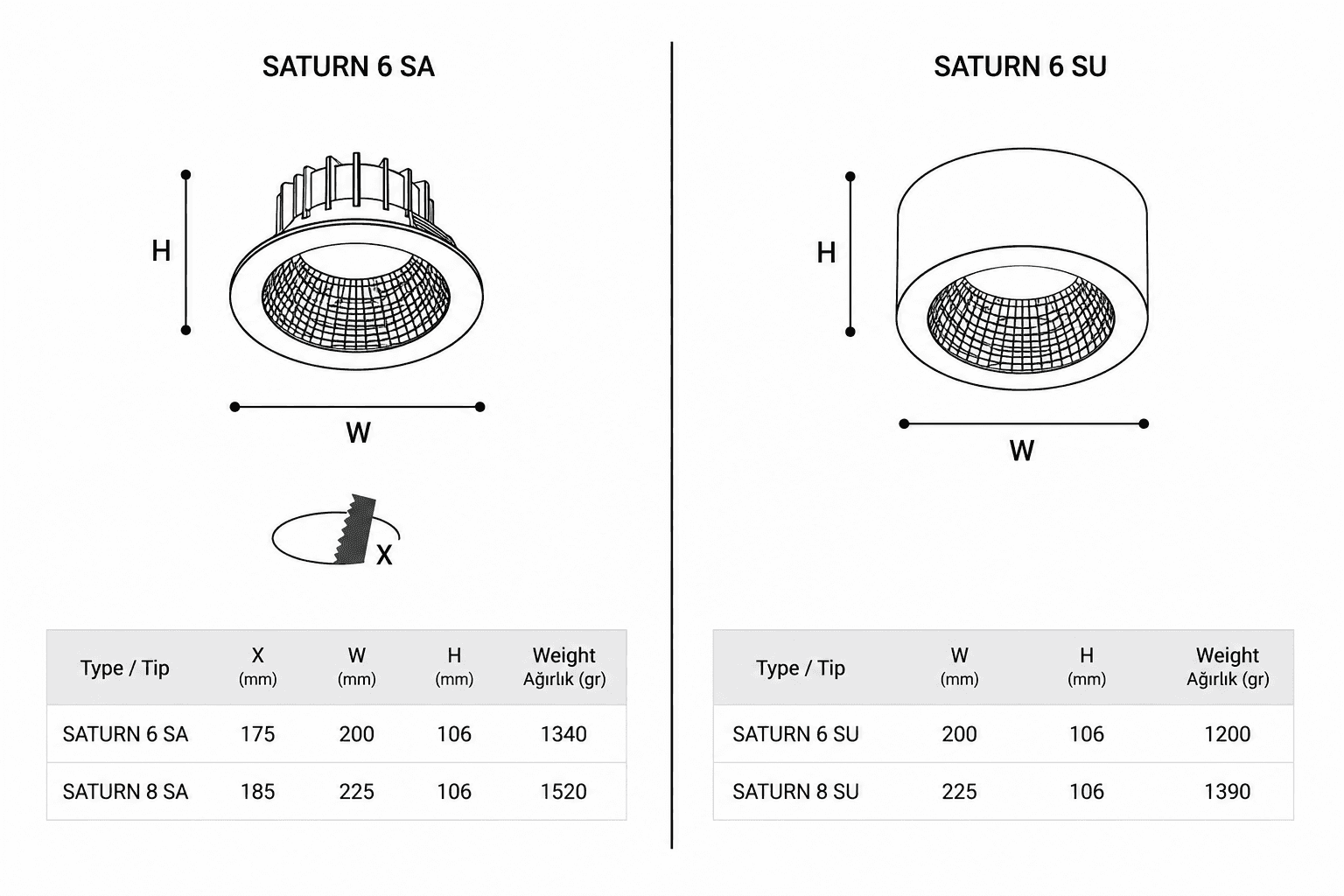

Prepared catalogue photometric and dimensional reference material — shared across configurations of this Product Series.

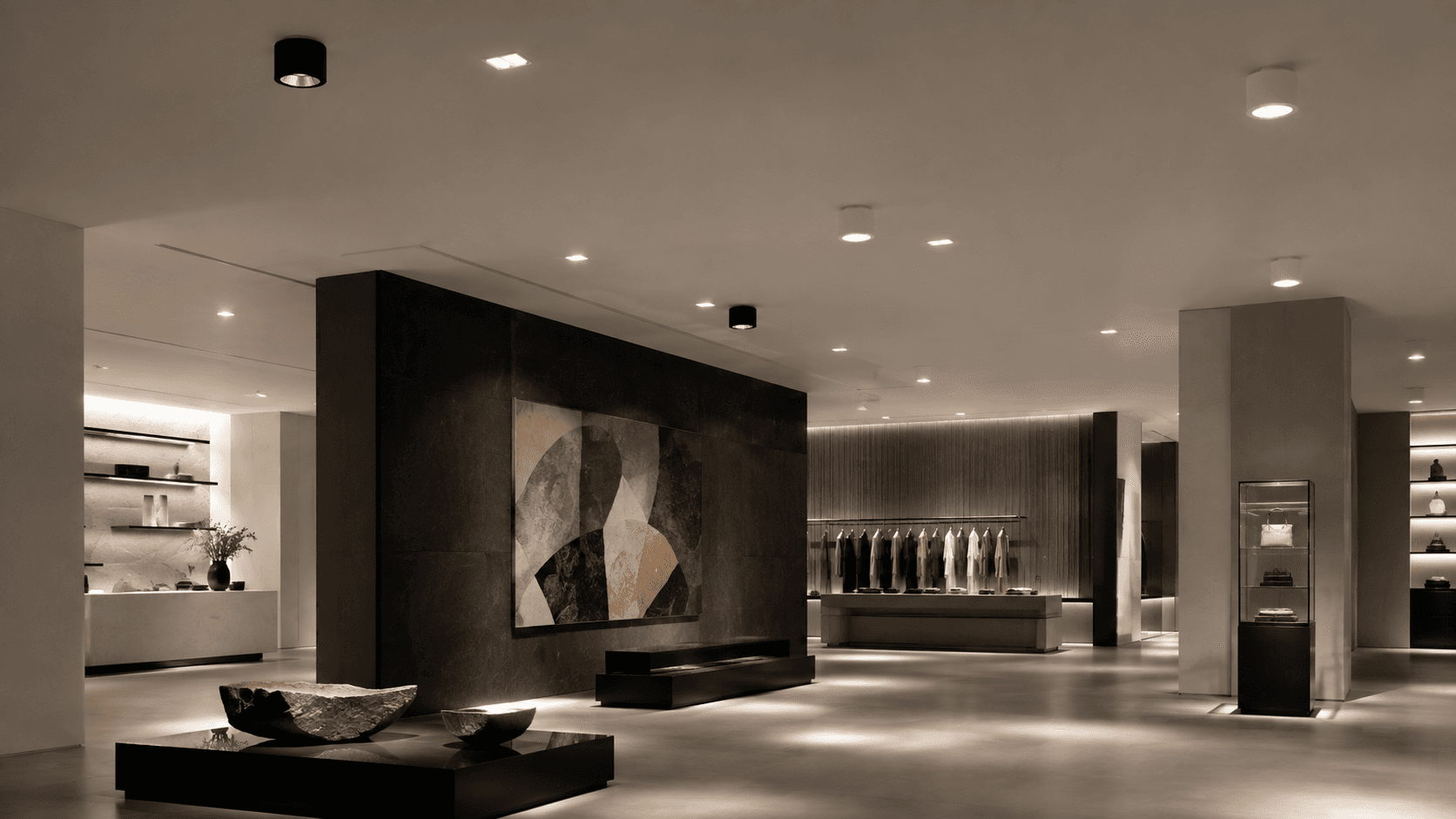

Recessed and adjustable lighting for sales areas.

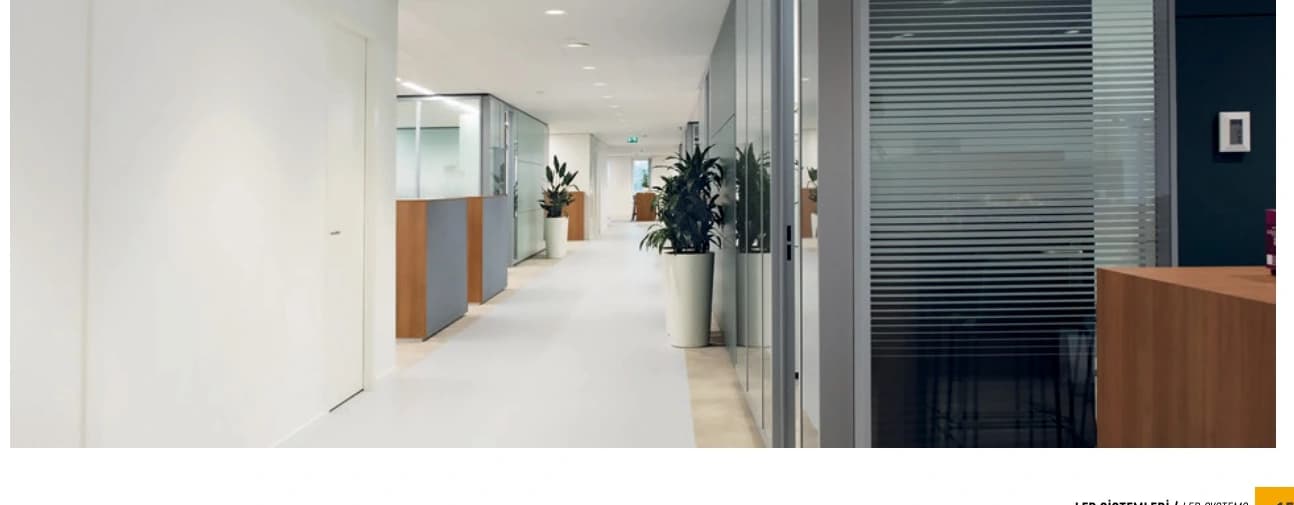

General and accent lighting for workspaces.

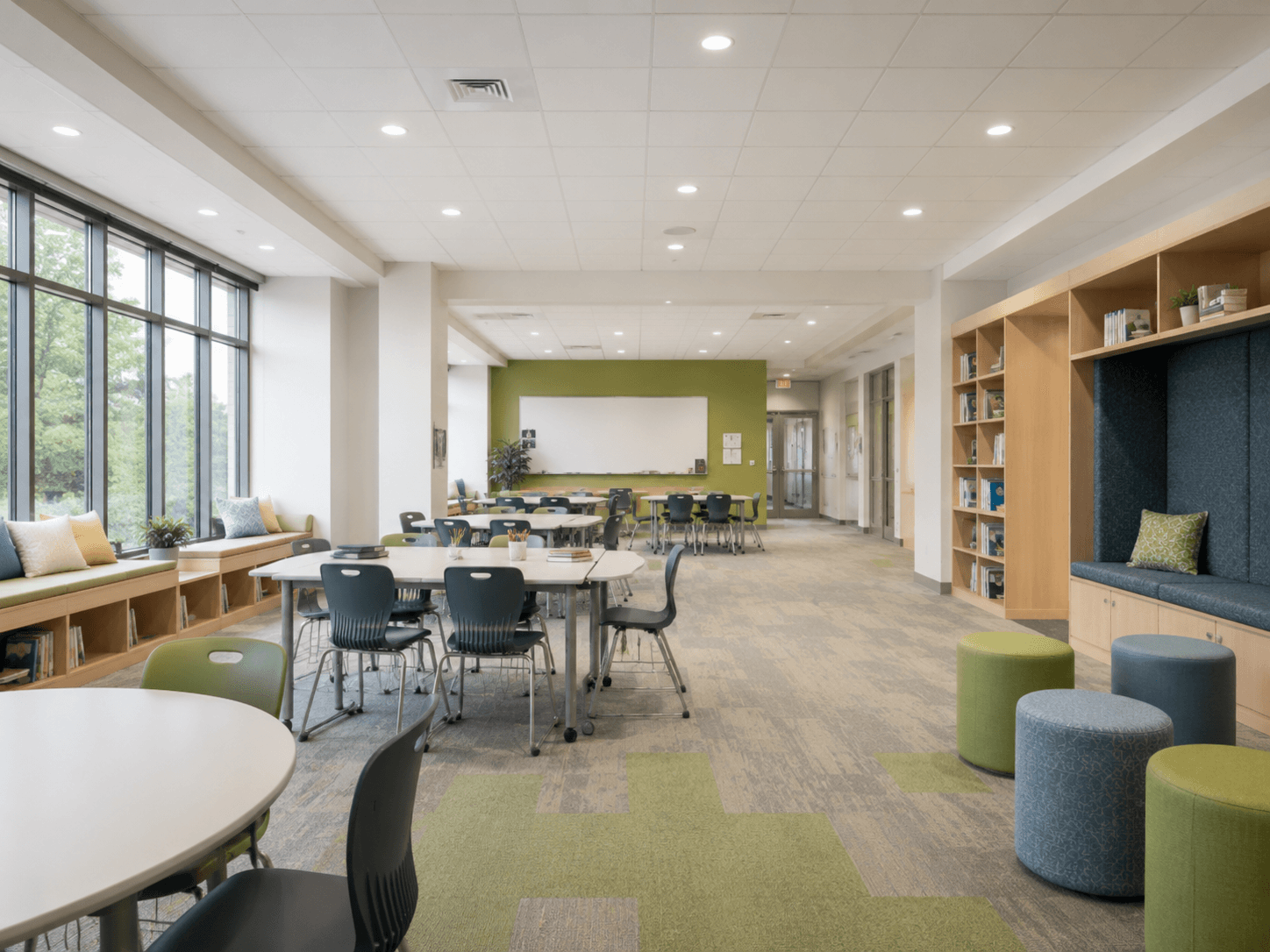

Interior lighting for classrooms and shared learning areas.

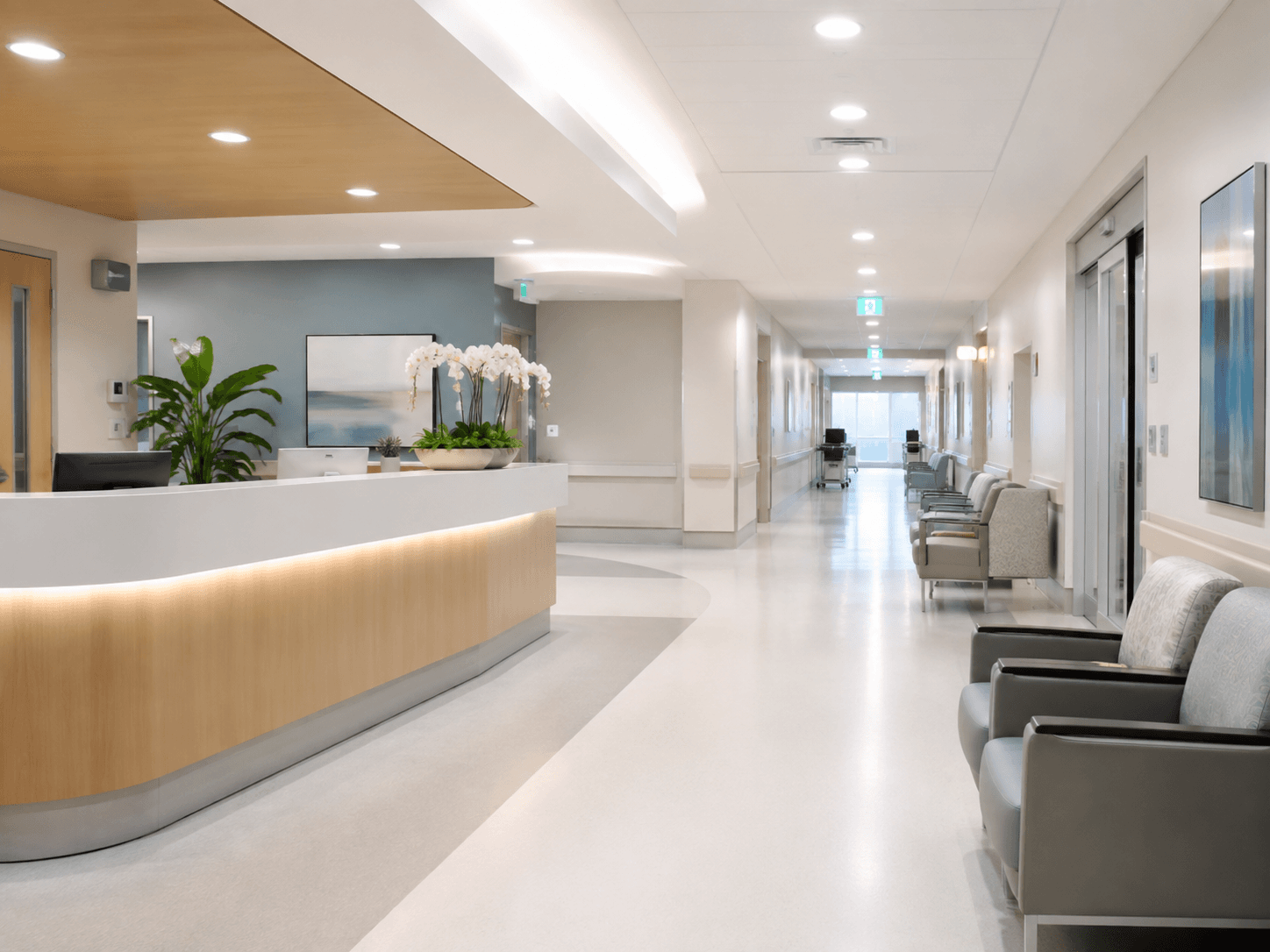

General lighting for hospital circulation and public areas.

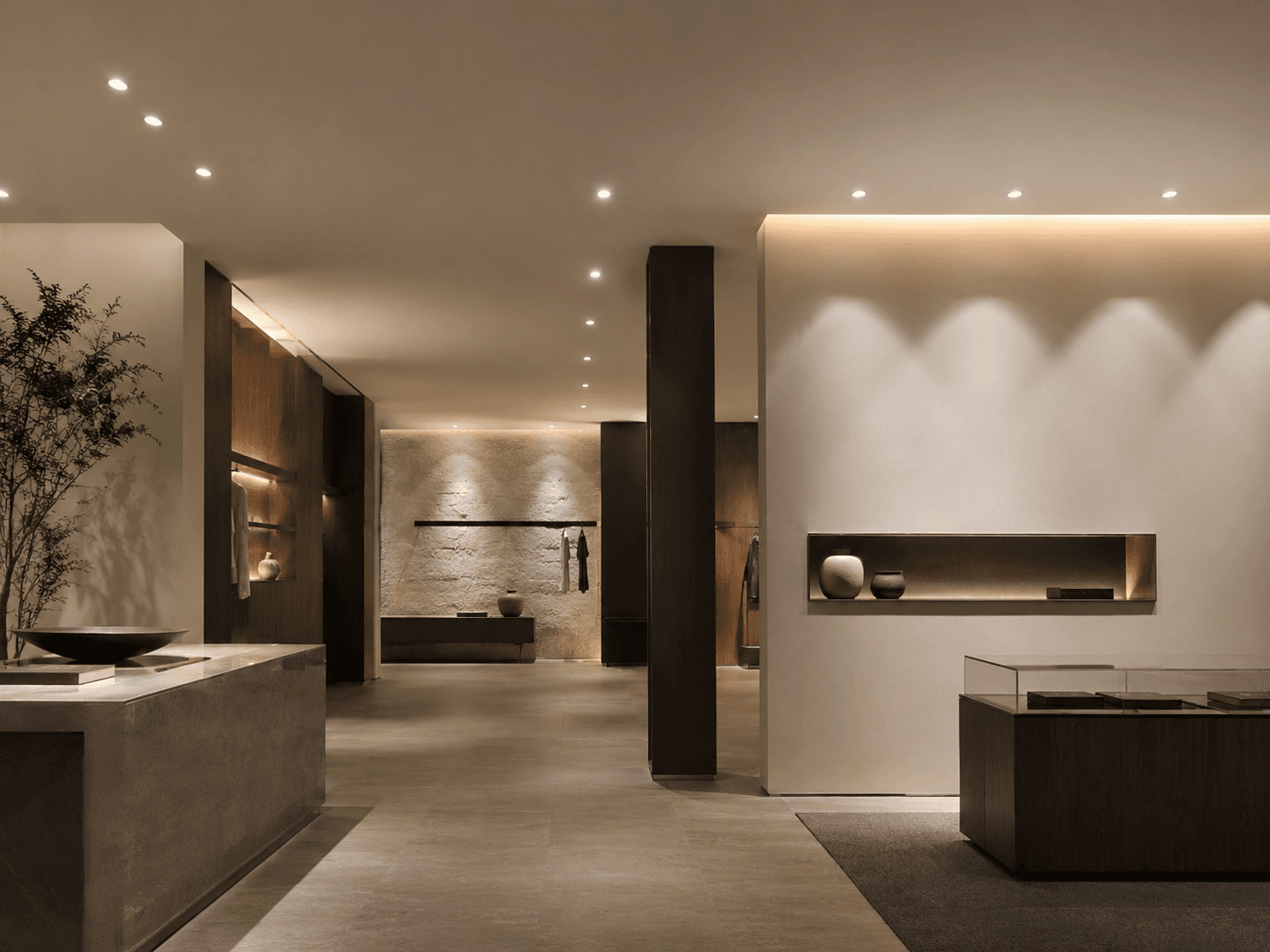

Project downlighting for designed commercial interiors.
Recessed and adjustable lighting for sales areas.
Discuss the exact configuration, output and project options with our technical team.
Talk to Our Technical Team
