Performance
Power8–126 W
Luminous Flux856–9,828 lm
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.
Mercury Frame
Track & Downlight

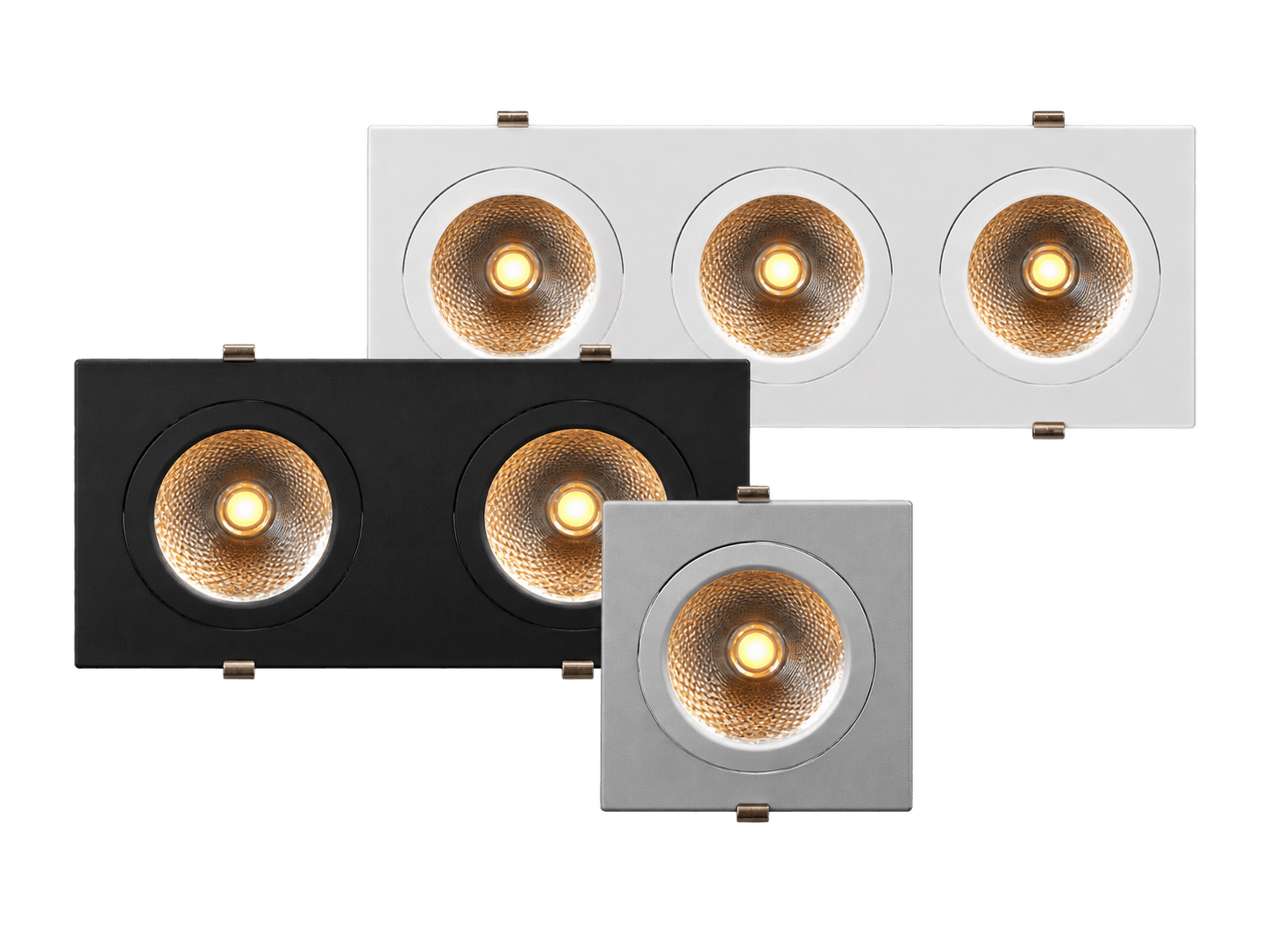

One-, two- and three-head recessed spotlight modules using complete source codes for Mercury, BOOM and GU10 configurations.
Exact Mercury Frame catalogue schedule.
| Model / Catalogue Code | Power | Luminous Flux | Voltage | Frequency | Operating Temp. | Efficiency | CRI | CCT | Dimensions | Enquiry |
|---|---|---|---|---|---|---|---|---|---|---|
| LDB-FR1MRCH3-8 | 8 W | 856 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 107+ lm/W | 80+ | 2700–6500 K | 130 × 130 mm | |
| LDB-FR2MRCH3-16 | 16 W | 1,712 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 107+ lm/W | 80+ | 2700–6500 K | 240 × 130 mm | |
| LDB-FR2MRCH3-24 | 24 W | 2,544 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 106+ lm/W | 80+ | 2700–6500 K | 240 × 130 mm | |
| LDB-FR2MRCH3-38 | 38 W | 3,686 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 97+ lm/W | 80+ | 2700–6500 K | 240 × 130 mm | |
| LDB-FR3MRCH3-36 | 36 W | 3,492 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 97+ lm/W | 80+ | 2700–6500 K | 350 × 130 mm | |
| LDB-FR3MRCH3-57 | 57 W | 5,529 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 97+ lm/W | 80+ | 2700–6500 K | 350 × 130 mm | |
| LDB-FR1MRCH5-32 | 32 W | 2,784 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 87+ lm/W | 80+ | 2700–6500 K | 198 × 198 mm | |
| LDB-FR2MRCH5-42 | 42 W | 3,276 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 78+ lm/W | 80+ | 2700–6500 K | 353 × 198 mm | |
| LDB-FR2MRCH5-64 | 64 W | 5,568 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 87+ lm/W | 80+ | 2700–6500 K | 353 × 198 mm | |
| LDB-FR2MRCH5-84 | 84 W | 6,552 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 78+ lm/W | 80+ | 2700–6500 K | 353 × 198 mm | |
| LDB-FR3MRCH5-96 | 96 W | 8,352 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 87+ lm/W | 80+ | 2700–6500 K | 508 × 198 mm | |
| LDB-FR3MRCH5-126 | 126 W | 9,828 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 78+ lm/W | 80+ | 2700–6500 K | 508 × 198 mm |
Functions shown here are catalogue-listed project options, not standard equipment on every order code.

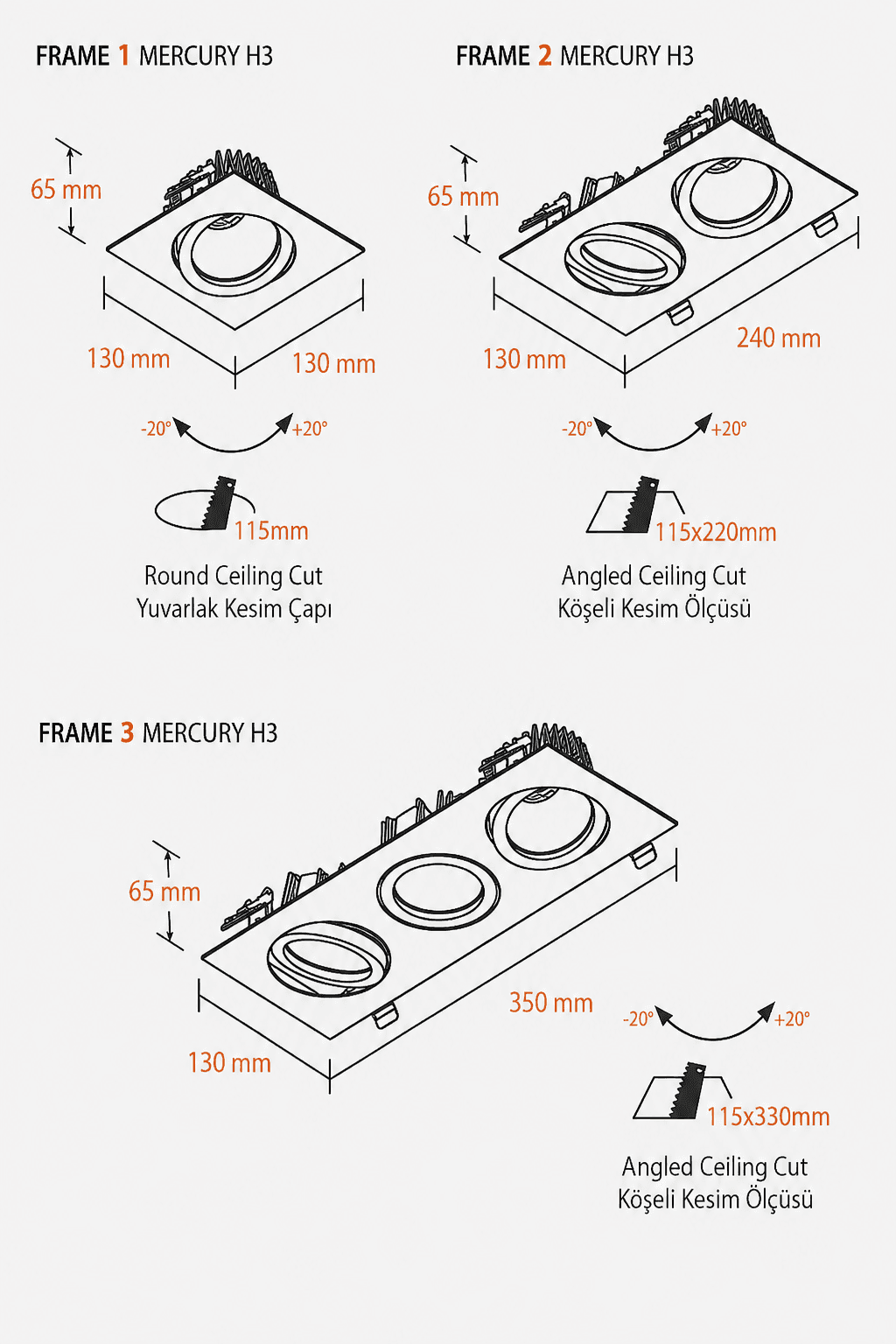

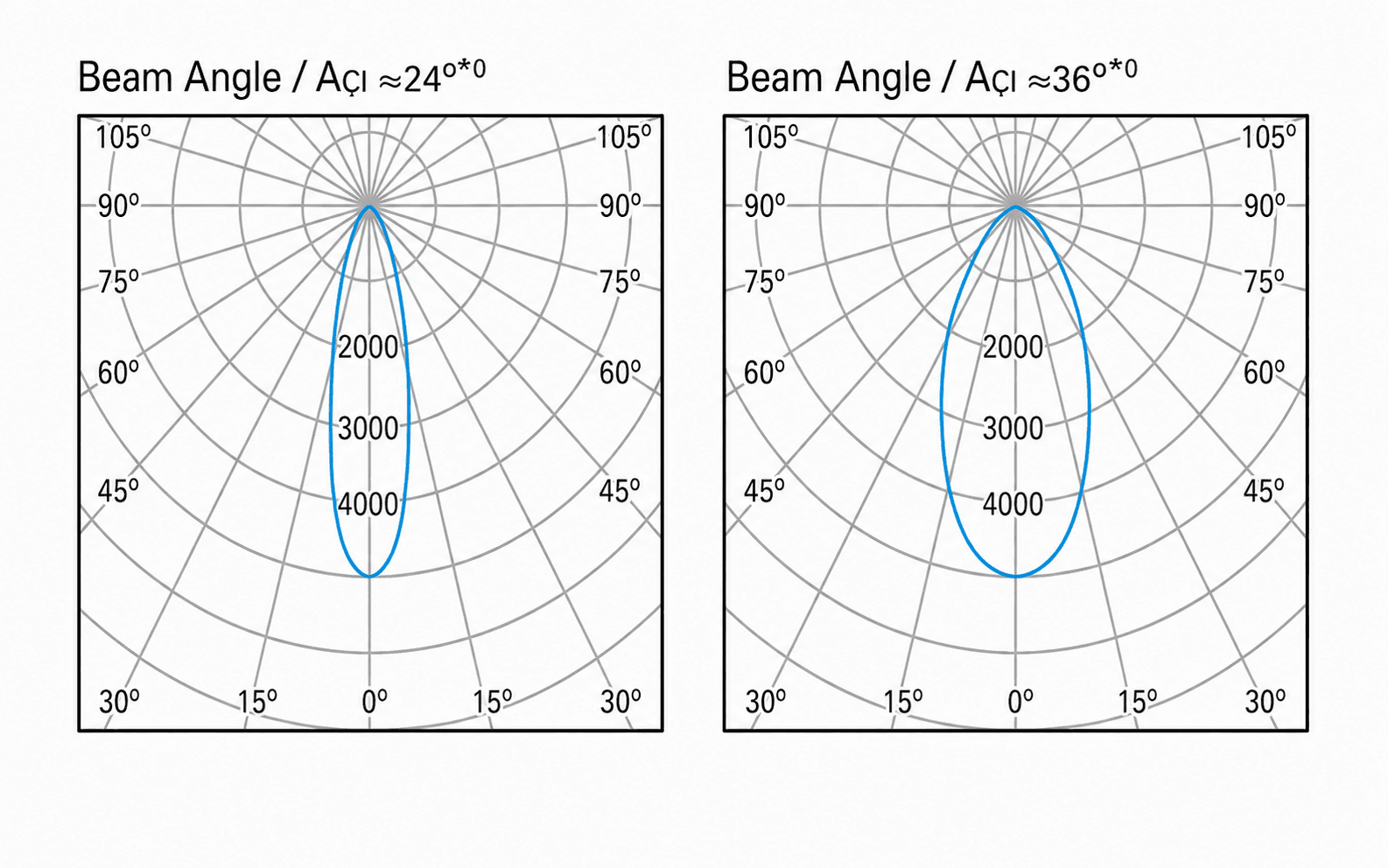

Prepared catalogue photometric and dimensional reference material — shared across configurations of this Product Series.

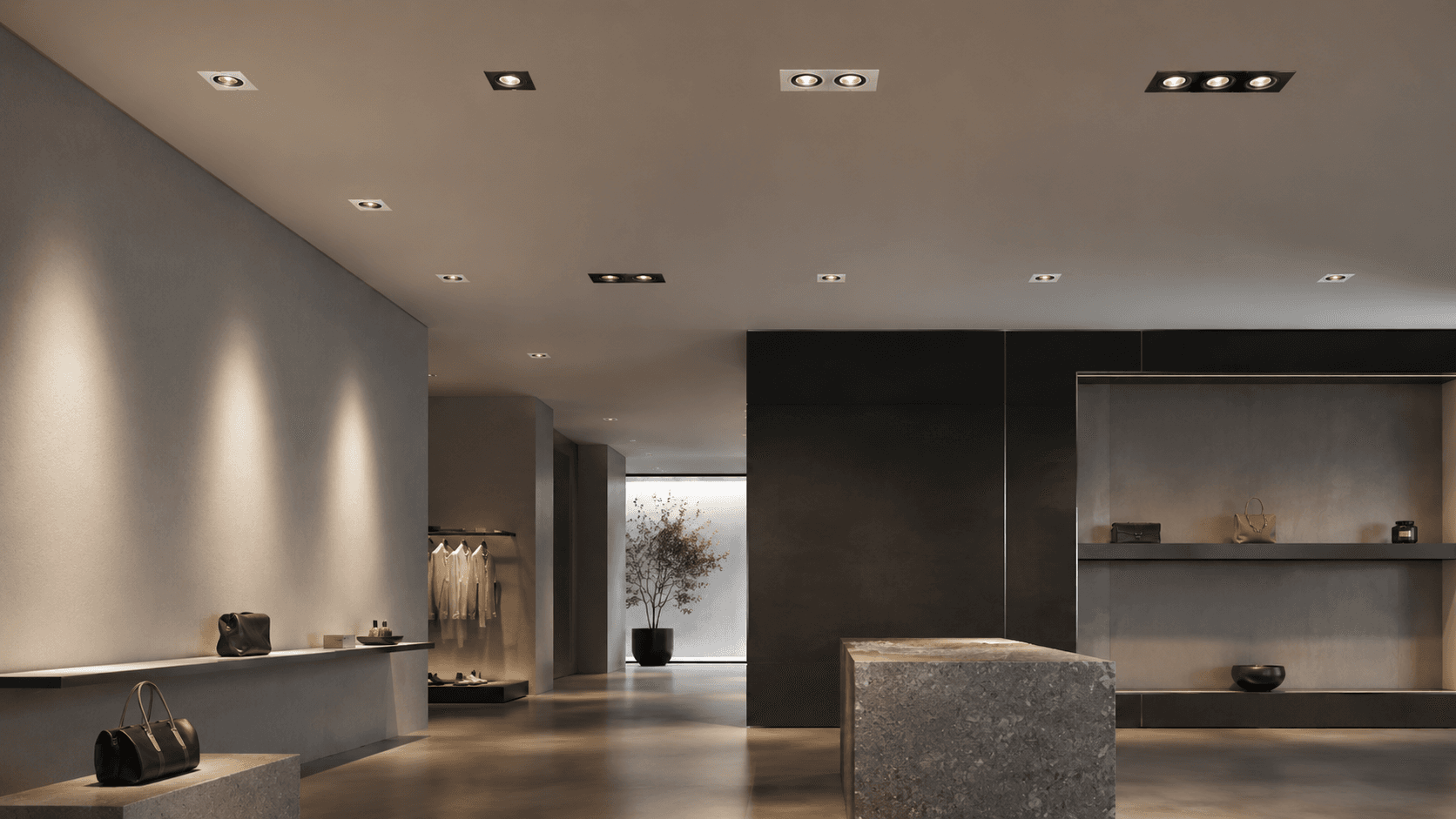

Recessed and adjustable lighting for sales areas.
General and accent lighting for workspaces.
Interior lighting for classrooms and shared learning areas.
General lighting for hospital circulation and public areas.
Project downlighting for designed commercial interiors.
Recessed and adjustable lighting for sales areas.
Discuss the exact configuration, output and project options with our technical team.
