Performance
Power13–34 W
Luminous Flux1,495–3,910 lm
Catalogue Efficiency>115 lm/W
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.
LNRT40
Track & Downlight

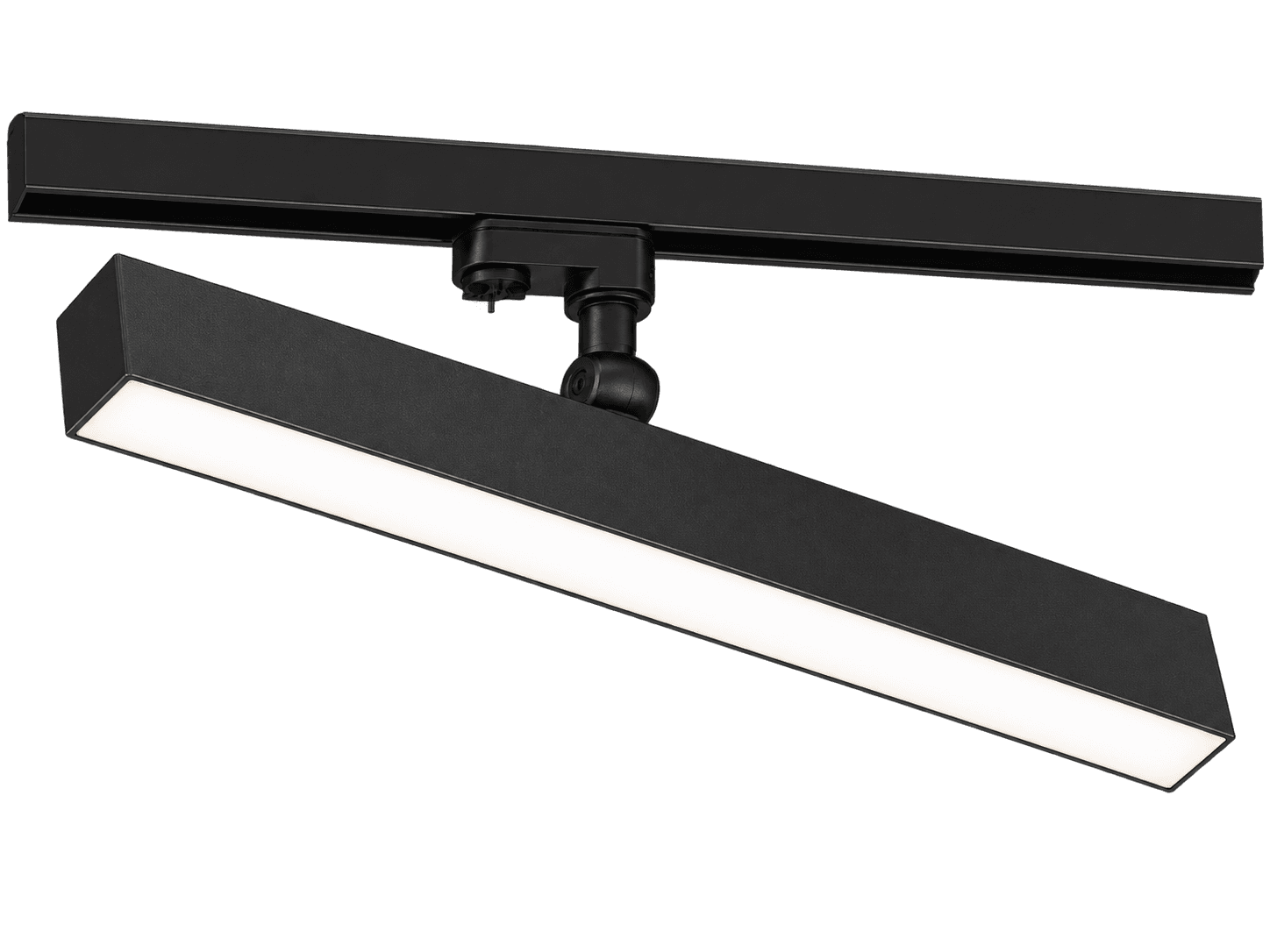

Linear magnetic-track modules for continuous and uniform illumination within architectural track-lighting systems.
Exact LNRT40 catalogue schedule.
| Model / Catalogue Code | Power | Luminous Flux | Voltage | Efficiency | CRI | CCT | Dimensions | IP | Enquiry |
|---|---|---|---|---|---|---|---|---|---|
| LDB-LNRT4060.13.02 | 13 W | 1,495 lm | 48 V DC | >115 lm/W | >80 | 3000–6500 K | 40 × 600 × 80 mm | IP20 | |
| LDB-LNRT4090.20.02 | 20 W | 2,300 lm | 48 V DC | >115 lm/W | >80 | 3000–6500 K | 40 × 900 × 80 mm | IP20 | |
| LDB-LNRT40120.27.02 | 27 W | 3,105 lm | 48 V DC | >115 lm/W | >80 | 3000–6500 K | 40 × 1200 × 80 mm | IP20 | |
| LDB-LNRT40150.34.02 | 34 W | 3,910 lm | 48 V DC | >115 lm/W | >80 | 3000–6500 K | 40 × 1500 × 80 mm | IP20 |
Functions shown here are catalogue-listed project options, not standard equipment on every order code.

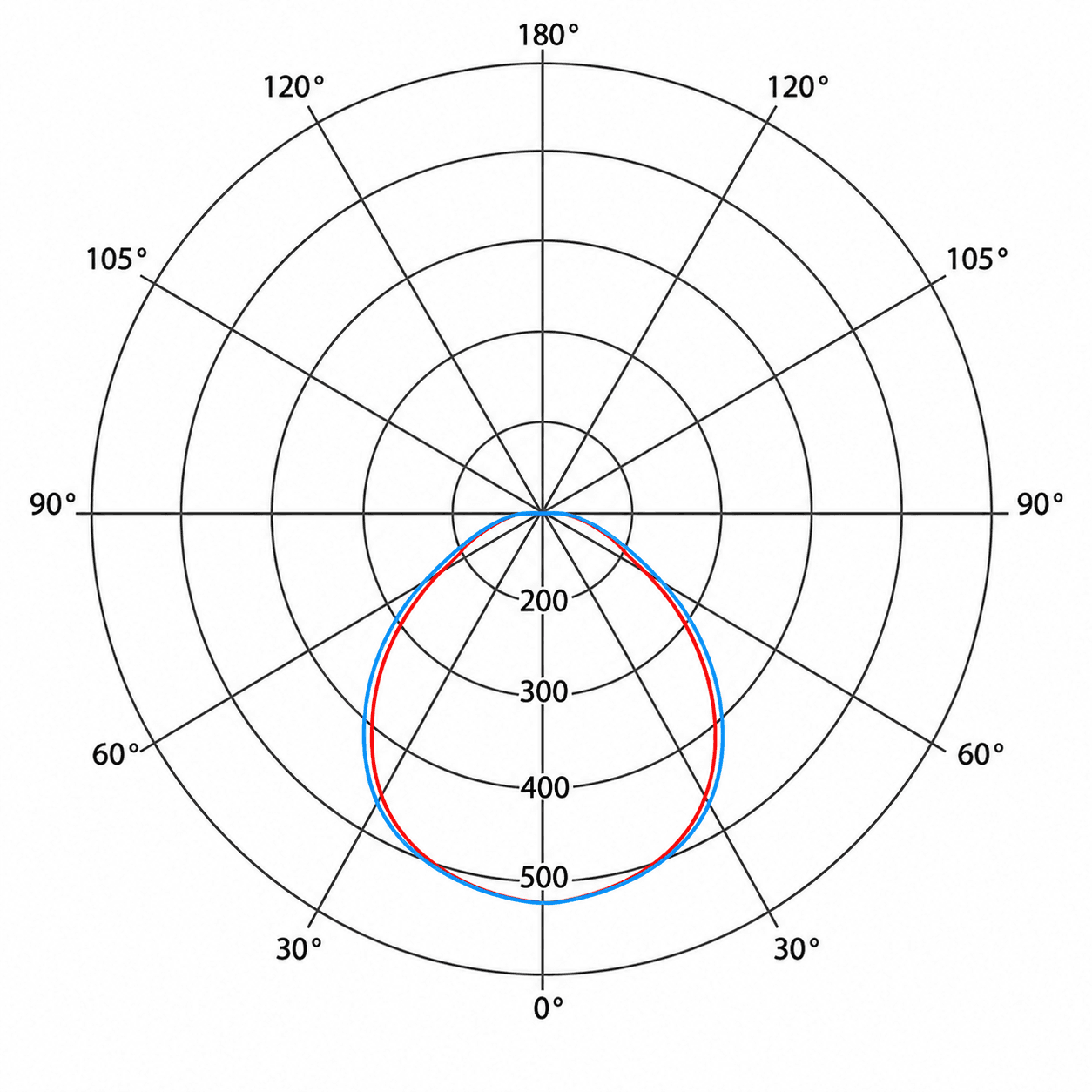

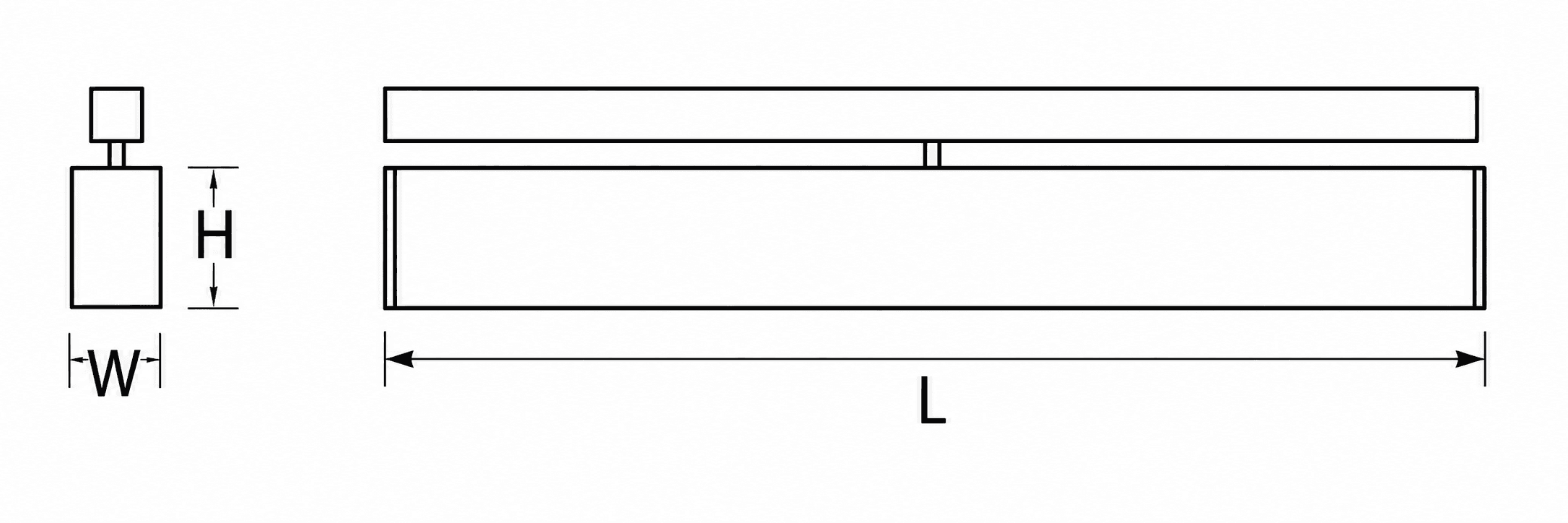

Prepared catalogue photometric and dimensional reference material — shared across configurations of this Product Series.

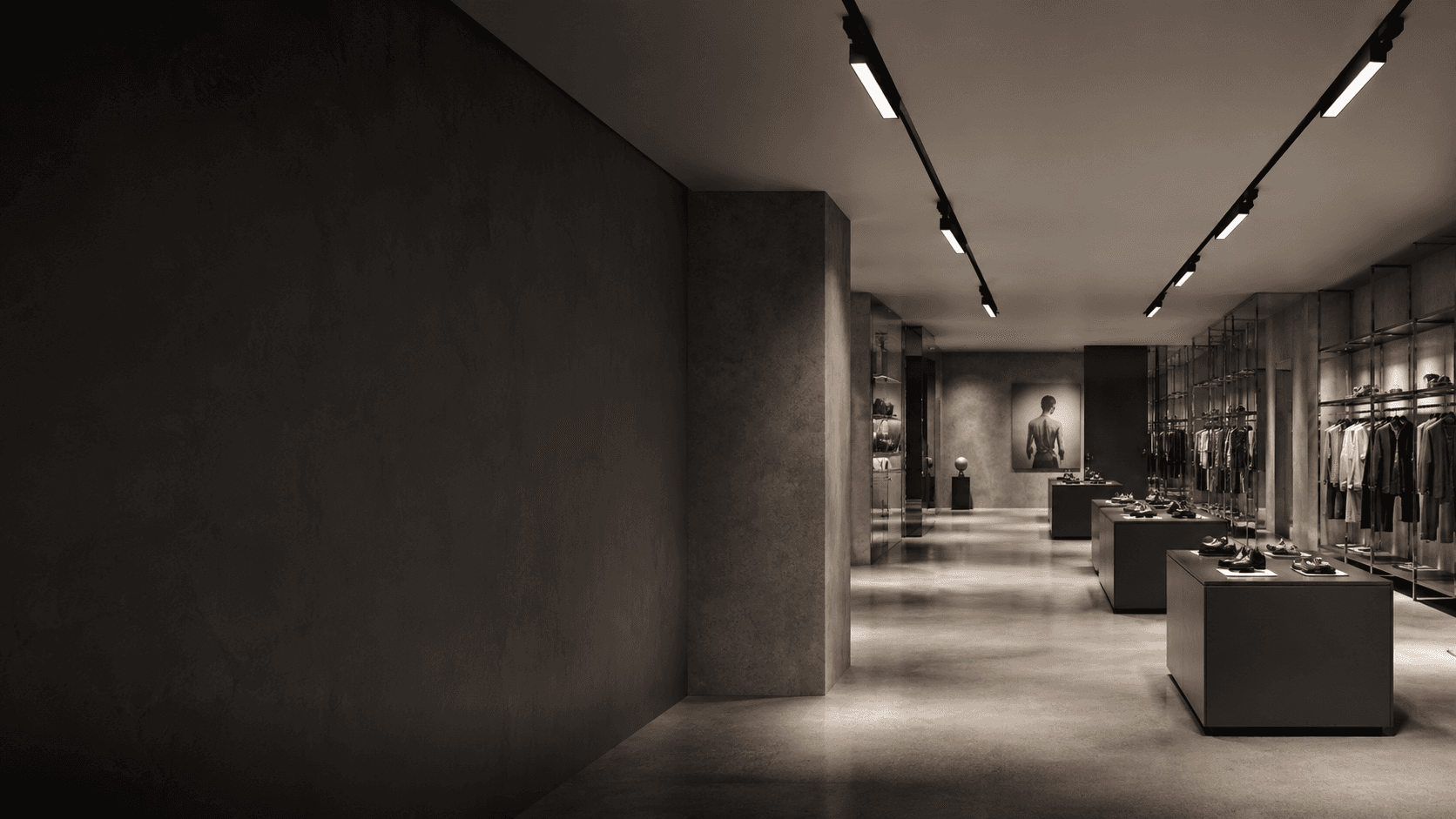

Continuous track-mounted lighting for sales floors.
Uniform linear lighting for modern workspaces.
Linear illumination for commercial circulation and shared areas.

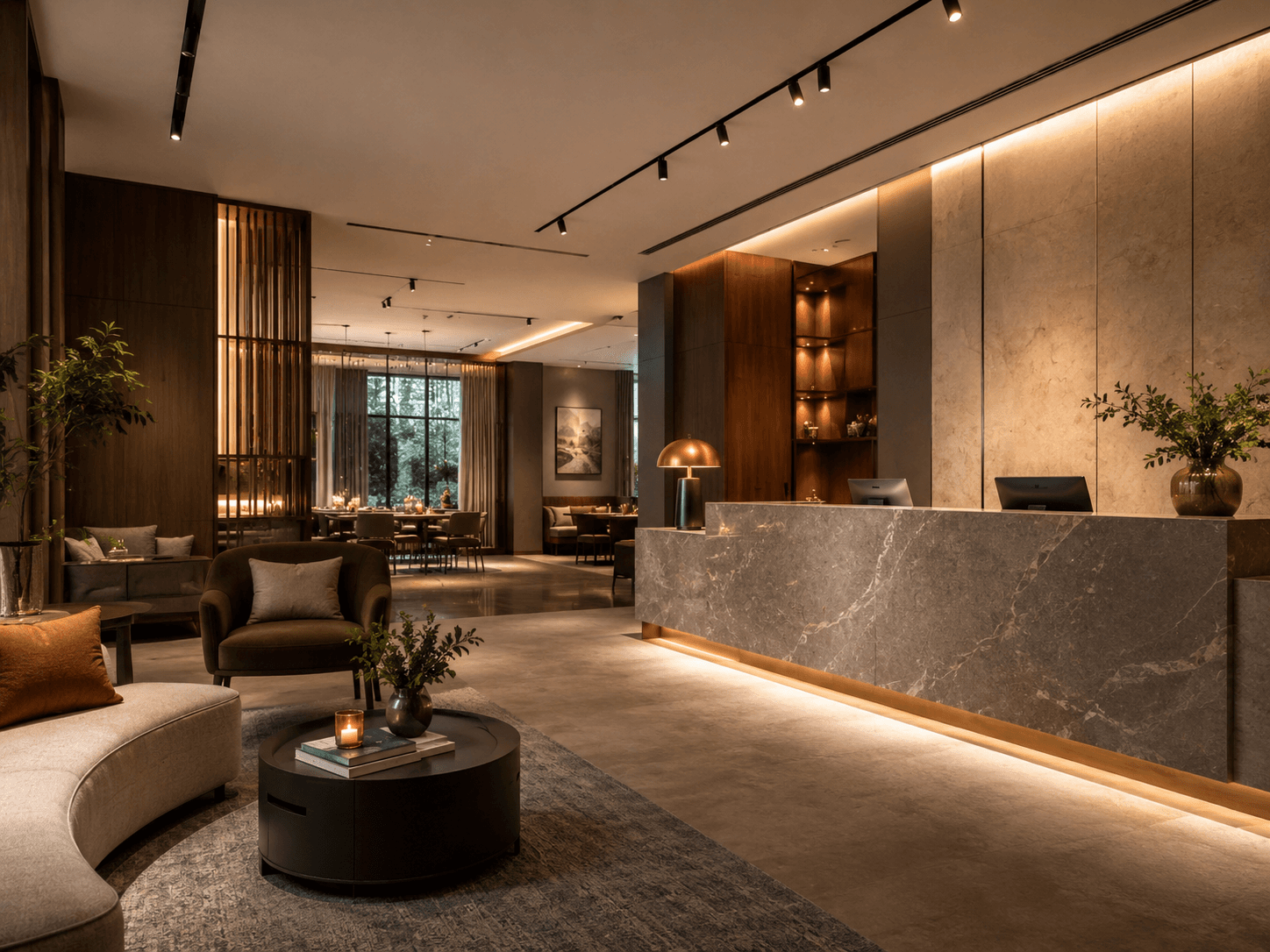

Architectural linear light for hospitality interiors.
Integrated linear track modules for designed interior schemes.
Continuous track-mounted lighting for sales floors.
Discuss the exact configuration, output and project options with our technical team.
Talk to Our Technical Team
