Performance
Power8–20 W
Luminous Flux960–2,400 lm
Catalogue Efficiency>120 lm/W
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.
CYLP70
Track & Downlight

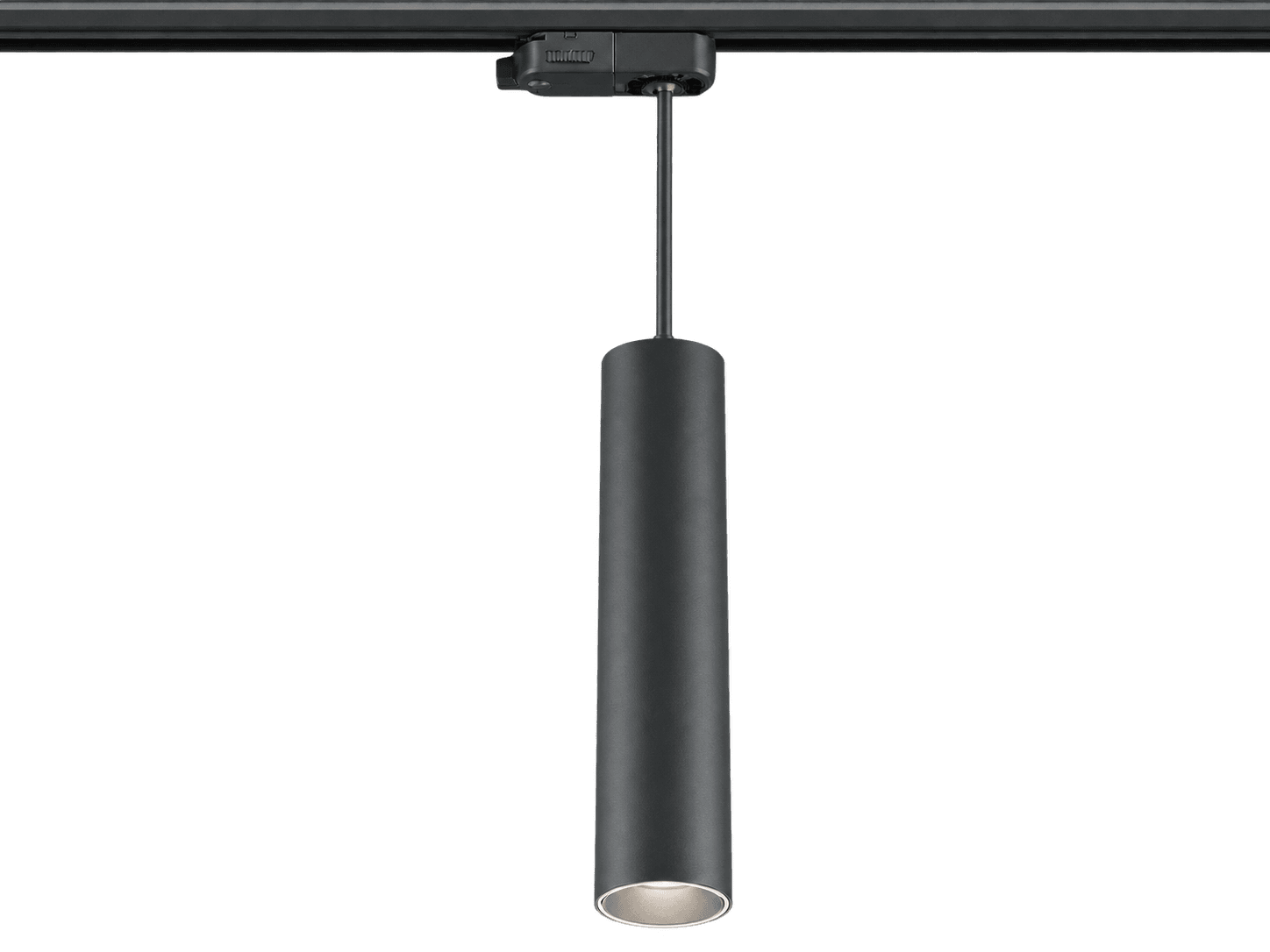

Pendant magnetic-track family for focused vertical and decorative accent illumination.
Exact CYLP70 catalogue schedule.

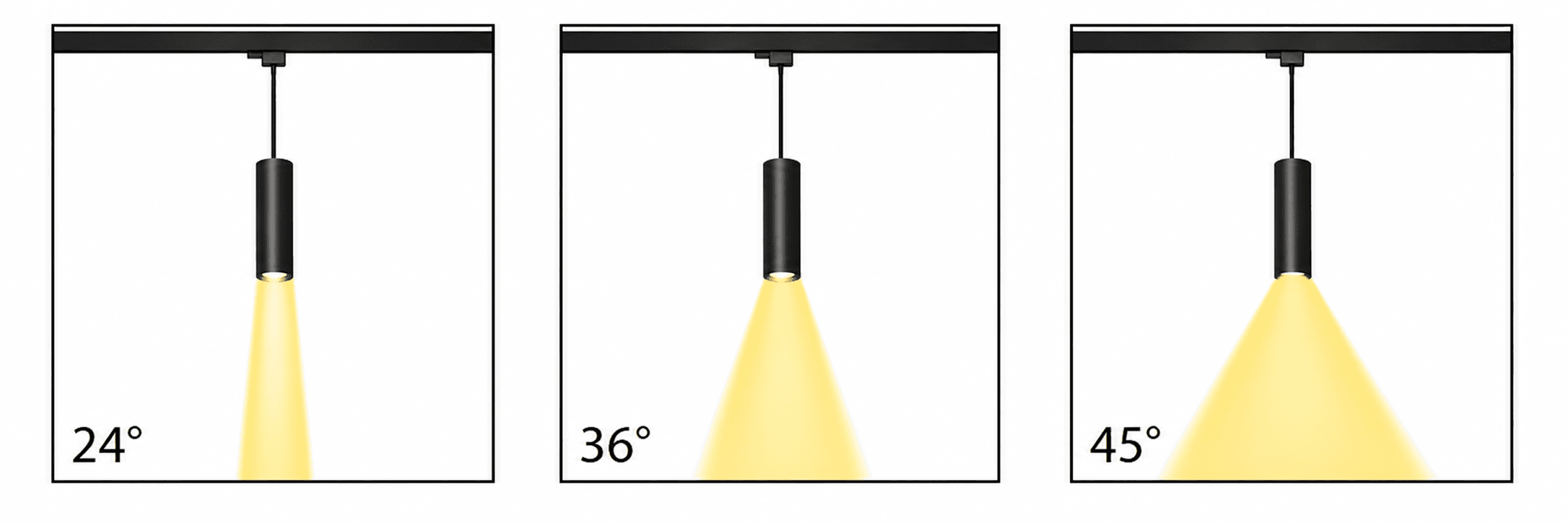

| Model / Catalogue Code | Power | Luminous Flux | Voltage | Operating Temp. | Efficiency | CRI | CCT | Beam Options | Dimensions | IP | Enquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LDB-CYLP70.08.02 | 8 W | 960 lm | 48 V DC | −20 to +35 °C | >120 lm/W | >80 | 2700–6500 K | 24° · 36° · 45° | 70 × 200 mm | IP20 | |
| LDB-CYLP70.10.02 | 10 W | 1,200 lm | 48 V DC | −20 to +35 °C | >120 lm/W | >80 | 2700–6500 K | 24° · 36° · 45° | 70 × 200 mm | IP20 | |
| LDB-CYLP70.15.02 | 15 W | 1,800 lm | 48 V DC | −20 to +35 °C | >120 lm/W | >80 | 2700–6500 K | 24° · 36° · 45° | 70 × 200 mm | IP20 | |
| LDB-CYLP70.20.02 | 20 W | 2,400 lm | 48 V DC | −20 to +35 °C | >120 lm/W | >80 | 2700–6500 K | 24° · 36° · 45° | 70 × 200 mm | IP20 |
The CYLP70 catalogue configuration combines magnetic-track connection with a suspended vertical luminaire.
Functions shown here are catalogue-listed project options, not standard equipment on every order code.

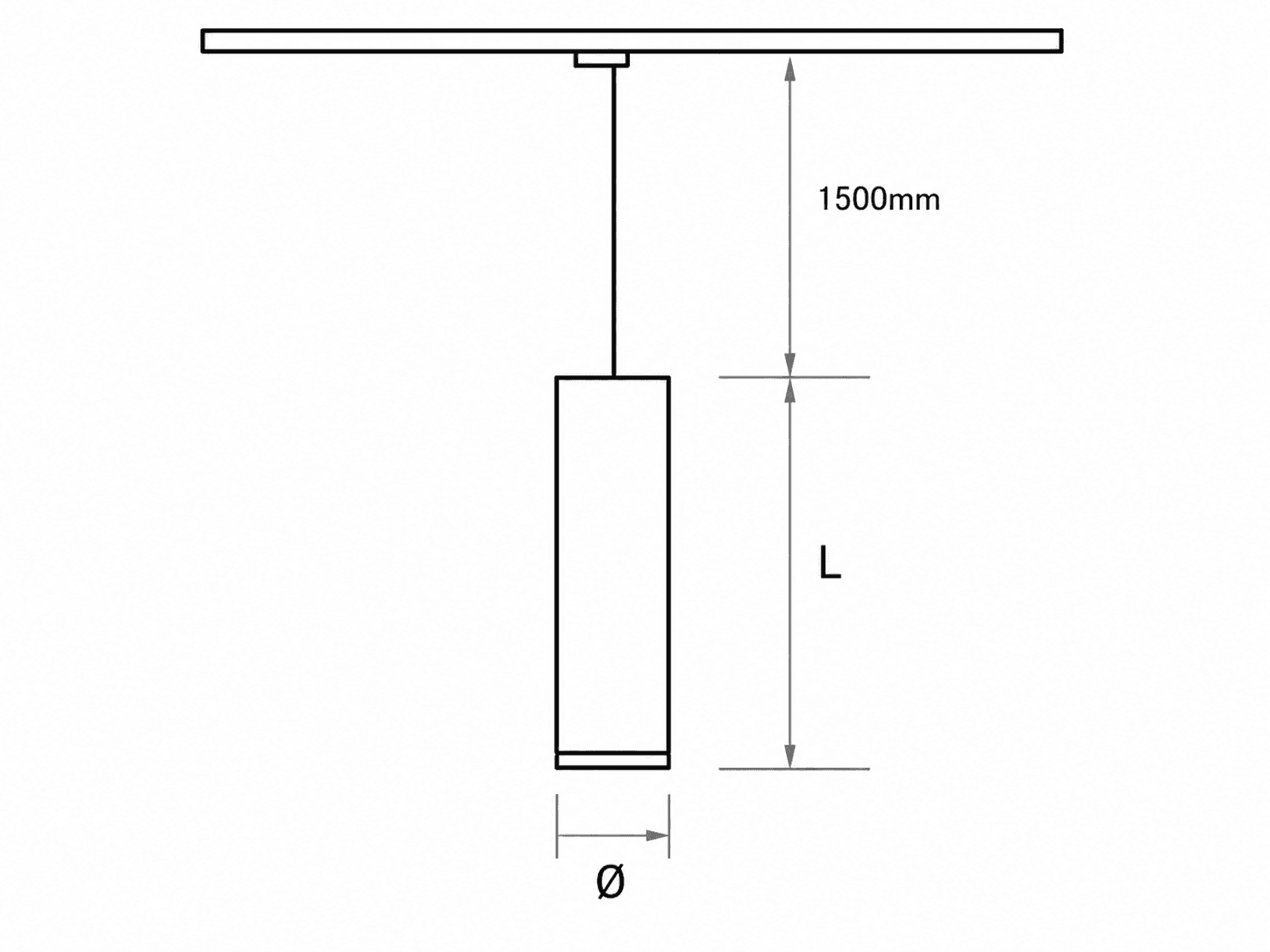

Prepared catalogue photometric and dimensional reference material — shared across configurations of this Product Series.
Focused accent lighting for products and displays.
Adjustable lighting for product presentation and focal points.
Precise accent lighting for artwork and changing displays.

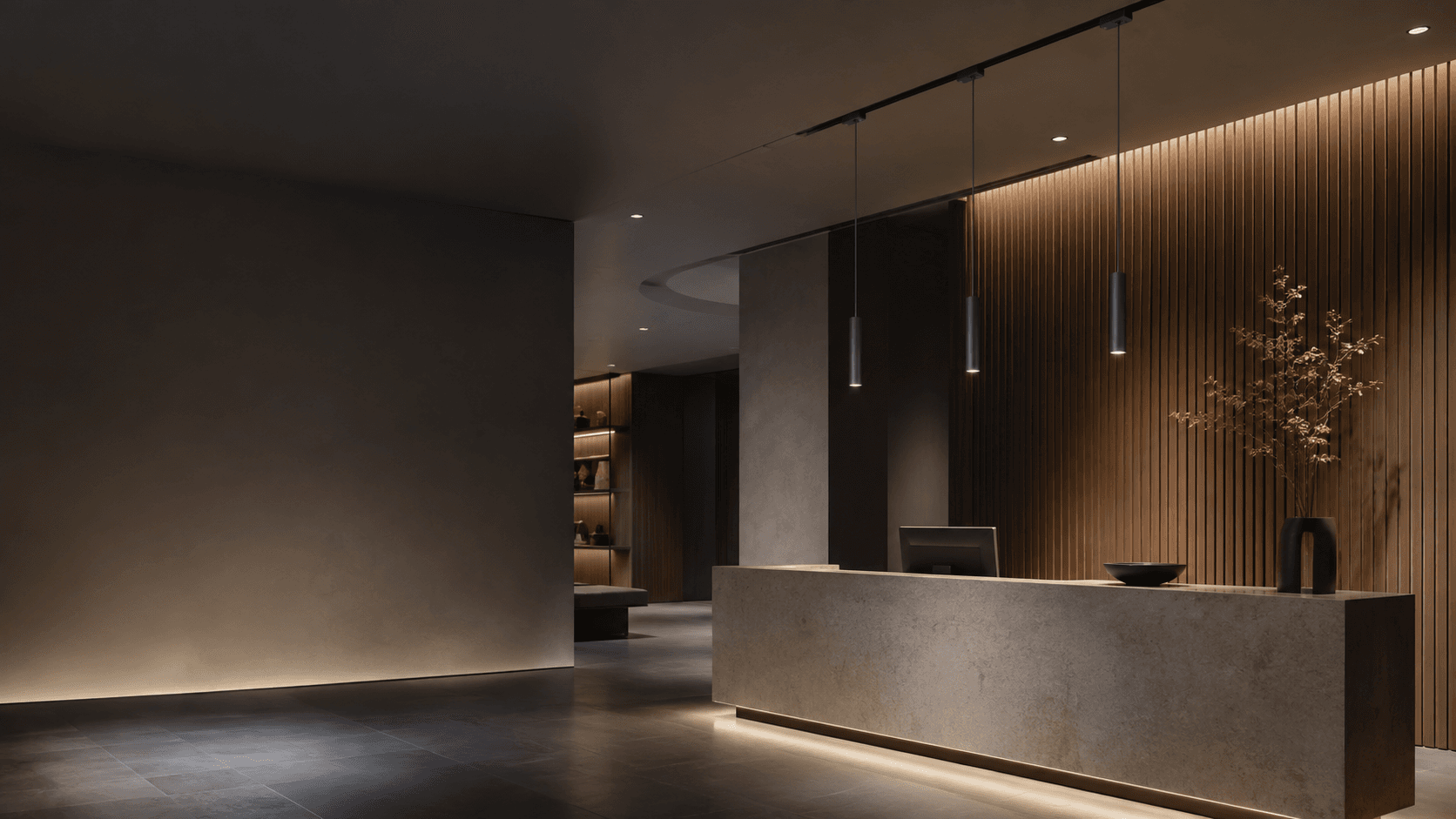

Track lighting for reception, dining and guest environments.
Flexible accent and general lighting for project interiors.
Focused accent lighting for products and displays.
Discuss the exact configuration, output and project options with our technical team.
Talk to Our Technical Team
