Performance
Power18–54 W
Luminous Flux1,980–5,940 lm
Catalogue Efficiency>110 lm/W
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.

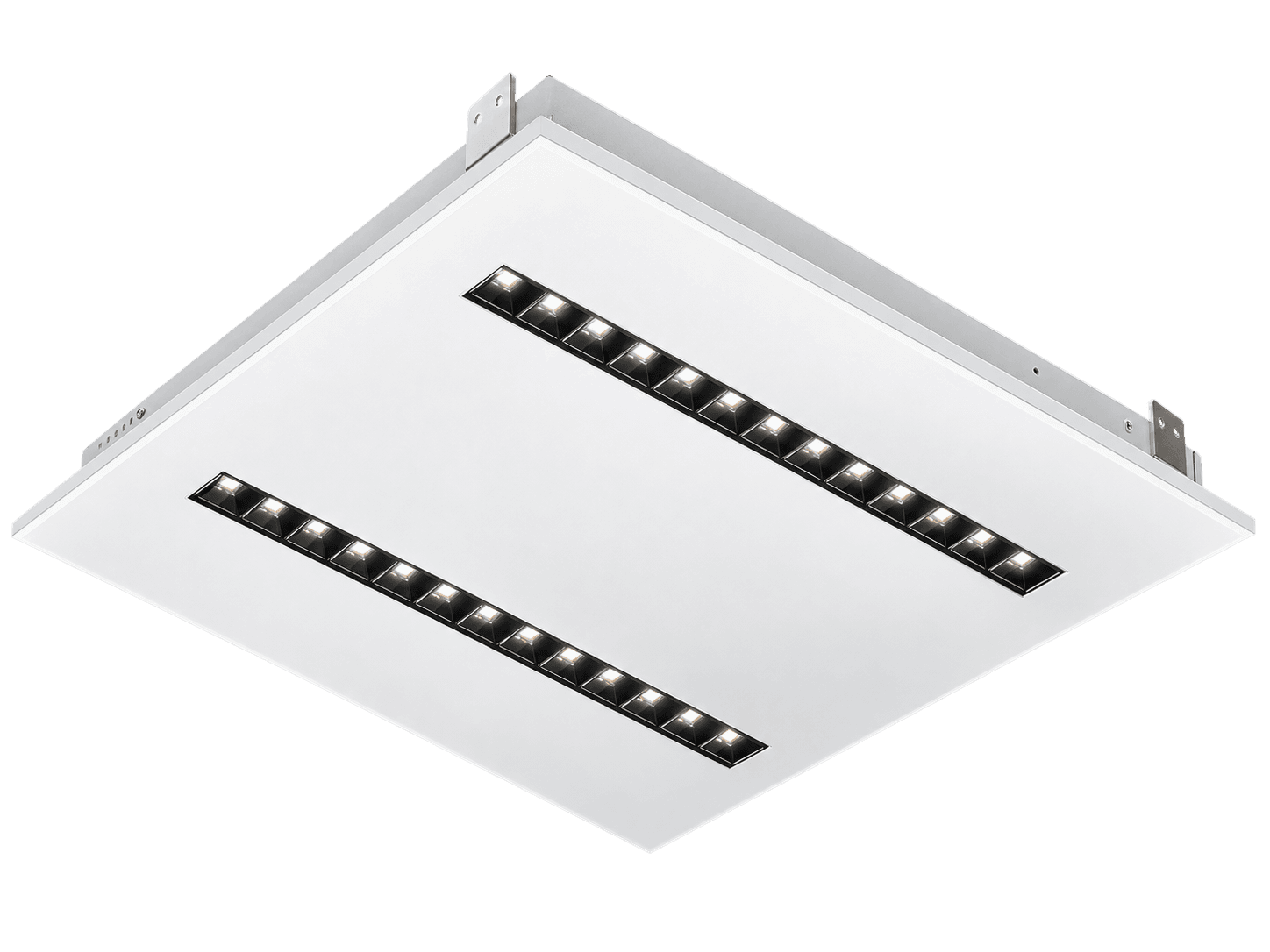

TWPNL SA Recessed
Panel Lighting
600 × 600 twin-linear panel family with two parallel lighting modules.
Exact TWPNL SA Recessed catalogue model schedule.
| Model / Catalogue Code | Power | Luminous Flux | Voltage | Operating Temp. | Efficiency | CRI | CCT | Body Dimensions | Ceiling Cut | IP | Enquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LDB-TWPNL6060SA.18.01 | 18 W | 1,980 lm | 220–240 Vac | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | 595 × 595 × 25 mm | 575 × 575 mm | IP20 / IP40 | |
| LDB-TWPNL6060SA.36.01 | 36 W | 3,950 lm | 220–240 Vac | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | 595 × 595 × 25 mm | 575 × 575 mm | IP20 / IP40 | |
| LDB-TWPNL6060SA.54.01 | 54 W | 5,940 lm | 220–240 Vac | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | 595 × 595 × 25 mm | 575 × 575 mm | IP20 / IP40 |
The catalogue presents two parallel light modules in recessed and surface-mounted forms.
Control functions are catalogue options and are selected to suit the project requirement.

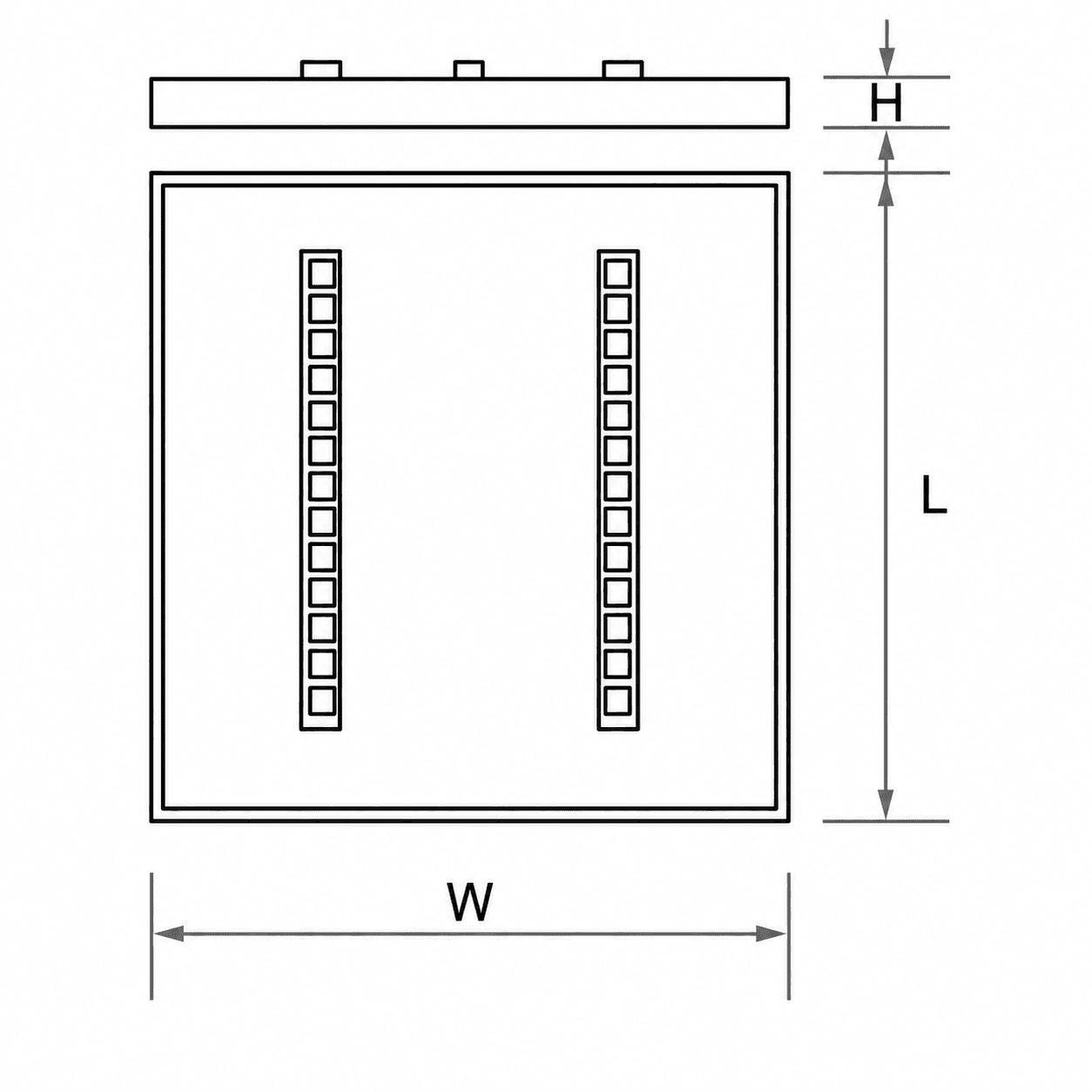

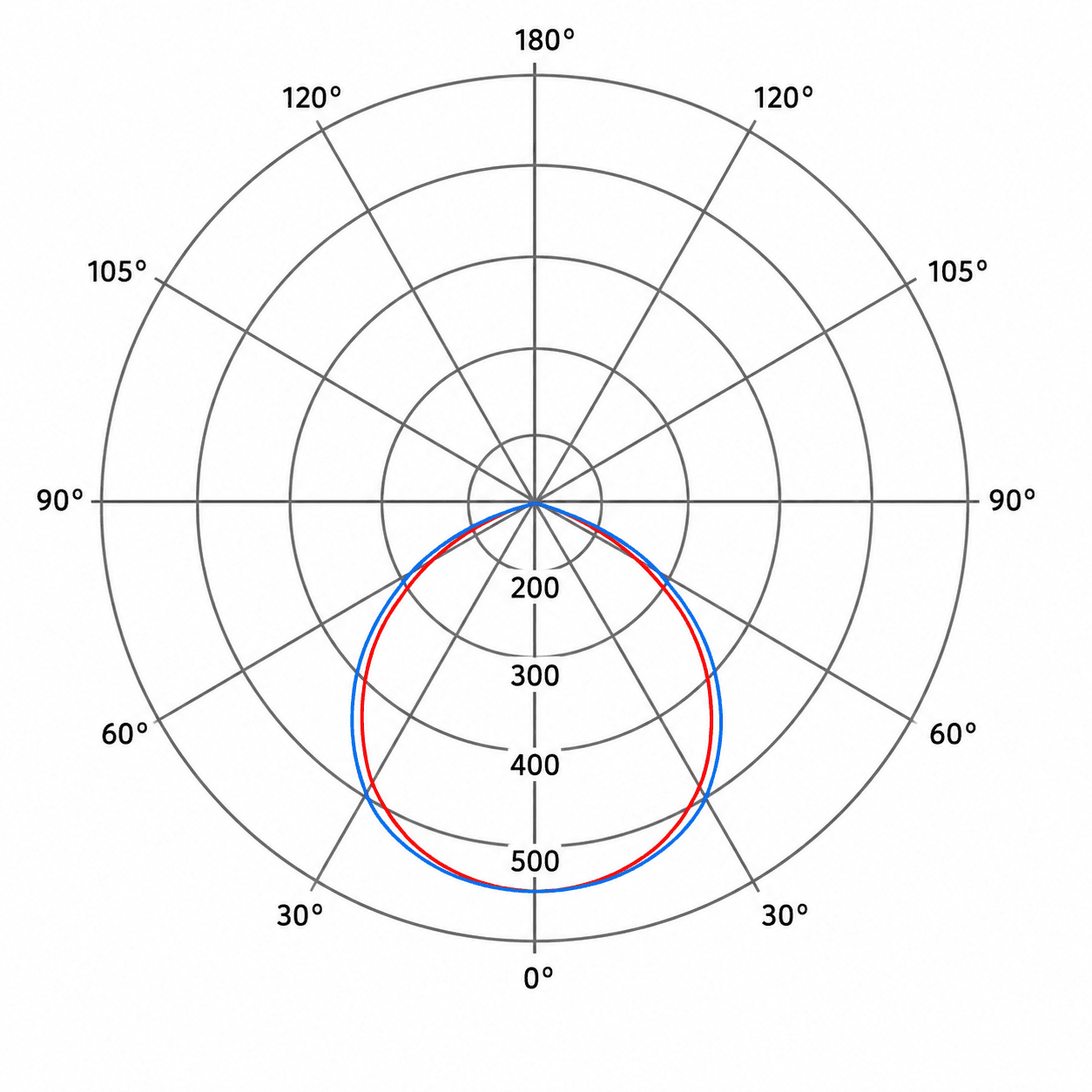

Photometric and technical drawings shown are shared across the TWPNL Series family.

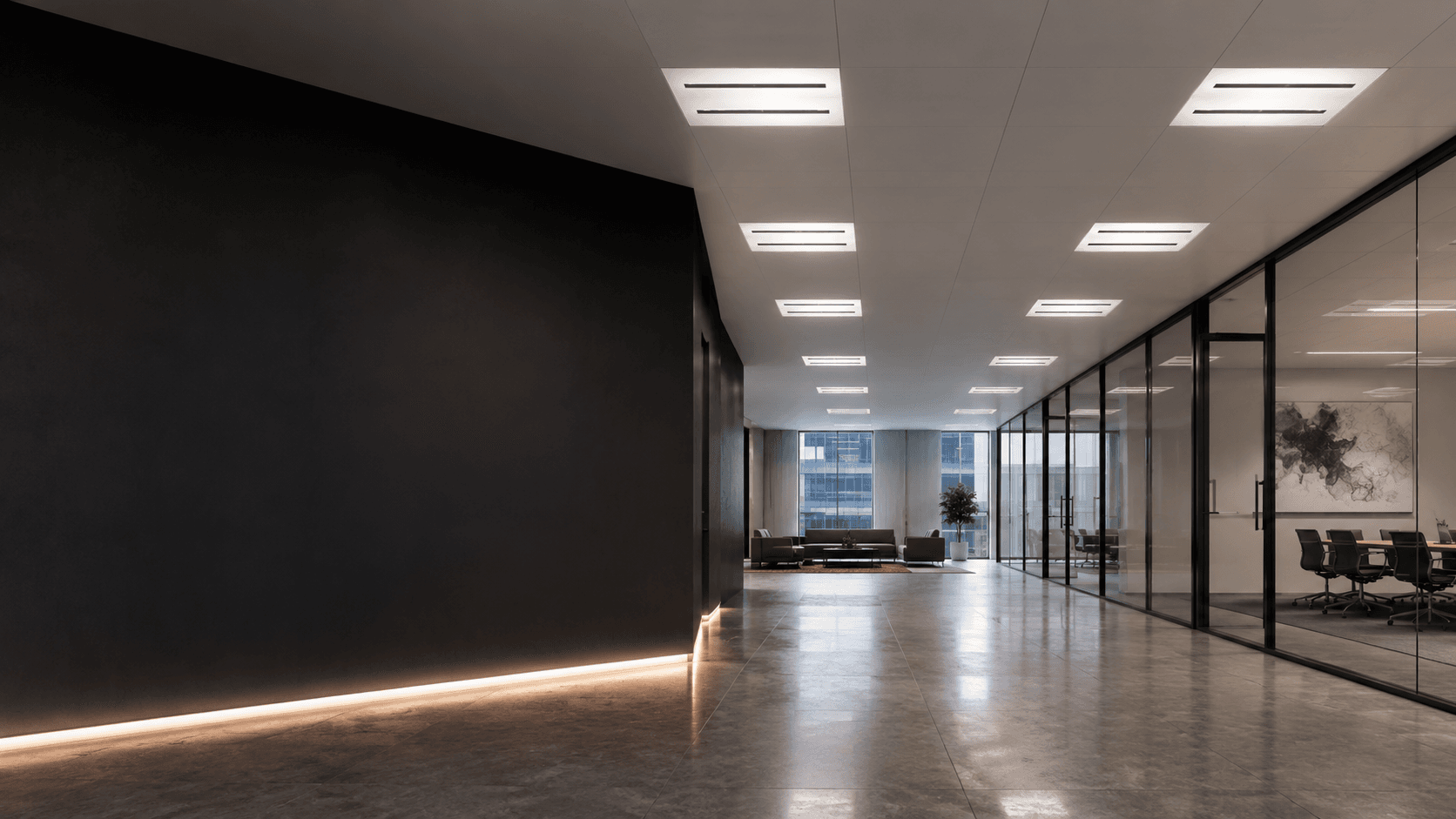

General panel lighting for offices and work areas.
Uniform illumination for classrooms and learning spaces.
Panel lighting for circulation and shared public interiors.
General lighting for retail and commercial spaces.
Broad panel illumination for market interiors.
General panel lighting for offices and work areas.
Discuss the mounting arrangement, output and project options with our technical team.
