Performance
Power17–76 W
Luminous Flux1,800–8,740 lm
Catalogue Efficiency>100 or >115 lm/W by catalogue row
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.

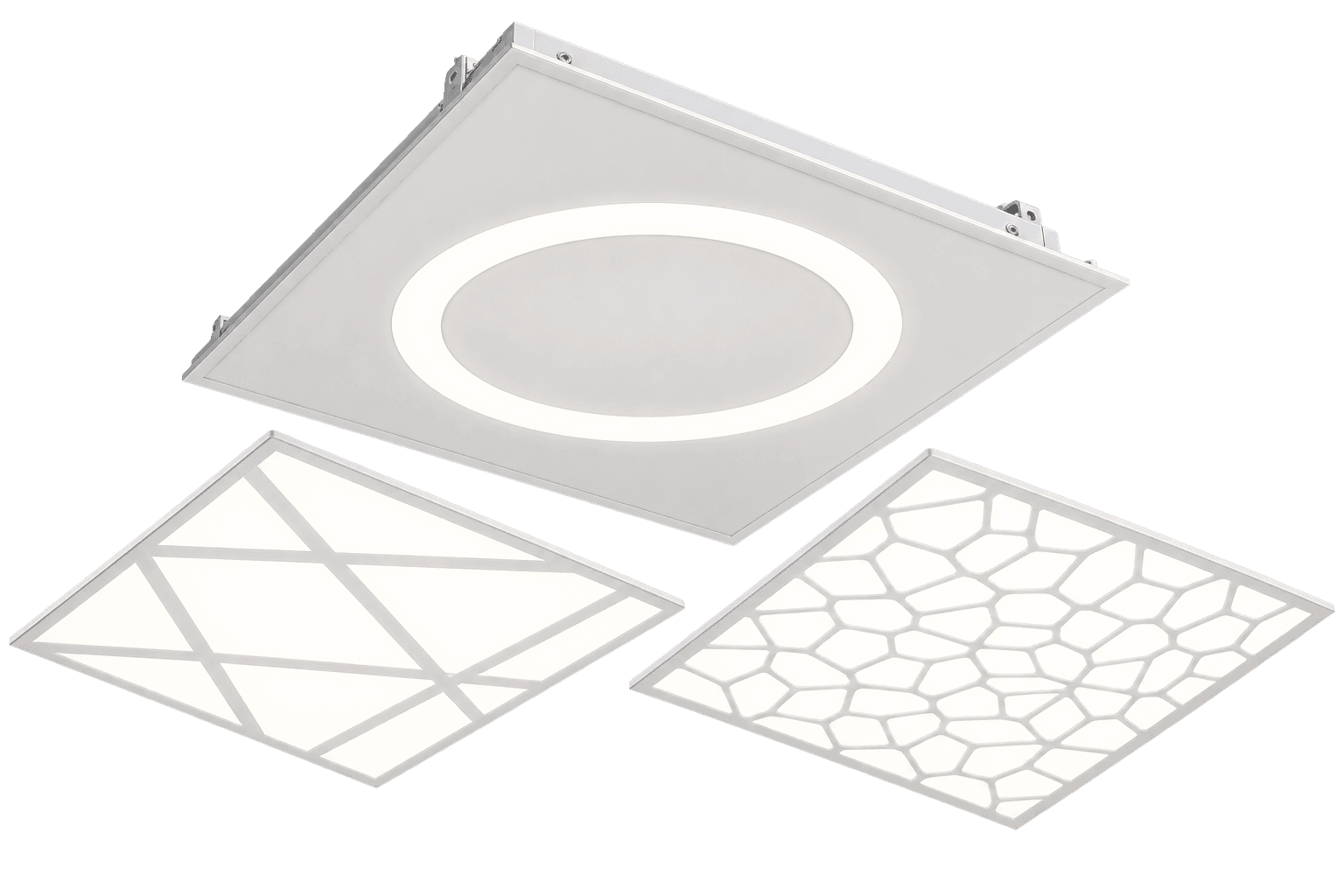

DPNL SA Recessed
Panel Lighting
Recessed SA and surface-mounted SU panel configurations with catalogue-specific output and body schedules.
Exact DPNL SA Recessed catalogue model schedule.
| Model / Catalogue Code | Power | Luminous Flux | Voltage | Operating Temp. | Efficiency | CRI | CCT | Body Dimensions | Ceiling Cut | IP | Enquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LDB-DPNL3030SA.18.01 | 18 W | 1,800 lm | 220–240 Vac | −20 to +35 °C | >100 lm/W | >80 | 3000–6500 K | 300 × 300 × 65 mm | 275 × 275 mm | IP20 / IP54 | |
| LDB-DPNL3060SA.18.01 | 18 W | 1,800 lm | 220–240 Vac | −20 to +35 °C | >100 lm/W | >80 | 3000–6500 K | 300 × 600 × 65 mm | 275 × 575 mm | IP20 / IP54 | |
| LDB-DPNL30120SA.38.01 | 38 W | 3,800 lm | 220–240 Vac | −20 to +35 °C | >100 lm/W | >80 | 3000–6500 K | 300 × 1200 × 65 mm | 275 × 1175 mm | IP20 / IP54 | |
| LDB-DPNL6060SA.38.01 | 38 W | 3,800 lm | 220–240 Vac | −20 to +35 °C | >100 lm/W | >80 | 3000–6500 K | 600 × 600 × 65 mm | 575 × 575 mm | IP20 / IP54 | |
| LDB-DPNL60120SA.76.01 | 76 W | 7,600 lm | 220–240 Vac | −20 to +35 °C | >100 lm/W | >80 | 3000–6500 K | 600 × 1200 × 65 mm | 575 × 1175 mm | IP20 / IP54 | |
| LDB-DPNL3060SA.17.01 | 17 W | 1,955 lm | 220–240 Vac | −20 to +35 °C | >115 lm/W | >80 | 3000–6500 K | 295 × 595 × 70 mm | 275 × 575 mm | IP20 / IP54 | |
| LDB-DPNL6060SA.32.01 | 32 W | 3,680 lm | 220–240 Vac | −20 to +35 °C | >115 lm/W | >80 | 3000–6500 K | 595 × 595 × 70 mm | 575 × 575 mm | IP20 / IP54 | |
| LDB-DPNL30120SA.38.01 | 38 W | 4,370 lm | 220–240 Vac | −20 to +35 °C | >115 lm/W | >80 | 3000–6500 K | 295 × 1195 × 70 mm | 275 × 1175 mm | IP20 / IP54 | |
| LDB-DPNL30120SA.76.01 | 76 W | 8,740 lm | 220–240 Vac | −20 to +35 °C | >115 lm/W | >80 | 3000–6500 K | 295 × 1195 × 70 mm | 575 × 1175 mm | IP20 / IP54 |
DPNL records are consolidated from the dedicated DPNL catalogue source and the adjacent DPNL SU source. Distinct published 17/18 W, 32/38 W and >100/>115 schedules remain separate.
The DPNL catalogue lists these functions as options rather than universal standard equipment.
Control functions are catalogue options and are selected to suit the project requirement.

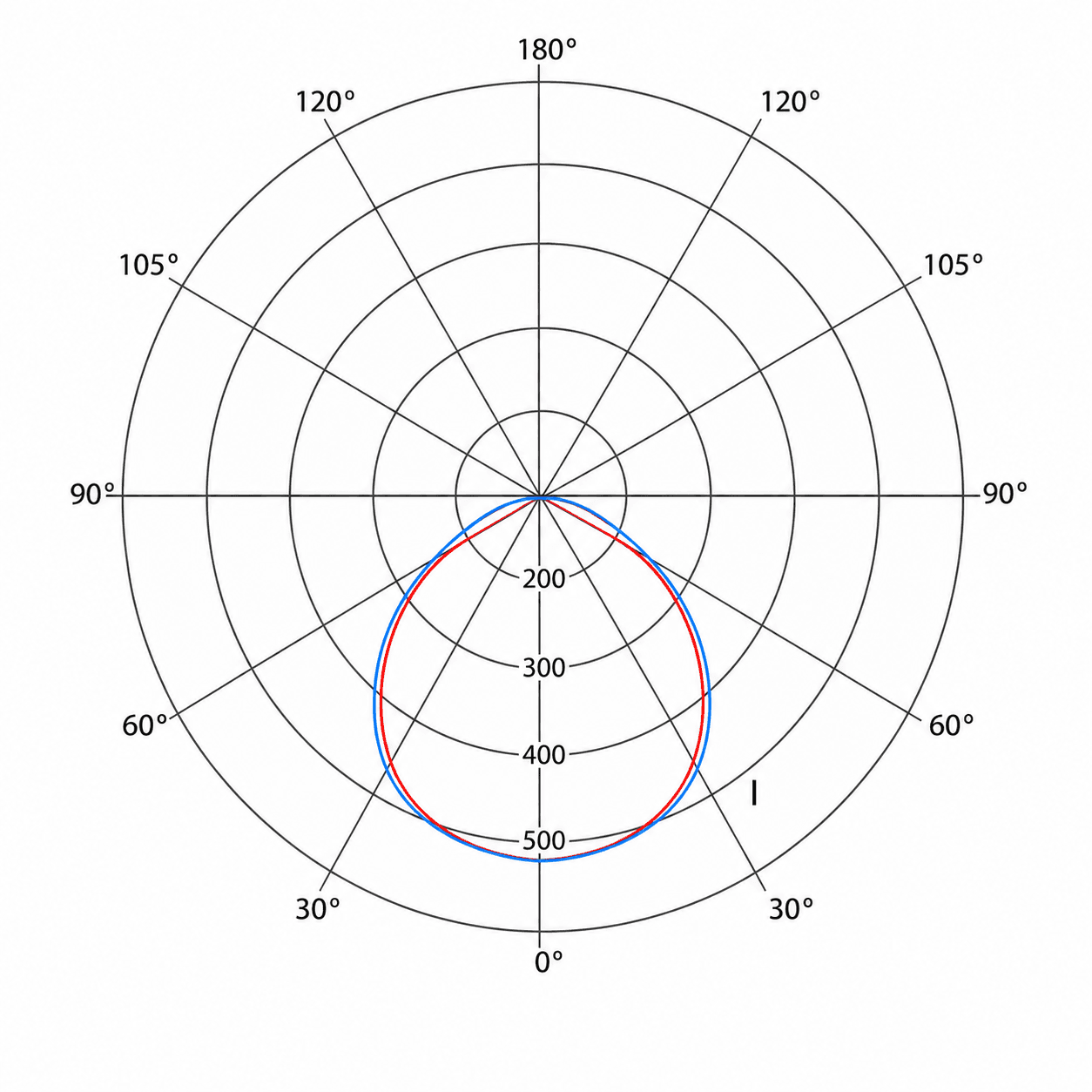

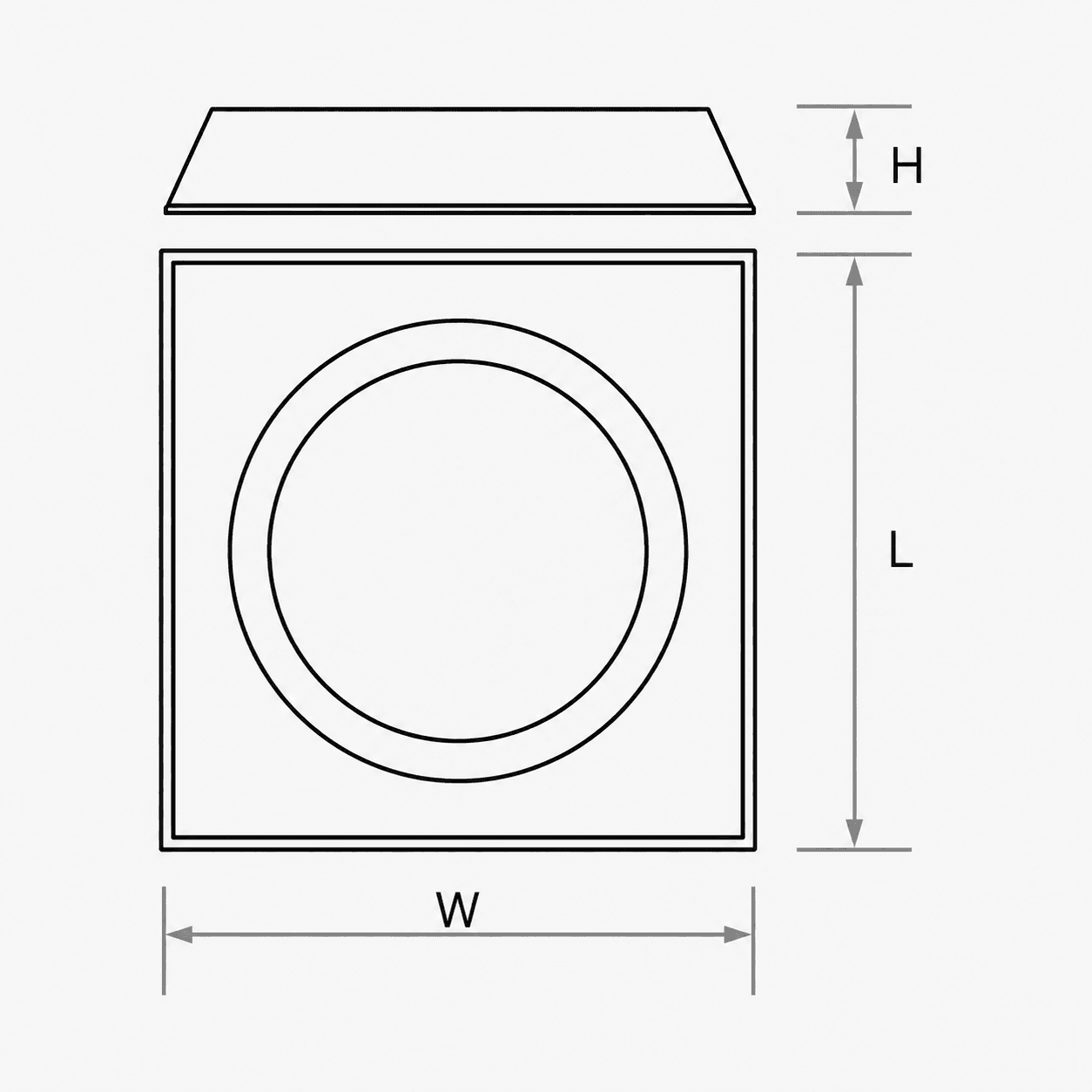

Photometric and technical drawings shown are shared across the DPNL Series family.

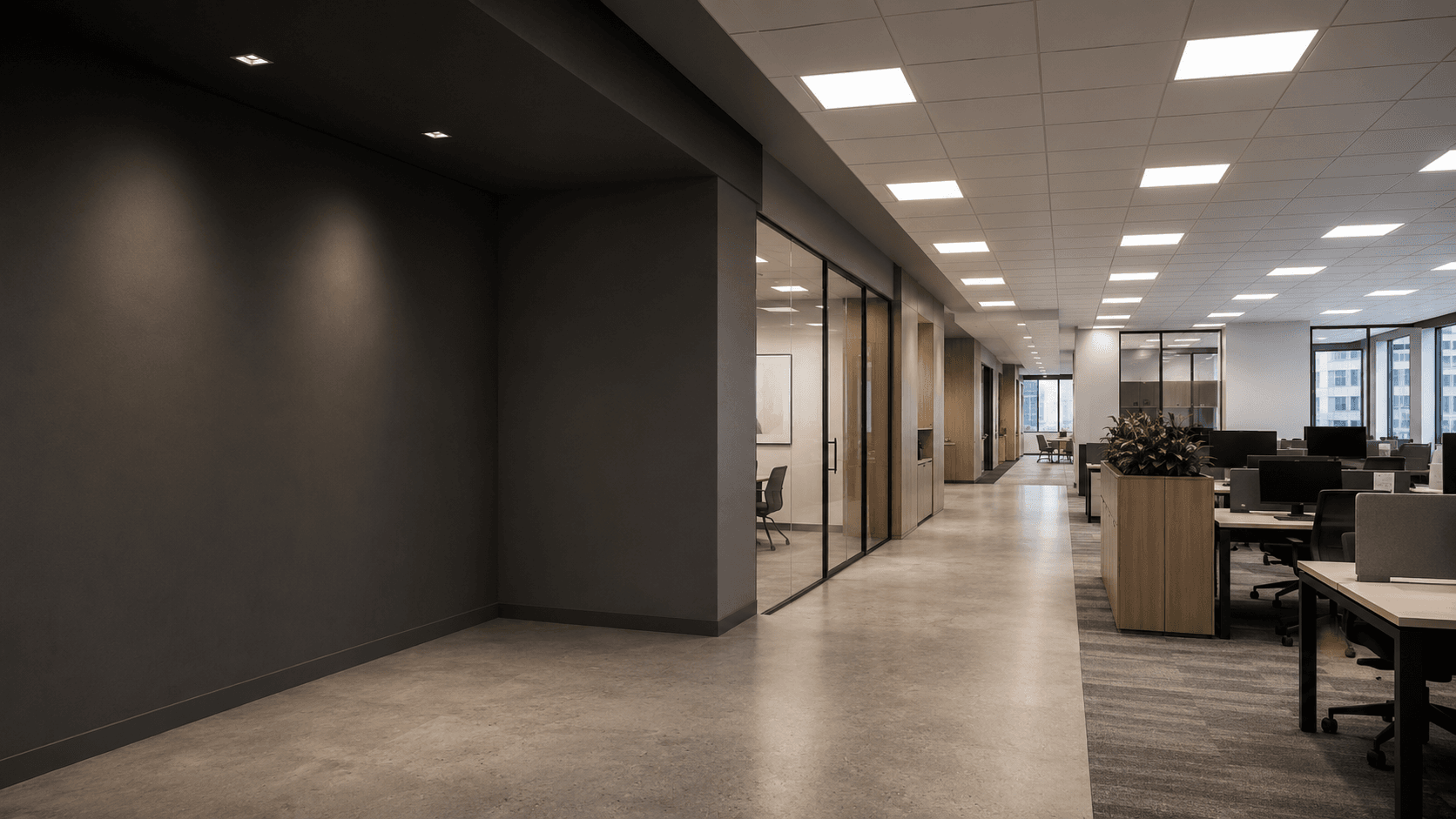

General panel lighting for offices and work areas.
Uniform illumination for classrooms and learning spaces.
Panel lighting for circulation and shared public interiors.
General lighting for retail and commercial spaces.
Panel lighting for airport and public waiting environments.
General panel lighting for offices and work areas.
Discuss the mounting arrangement, output and project options with our technical team.
