Performance
Power18–76 W
Luminous Flux2,070–8,740 lm
Catalogue Efficiency>115 lm/W
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.

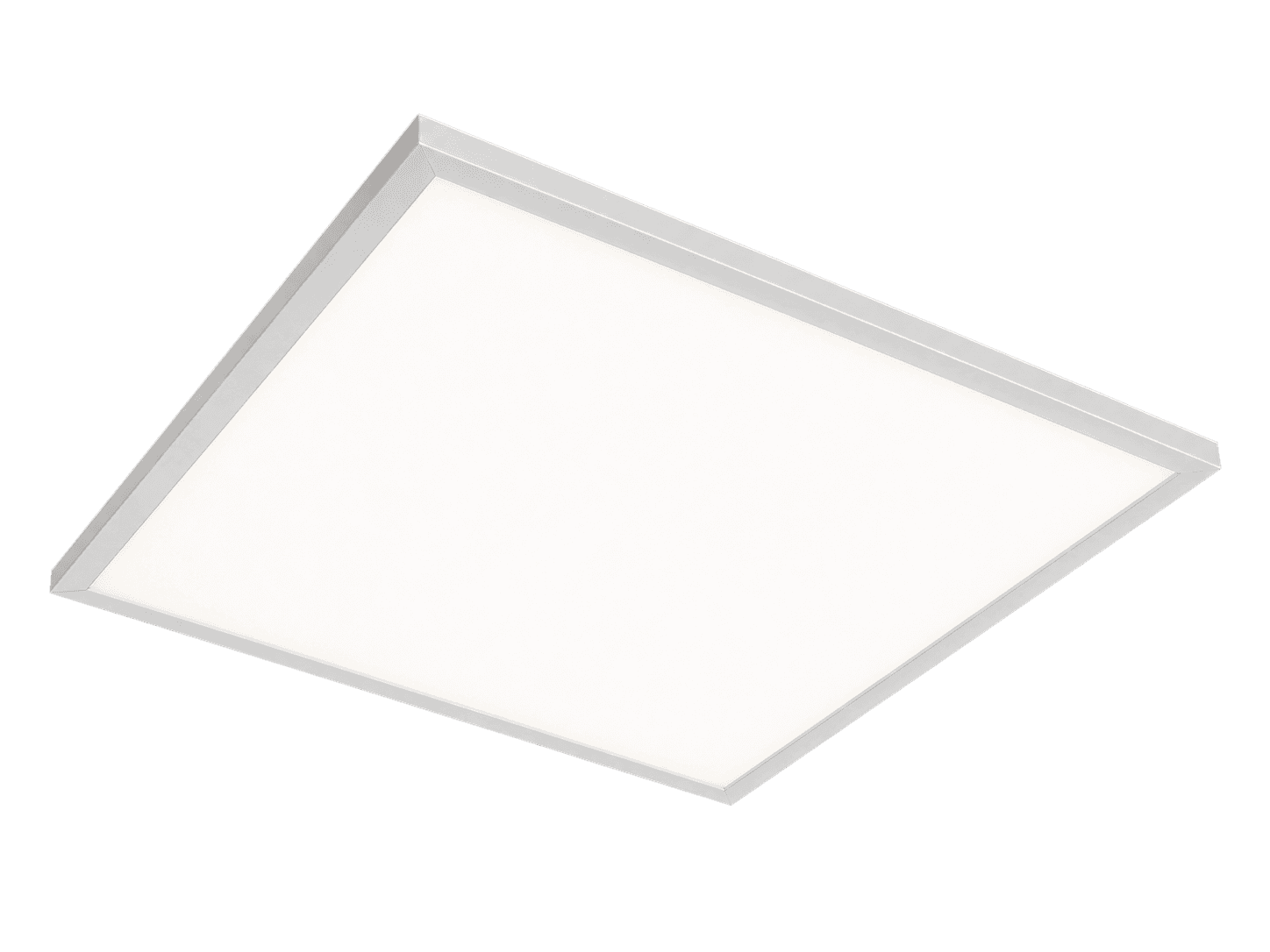

PNL SA Recessed
Panel Lighting
Standard panel family in recessed SA and surface-mounted SU forms for office and commercial interiors.
Exact PNL SA Recessed catalogue model schedule.
| Model / Catalogue Code | Power | Luminous Flux | Voltage | Operating Temp. | Efficiency | CRI | CCT | Body Dimensions | IP | Enquiry |
|---|---|---|---|---|---|---|---|---|---|---|
| LDB-PNL3030SA.18.01 | 18 W | 2,070 lm | 220–240 Vac | −20 to +35 °C | >115 lm/W | >80 | 3000–6500 K | 295 × 295 × 65 mm | IP20 / IP40 | |
| LDB-PNL3060SA.18.01 | 18 W | 2,070 lm | 220–240 Vac | −20 to +35 °C | >115 lm/W | >80 | 3000–6500 K | 295 × 595 × 65 mm | IP20 / IP40 | |
| LDB-PNL30120SA.38.01 | 38 W | 4,370 lm | 220–240 Vac | −20 to +35 °C | >115 lm/W | >80 | 3000–6500 K | 295 × 1195 × 65 mm | IP20 / IP40 | |
| LDB-PNL6060SA.38.01 | 38 W | 4,370 lm | 220–240 Vac | −20 to +35 °C | >115 lm/W | >80 | 3000–6500 K | 595 × 595 × 65 mm | IP20 / IP40 | |
| LDB-PNL60120SA.76.01 | 76 W | 8,740 lm | 220–240 Vac | −20 to +35 °C | >115 lm/W | >80 | 3000–6500 K | 595 × 1195 × 65 mm | IP20 / IP40 |

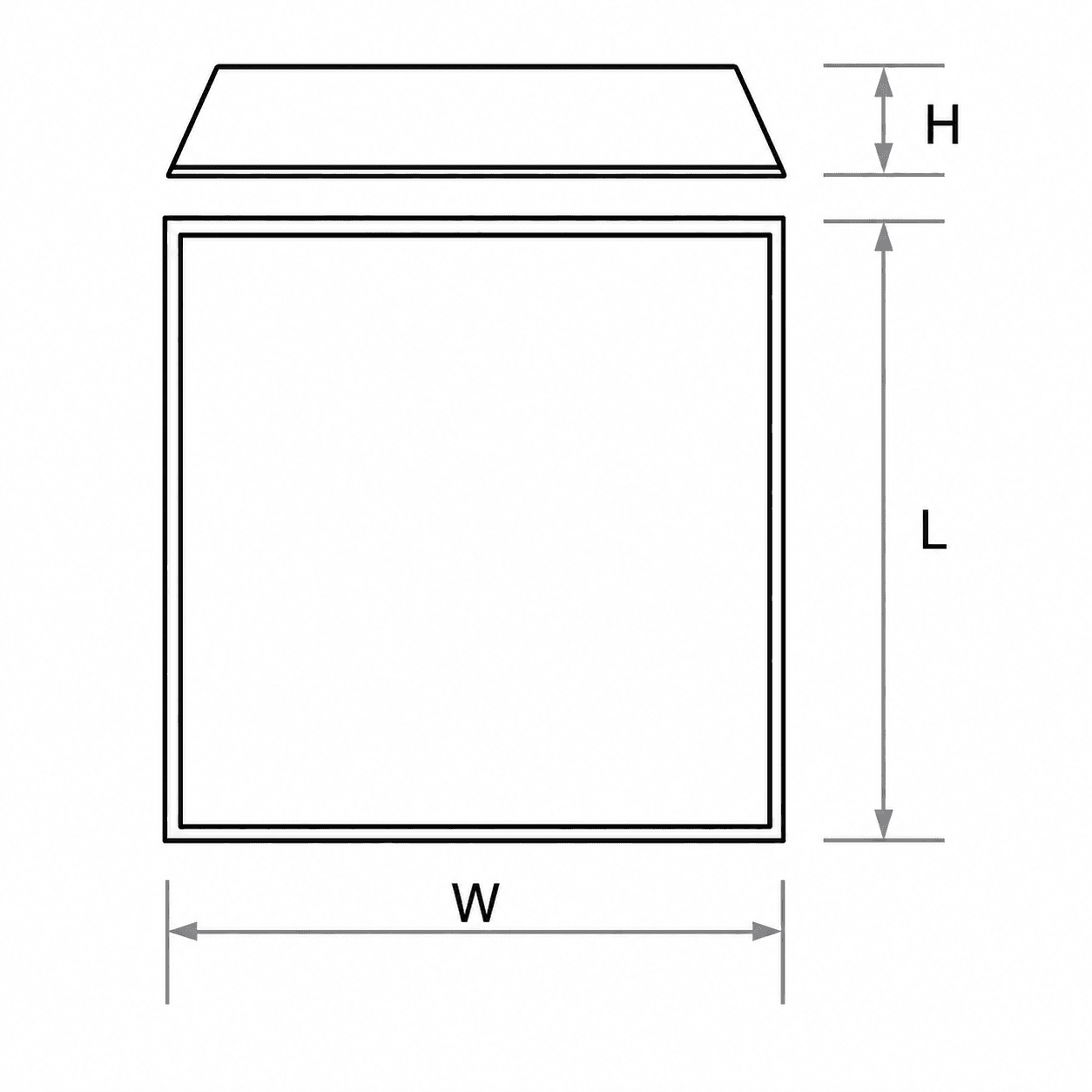

The source drawing remains available for dimensional reference; ambiguous catalogue ceiling-cut row associations are intentionally omitted from the structured schedule.
Control functions are catalogue options and are selected to suit the project requirement.

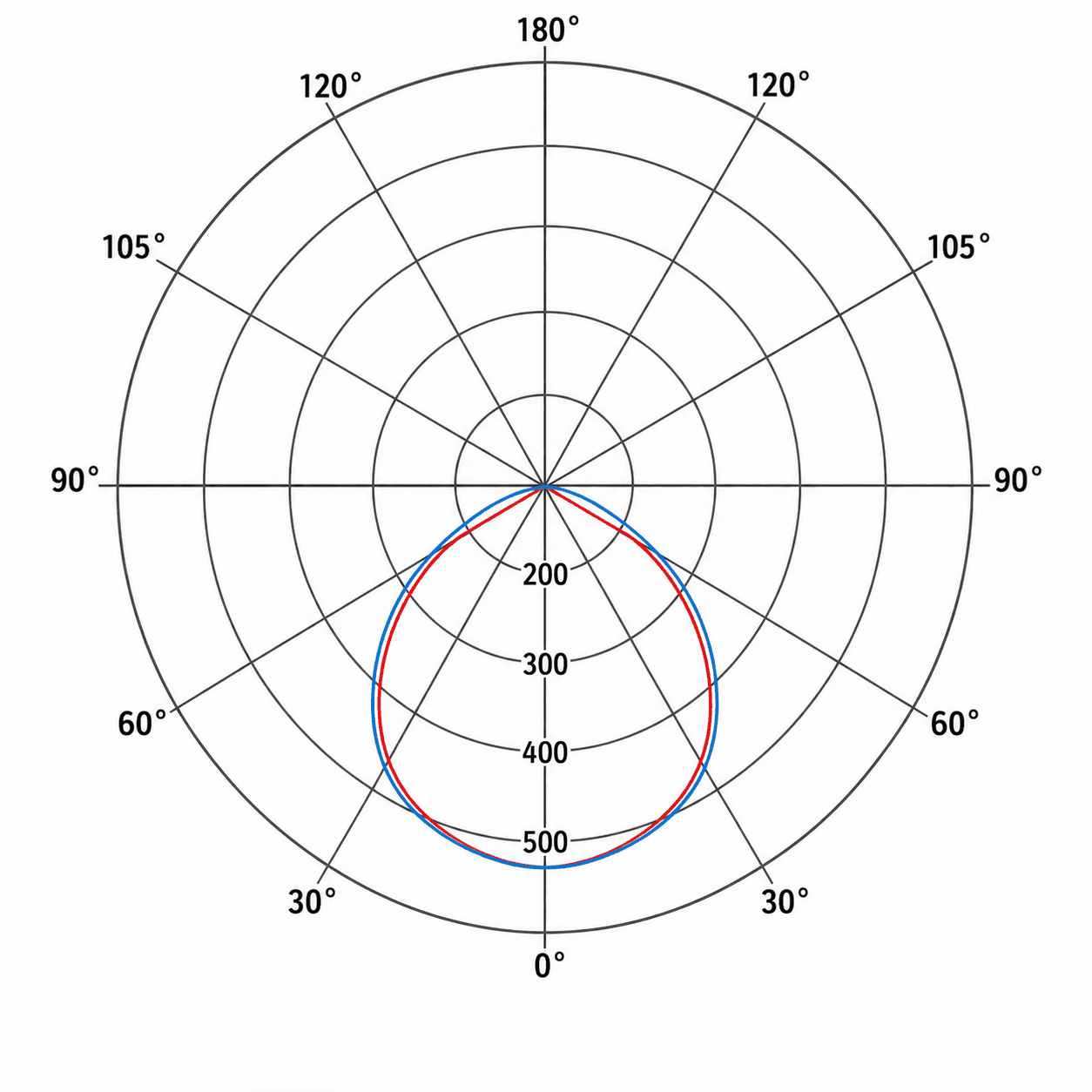

Photometric and technical drawings shown are shared across the PNL Series family.

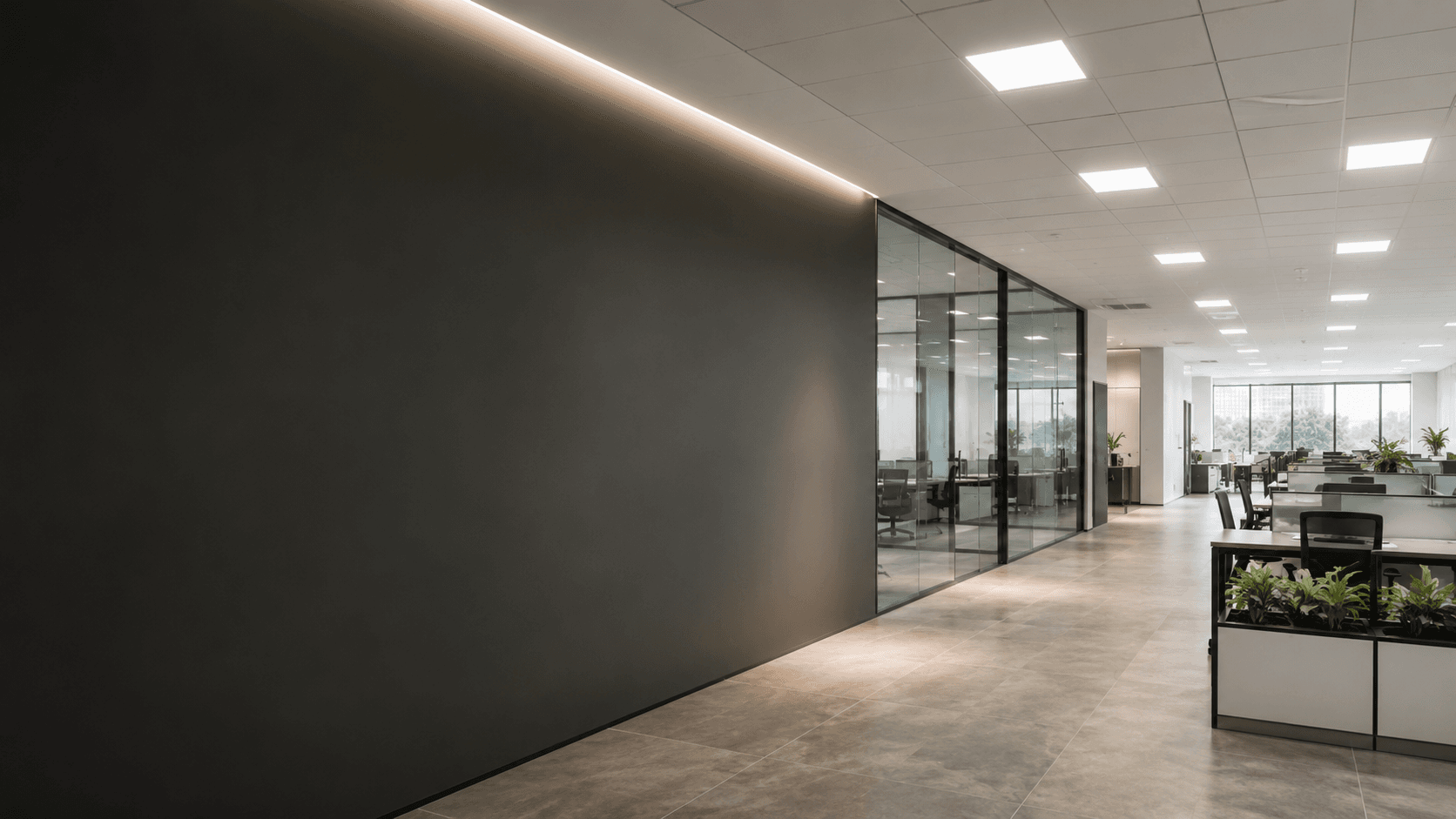

General panel lighting for offices and work areas.
Uniform illumination for classrooms and learning spaces.

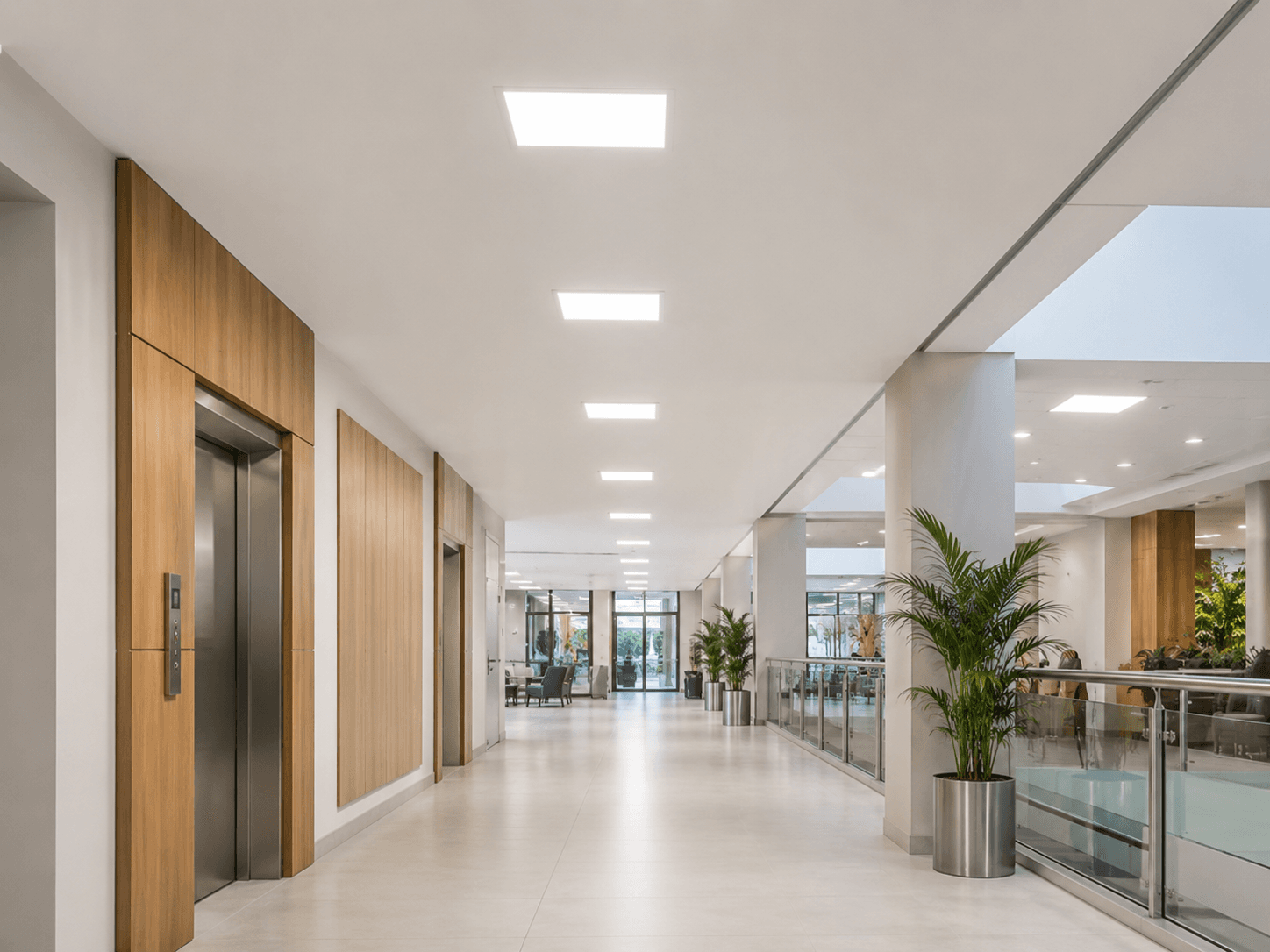

Panel lighting for circulation and shared public interiors.
General lighting for retail and commercial spaces.

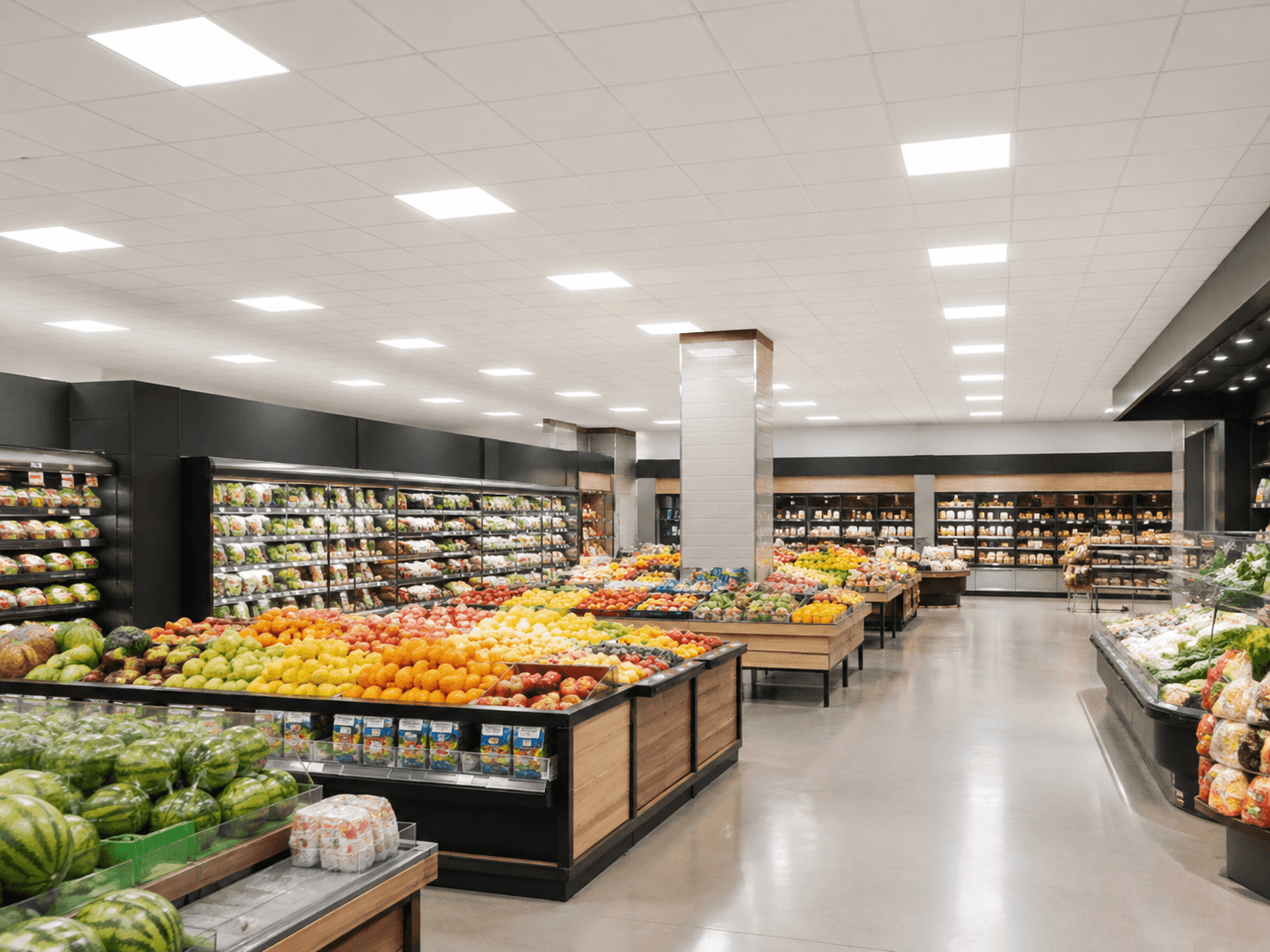

Broad panel illumination for market interiors.
General panel lighting for offices and work areas.
Discuss the mounting arrangement, output and project options with our technical team.
