Performance
Power38–76 W
Luminous Flux3,800–7,600 lm
Catalogue Efficiency>110 lm/W
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.

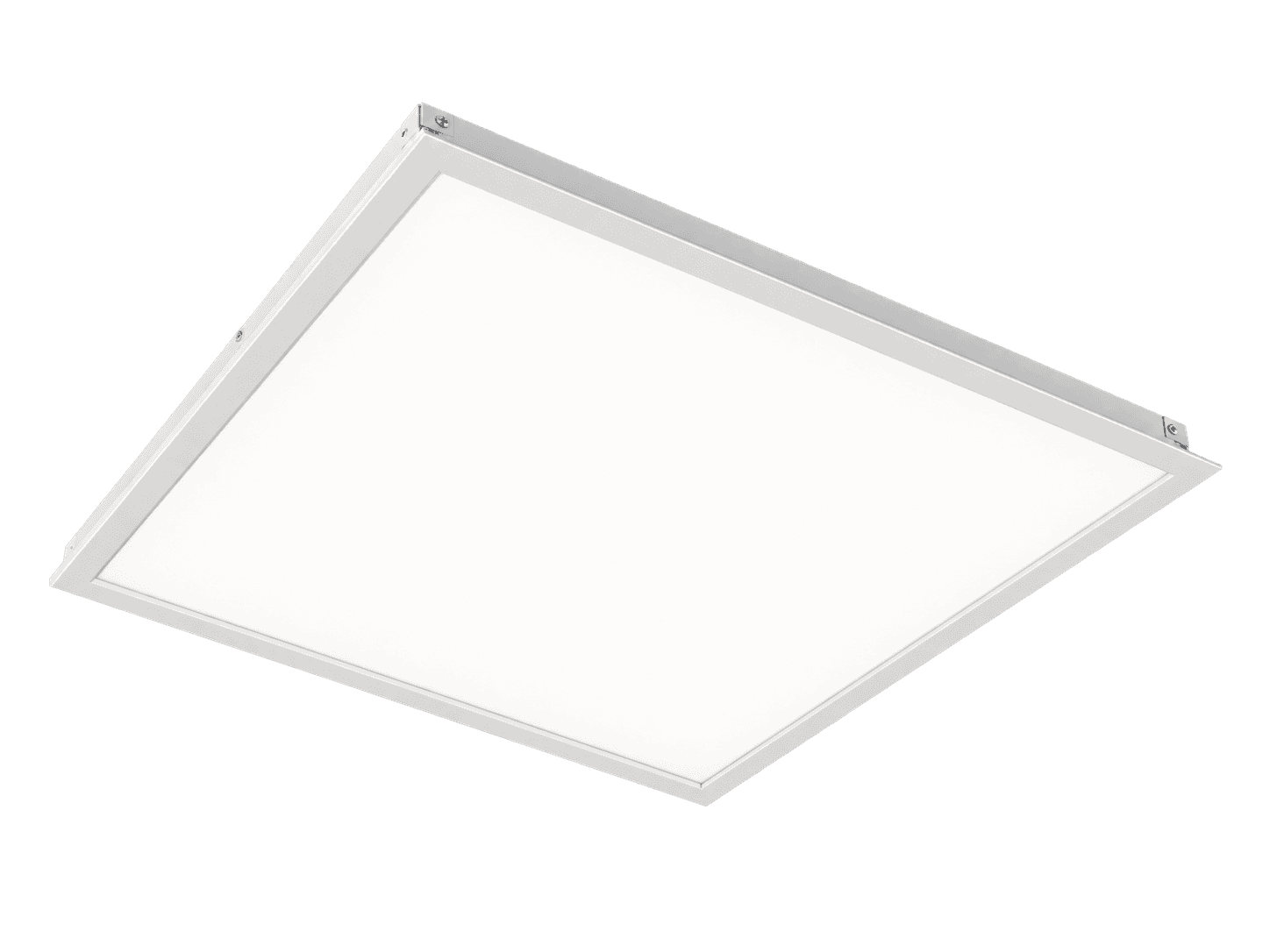

HJPNL SA Recessed
Panel Lighting
Specialist IP65 / IP54 panel family with recessed and surface-mounted configurations.
Exact HJPNL SA Recessed catalogue model schedule.
| Model / Catalogue Code | Power | Luminous Flux | Voltage | Operating Temp. | Efficiency | CRI | CCT | Body Dimensions | Ceiling Cut | IP | Enquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LDB-HJPNL6060SA.38.01 | 38 W | 3,800 lm | 220–240 Vac | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | 595 × 595 × 82 mm | 575 × 575 mm | IP65 / IP54 | |
| LDB-HJPNL30120SA.38.01 | 38 W | 3,800 lm | 220–240 Vac | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | 295 × 1195 × 82 mm | 275 × 1175 mm | IP65 / IP54 | |
| LDB-HJPNL60120SA.76.01 | 76 W | 7,600 lm | 220–240 Vac | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | 595 × 1195 × 82 mm | 575 × 1175 mm | IP65 / IP54 |
Control functions are catalogue options and are selected to suit the project requirement.

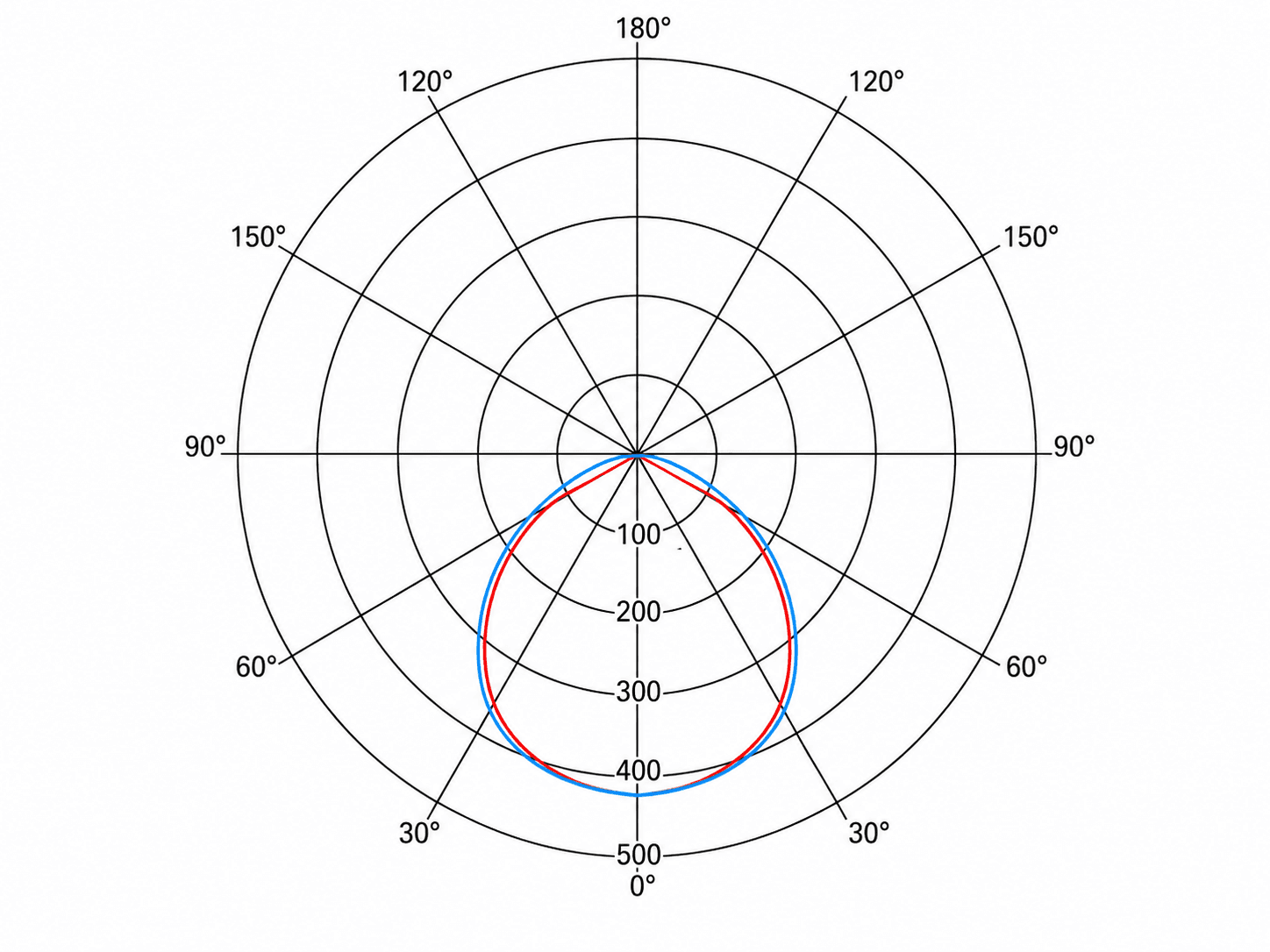

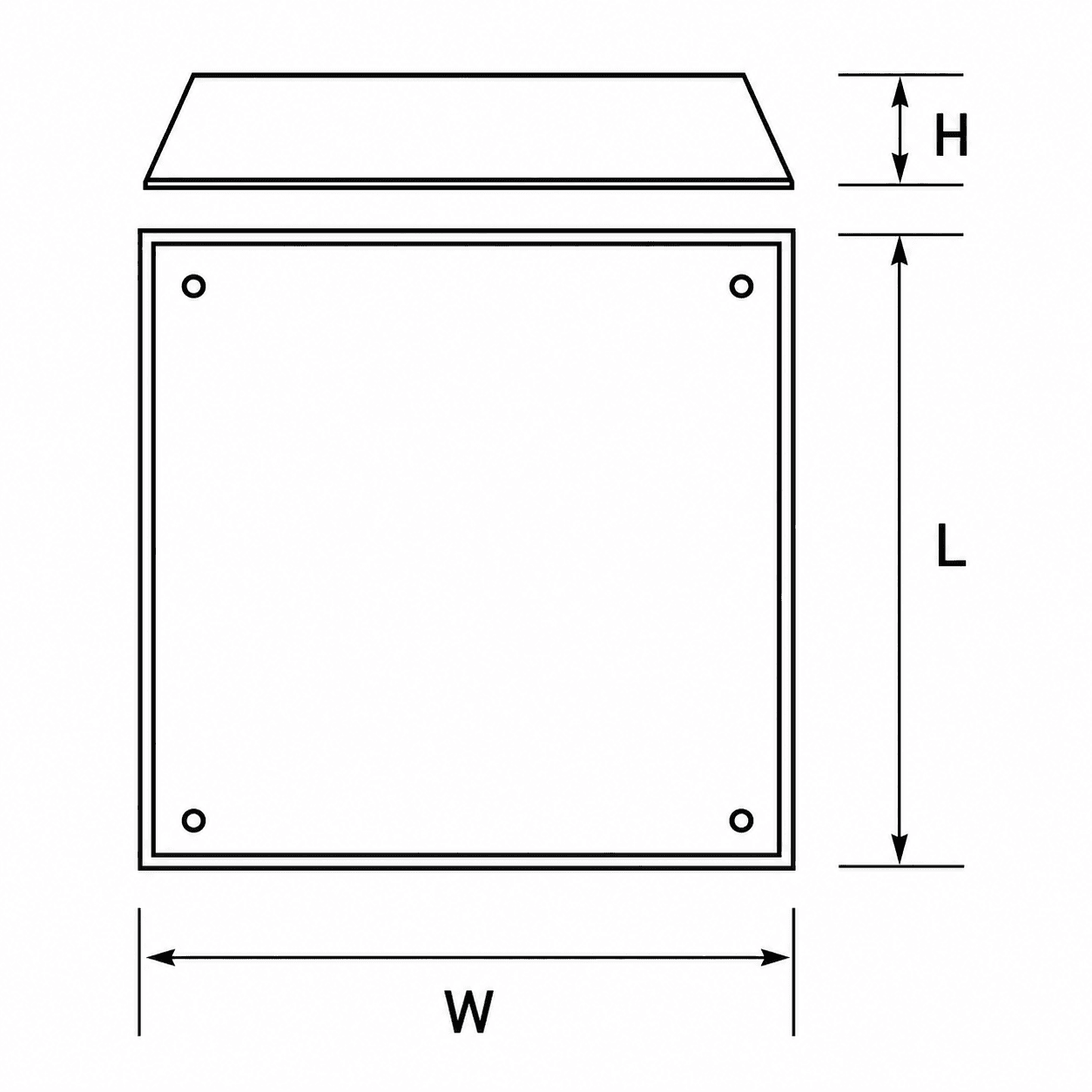

Photometric and technical drawings shown are shared across the HJPNL Series family.

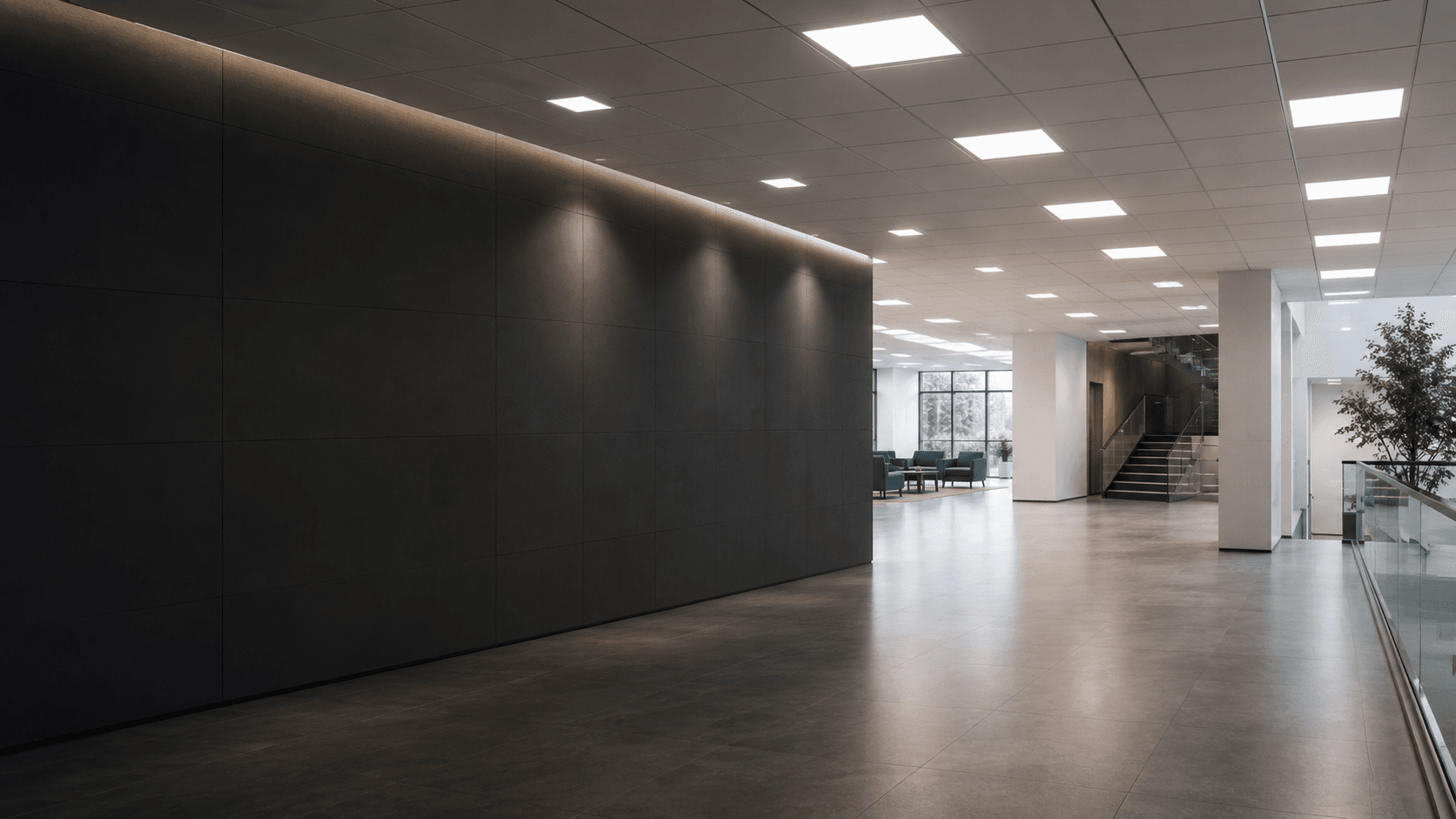

General panel lighting for offices and work areas.
Uniform illumination for classrooms and learning spaces.
Panel lighting for circulation and shared public interiors.
General lighting for retail and commercial spaces.
Broad panel illumination for market interiors.
General panel lighting for offices and work areas.
Discuss the mounting arrangement, output and project options with our technical team.
