Performance
Power17–70 W
Luminous Flux1,700–7,000 lm
Catalogue Efficiency>110 lm/W
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.

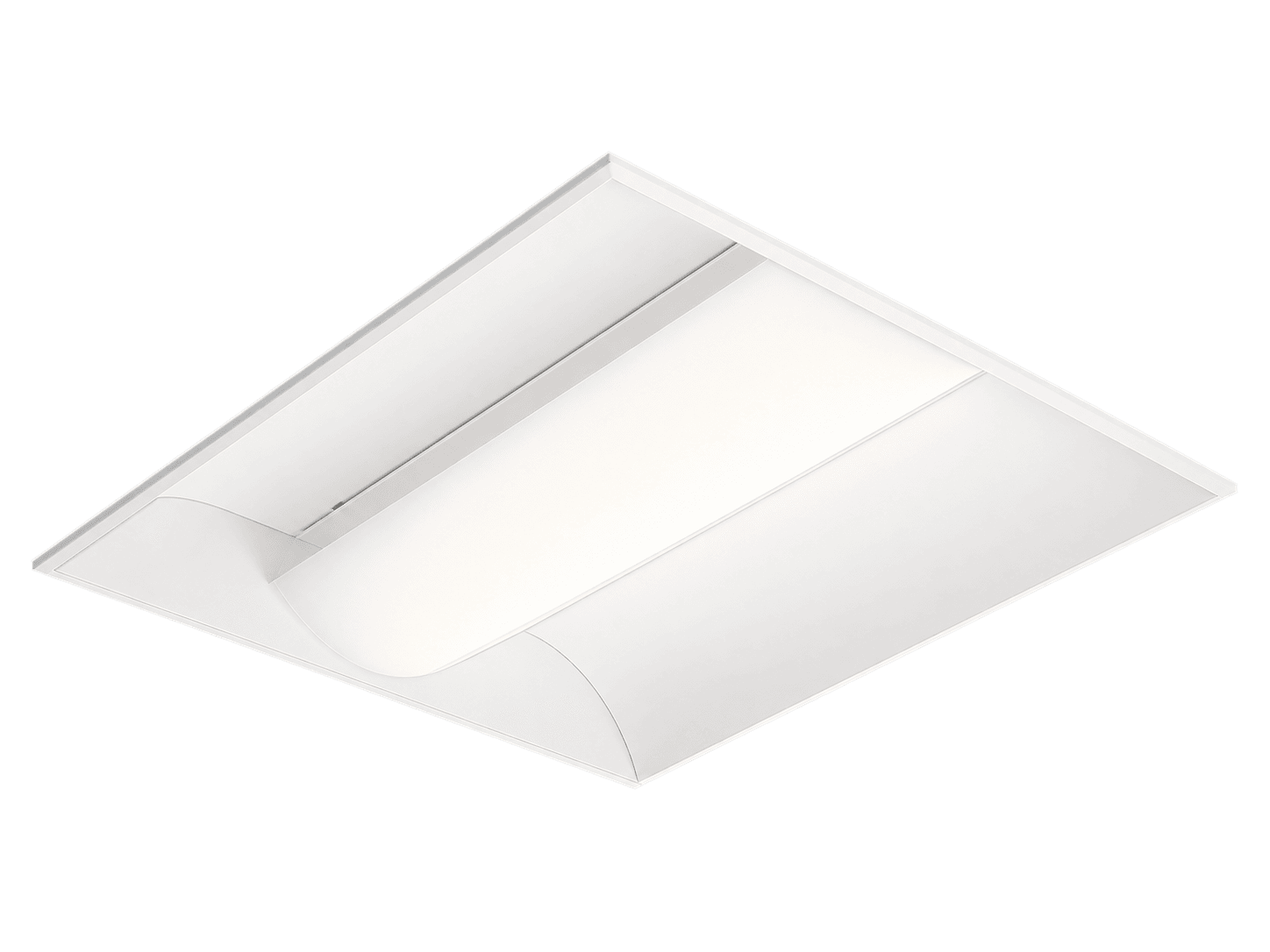

IPNL SA Recessed
Panel Lighting
Slim square and rectangular panel family for general project lighting.
Exact IPNL SA Recessed catalogue model schedule.
| Model / Catalogue Code | Power | Luminous Flux | Voltage | Operating Temp. | Efficiency | CRI | CCT | Body Dimensions | Ceiling Cut | IP | Enquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LDB-IPNL3060SA.17.01 | 17 W | 1,700 lm | 220–240 Vac | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | 295 × 595 × 70 mm | 275 × 575 mm | IP20 / IP54 | |
| LDB-IPNL6060SA.32.01 | 32 W | 3,200 lm | 220–240 Vac | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | 595 × 595 × 70 mm | 575 × 575 mm | IP20 / IP54 | |
| LDB-IPNL30120SA.35.01 | 35 W | 3,500 lm | 220–240 Vac | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | 295 × 1195 × 70 mm | 275 × 1175 mm | IP20 / IP54 | |
| LDB-IPNL30120SA.70.01 | 70 W | 7,000 lm | 220–240 Vac | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | 295 × 1195 × 70 mm | 275 × 1175 mm | IP20 / IP54 |
Control functions are catalogue options and are selected to suit the project requirement.

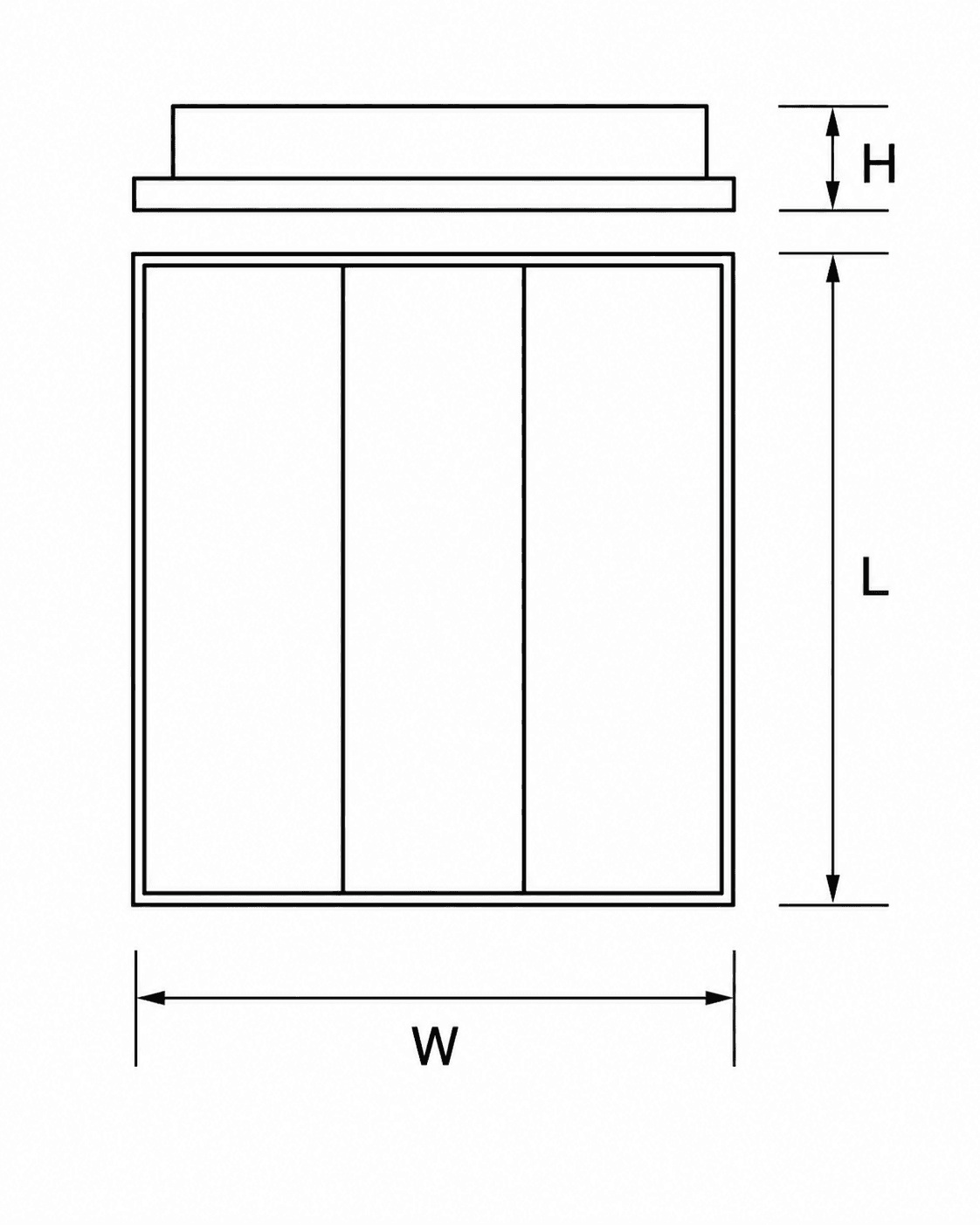

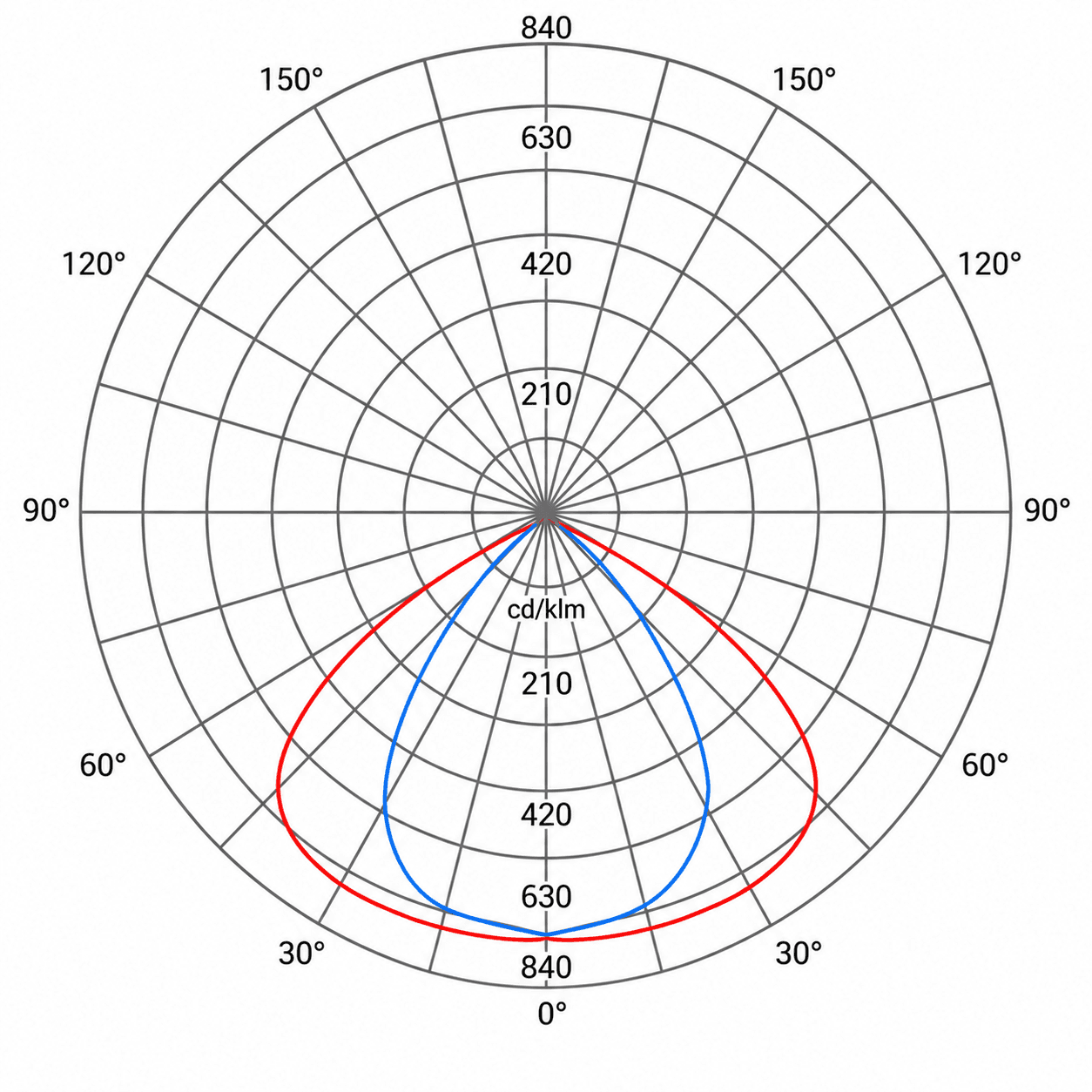

Photometric and technical drawings shown are shared across the IPNL Series family.

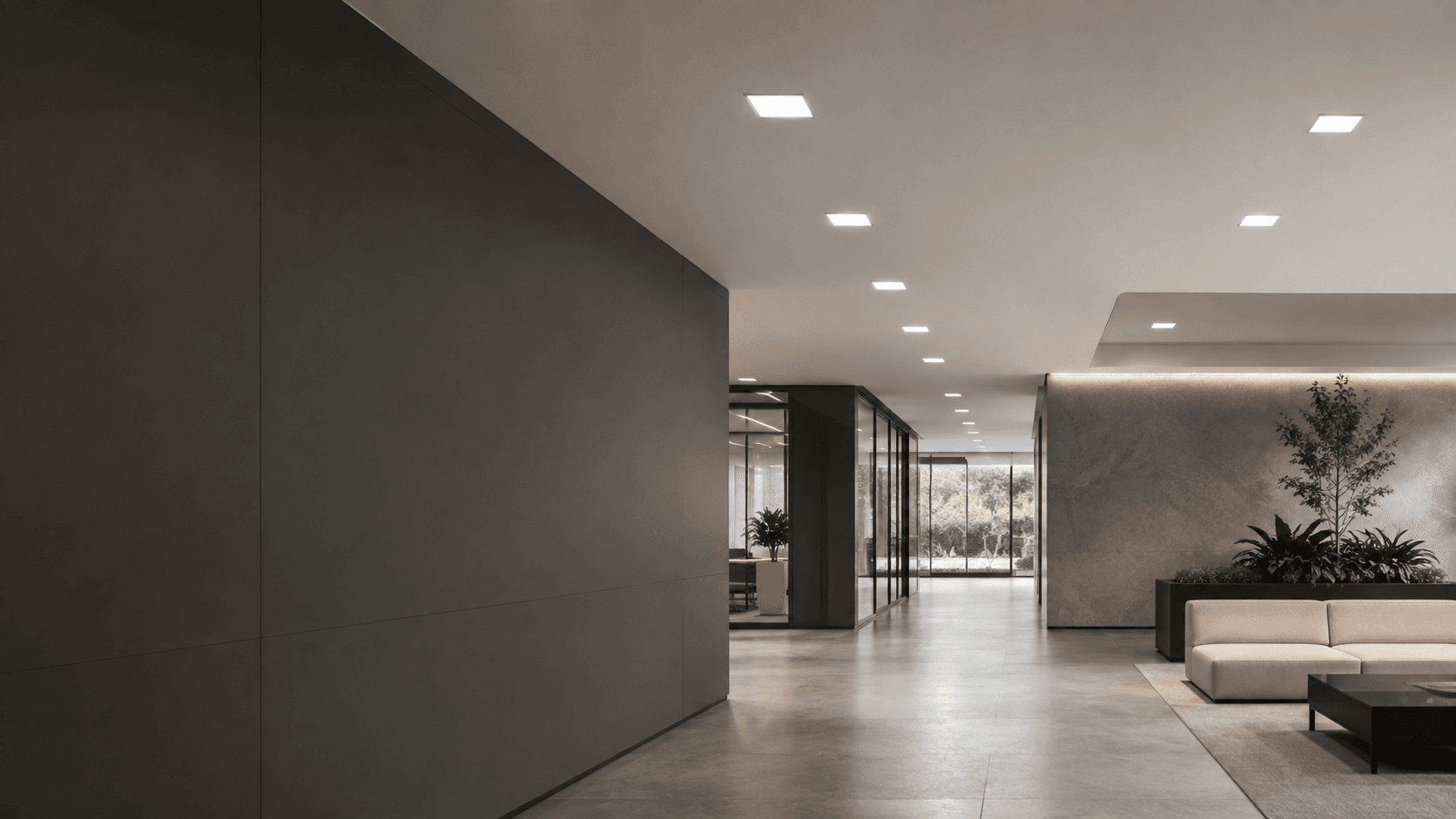

General panel lighting for offices and work areas.
Uniform illumination for classrooms and learning spaces.
Panel lighting for circulation and shared public interiors.
General lighting for retail and commercial spaces.
Broad panel illumination for market interiors.
General panel lighting for offices and work areas.
Discuss the mounting arrangement, output and project options with our technical team.
