Performance
Power30 or 40 W
Luminous Flux3,300 or 4,400 lm
Catalogue Efficiency>110 lm/W
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.

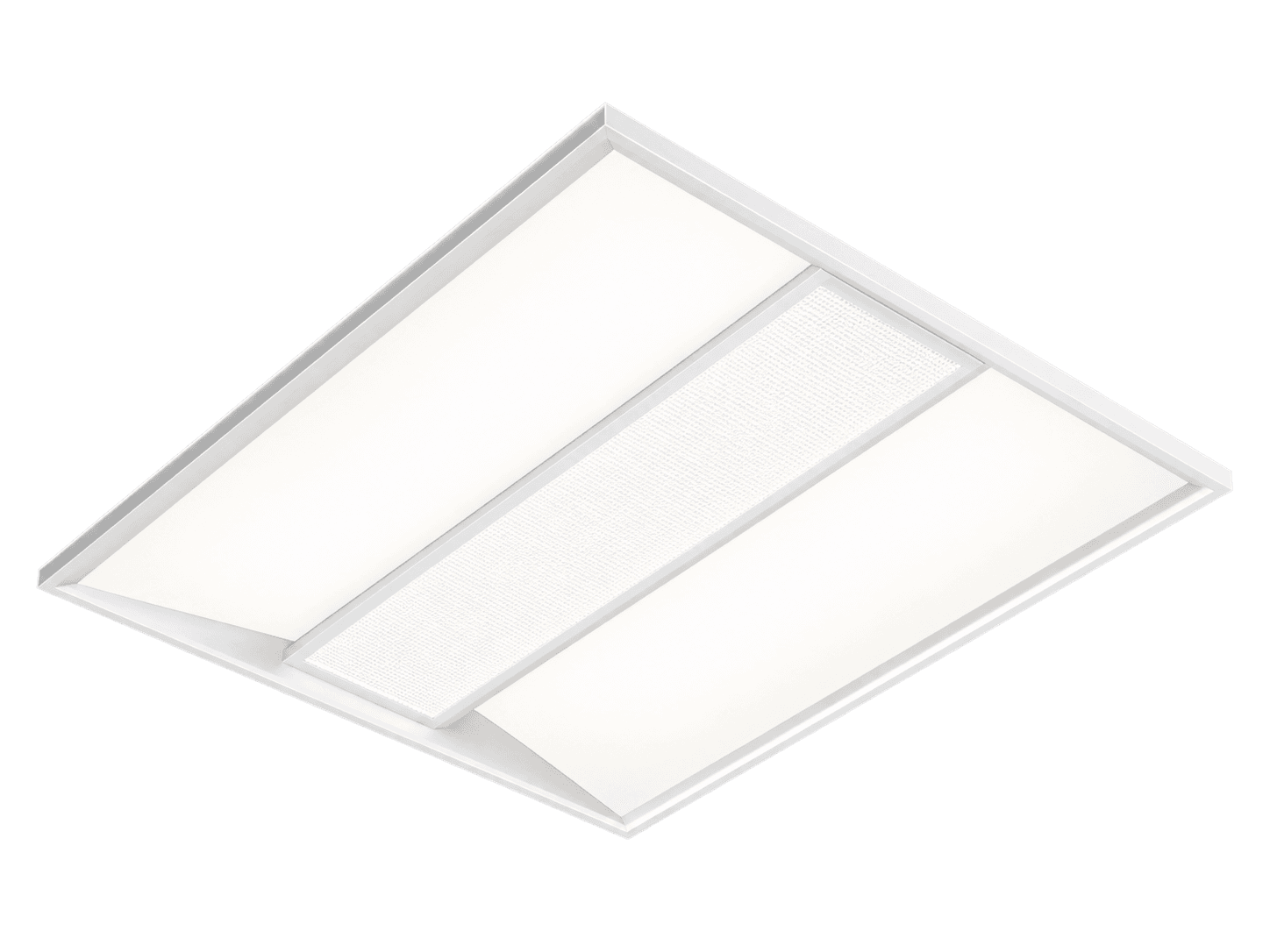

DRPNL SA Recessed
Panel Lighting
Backlit 734 mm panel family in recessed SA and surface-mounted SU configurations.
Exact DRPNL SA Recessed catalogue model schedule.
| Model / Catalogue Code | Power | Luminous Flux | Voltage | Operating Temp. | Efficiency | CRI | CCT | Body Dimensions | Ceiling Cut | IP | Enquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LDB-DRPNL7575SA.30.01 | 30 W | 3,300 lm | 220–240 Vac | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | 734 × 734 × 117 mm | 714 × 714 mm | IP20 / IP40 | |
| LDB-DRPNL7575SA.40.01 | 40 W | 4,400 lm | 220–240 Vac | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | 734 × 734 × 117 mm | 714 × 714 mm | IP20 / IP40 |
Control functions are catalogue options and are selected to suit the project requirement.

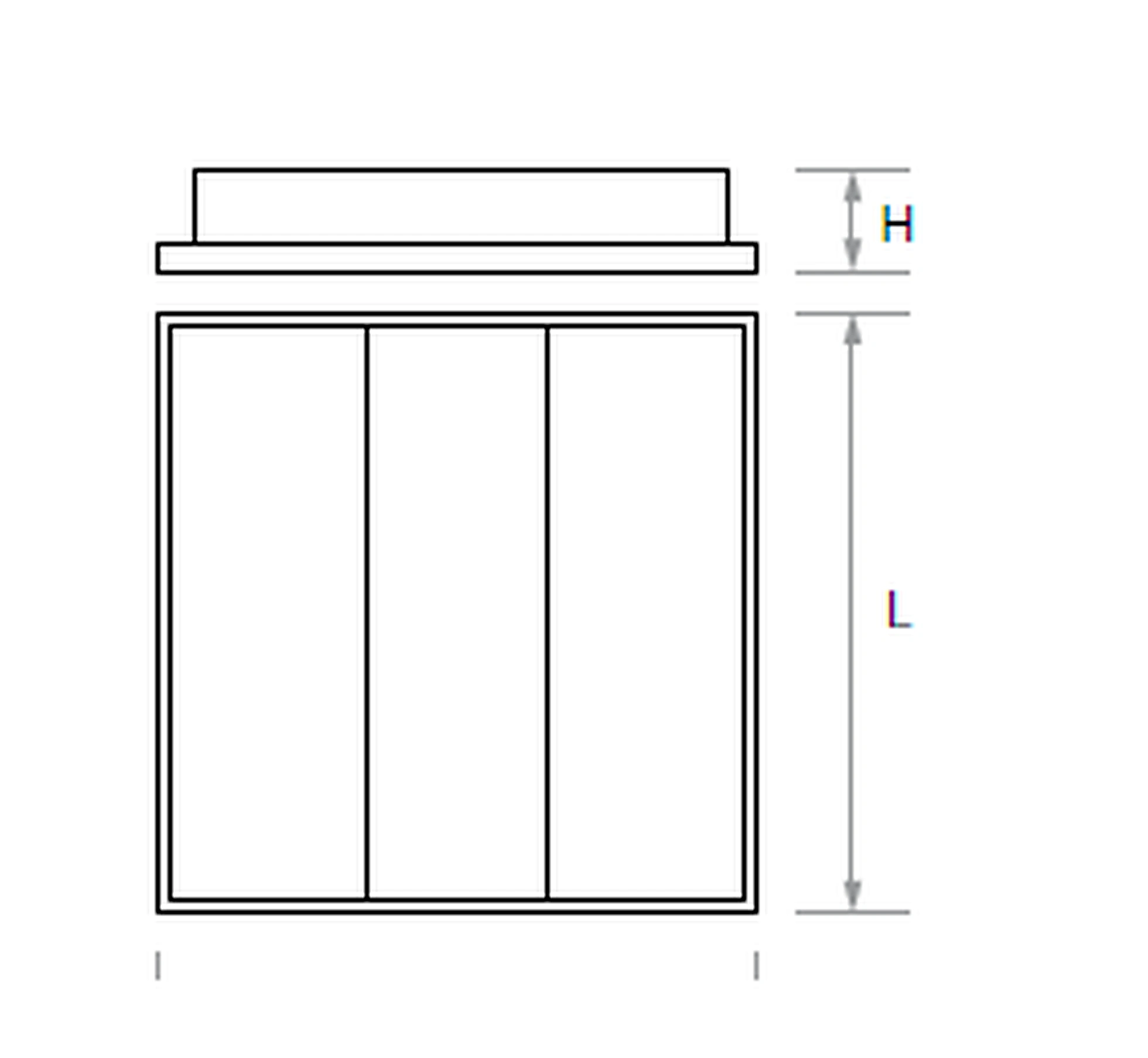

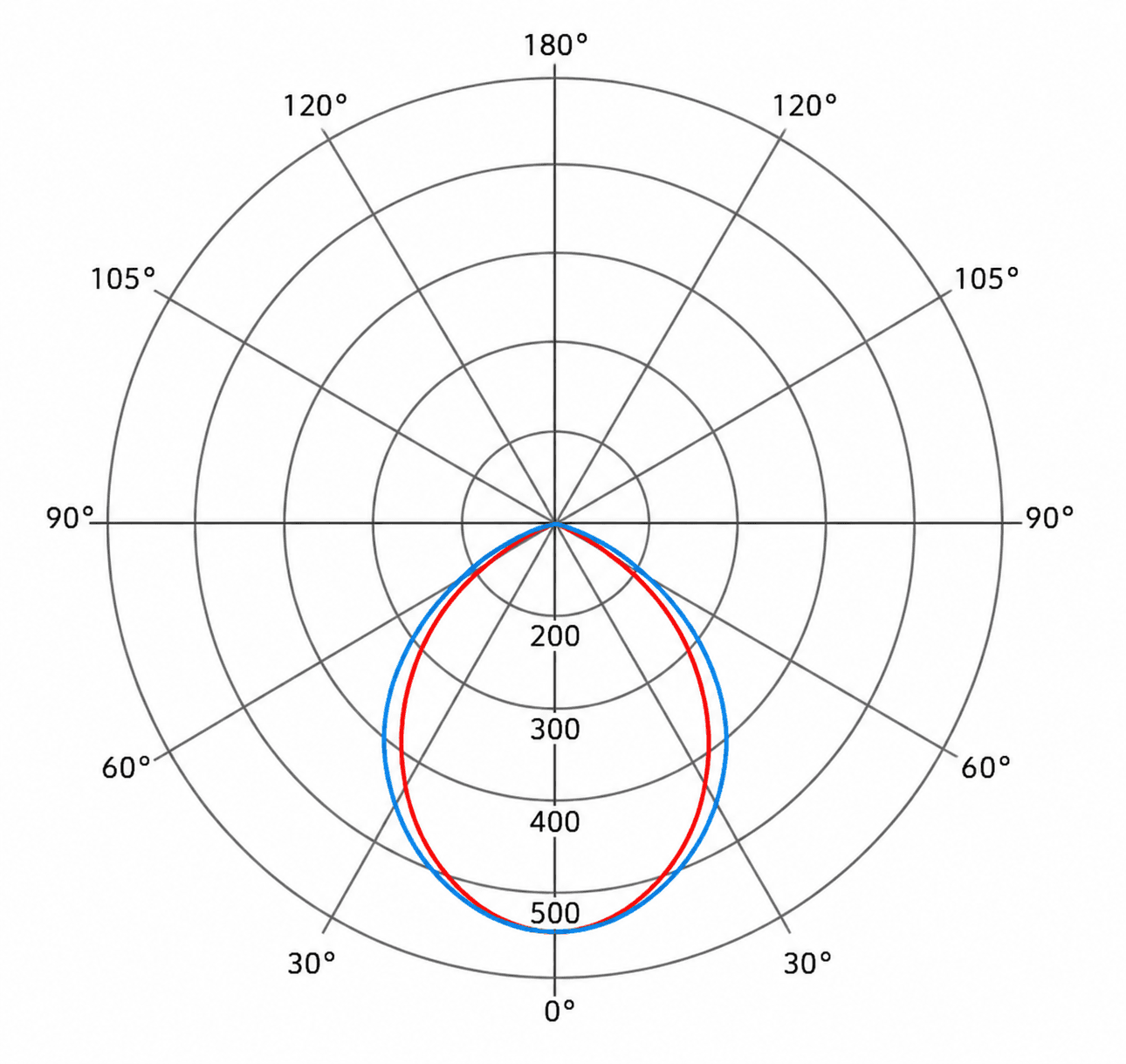

Photometric and technical drawings shown are shared across the DRPNL Series family.
General panel lighting for offices and work areas.
Uniform illumination for classrooms and learning spaces.

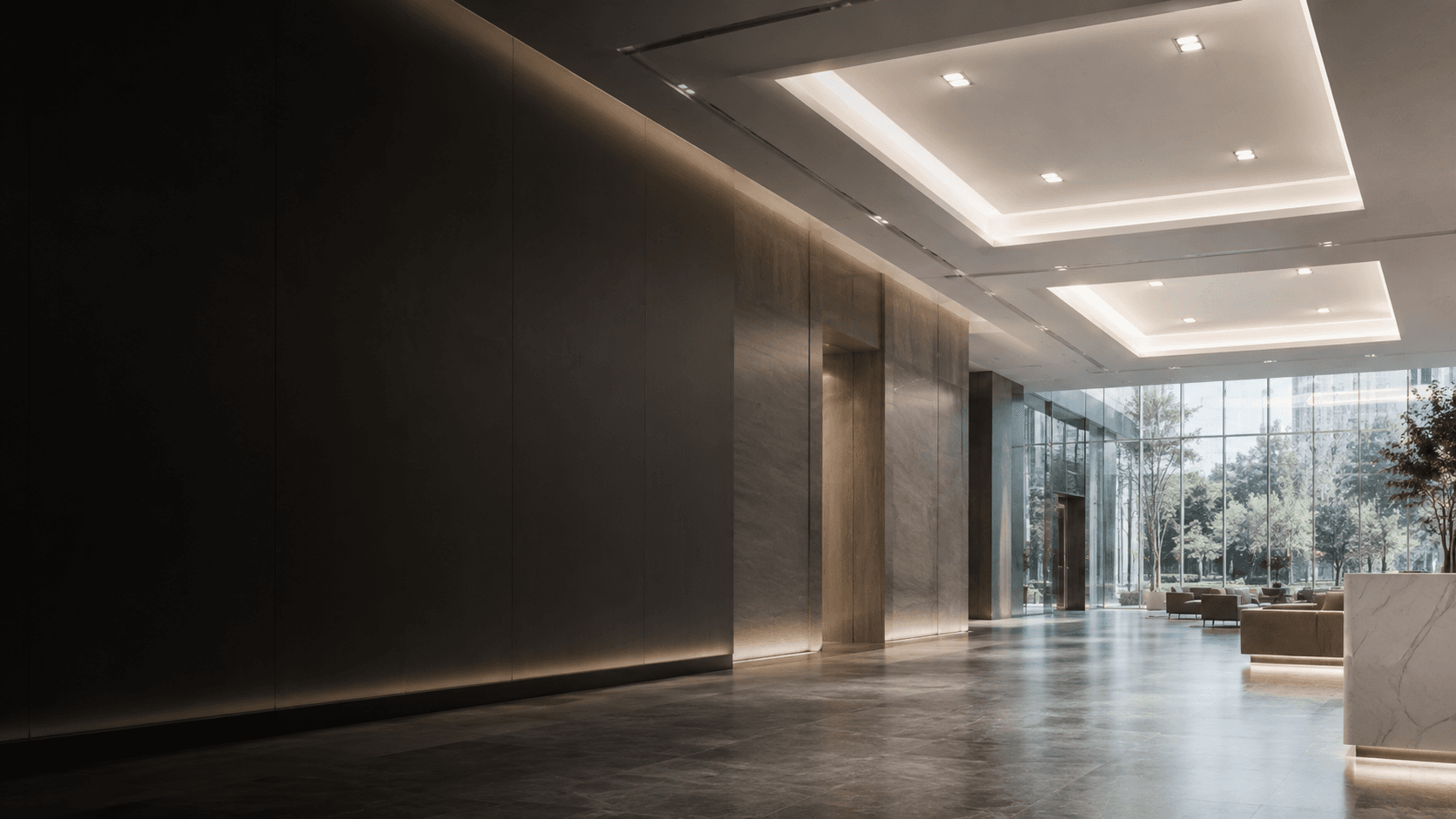

Panel lighting for circulation and shared public interiors.
General lighting for retail and commercial spaces.
Broad panel illumination for market interiors.
General panel lighting for offices and work areas.
Discuss the mounting arrangement, output and project options with our technical team.
Talk to Our Technical Team
