Performance
Power15–61 W
Luminous Flux1,800–7,320 lm
Efficiency120+ lm/W
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.
MULTILINE 45 F
Linear & Trunking Lighting

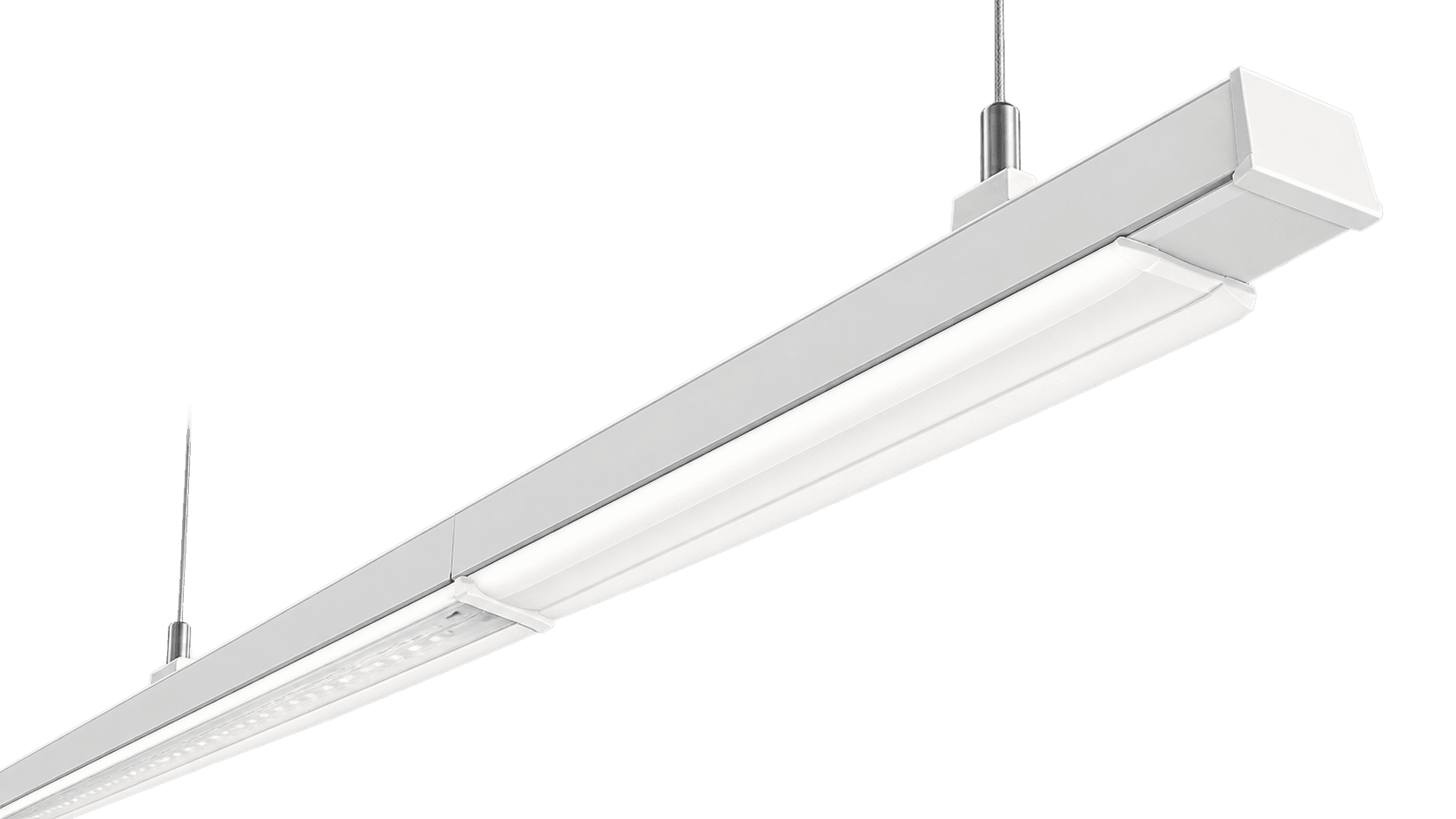

Continuous-row lighting system based on an aluminium extrusion body and high-efficiency PC opal diffuser, available in F and L configurations for commercial and continuous-lighting applications.
Exact MULTILINE 45 F schedule. Reused order codes remain configuration-specific and are not deduplicated across F and L.
| Model / Catalogue Code | Power | Luminous Flux | Voltage | Frequency | Operating Temp. | Efficiency | CRI | CCT | Dimensions | IP | Enquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LDB-MLT45-15 | 15 W | 1,800 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 120+ lm/W | 80+ | 60 × 600 × 45 mm | IP54 | ||
| LDB-MLT45-22 | 22 W | 2,640 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 120+ lm/W | 80+ | 60 × 900 × 45 mm | IP54 | ||
| LDB-MLT45-27 | 27 W | 3,240 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 120+ lm/W | 80+ | 60 × 1200 × 45 mm | IP54 | ||
| LDB-MLT45-33 | 33 W | 3,960 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 120+ lm/W | 80+ | 60 × 1500 × 45 mm | IP54 | ||
| LDB-MLT45-24 | 24 W | 2,880 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 120+ lm/W | 80+ | 60 × 600 × 45 mm | IP54 | ||
| LDB-MLT45-35 | 35 W | 4,200 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 120+ lm/W | 80+ | 60 × 900 × 45 mm | IP54 | ||
| LDB-MLT45-48 | 48 W | 5,760 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 120+ lm/W | 80+ | 60 × 1200 × 45 mm | IP54 | ||
| LDB-MLT45-61 | 61 W | 7,320 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 120+ lm/W | 80+ | 60 × 1500 × 45 mm | IP54 |

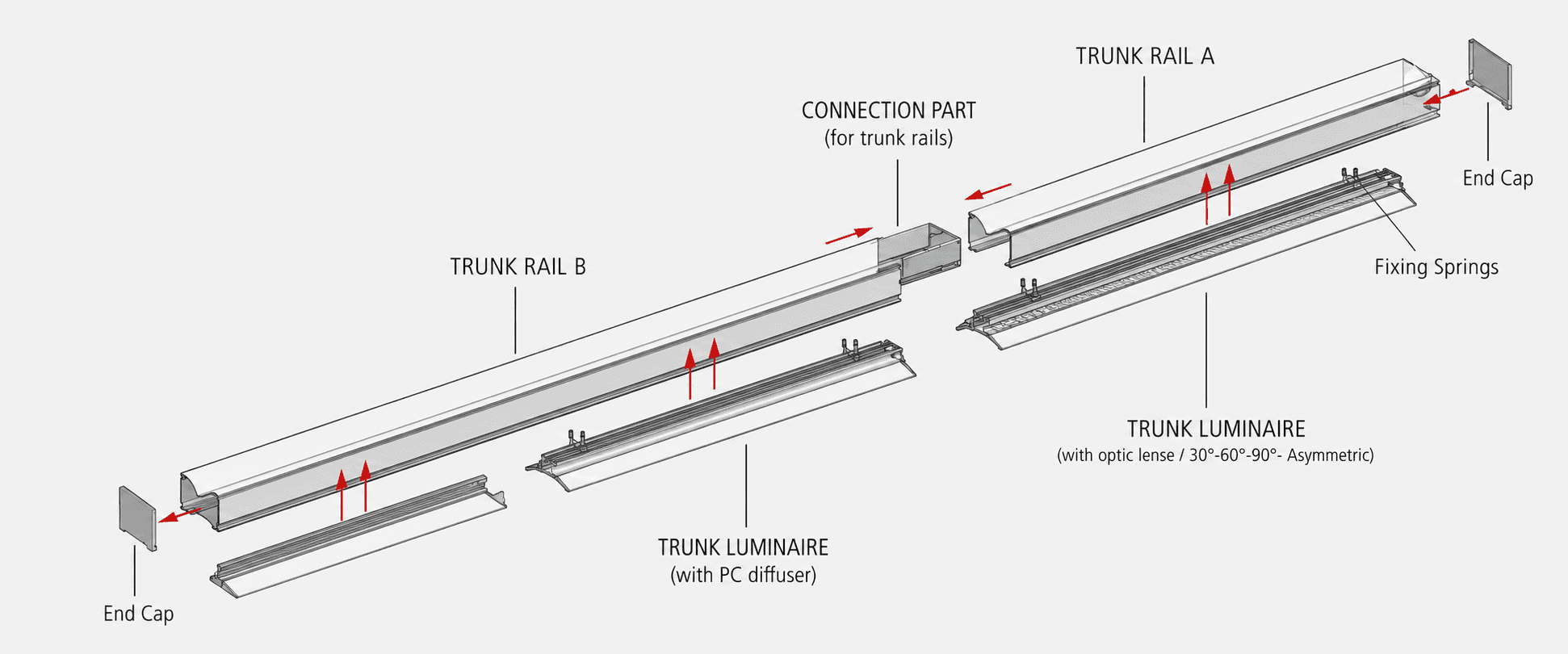

The catalogue diagram presents a modular continuous-row concept with distinct F and L configurations.
Structured model data replaces the catalogue technical-table screenshot.
Continuous-row lighting for retail and supermarket aisles.
Architectural linear lighting for offices and modern workspaces.

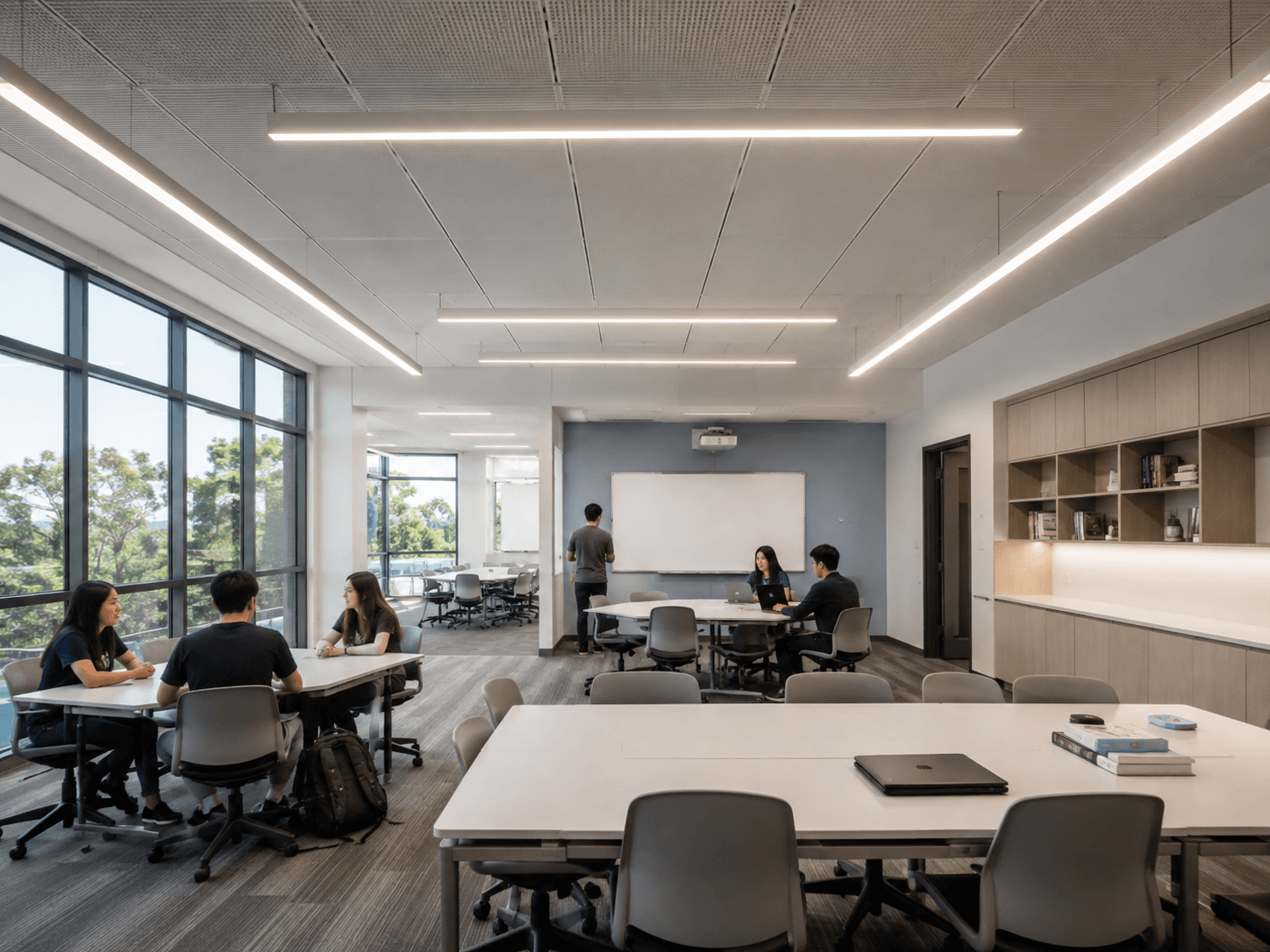

Linear illumination for classrooms and shared learning environments.
Continuous and uniform lighting for circulation routes.
Continuous linear lighting for commercial project interiors.

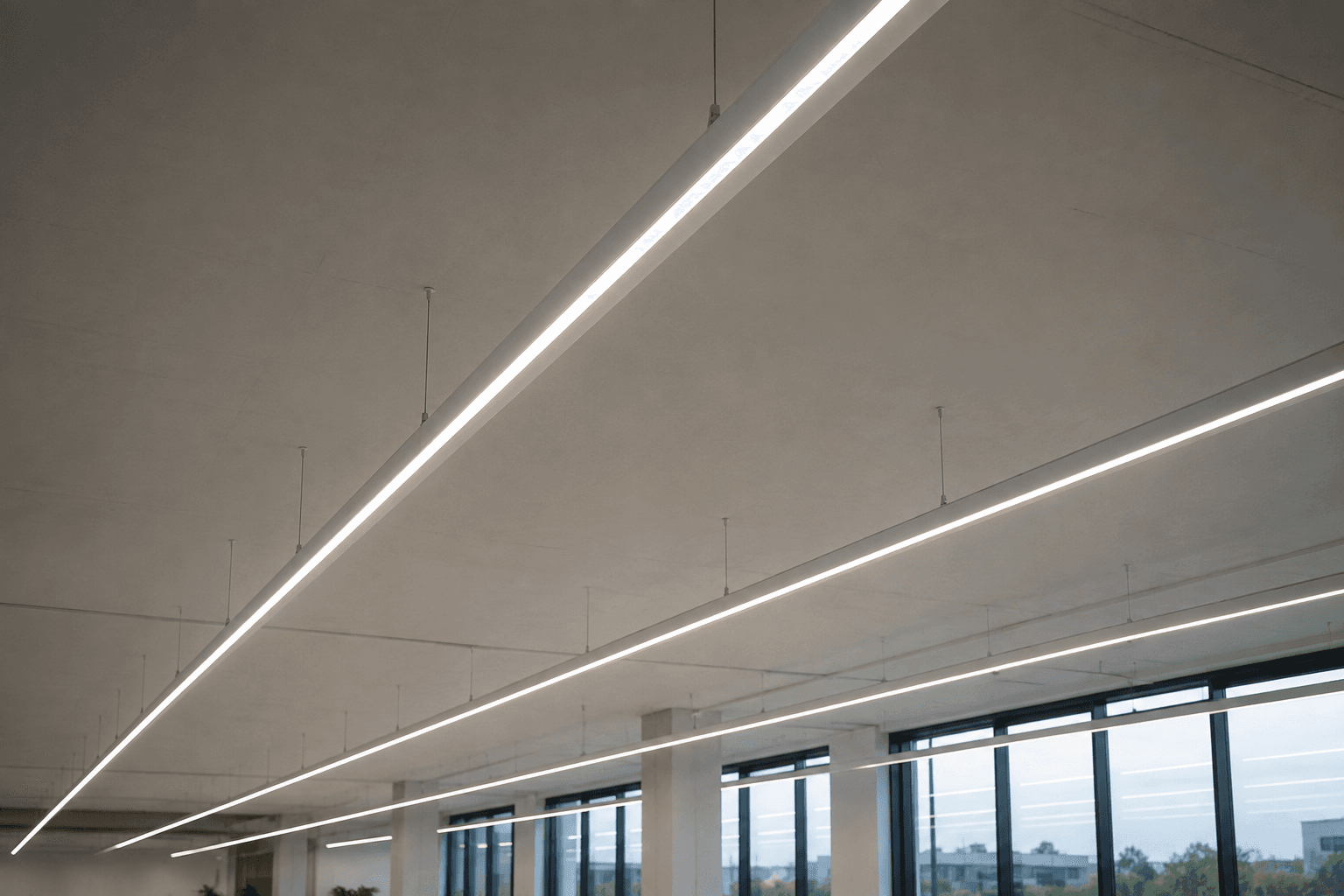

Project areas designed around modular continuous-lighting logic.
Continuous-row lighting for retail and supermarket aisles.
Discuss the F or L configuration, required lengths and project layout with our technical team.
