Performance
Power14–72 W
Luminous Flux1,610–8,280 lm
Efficiency>115 lm/W
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.

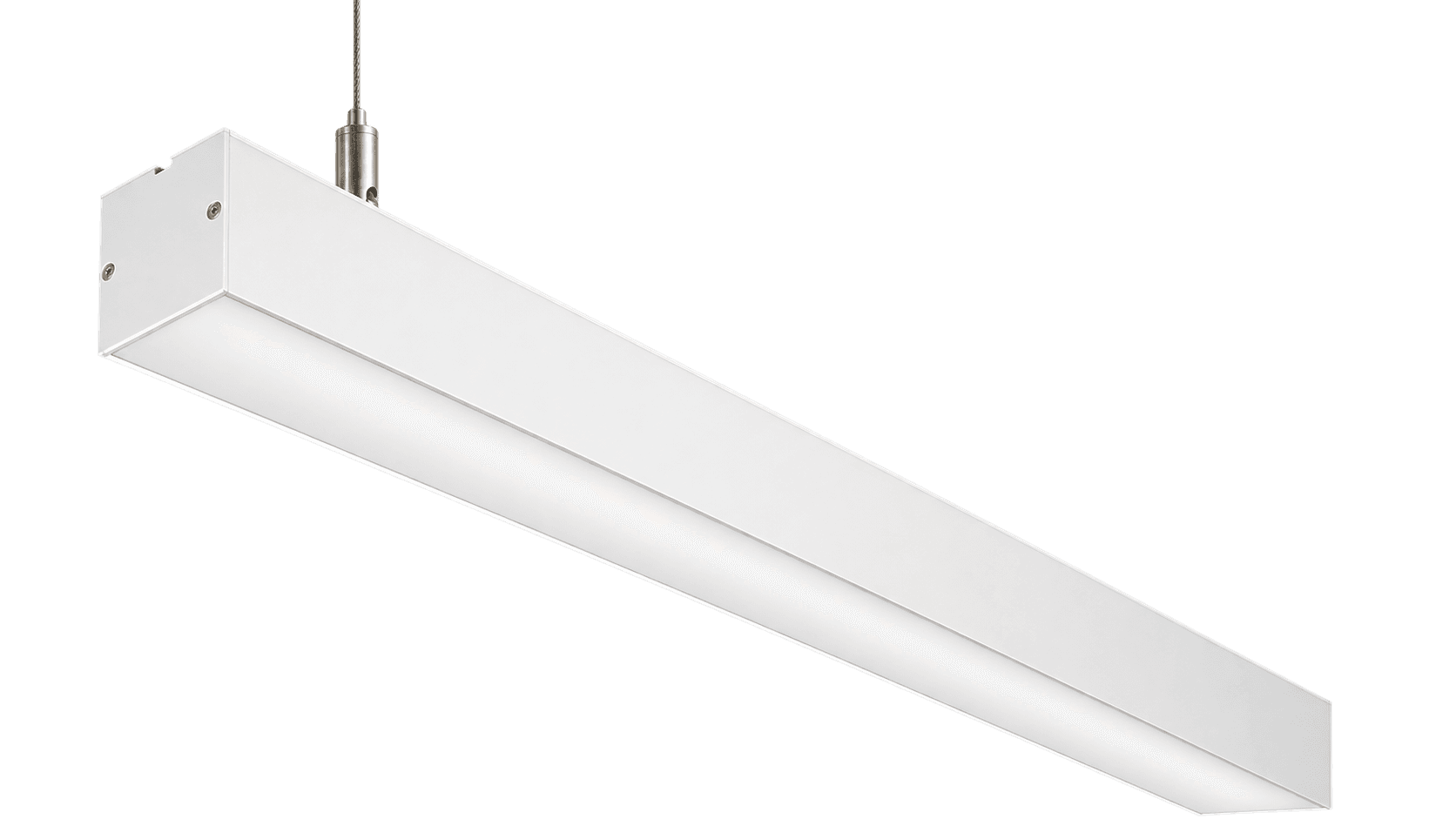

Surface Mounted Opal
Linear & Trunking Lighting
Wider-profile surface-mounted opal linear luminaires for architectural general lighting and commercial interiors.
Exact eight-model LNR85 schedule. The raw source field labelled as ceiling cut is retained without reinterpreting it as an installation requirement.
| Model / Catalogue Code | Power | Luminous Flux | Voltage | Frequency | Operating Temp. | Efficiency | CRI | CCT | Body Dimensions | Catalogue Ceiling-Cut Field | IP | Enquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LDB-LNR8560.14.02 | 14 W | 1,610 lm | 220–240 Vac | −20 to +35 °C | >115 lm/W | >80 | 3000–6500 K | 105 × 620 × 85 mm | 85 × 600 × 85 mm | IP40 | ||
| LDB-LNR8560.18.02 | 18 W | 2,070 lm | 220–240 Vac | −20 to +35 °C | >115 lm/W | >80 | 3000–6500 K | 105 × 620 × 85 mm | 85 × 600 × 85 mm | IP40 | ||
| LDB-LNR8590.20.02 | 20 W | 2,300 lm | 220–240 Vac | −20 to +35 °C | >115 lm/W | >80 | 3000–6500 K | 105 × 920 × 85 mm | 85 × 900 × 85 mm | IP40 | ||
| LDB-LNR85120.27.02 | 27 W | 3,105 lm | 220–240 Vac | −20 to +35 °C | >115 lm/W | >80 | 3000–6500 K | 105 × 1220 × 85 mm | 85 × 1200 × 85 mm | IP40 | ||
| LDB-LNR85120.36.02 | 36 W | 4,140 lm | 220–240 Vac | −20 to +35 °C | >115 lm/W | >80 | 3000–6500 K | 105 × 1220 × 85 mm | 85 × 1200 × 85 mm | IP40 | ||
| LDB-LNR85150.45.02 | 45 W | 5,175 lm | 220–240 Vac | −20 to +35 °C | >115 lm/W | >80 | 3000–6500 K | 105 × 1520 × 85 mm | 85 × 1500 × 85 mm | IP40 | ||
| LDB-LNR85240.53.02 | 53 W | 6,095 lm | 220–240 Vac | −20 to +35 °C | >115 lm/W | >80 | 3000–6500 K | 105 × 2420 × 85 mm | 85 × 2400 × 85 mm | IP40 | ||
| LDB-LNR85240.72.02 | 72 W | 8,280 lm | 220–240 Vac | −20 to +35 °C | >115 lm/W | >80 | 3000–6500 K | 105 × 2420 × 85 mm | 85 × 2400 × 85 mm | IP40 |

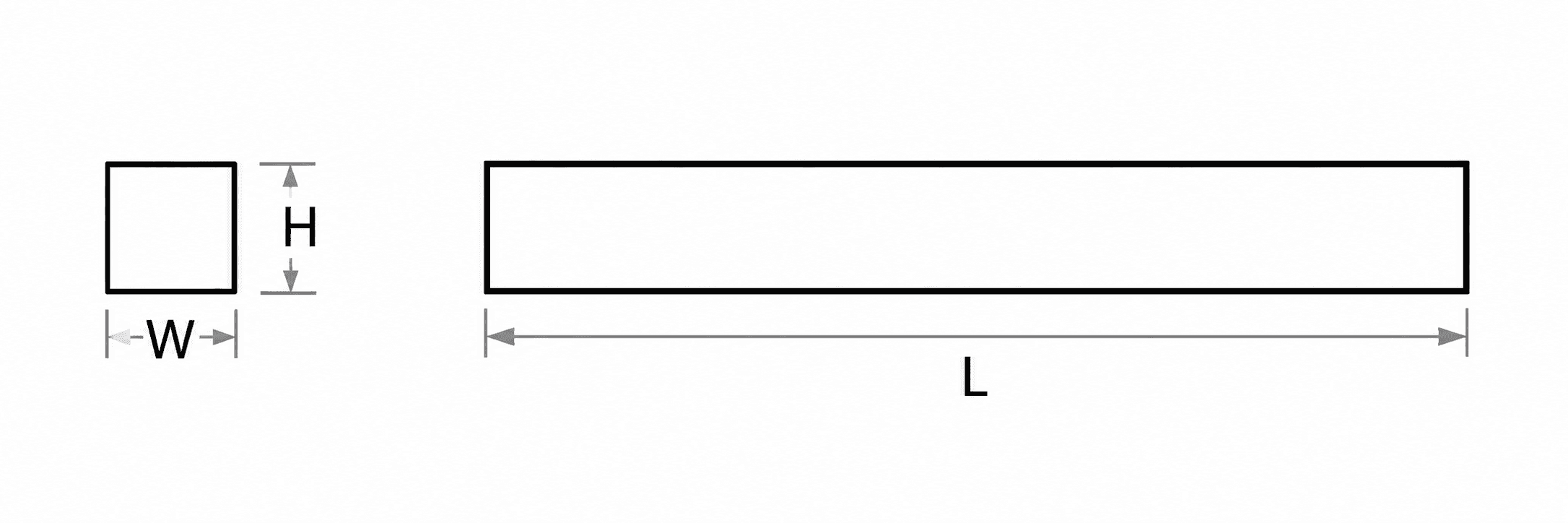

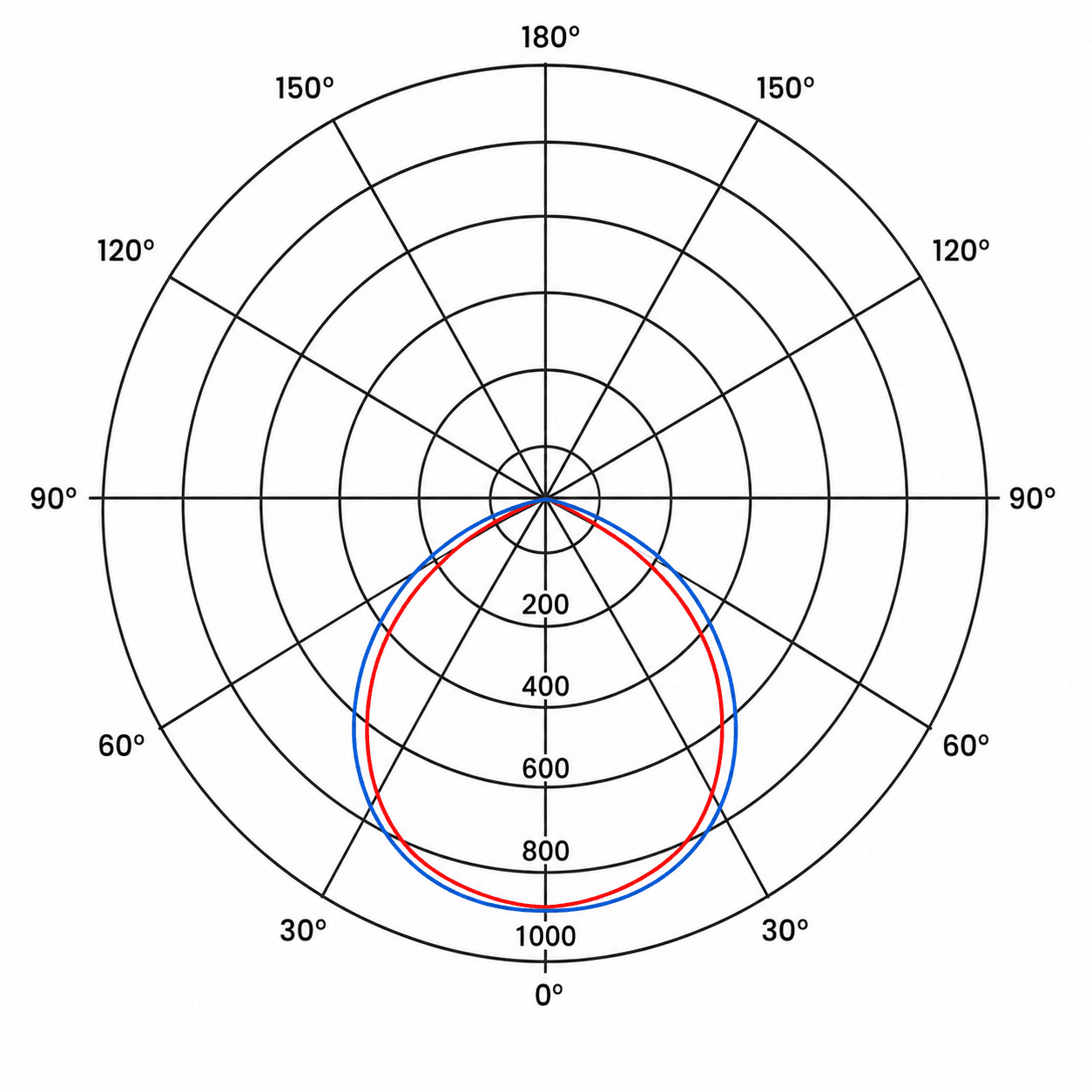

LNR85 family photometric and technical drawings.
Architectural linear lighting for offices and modern workspaces.
Linear illumination for classrooms and shared learning environments.

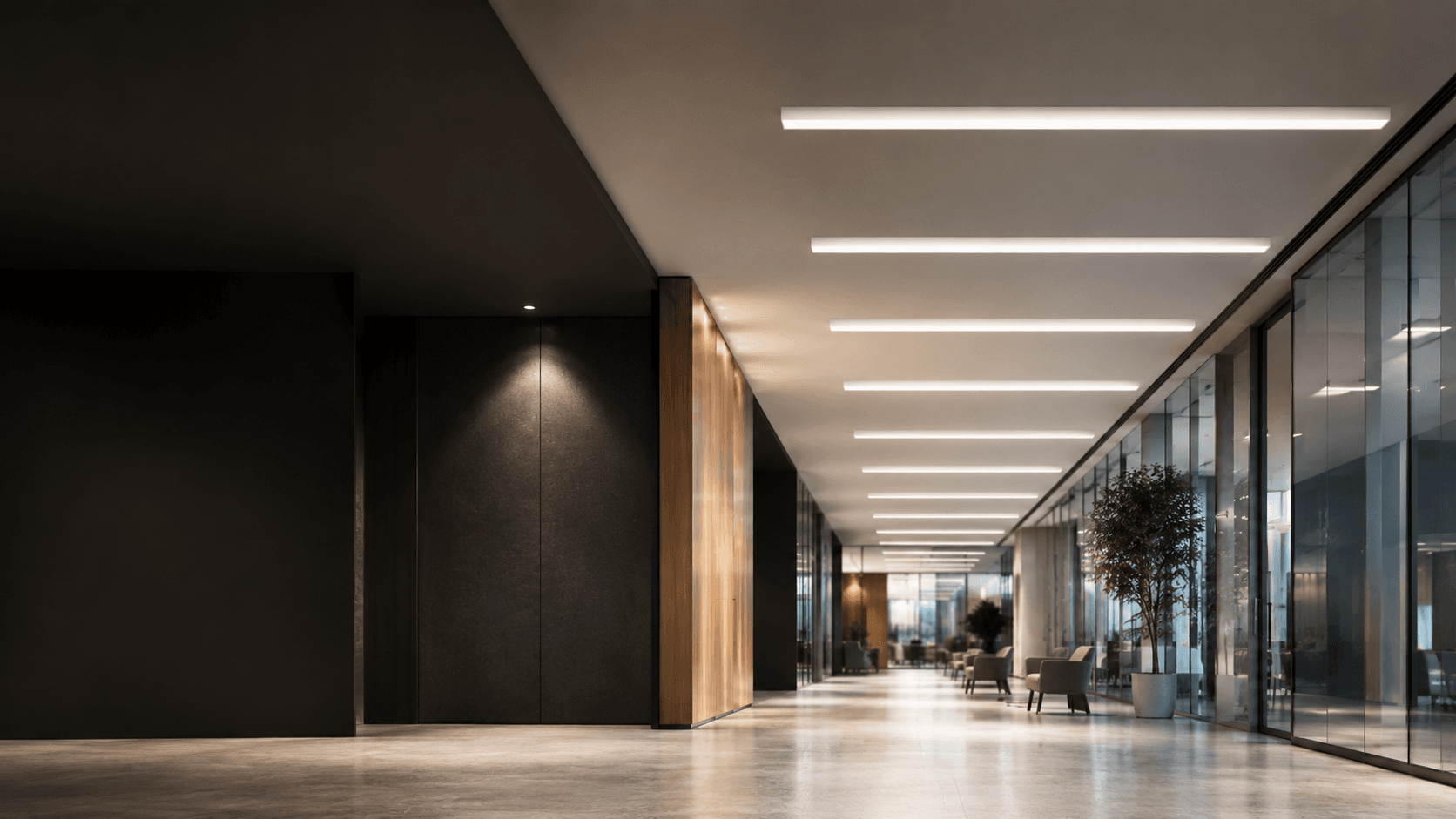

Continuous and uniform lighting for circulation routes.
Suspended, surface and recessed lighting for commercial interiors.
Linear lighting for retail floors and customer-facing spaces.
Project lighting for coordinated architectural workplace schemes.
Architectural linear lighting for offices and modern workspaces.
Discuss model length, output and surface-mounted project requirements with our technical team.
