Performance
Power14–72 W
Luminous Flux1,540–7,920 lm
Efficiency>110 lm/W
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.

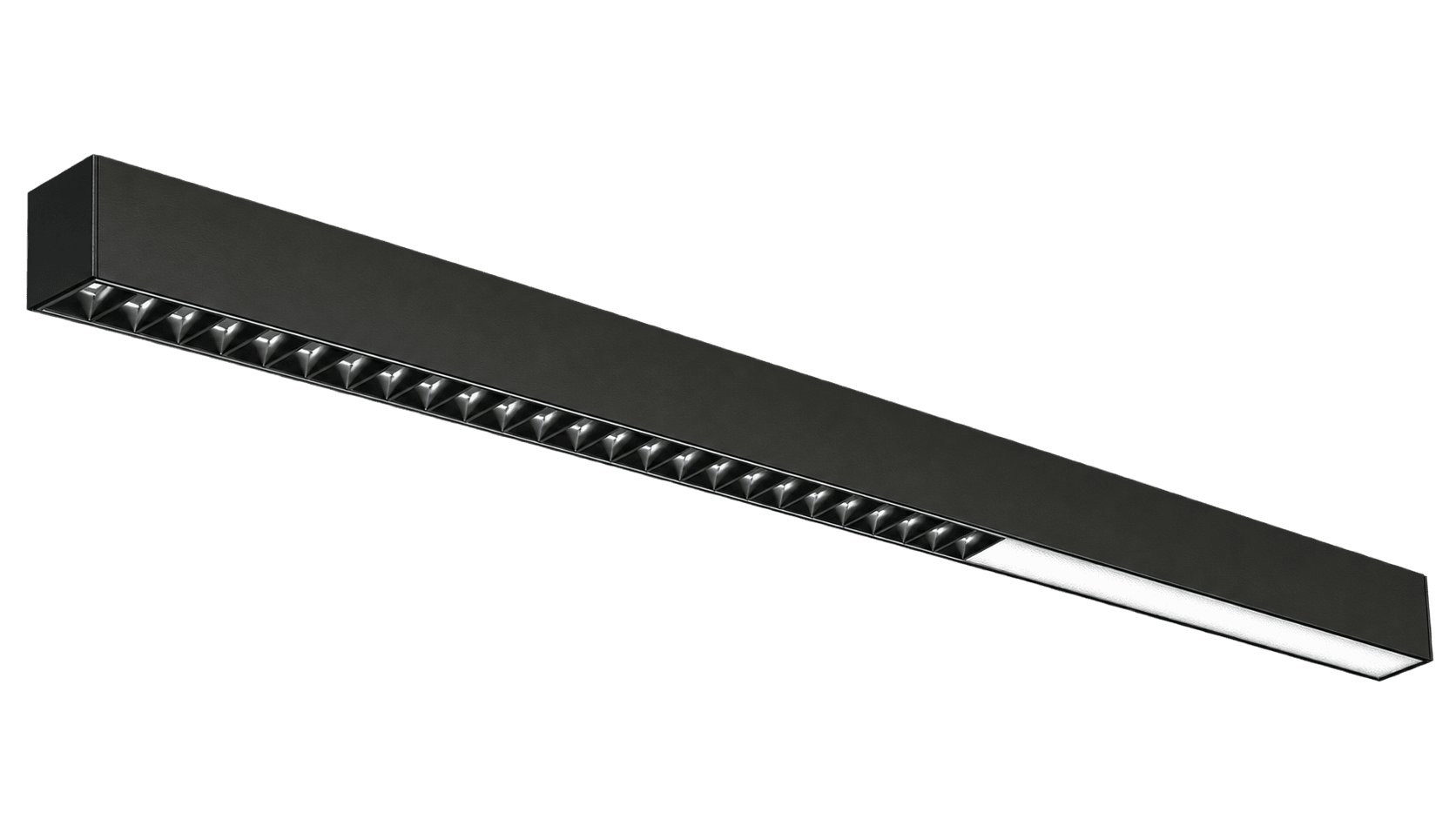

Recessed Opal
Linear & Trunking Lighting
Architectural linear family with recessed opal, recessed louvered and surface-mounted louvered configurations.
Exact configuration-specific schedule; no numerical glare value is assigned.
| Model / Catalogue Code | Power | Luminous Flux | Voltage | Frequency | Operating Temp. | Efficiency | CRI | CCT | Body Dimensions | Ceiling Cut | IP | Enquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LDB-LNR33D60.14.02 | 14 W | 1,540 lm | 220–240 Vac | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | 53 × 620 × 100 mm | 43 × 610 mm | IP40 | ||
| LDB-LNR33D60.18.02 | 18 W | 1,980 lm | 220–240 Vac | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | 53 × 620 × 100 mm | 43 × 610 mm | IP40 | ||
| LDB-LNR33D90.20.02 | 20 W | 2,200 lm | 220–240 Vac | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | 53 × 920 × 100 mm | 43 × 910 mm | IP40 | ||
| LDB-LNR33D120.27.02 | 27 W | 2,970 lm | 220–240 Vac | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | 53 × 1220 × 100 mm | 43 × 1210 mm | IP40 | ||
| LDB-LNR33D120.36.02 | 36 W | 3,960 lm | 220–240 Vac | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | 53 × 1220 × 100 mm | 43 × 1210 mm | IP40 | ||
| LDB-LNR33D150.45.02 | 45 W | 4,950 lm | 220–240 Vac | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | 53 × 1520 × 100 mm | 43 × 1510 mm | IP40 | ||
| LDB-LNR33D240.53.02 | 53 W | 5,830 lm | 220–240 Vac | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | 53 × 2420 × 100 mm | 43 × 2410 mm | IP40 | ||
| LDB-LNR33D240.72.02 | 72 W | 7,920 lm | 220–240 Vac | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | 53 × 2420 × 100 mm | 43 × 2410 mm | IP40 |

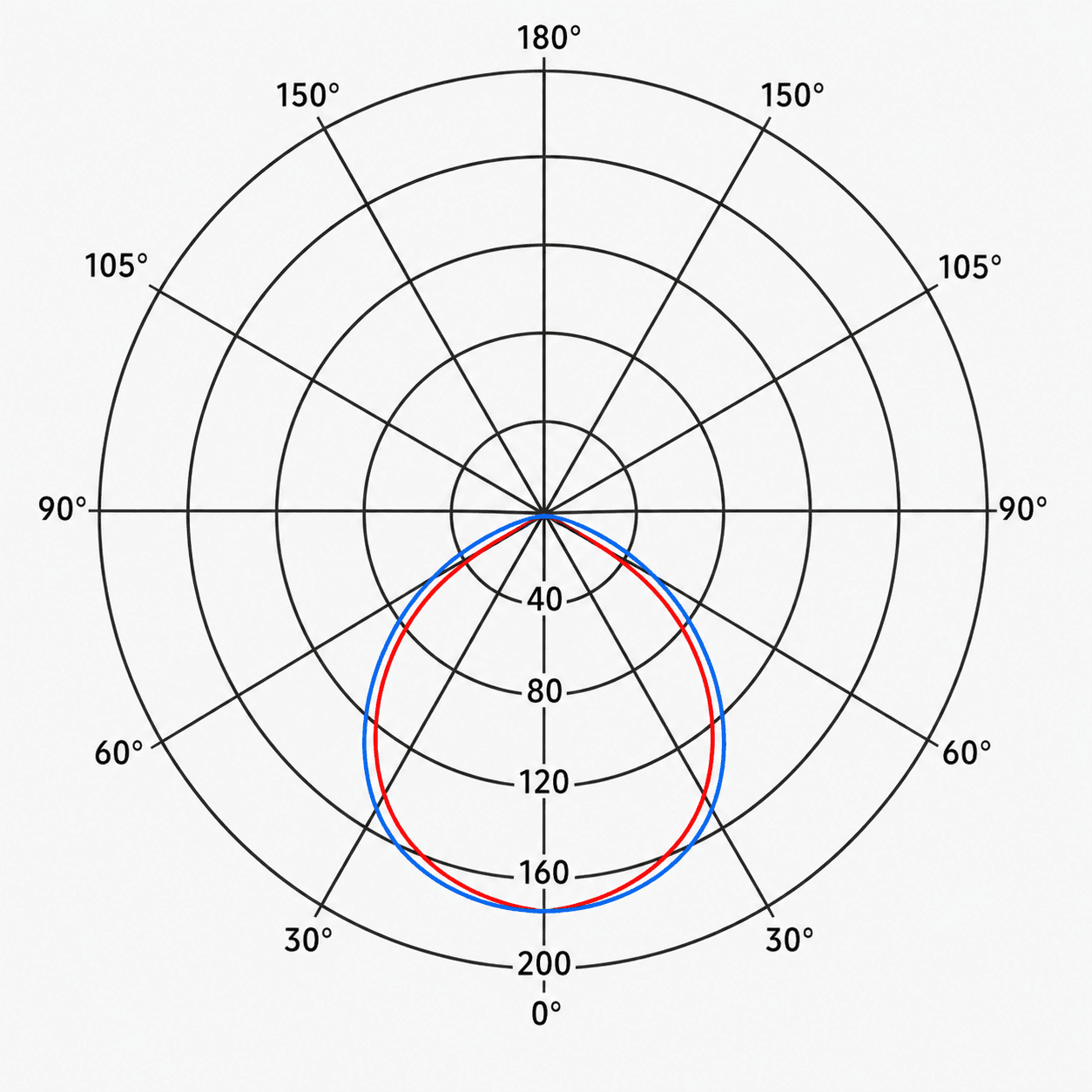

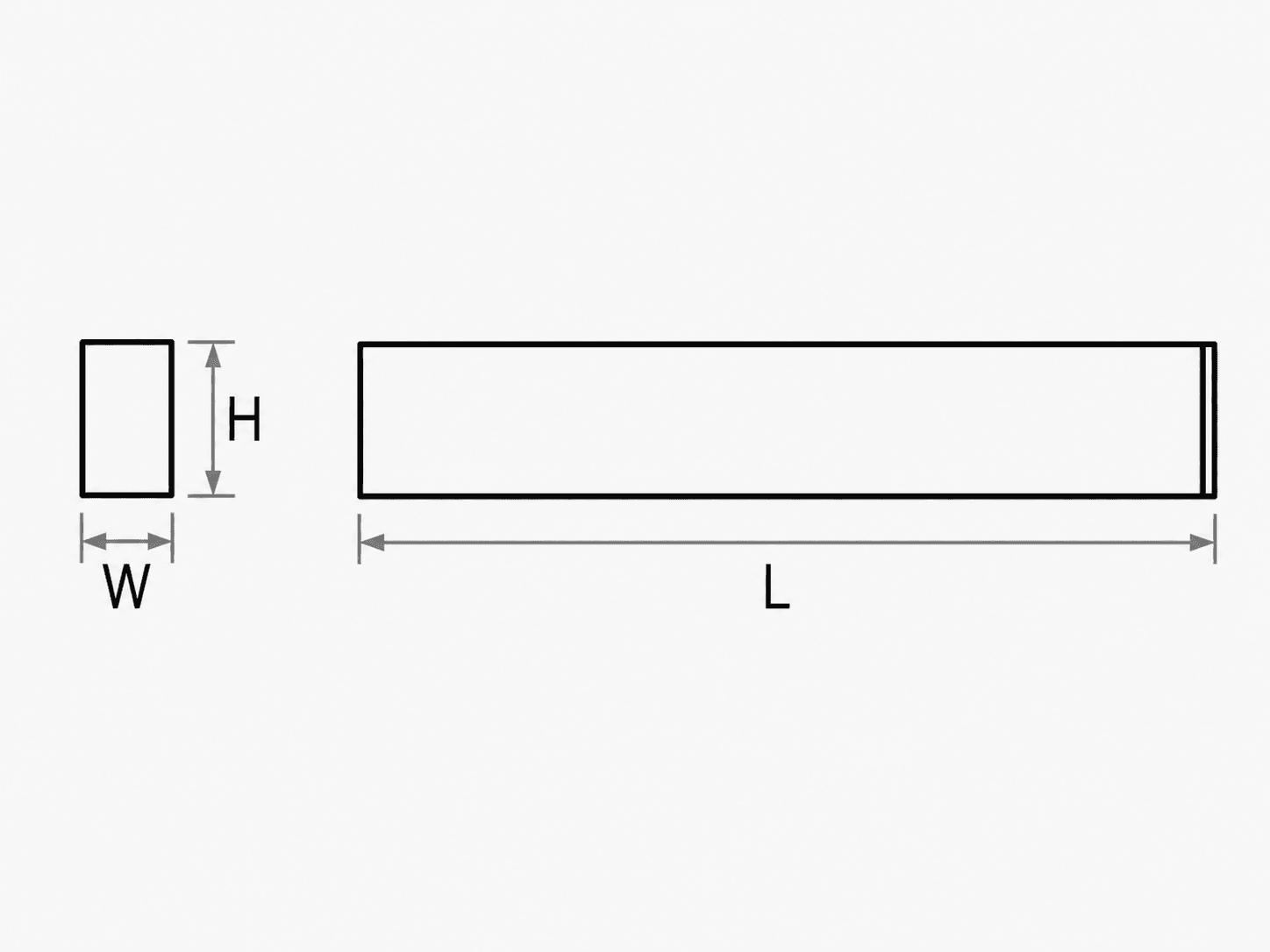

Photometric and technical drawings shown are shared across the LNR33D family.
Architectural linear lighting for offices and modern workspaces.
Linear illumination for classrooms and shared learning environments.
Continuous and uniform lighting for circulation routes.

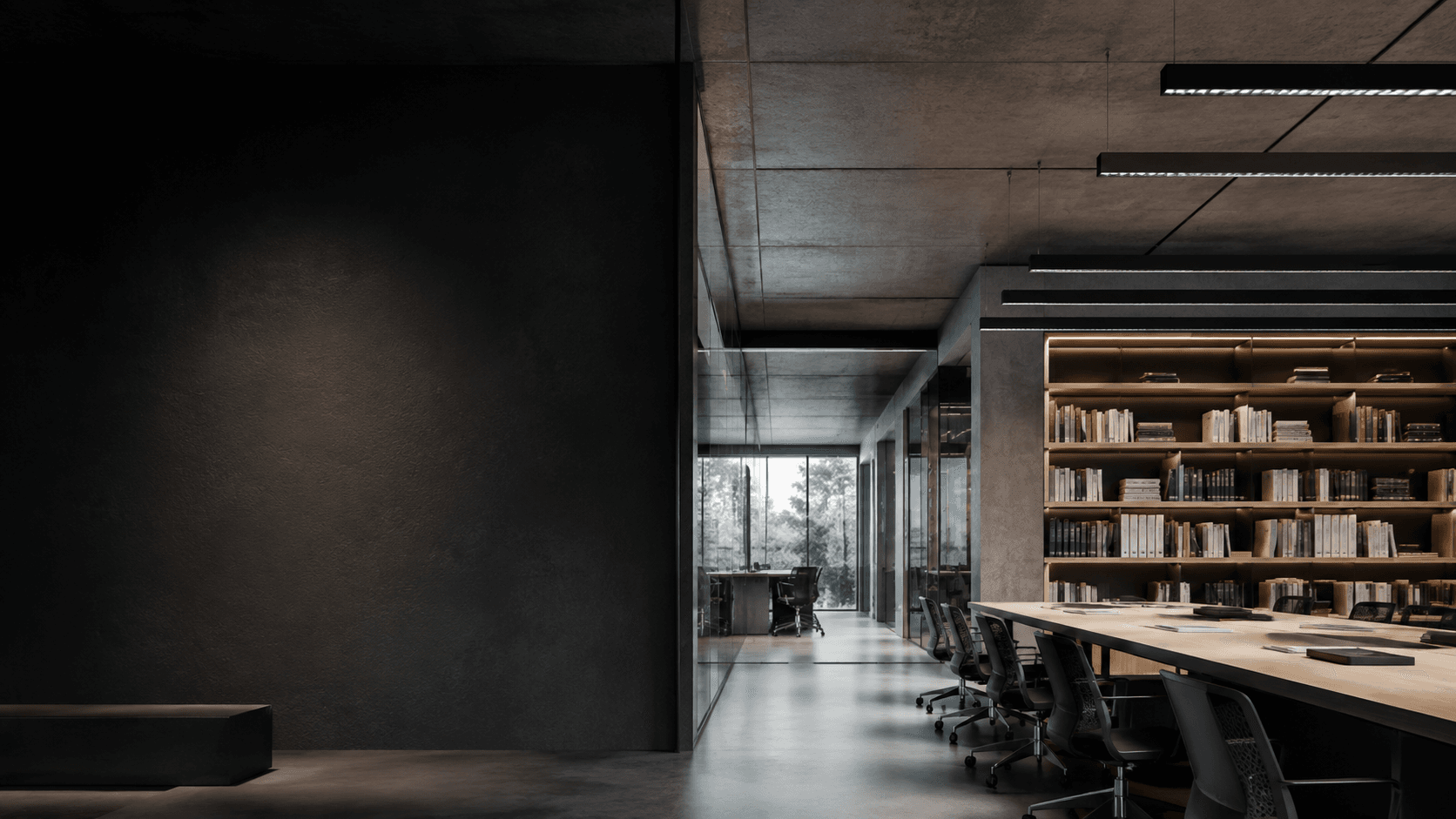

Suspended, surface and recessed lighting for commercial interiors.
Linear lighting for retail floors and customer-facing spaces.
Project lighting for coordinated architectural workplace schemes.
Architectural linear lighting for offices and modern workspaces.
Discuss opal or louvered optics and recessed or surface mounting with our technical team.
