Performance
Power14–72 W
Luminous Flux1,610–8,280 lm
Efficiency>115 lm/W
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.

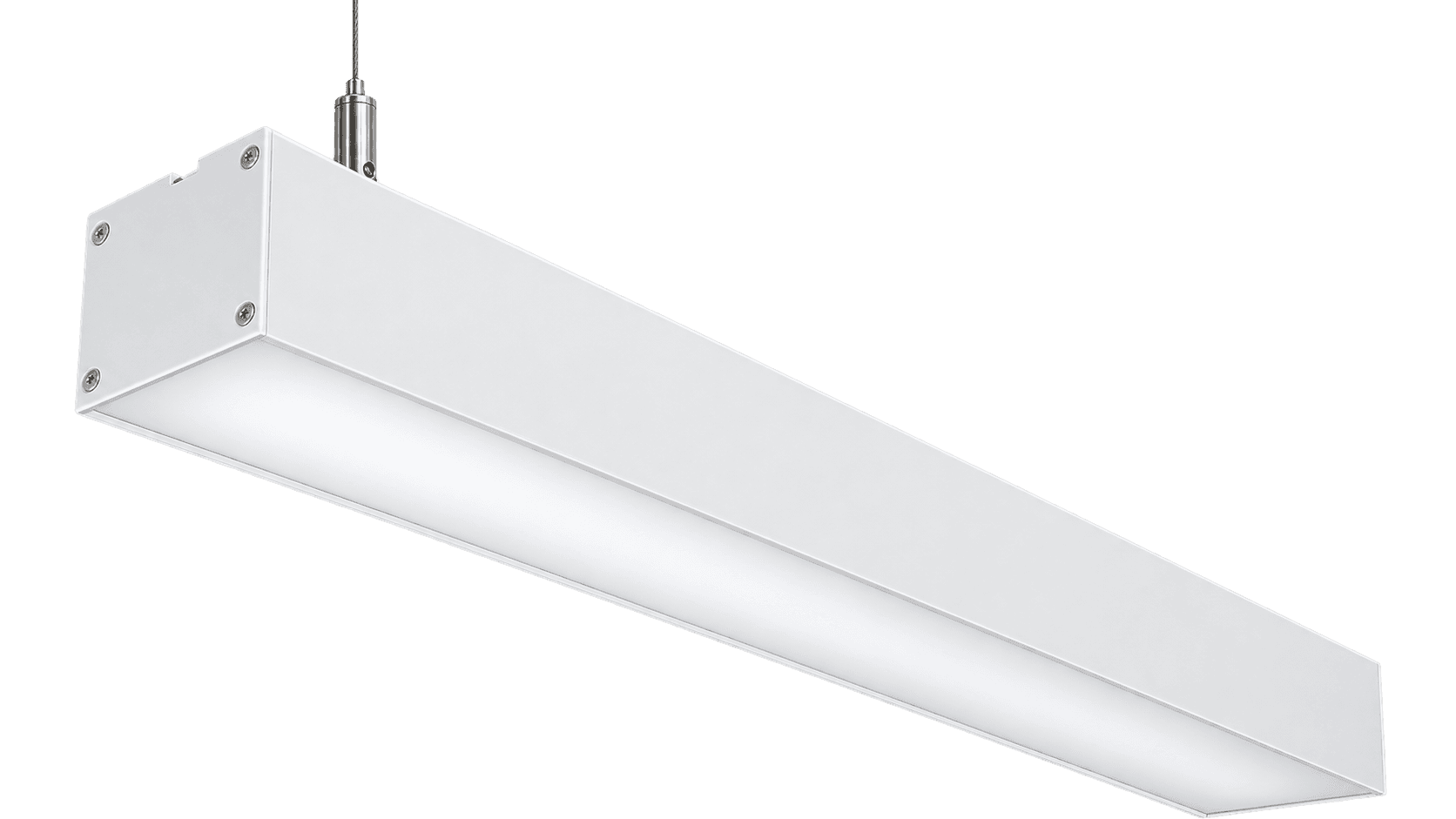

Rectangular Suspended
Linear & Trunking Lighting
Architectural linear family with rectangular suspended, rectangular recessed and catalogue-coded cylindrical suspended configurations.
Exact Rectangular Suspended schedule.
| Model / Catalogue Code | Power | Luminous Flux | Voltage | Frequency | Operating Temp. | Efficiency | CRI | CCT | Body Dimensions | IP | Enquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LDB-LNR10560.14.02 | 14 W | 1,610 lm | 220–240 Vac | −20 to +35 °C | >115 lm/W | >80 | 3000–6500 K | 105 × 620 × 85 mm | IP40 | ||
| LDB-LNR10560.18.02 | 18 W | 2,070 lm | 220–240 Vac | −20 to +35 °C | >115 lm/W | >80 | 3000–6500 K | 105 × 620 × 85 mm | IP40 | ||
| LDB-LNR10590.20.02 | 20 W | 2,300 lm | 220–240 Vac | −20 to +35 °C | >115 lm/W | >80 | 3000–6500 K | 105 × 920 × 85 mm | IP40 | ||
| LDB-LNR105120.27.02 | 27 W | 3,105 lm | 220–240 Vac | −20 to +35 °C | >115 lm/W | >80 | 3000–6500 K | 105 × 1220 × 85 mm | IP40 | ||
| LDB-LNR105120.36.02 | 36 W | 4,140 lm | 220–240 Vac | −20 to +35 °C | >115 lm/W | >80 | 3000–6500 K | 105 × 1220 × 85 mm | IP40 | ||
| LDB-LNR105150.45.02 | 45 W | 5,175 lm | 220–240 Vac | −20 to +35 °C | >115 lm/W | >80 | 3000–6500 K | 105 × 1520 × 85 mm | IP40 | ||
| LDB-LNR105240.53.02 | 53 W | 6,095 lm | 220–240 Vac | −20 to +35 °C | >115 lm/W | >80 | 3000–6500 K | 105 × 2420 × 85 mm | IP40 | ||
| LDB-LNR105240.72.02 | 72 W | 8,280 lm | 220–240 Vac | −20 to +35 °C | >115 lm/W | >80 | 3000–6500 K | 105 × 2420 × 85 mm | IP40 |
Configuration-aware catalogue technical panels; ambiguous cylindrical dimensions are not converted into structured values.
Architectural linear lighting for offices and modern workspaces.
Linear illumination for classrooms and shared learning environments.
Continuous and uniform lighting for circulation routes.

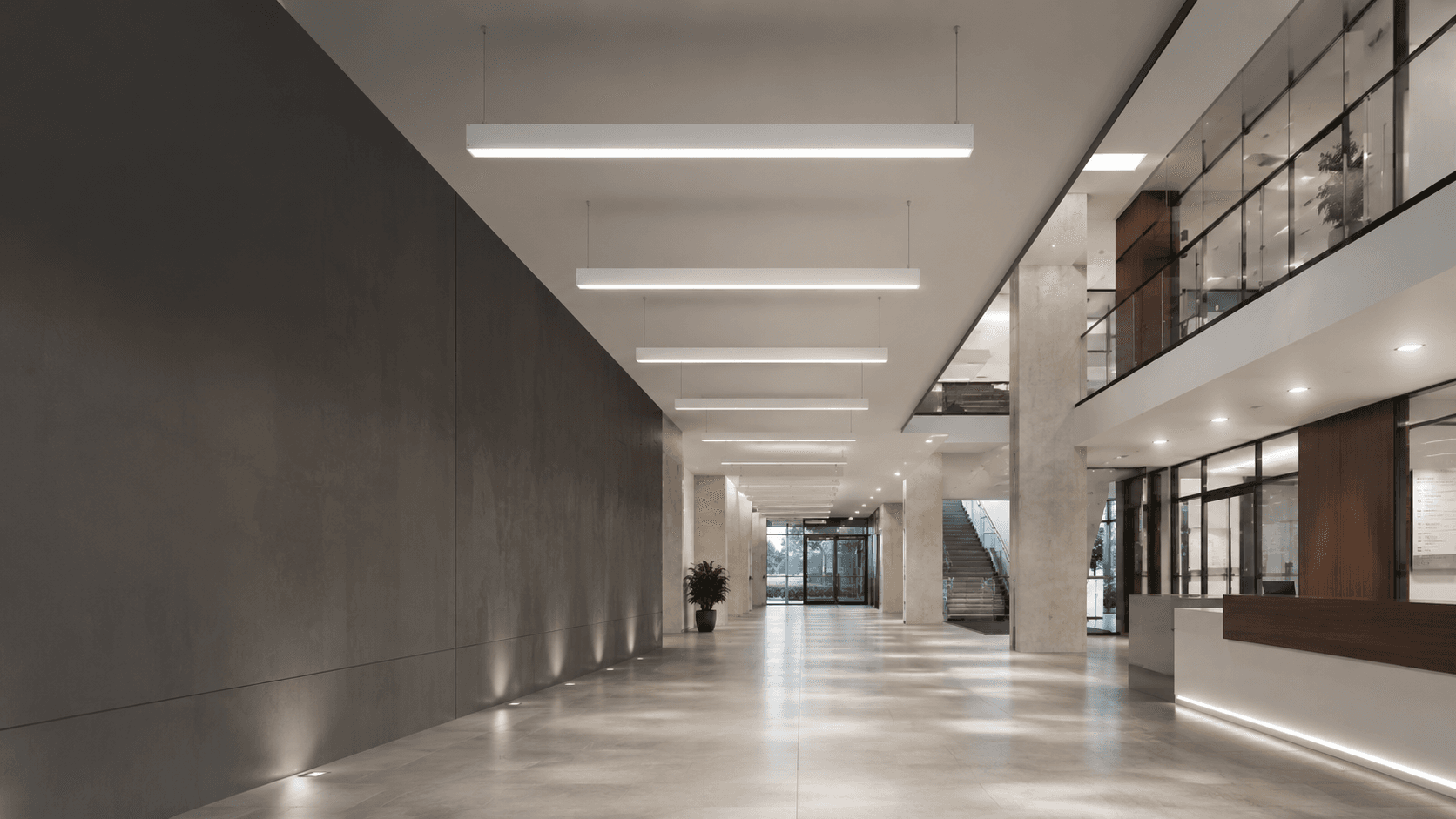

Suspended, surface and recessed lighting for commercial interiors.
Linear lighting for retail floors and customer-facing spaces.
Project lighting for coordinated architectural workplace schemes.
Architectural linear lighting for offices and modern workspaces.
Discuss the rectangular or cylindrical form and mounting arrangement with our technical team.
Talk to Our Technical Team
