Performance
Power14–72 W
Luminous Flux1,540–7,920 lm
Efficiency>110 lm/W
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.

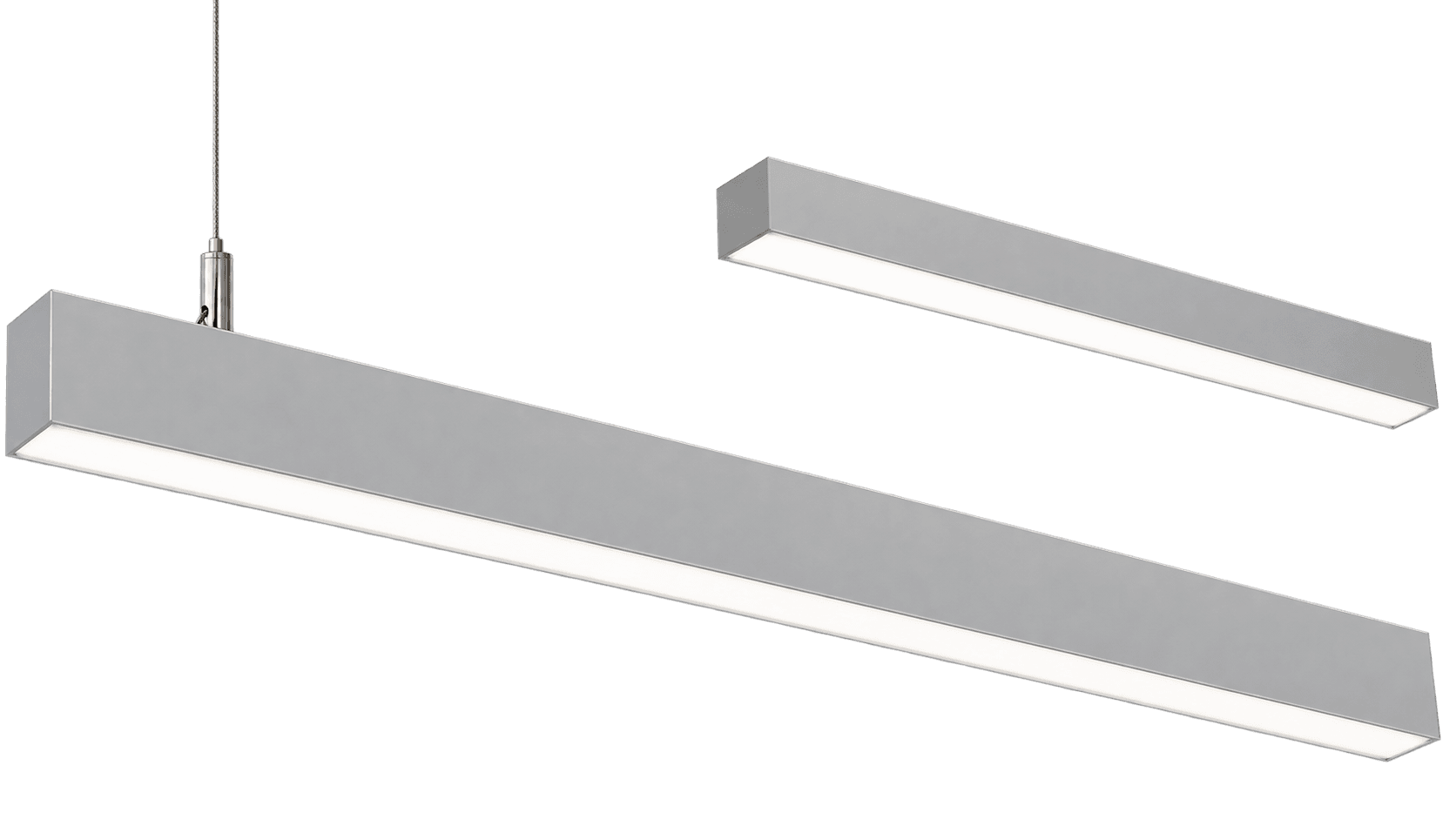

LNR Suspended
Linear & Trunking Lighting
Slim 33 mm architectural linear lighting platform available in suspended LNR and surface-mounted LNRSA configurations for commercial and project interiors.
Exact LNR Suspended catalogue schedule. The repeated suspension-kit note is not applied to the LNRSA installation description.
| Model / Catalogue Code | Power | Luminous Flux | Voltage | Frequency | Operating Temp. | Efficiency | CRI | CCT | Body Dimensions | IP | Enquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LDB-LNR3360.14.03 | 14 W | 1,540 lm | 220–240 Vac | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | 33 × 600 × 100 mm | IP40 | ||
| LDB-LNR3360.18.03 | 18 W | 1,980 lm | 220–240 Vac | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | 33 × 600 × 100 mm | IP40 | ||
| LDB-LNR3390.20.03 | 20 W | 2,200 lm | 220–240 Vac | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | 33 × 900 × 100 mm | IP40 | ||
| LDB-LNR33120.27.03 | 27 W | 2,970 lm | 220–240 Vac | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | 33 × 1200 × 100 mm | IP40 | ||
| LDB-LNR33120.36.03 | 36 W | 3,960 lm | 220–240 Vac | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | 33 × 1200 × 100 mm | IP40 | ||
| LDB-LNR33150.45.03 | 45 W | 4,950 lm | 220–240 Vac | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | 33 × 1500 × 100 mm | IP40 | ||
| LDB-LNR33240.53.03 | 53 W | 5,830 lm | 220–240 Vac | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | 33 × 2400 × 100 mm | IP40 | ||
| LDB-LNR33240.72.03 | 72 W | 7,920 lm | 220–240 Vac | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | 33 × 2400 × 100 mm | IP40 |

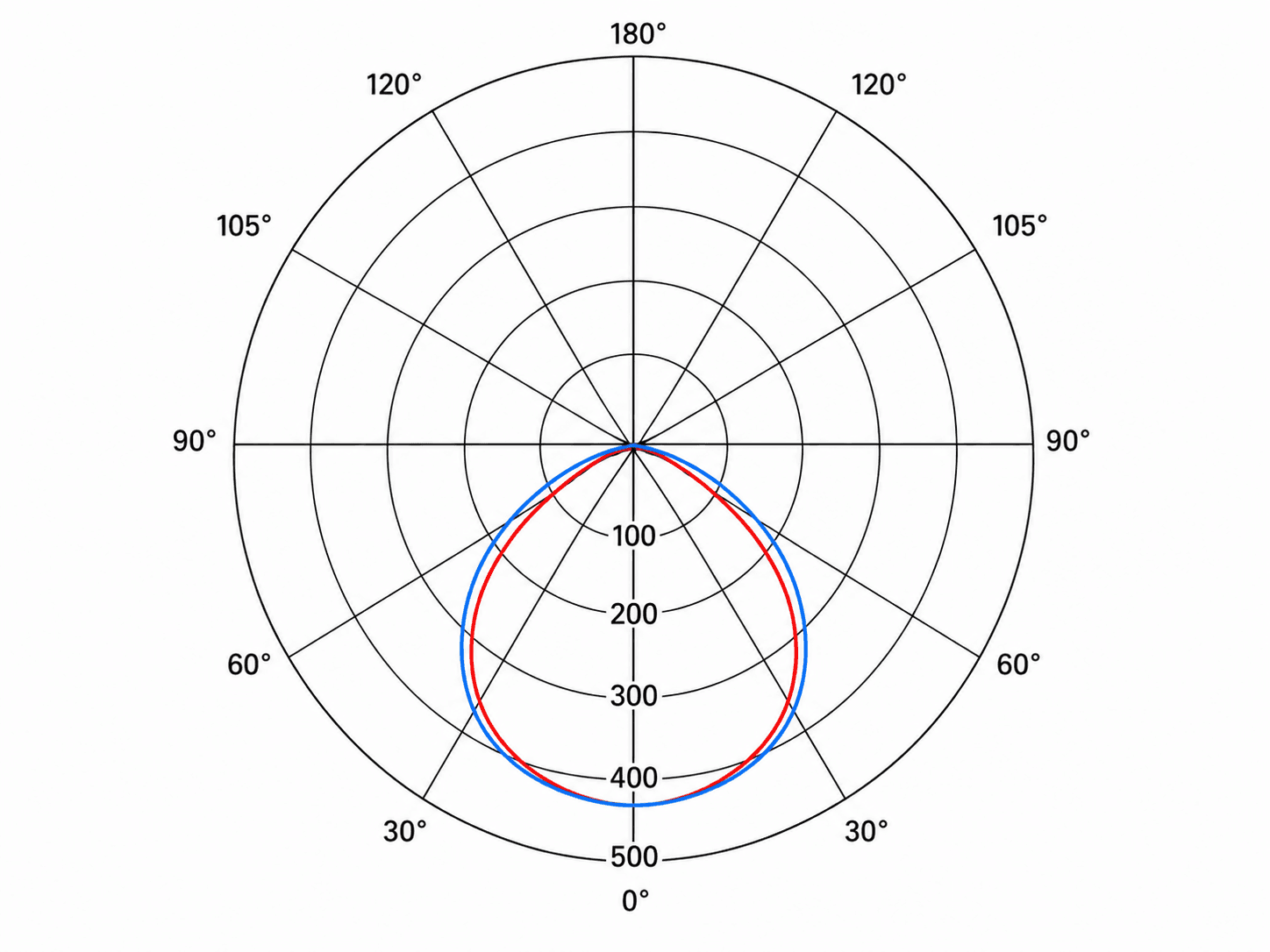

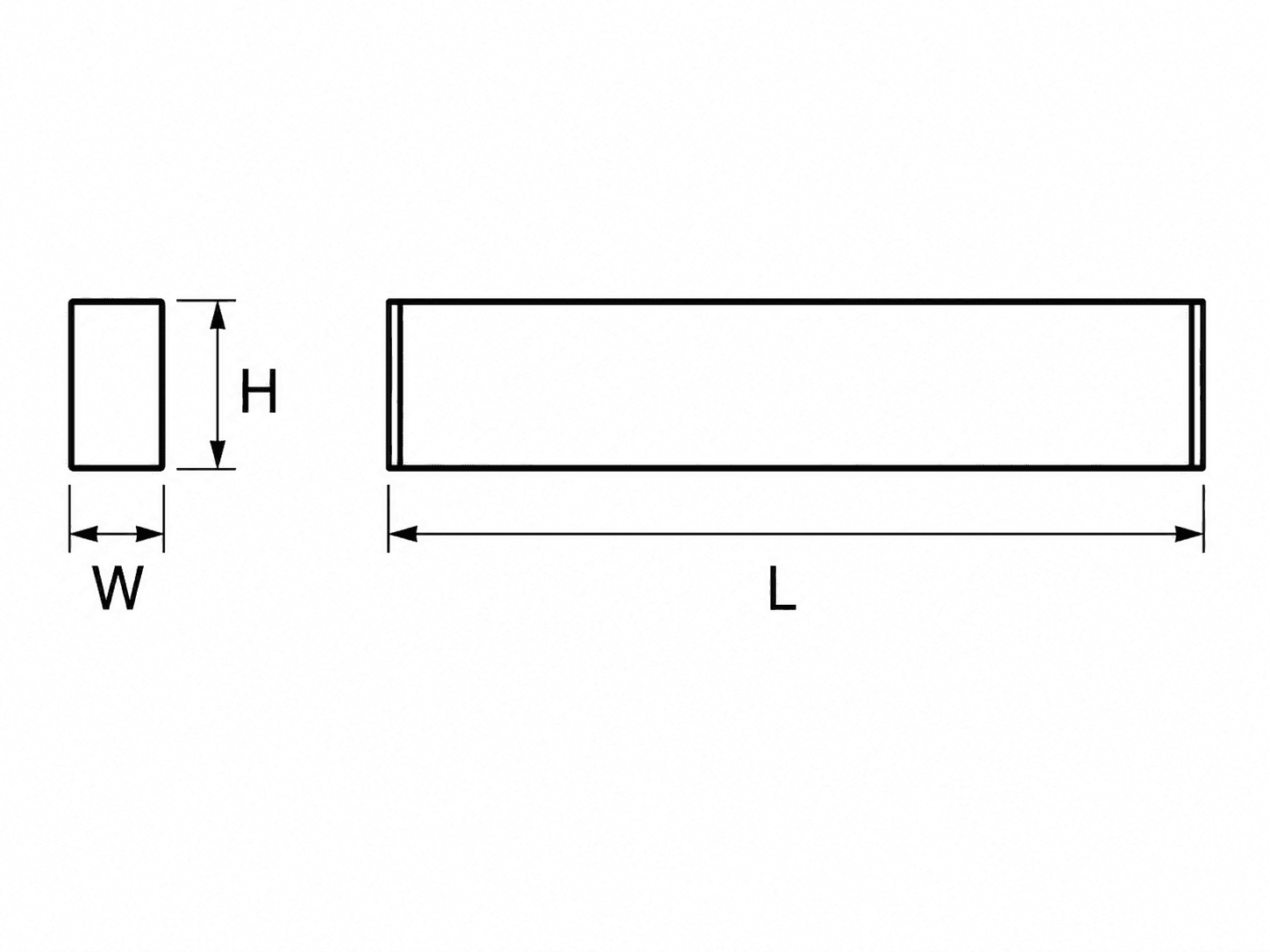

Family-specific photometric and technical drawings for the LNR / LNRSA family.
Architectural linear lighting for offices and modern workspaces.
Linear illumination for classrooms and shared learning environments.
Continuous and uniform lighting for circulation routes.

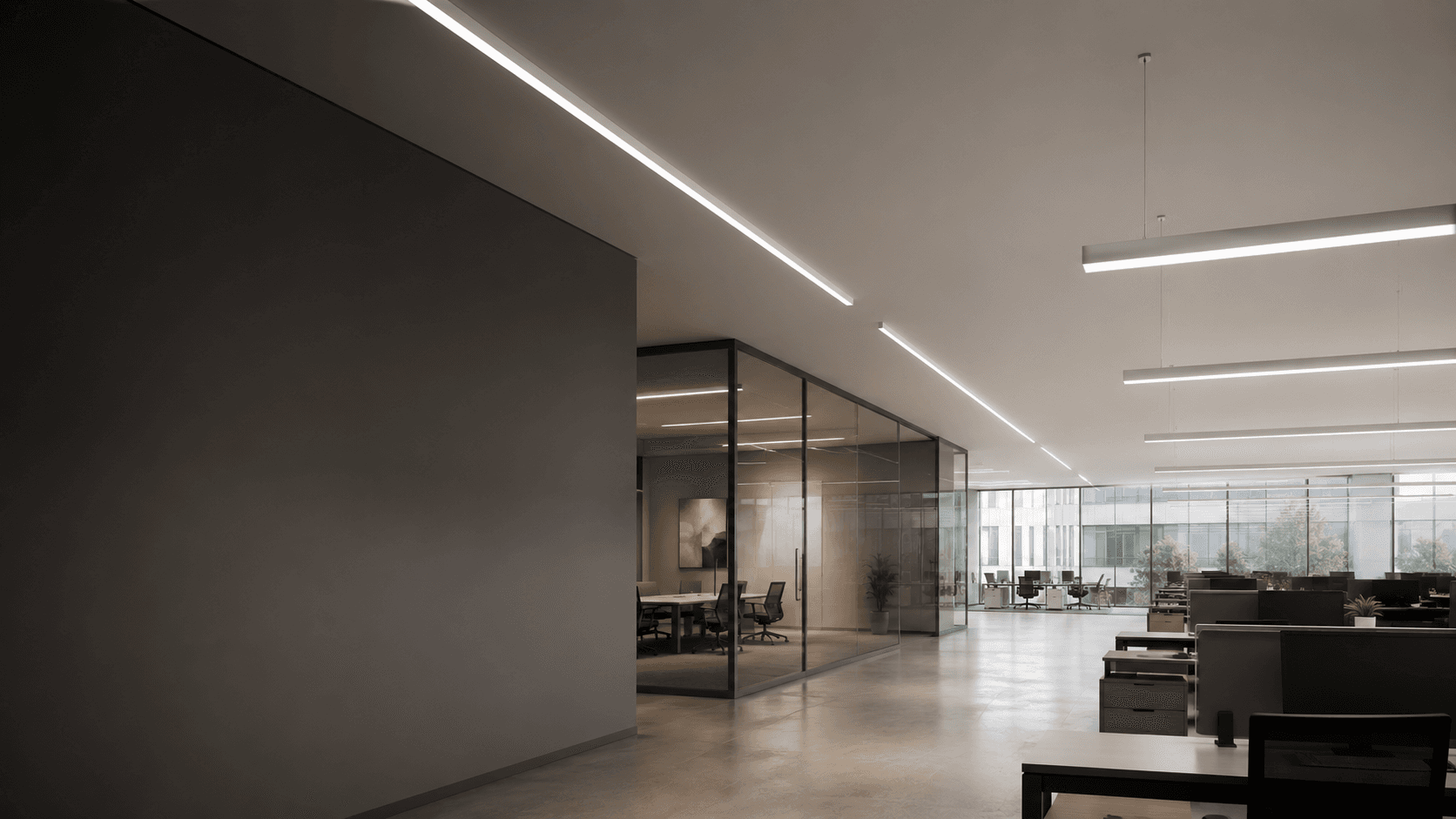

Suspended, surface and recessed lighting for commercial interiors.
Linear lighting for retail floors and customer-facing spaces.
Project lighting for coordinated architectural workplace schemes.
Architectural linear lighting for offices and modern workspaces.
Discuss the suspended or surface-mounted configuration and required length with our technical team.
Talk to Our Technical Team
