Performance
Power15–34 W
Efficiency>110 lm/W
Catalogue Models4
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.

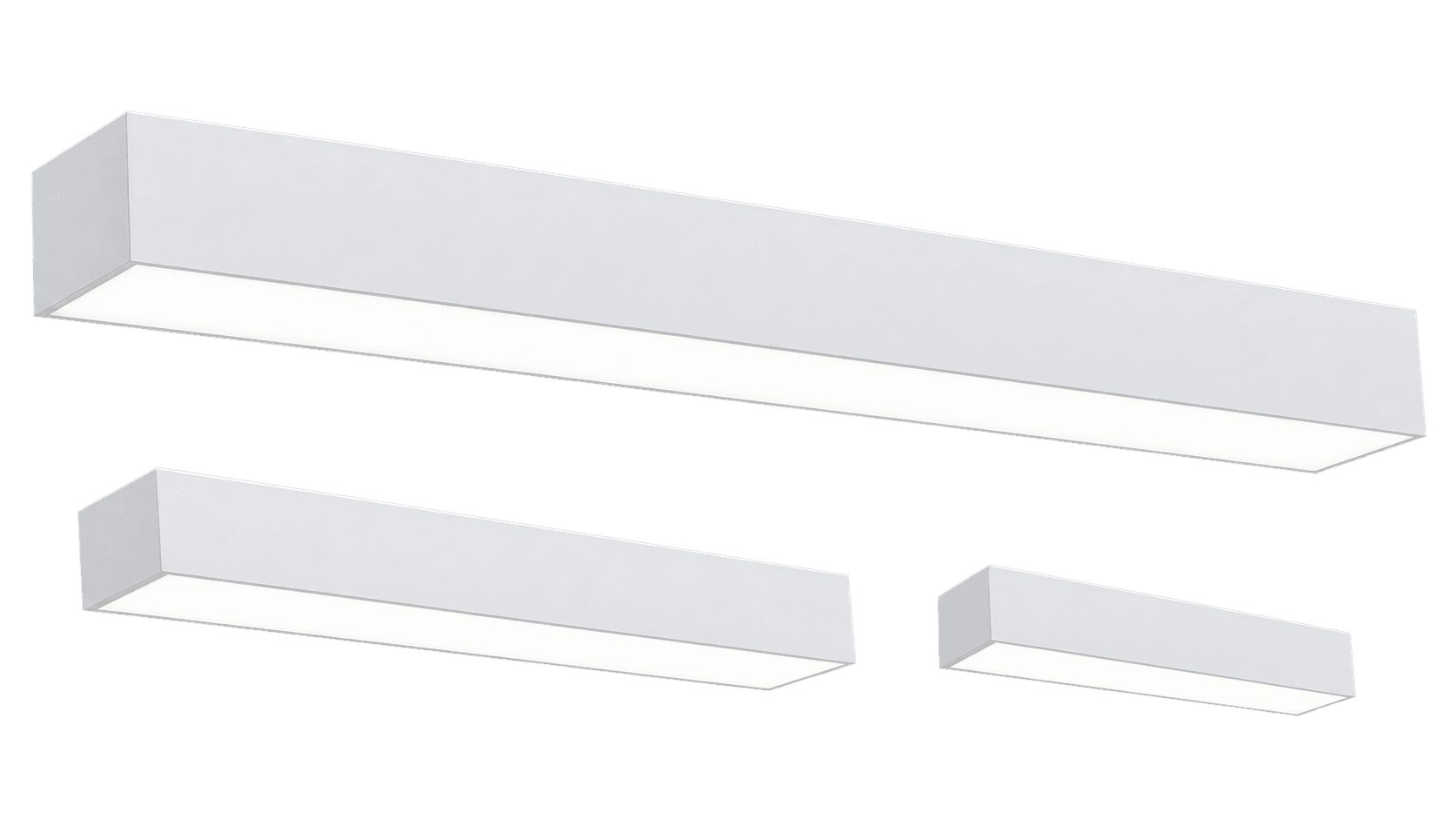

LW55 Standard
Linear & Trunking Lighting
Architectural linear luminaires spanning LW55, LW280 and WP80 forms, including standard and direct/indirect configurations where catalogued.
Exact LW55 Standard schedule. Published dimensions remain unchanged.
| Model / Catalogue Code | Power | Luminous Flux | Voltage | Frequency | Operating Temp. | Efficiency | CRI | CCT | Dimensions | Published IP | Enquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LDB-LW55.15.02 | 15 W | 1,650 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | 55 × 600 × 80 mm | IP20 / IP40 | |
| LDB-LW55.20.02 | 20 W | 2,200 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | 55 × 900 × 80 mm | IP20 / IP40 | |
| LDB-LW55.27.02 | 27 W | 2,970 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | 55 × 1200 × 80 mm | IP20 / IP40 | |
| LDB-LW55.34.02 | 34 W | 3,740 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | 55 × 1500 × 88 mm | IP20 / IP40 |
LDB-LW55.34.02 retains the published 55 × 1500 × 88 mm dimension.
The catalogue lists these as relevant family options, not simultaneous standard equipment on every configuration.

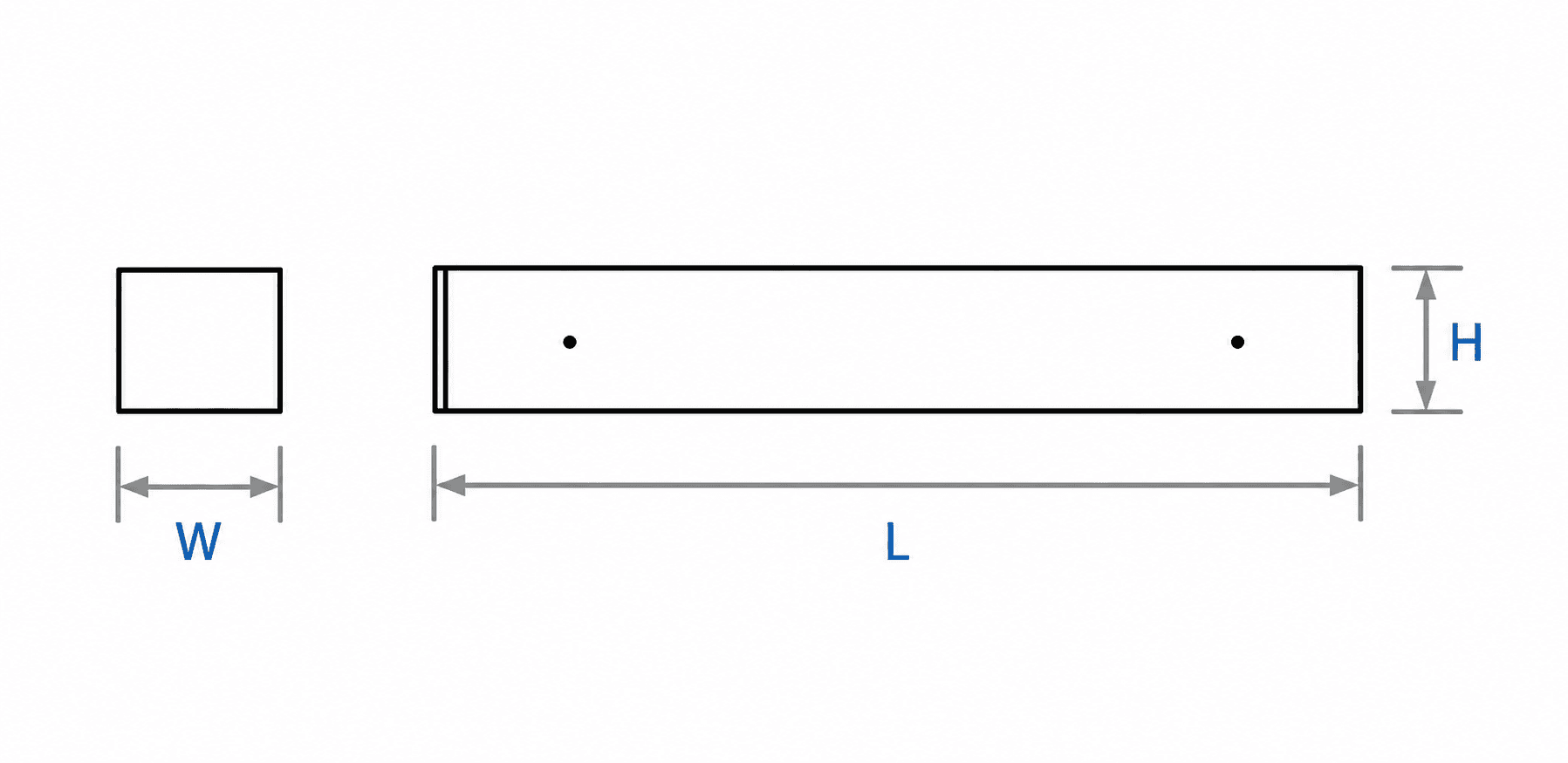

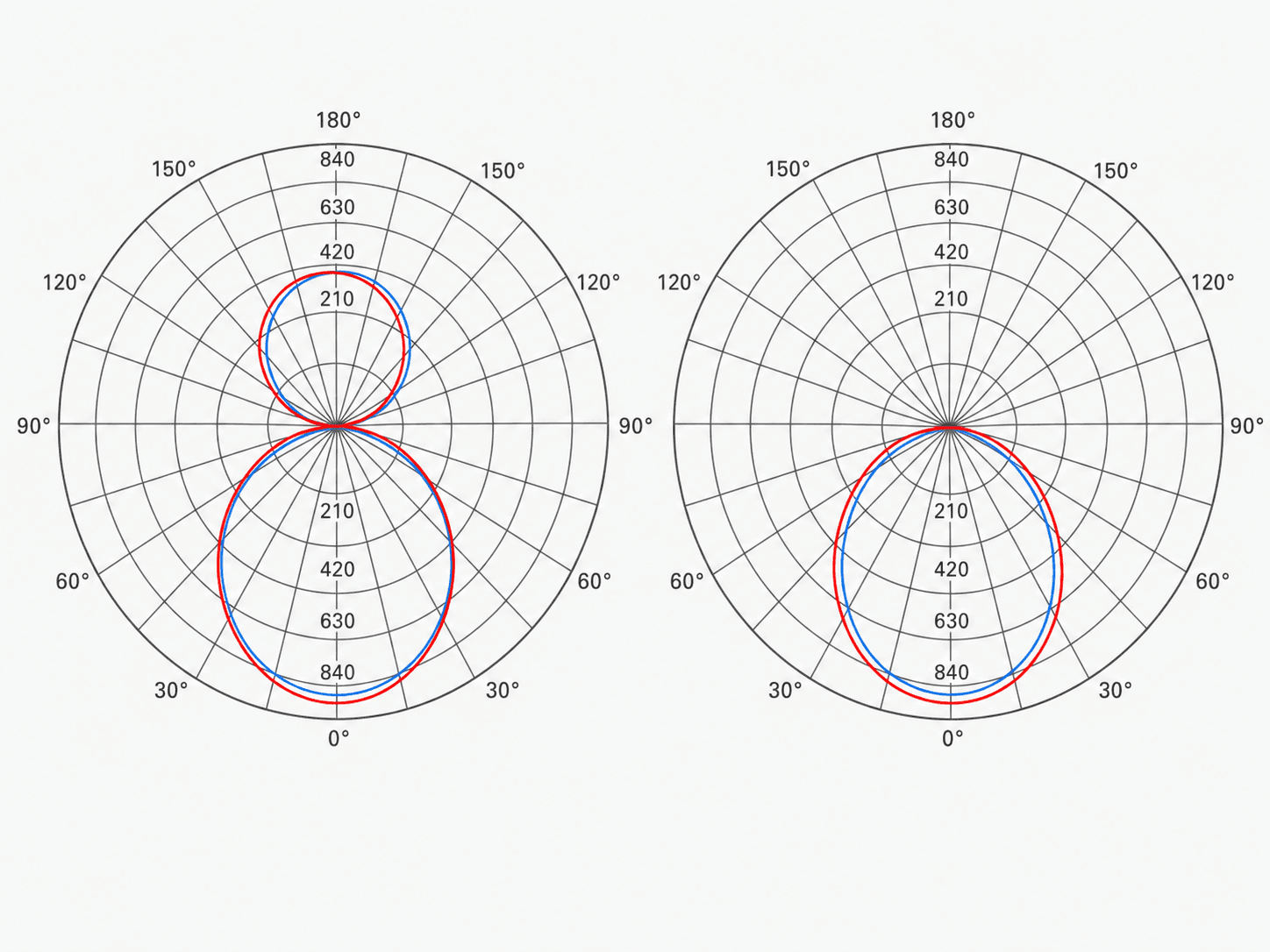

Photometric and technical drawings shown are shared across the LW & WP family.
Architectural linear lighting for offices and modern workspaces.
Linear illumination for classrooms and shared learning environments.
Continuous and uniform lighting for circulation routes.

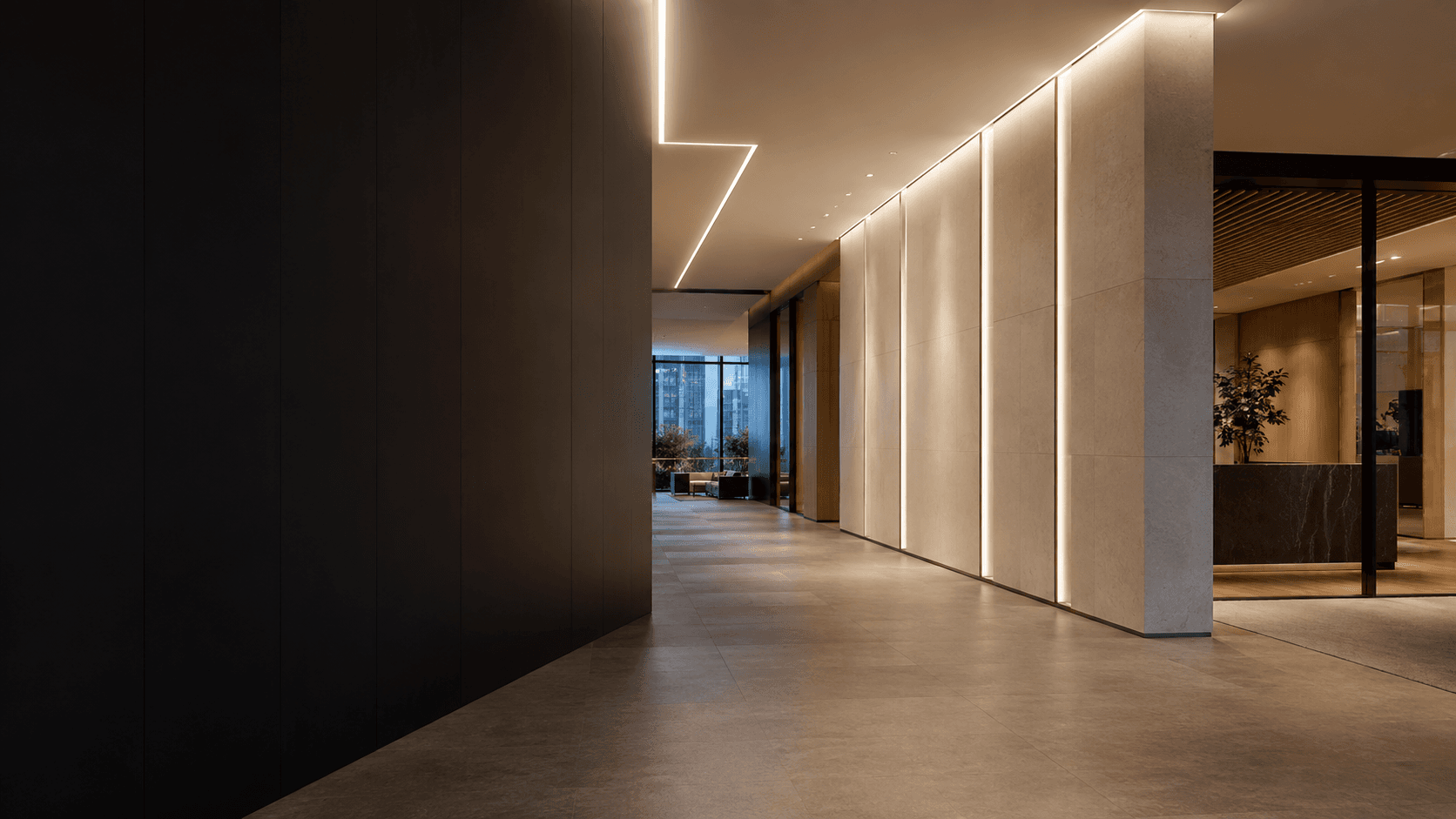

Suspended, surface and recessed lighting for commercial interiors.

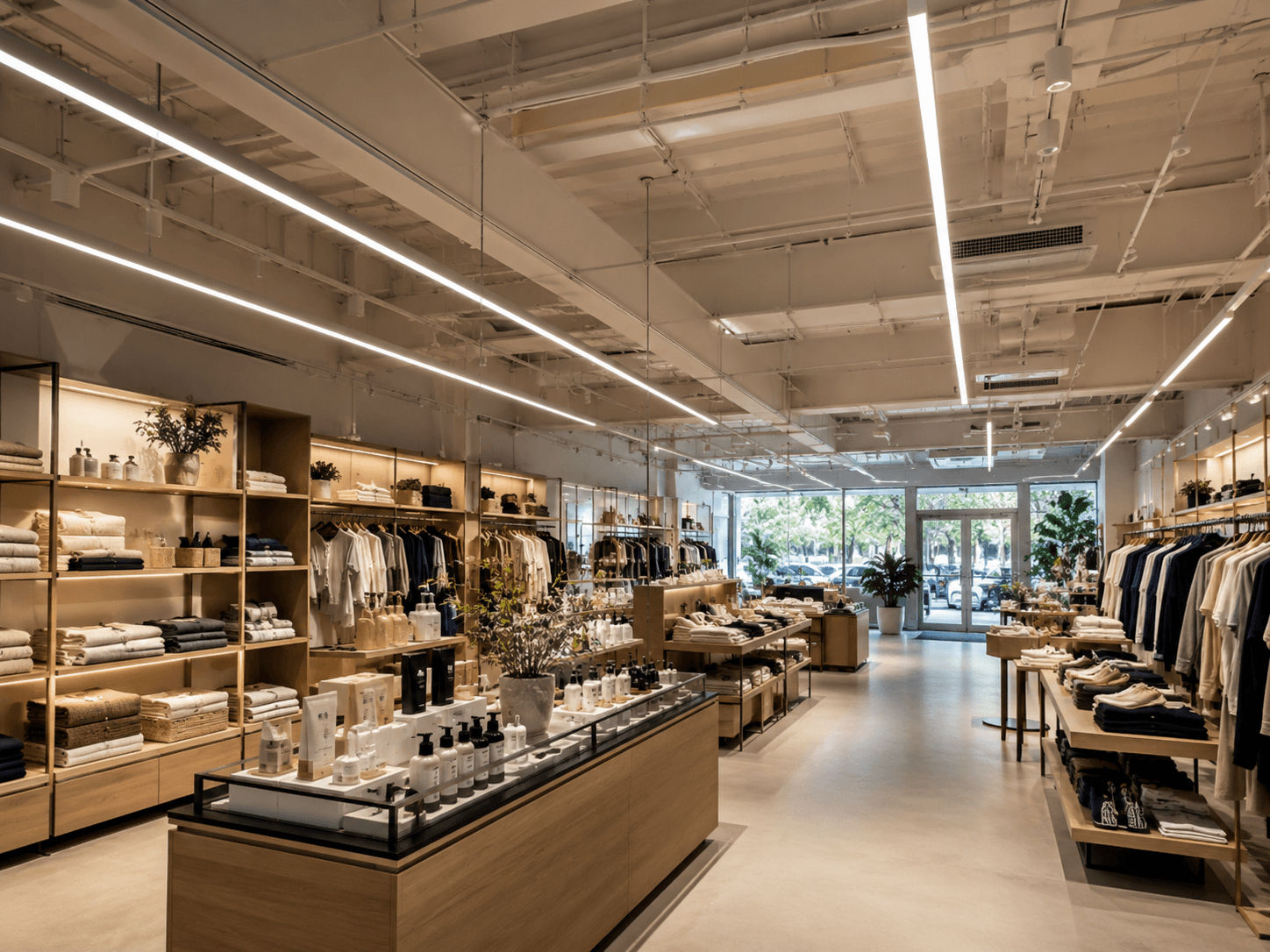

Linear lighting for retail floors and customer-facing spaces.
Project lighting for coordinated architectural workplace schemes.
Architectural linear lighting for offices and modern workspaces.
Discuss the LW55, LW280 or WP80 form and relevant control options with our technical team.
