Performance
Power Range50–250 W
Luminous Flux6,750–37,000 lm
Efficiency135–148 lm/W
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.

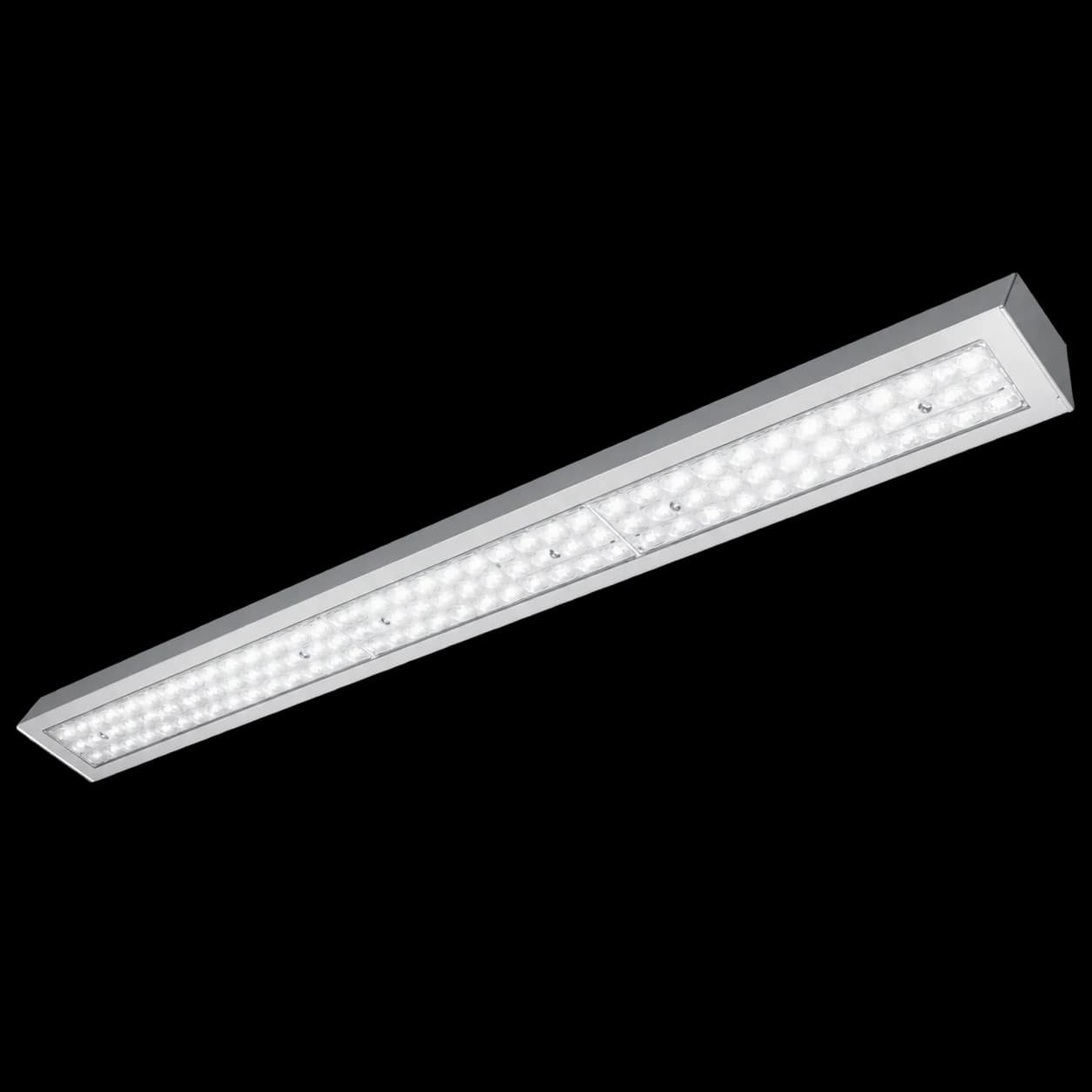

LED SYSTEMS
Industrial & High-Bay Lighting
Slim-profile industrial LED lighting with a multi-lens optical structure for industrial facilities, aviation and airport environments, and logistics applications, with multiple system-mounting options.
Eight verified catalogue models — search or filter by power or dimensions to find the right variant.
| Model / Catalogue Code | Power | Luminous Flux | Efficiency | Dimensions | IP | Weight | Enquiry |
|---|---|---|---|---|---|---|---|
| LDBS1E | 50 W | 6,750 lm | 135 lm/W | 11×60 cm | IP20 / IP65 | 2.00 kg | |
| LDBS2E | 75 W | 10,200 lm | 136 lm/W | 11×90 cm | IP20 / IP65 | 2.65 kg | |
| LDBS3E | 100 W | 13,800 lm | 138 lm/W | 11×90 cm | IP20 / IP65 | 2.85 kg | |
| LDBS4E | 125 W | 17,500 lm | 140 lm/W | 11×120 cm | IP20 / IP65 | 3.50 kg | |
| LDBS5E | 150 W | 21,750 lm | 145 lm/W | 11×120 cm | IP20 / IP65 | 3.50 kg | |
| LDBS6E | 175 W | 24,900 lm | 142.2 lm/W | 11×120 cm | IP20 / IP65 | 3.50 kg | |
| LDBS7E | 200 W | 29,200 lm | 146 lm/W | 11×150 cm | IP20 / IP65 | 4.80 kg | |
| LDBS8E | 250 W | 37,000 lm | 148 lm/W | 11×150 cm | IP20 / IP65 | 4.80 kg |
Installation to cable-channel systems using catalogue-supported mounting arrangements.
Direct mounting to the busbar system using the catalogue-defined busbar assembly arrangement.
Wall-mounted installation with adjustable-angle mounting hardware.
Catalogue-listed control options — not every option is standard on every model.

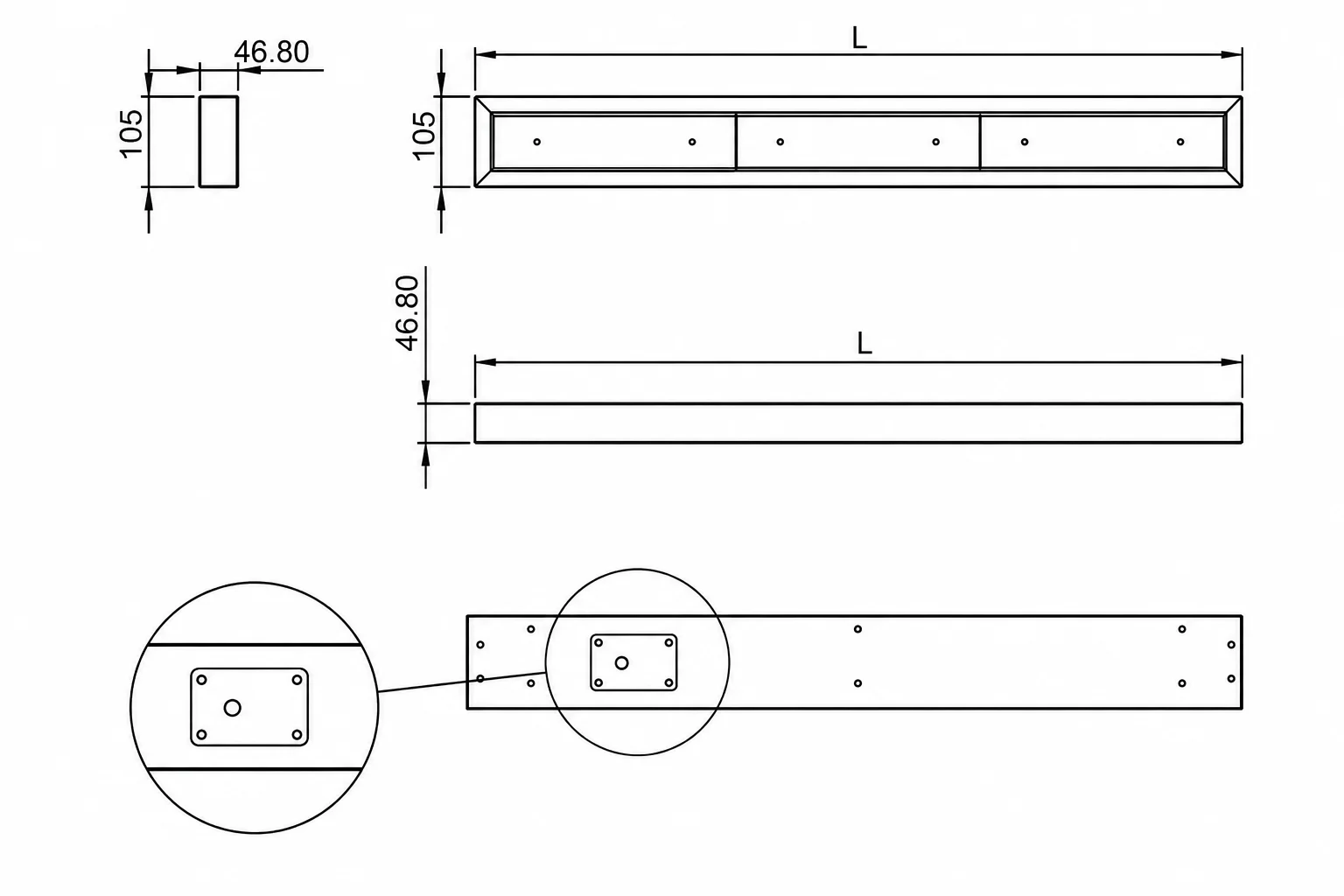

Luminaire cross-section: approximately 105 × 46.80 mm. Overall length L corresponds to each model's stated size (11×60 / 11×90 / 11×120 / 11×150 cm) — see the model table above for exact per-model dimensions.

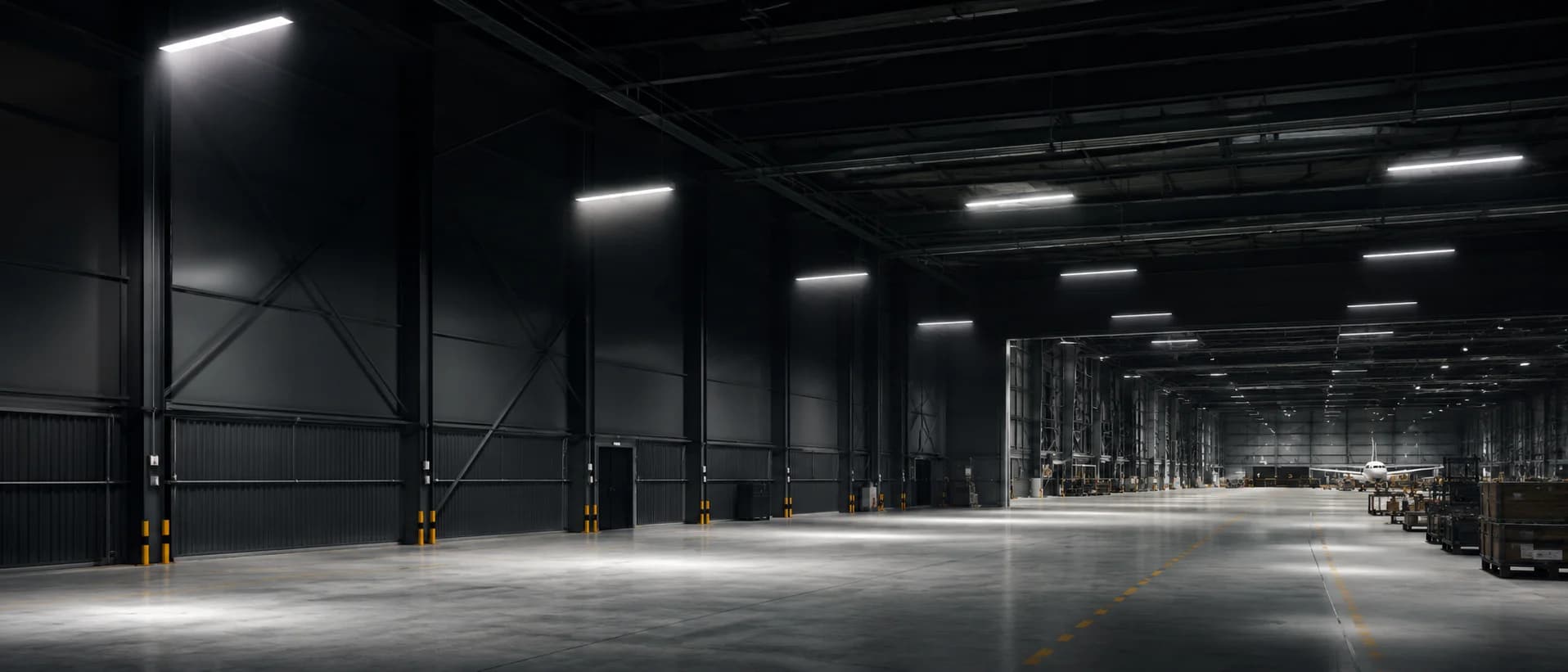

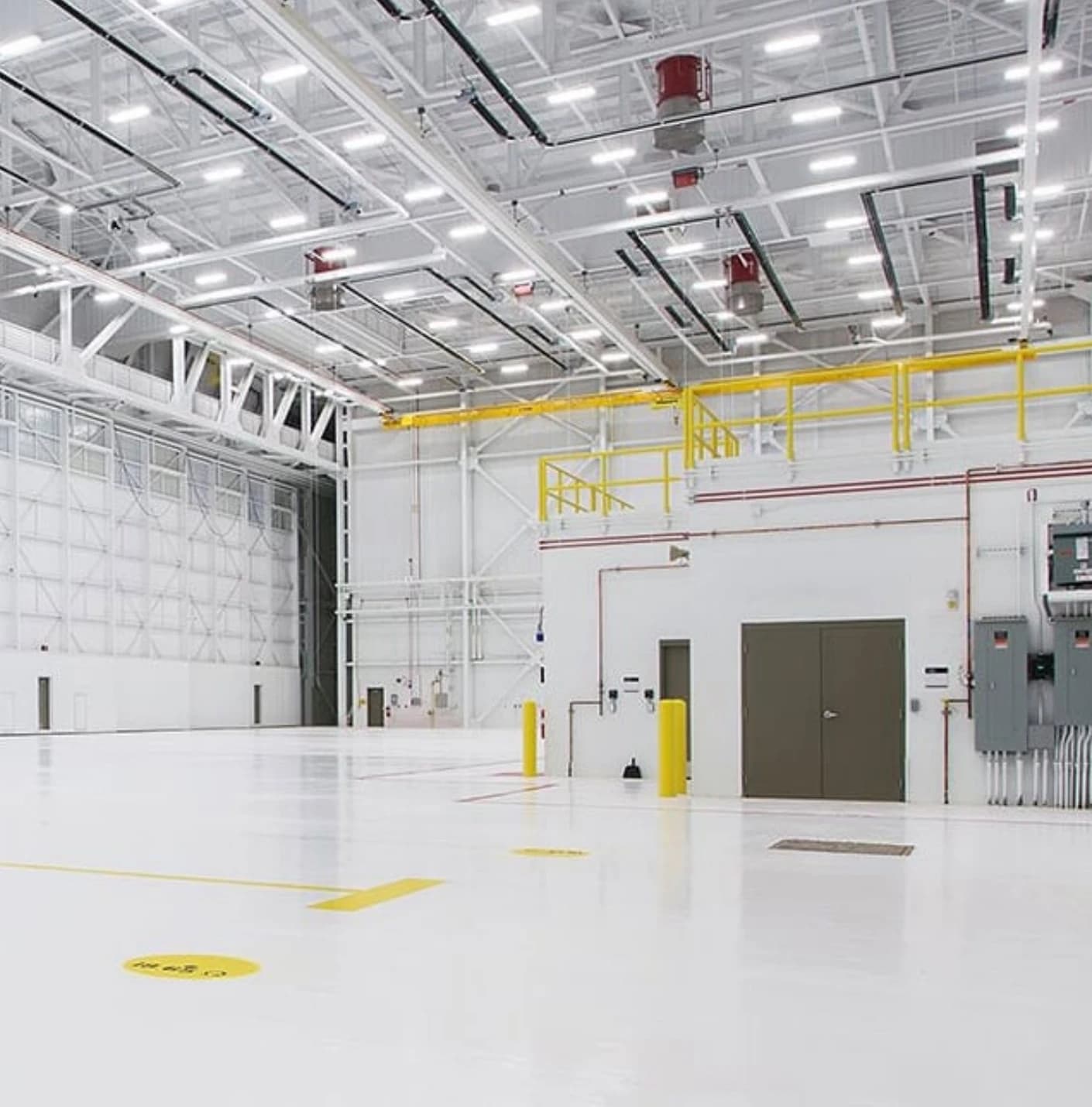

Large-span industrial and production facilities.
Airport ground-operations and aviation environments.

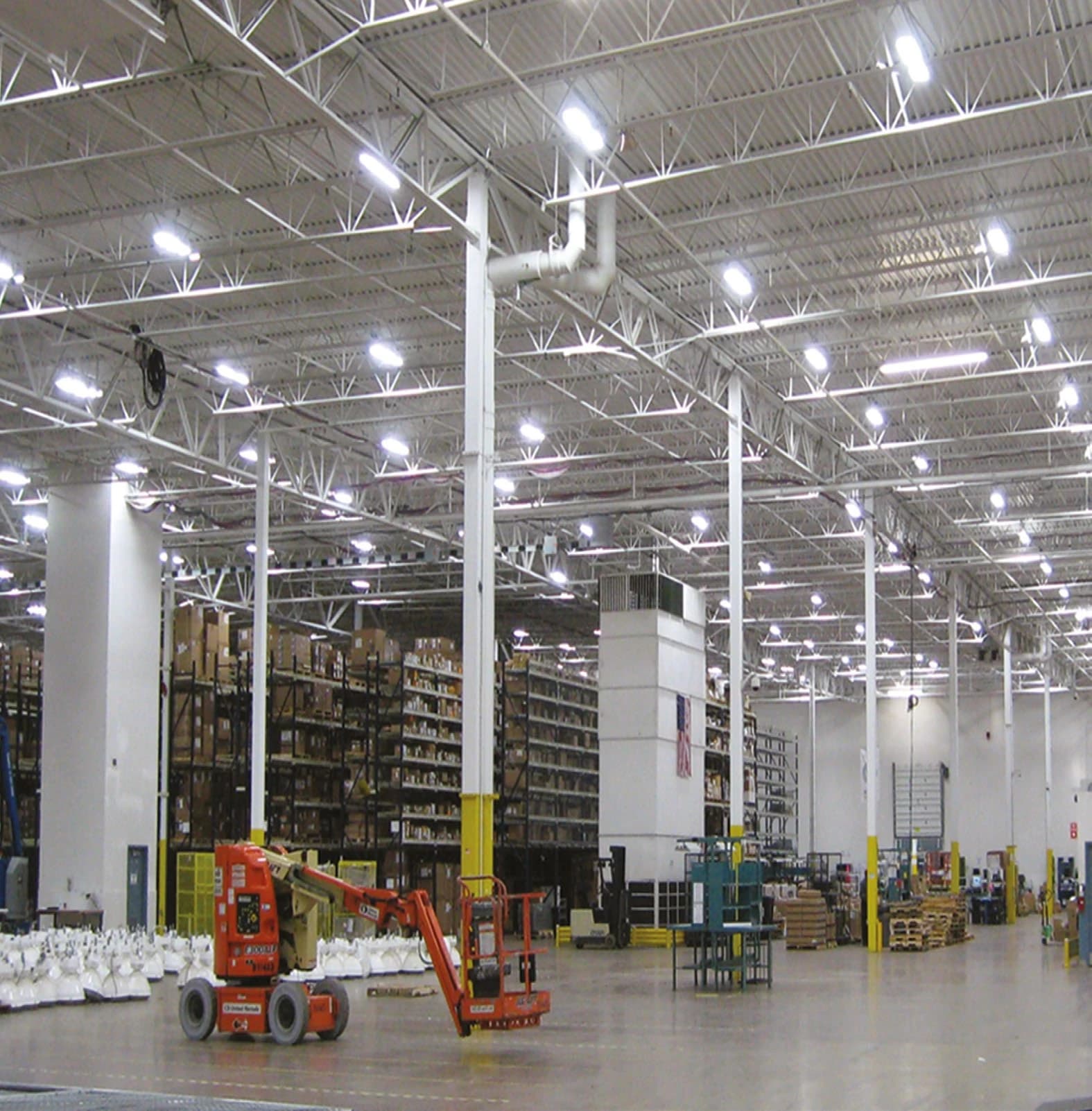

Logistics aisles and high-bay storage halls.
Large-span industrial and production facilities.
Our technical team can help with model selection, busbar or cable-channel integration, wall mounting, controls and project specification.
Request Technical Support
