Performance
Power Range50–150 W
Luminous Flux7,250–21,300 lm
Efficiency>125–145 lm/W
Configurations4 Catalogue Variants
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.
LED SYSTEMS
Industrial & High-Bay Lighting

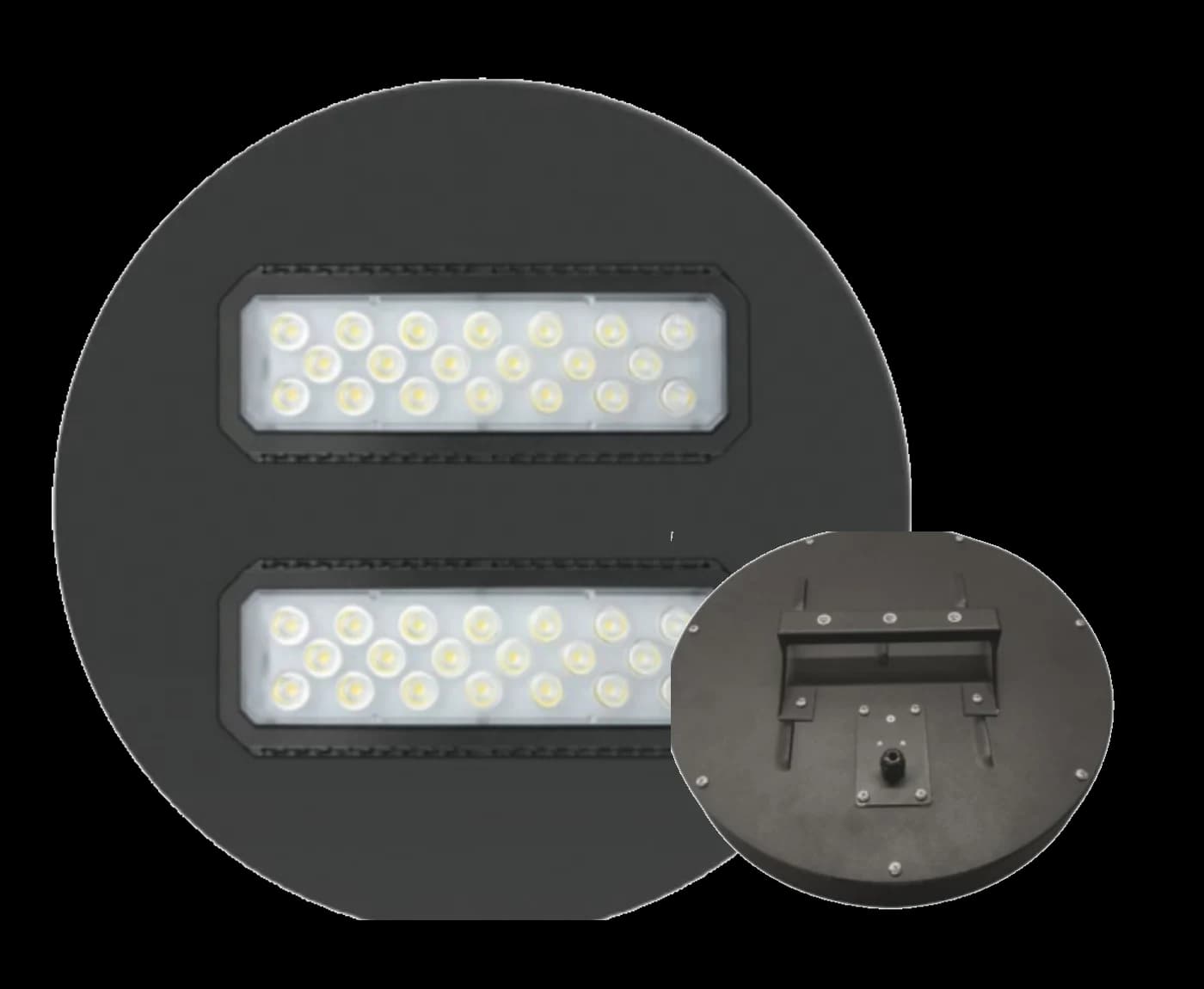

High-ceiling LED lighting system with recessed-ceiling and surface-mounted configurations, Ø434 mm construction, IP66 protection and dedicated optical options for factories, warehouses and other high-ceiling environments.
Four verified catalogue models — search or filter by mounting type or power to find the right variant.
| Mounting Type | Model / Catalogue Code | Power | Luminous Flux | Efficiency | CRI | CCT | Dimensions | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Recessed Ceiling | 730-GSLIND150W PJ | 150 W | 18,754 lm | >125 lm/W | 80+ | 3000–6500 K | Ø434 mm | |
| Surface Mounted | 730-GSLIND50W PJ SU | 50 W | 7,250 lm | 145 lm/W | 80+ | 3000–6500 K | Ø434 mm | |
| Surface Mounted | 730-GSLIND100W PJ SU | 100 W | 14,000 lm | 140 lm/W | 80+ | 3000–6500 K | Ø434 mm | |
| Surface Mounted | 730-GSLIND150W PJ SU | 150 W | 21,300 lm | 142 lm/W | 80+ | 3000–6500 K | Ø434 mm |
Catalogue codes are reproduced from the source extraction. Catalogue luminous-flux values are reference values and may be subject to revision.
Catalogue-listed lighting control and system options; availability depends on project configuration.

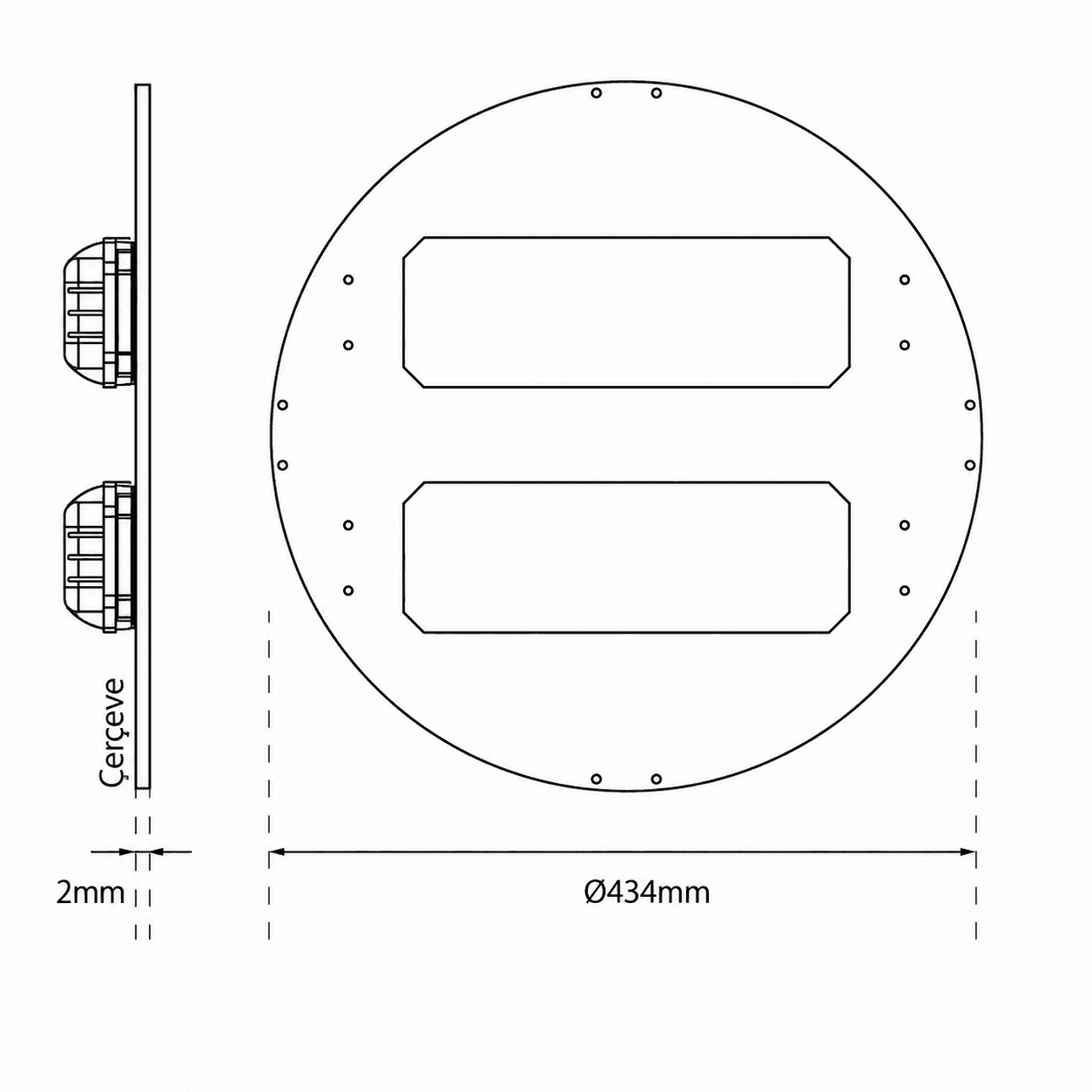

Diameter is verified at Ø434 mm for both configurations. Refer to the technical drawings above for full engineering dimensions per configuration.

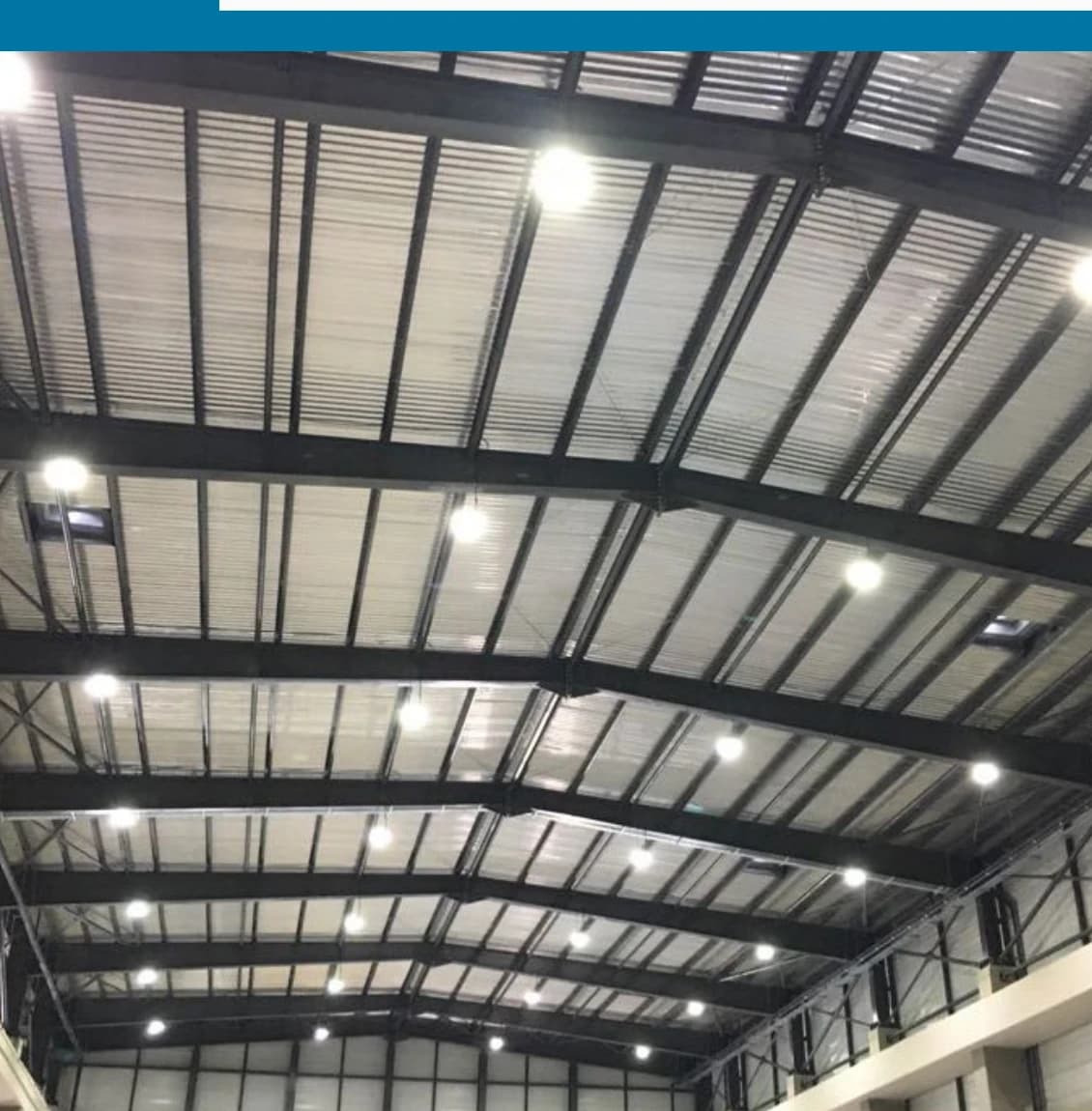

Industrial production environments requiring high-output ceiling lighting.

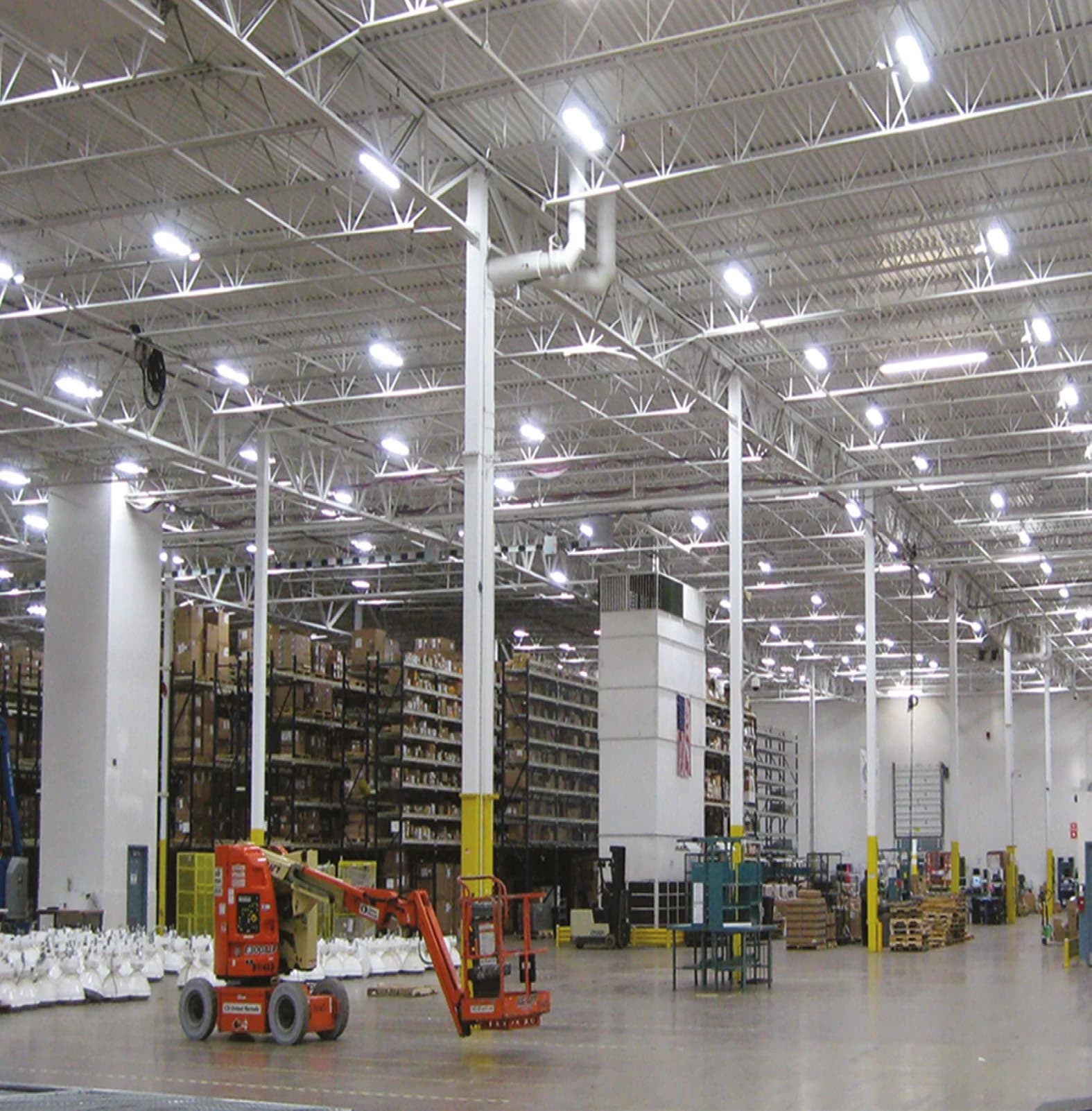

Storage and logistics environments with high mounting heights.

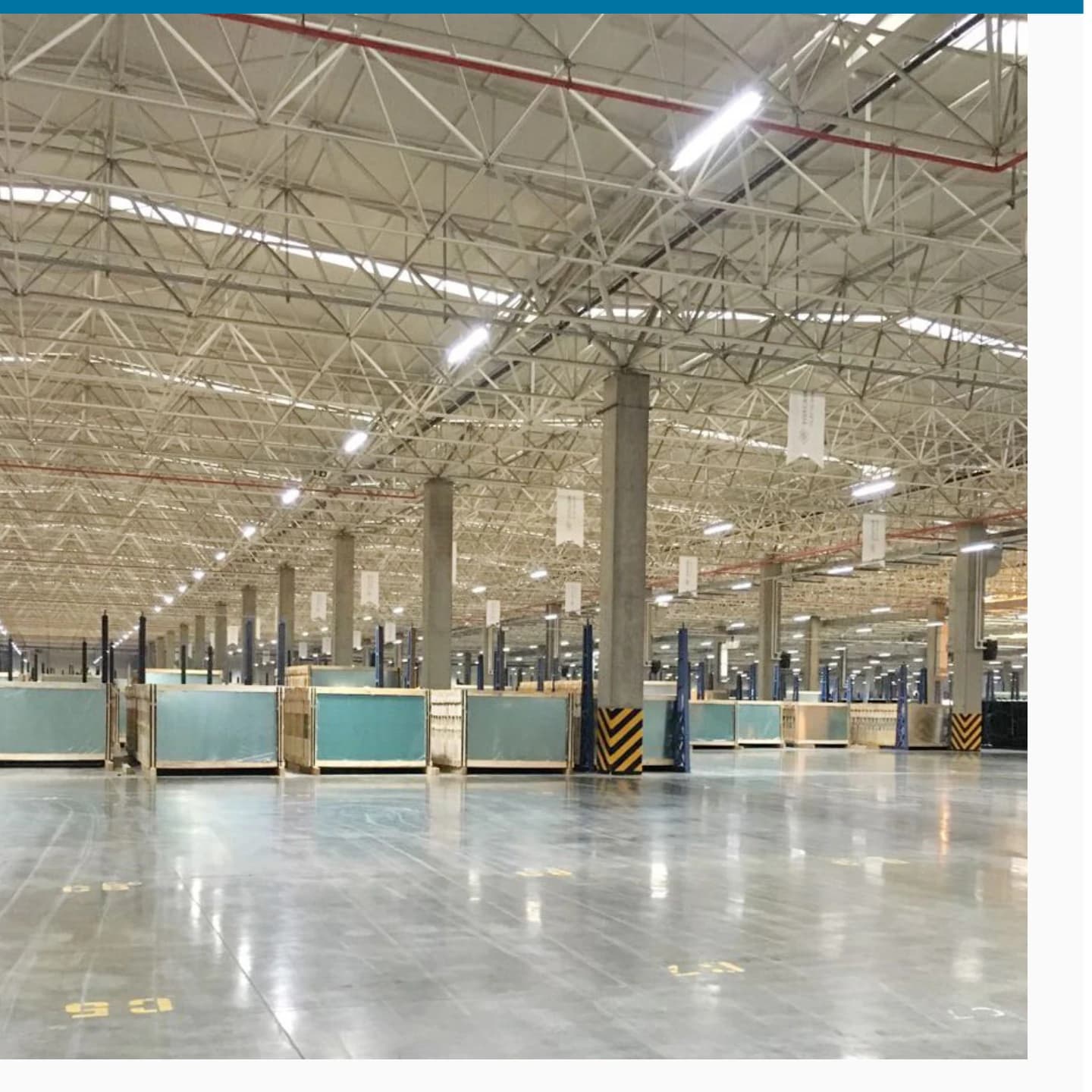

Large-volume interior spaces requiring recessed-ceiling or surface-mounted LED lighting.
Industrial production environments requiring high-output ceiling lighting.
Our technical team can help you choose between recessed-ceiling and surface-mounted configurations, power levels, controls and project requirements.
Request Technical Support
