Performance
Power Range50–240 W
Luminous Flux6,600–33,600 lm
Efficiency132–158.4 lm/W
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.
LED SYSTEMS
Industrial & High-Bay Lighting

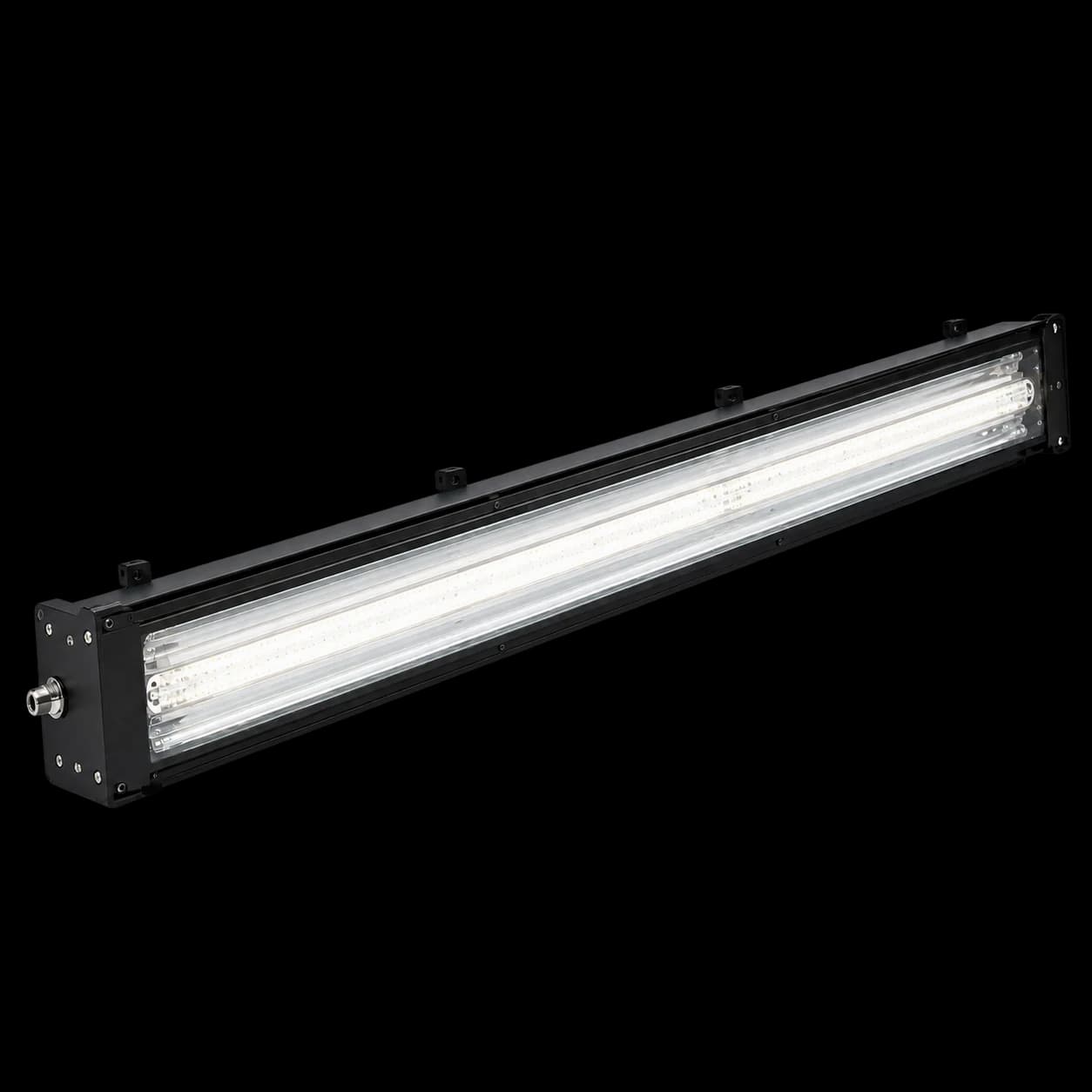

High-output industrial LED lighting designed for warehouses, hangars, ports, aircraft-maintenance areas and other high-ceiling environments, with direct Gersan Lighting Busbar integration and suspended installation options.
Eight verified catalogue models — search or filter by power to find the right variant.
| Model / Catalogue Code | Power | Luminous Flux | Efficiency | IP | Weight | Enquiry |
|---|---|---|---|---|---|---|
| LED-BUS LDB1-50 | 50 W | 6,600 lm | 132.0 lm/W | IP65 | 6.0 kg | |
| LED-BUS LDB2-75 | 75 W | 11,880 lm | 158.4 lm/W | IP65 | 6.0 kg | |
| LED-BUS LDB3-100 | 100 W | 15,290 lm | 152.9 lm/W | IP65 | 7.5 kg | |
| LED-BUS LDB4-150 | 150 W | 21,750 lm | 145.0 lm/W | IP65 | 8.75 kg | |
| LED-BUS LDB5-185 | 185 W | 26,300 lm | 142.0 lm/W | IP65 | 9.2 kg | |
| LED-BUS LDB7-200 | 200 W | 28,200 lm | 141.0 lm/W | IP65 | 9.2 kg | |
| LED-BUS LDB8-222 | 222 W | 31,750 lm | 143.0 lm/W | IP65 | 9.2 kg | |
| LED-BUS LDB9-240 | 240 W | 33,600 lm | 140.0 lm/W | IP65 | 9.2 kg |
Direct connection to the Gersan Lighting Busbar system without requiring external connections.
Suspended installation using steel-wire support for high-ceiling applications.
Catalogue-supported mounting arrangements using GL, GNL and channel components.
Catalogue-listed control and system options — not every option is standard on every model.

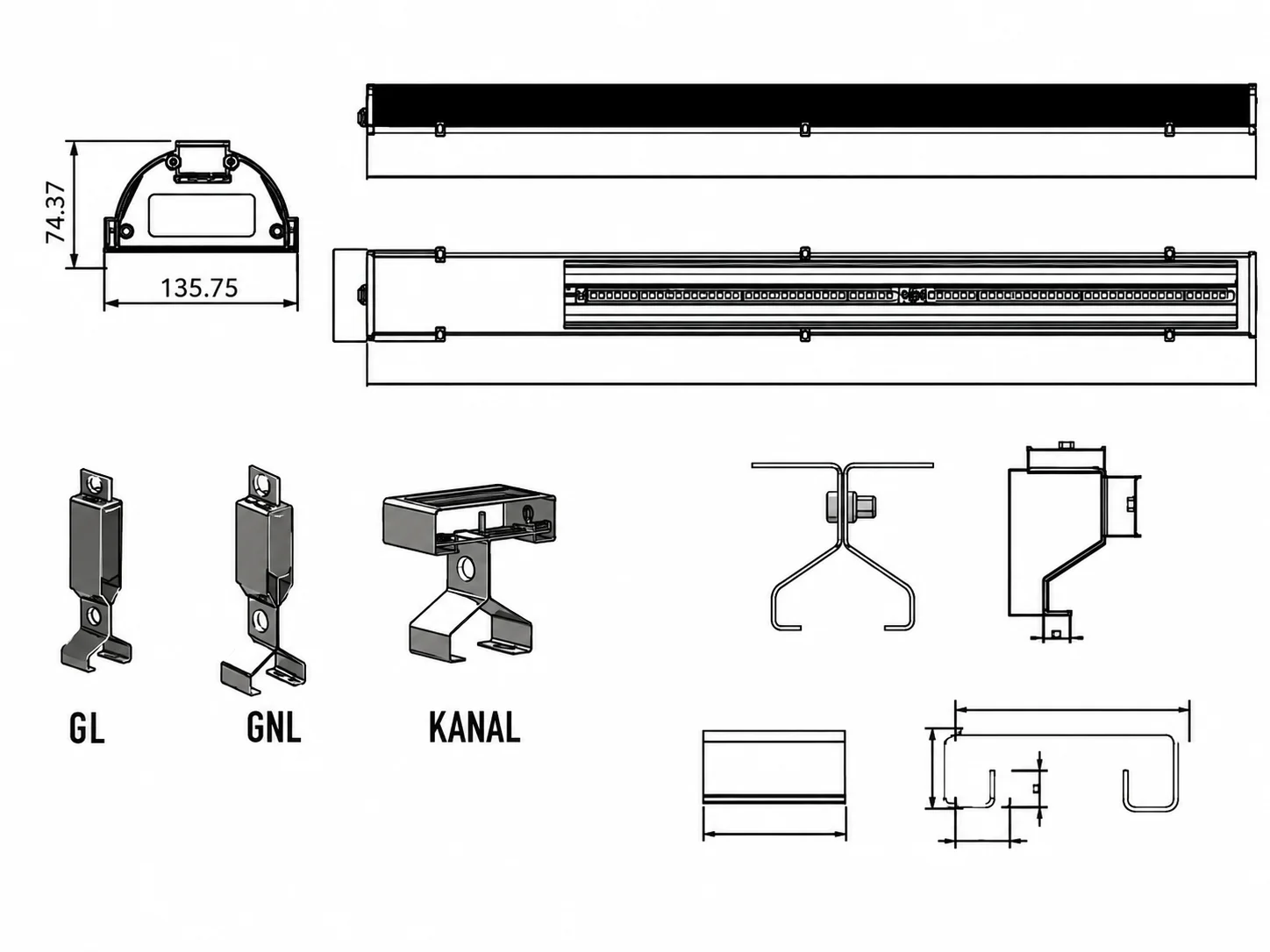

Luminaire cross-section: approximately 135.75 × 74.37 mm. Overall length L varies by configuration; numerical model lengths are not stated in the source catalogue.

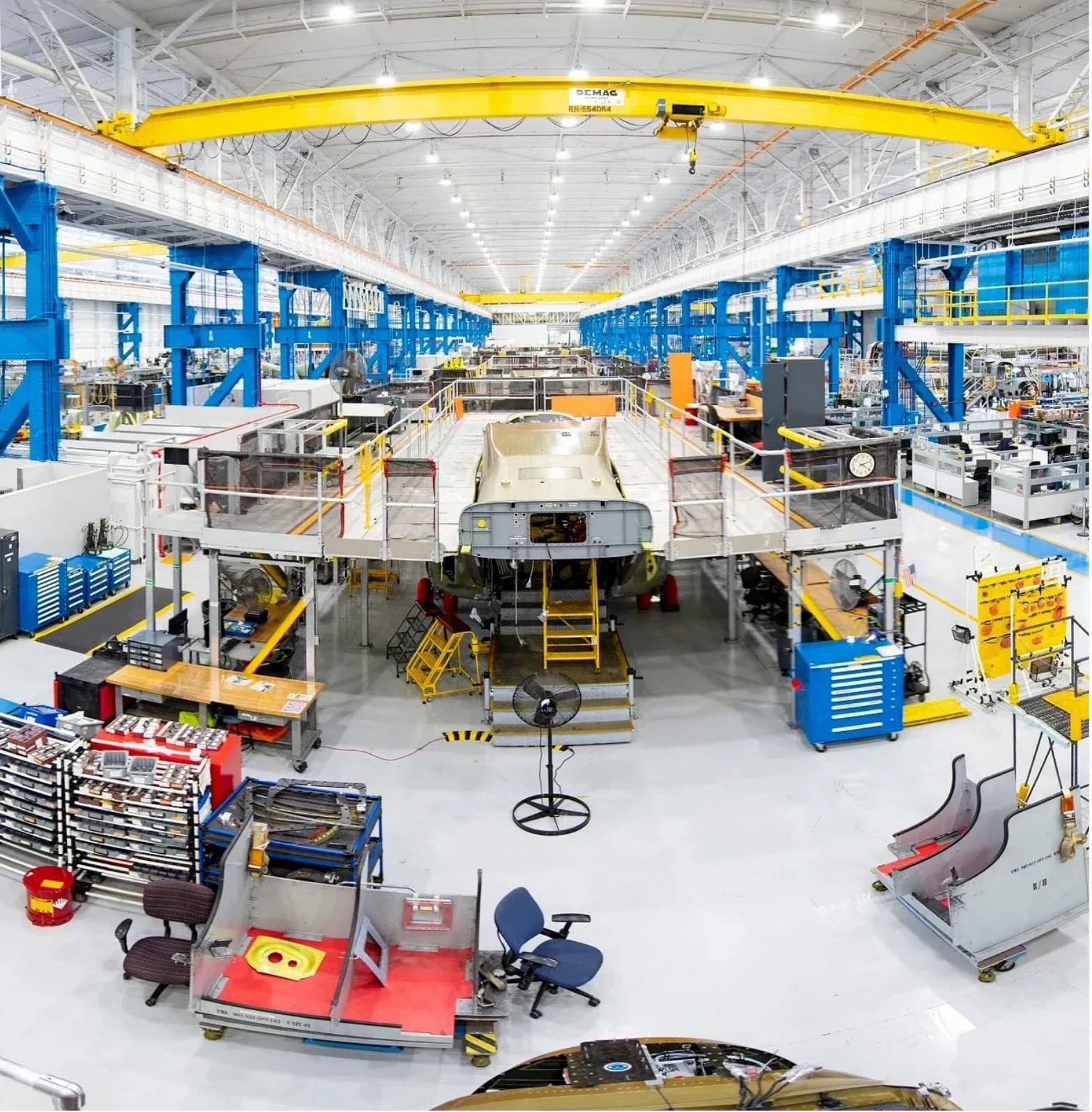

Aircraft storage and wide-span, high-ceiling spaces.

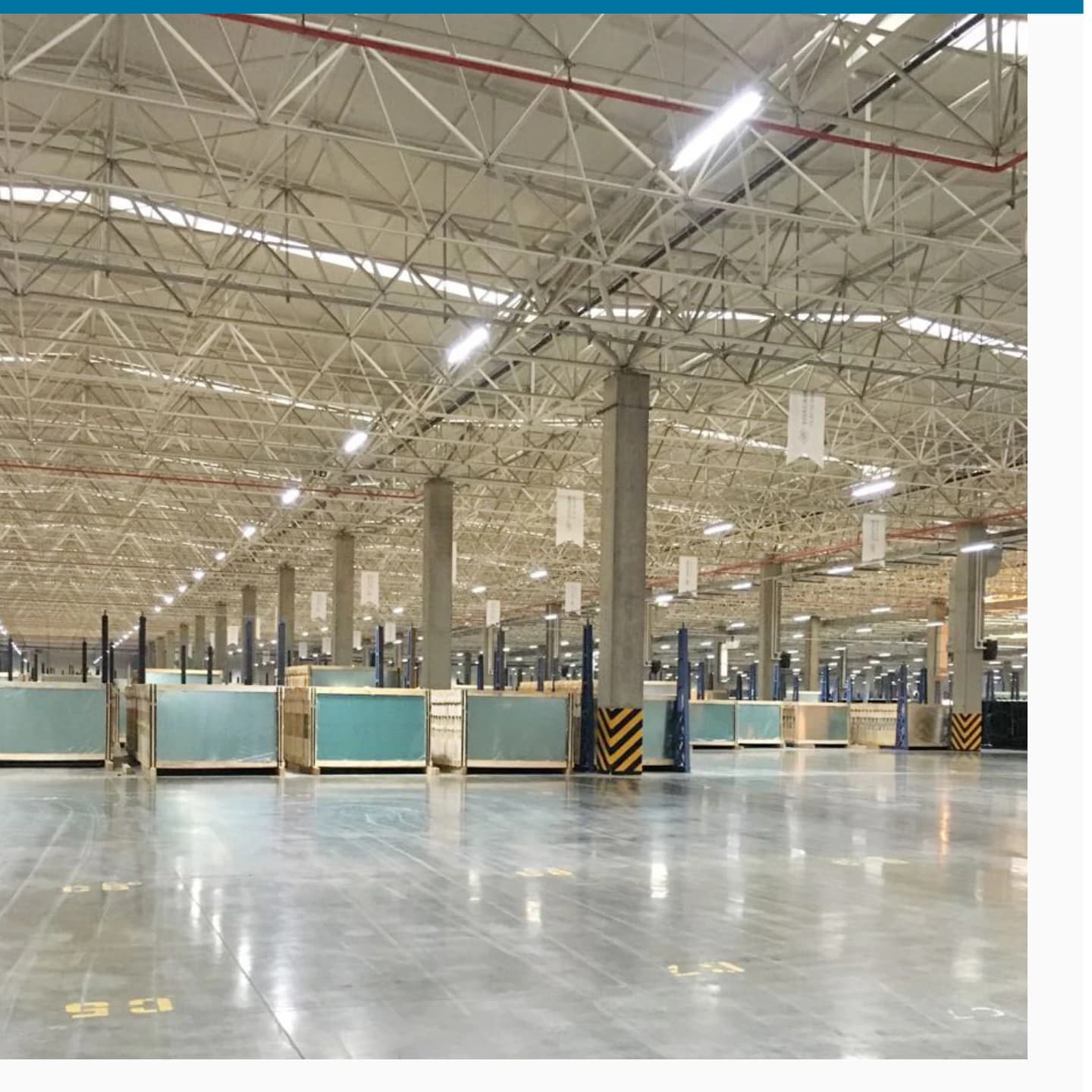

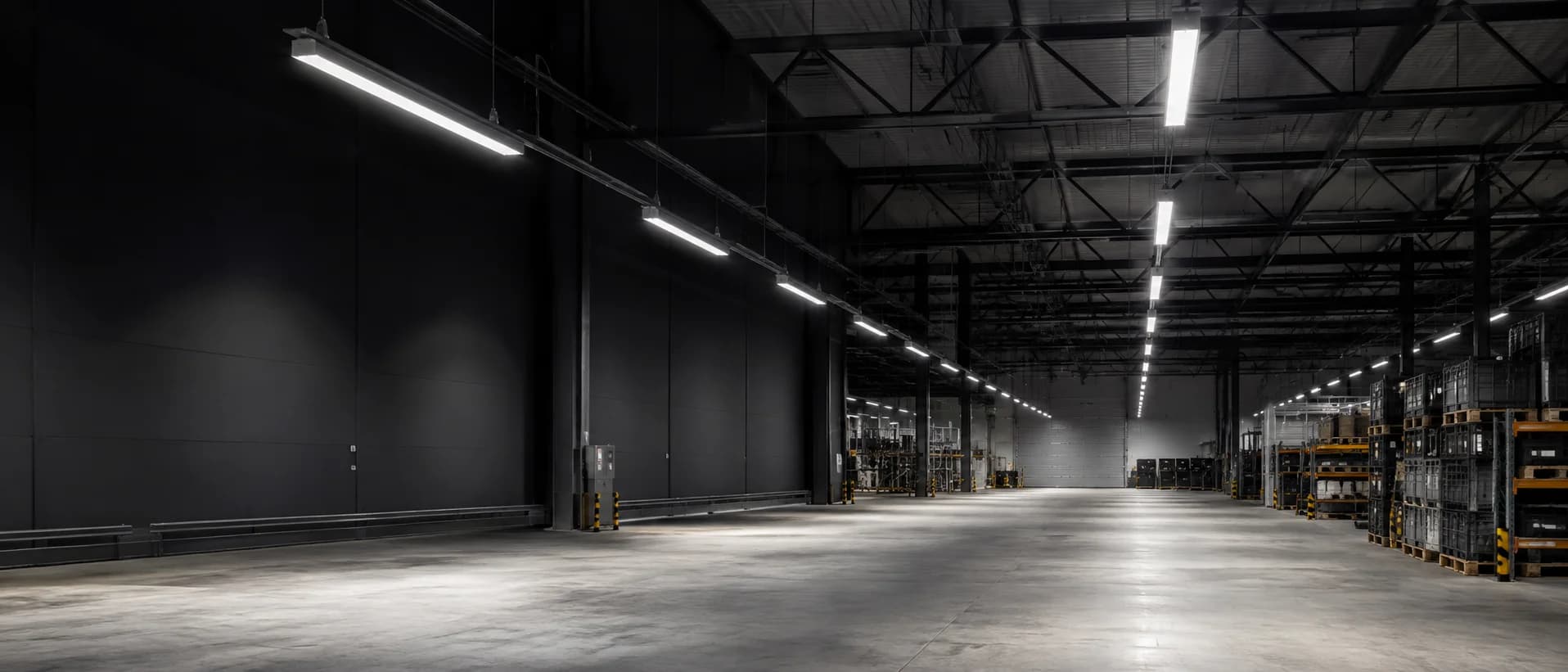

Logistics aisles and high-bay storage halls.

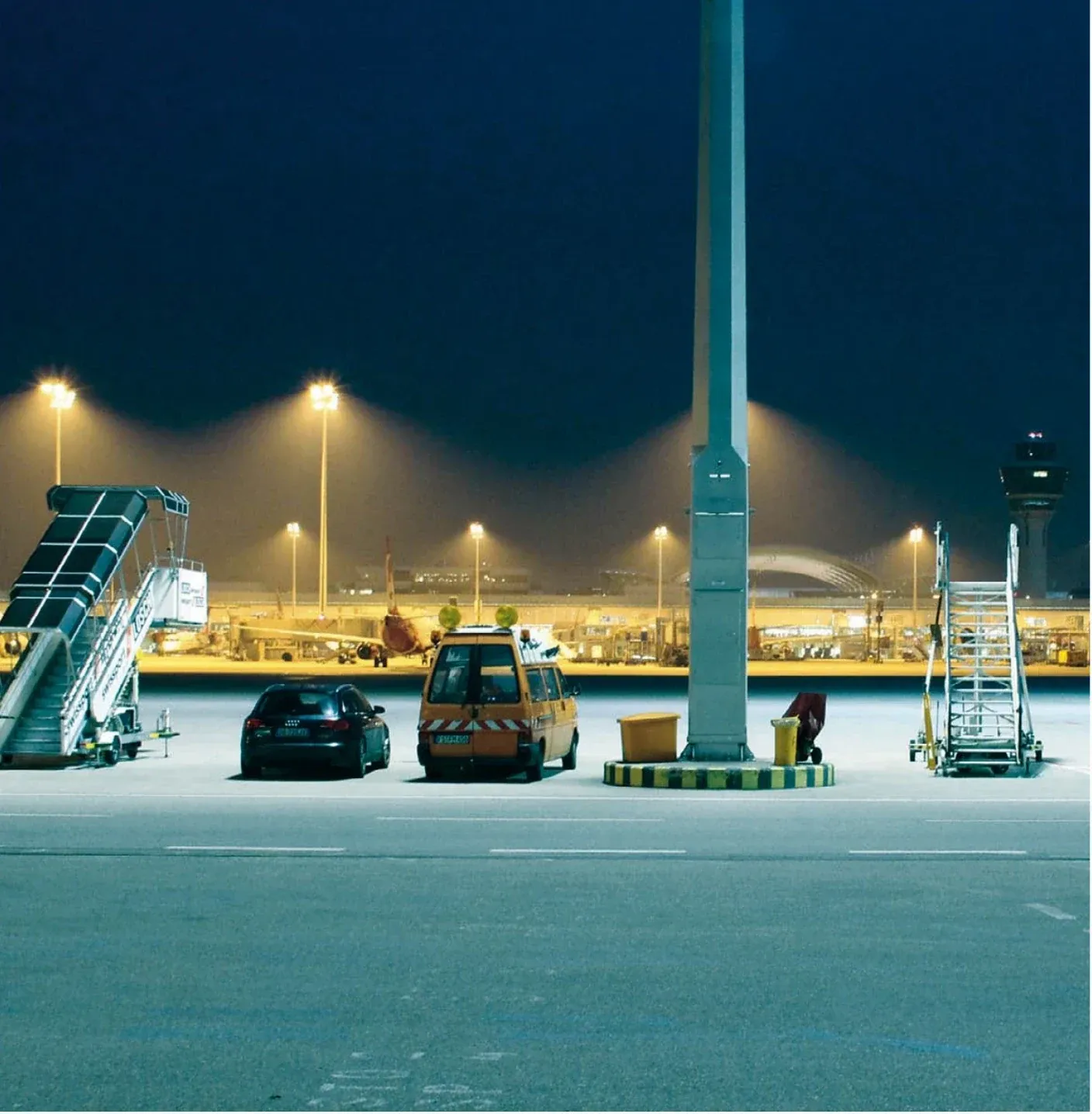

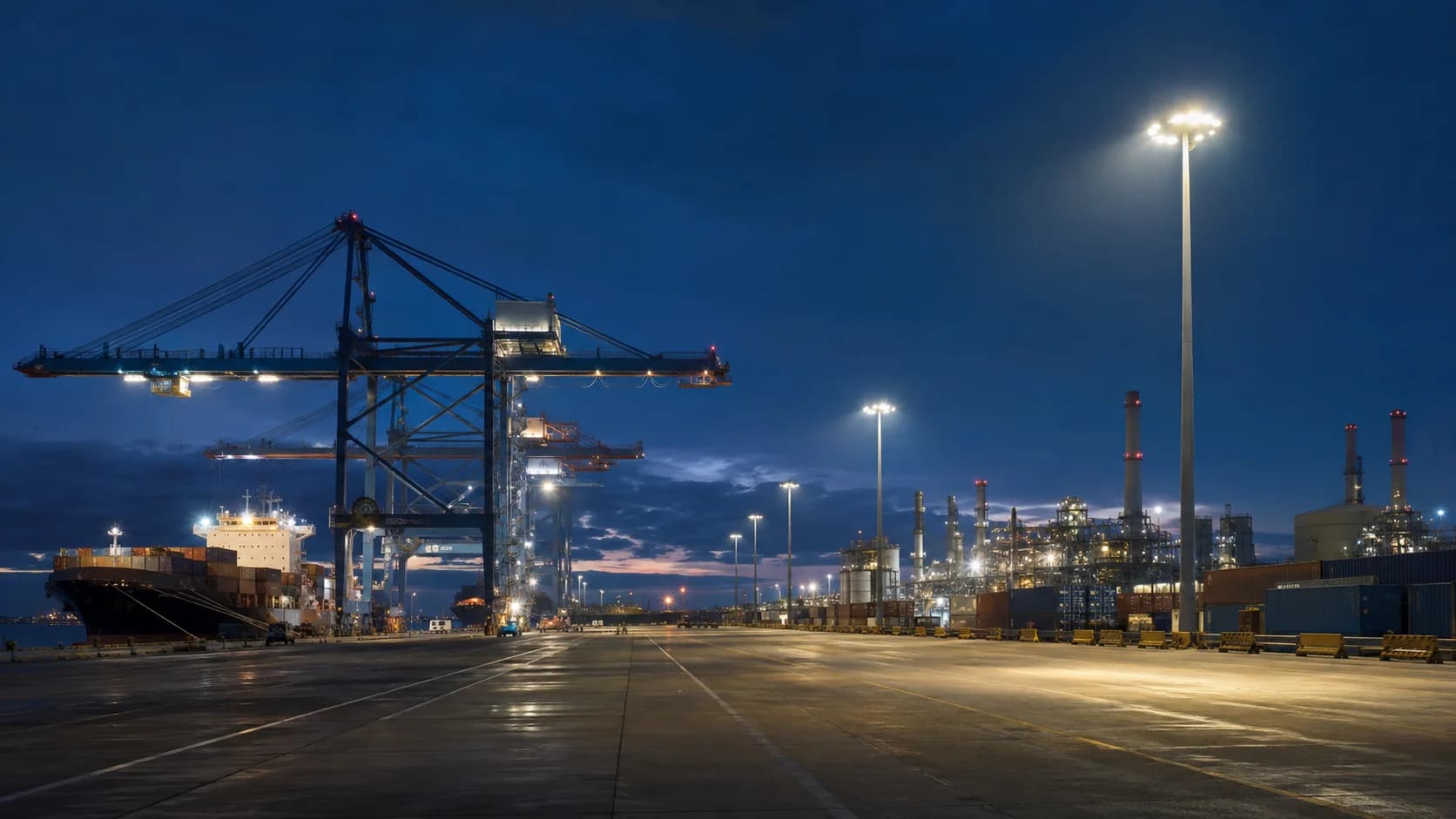

Heavy-duty loading and port environments.
Technical maintenance and inspection areas.
Aircraft storage and wide-span, high-ceiling spaces.
Our technical team can help with model selection, Lighting Busbar integration, mounting, controls and project specification.
Request Technical Support
