Performance
Power Range50–250 W
Luminous Flux7,200–37,000 lm
Models8 Variants
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.
LED SYSTEMS
Industrial & High-Bay Lighting

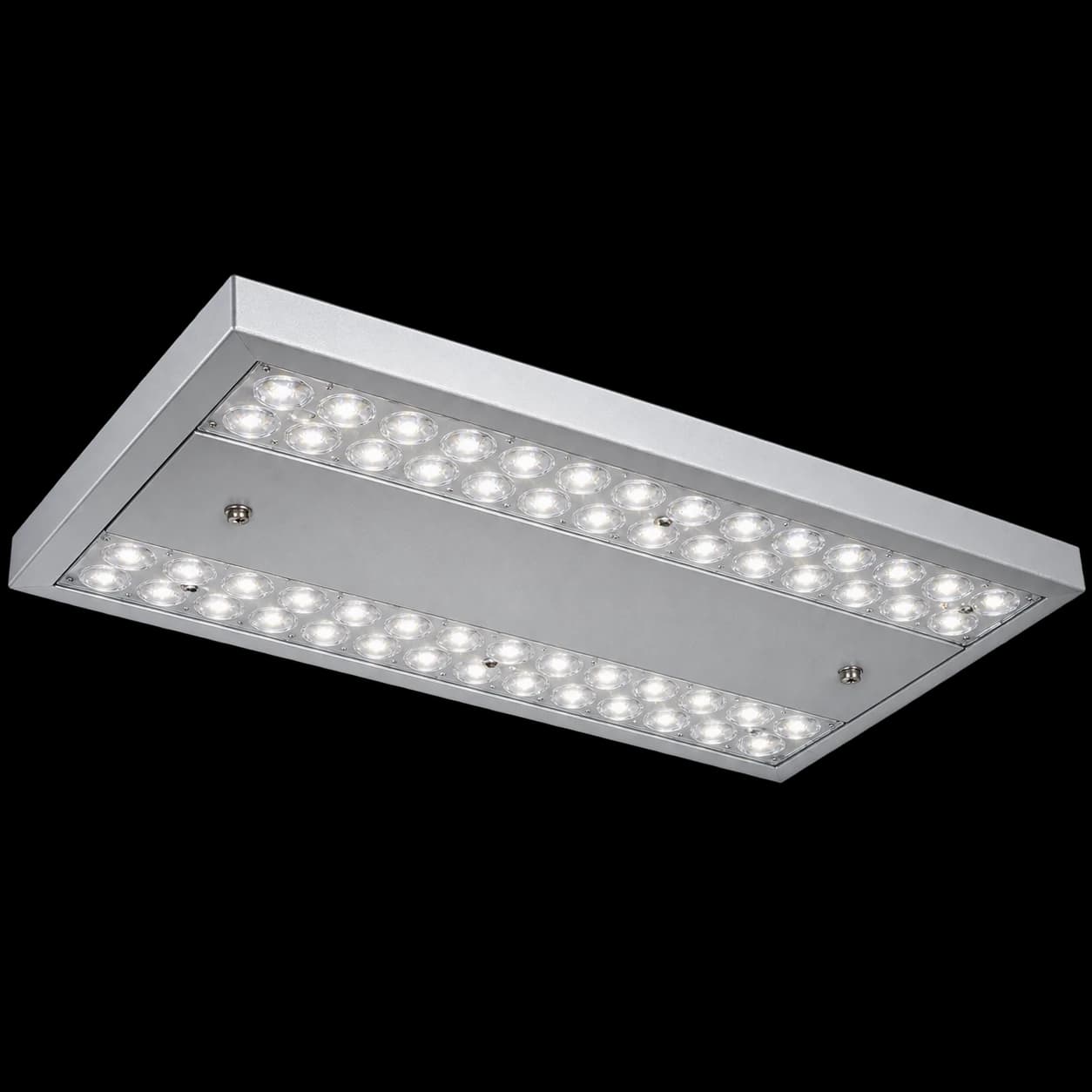

Multi-lens industrial LED lighting engineered for industrial facilities, aviation and airport environments, and logistics applications, with selectable optical configurations and multiple mounting options.
Eight verified catalogue models — search or filter by power or dimensions to find the right variant.
| Model / Catalogue Code | Power | Luminous Flux | Lens | Dimensions | IP | Weight | Enquiry |
|---|---|---|---|---|---|---|---|
| LDB1E | 50 W | 7,200 lm | 30° / 60° / 90° | 30×60 cm | IP20 / IP65 | 4.5 kg | |
| LDB2E | 75 W | 10,800 lm | 30° / 60° / 90° | 30×60 cm | IP20 / IP65 | 4.5 kg | |
| LDB3E | 100 W | 14,500 lm | 30° / 60° / 90° | 30×60 cm | IP20 / IP65 | 4.5 kg | |
| LDB4E | 125 W | 18,000 lm | 30° / 60° / 90° | 30×60 cm | IP20 / IP65 | 4.5 kg | |
| LDB5E | 150 W | 21,600 lm | 30° / 60° / 90° | 30×90 cm | IP20 / IP65 | 6.5 kg | |
| LDB6E | 175 W | 25,500 lm | 30° / 60° / 90° | 30×90 cm | IP20 / IP65 | 6.5 kg | |
| LDB7E | 200 W | 28,800 lm | 30° / 60° / 90° | 30×120 cm | IP20 / IP65 | 8.0 kg | |
| LDB8E | 250 W | 37,000 lm | 30° / 60° / 90° | 30×120 cm | IP20 / IP65 | 8.0 kg |
Installation to cable-channel systems using catalogue-supported mounting arrangements.
Direct mounting to the busbar system using the catalogue-defined busbar assembly arrangement.
Wall-mounted installation with adjustable-angle mounting hardware.
Catalogue-listed control options — not every option is standard on every model.

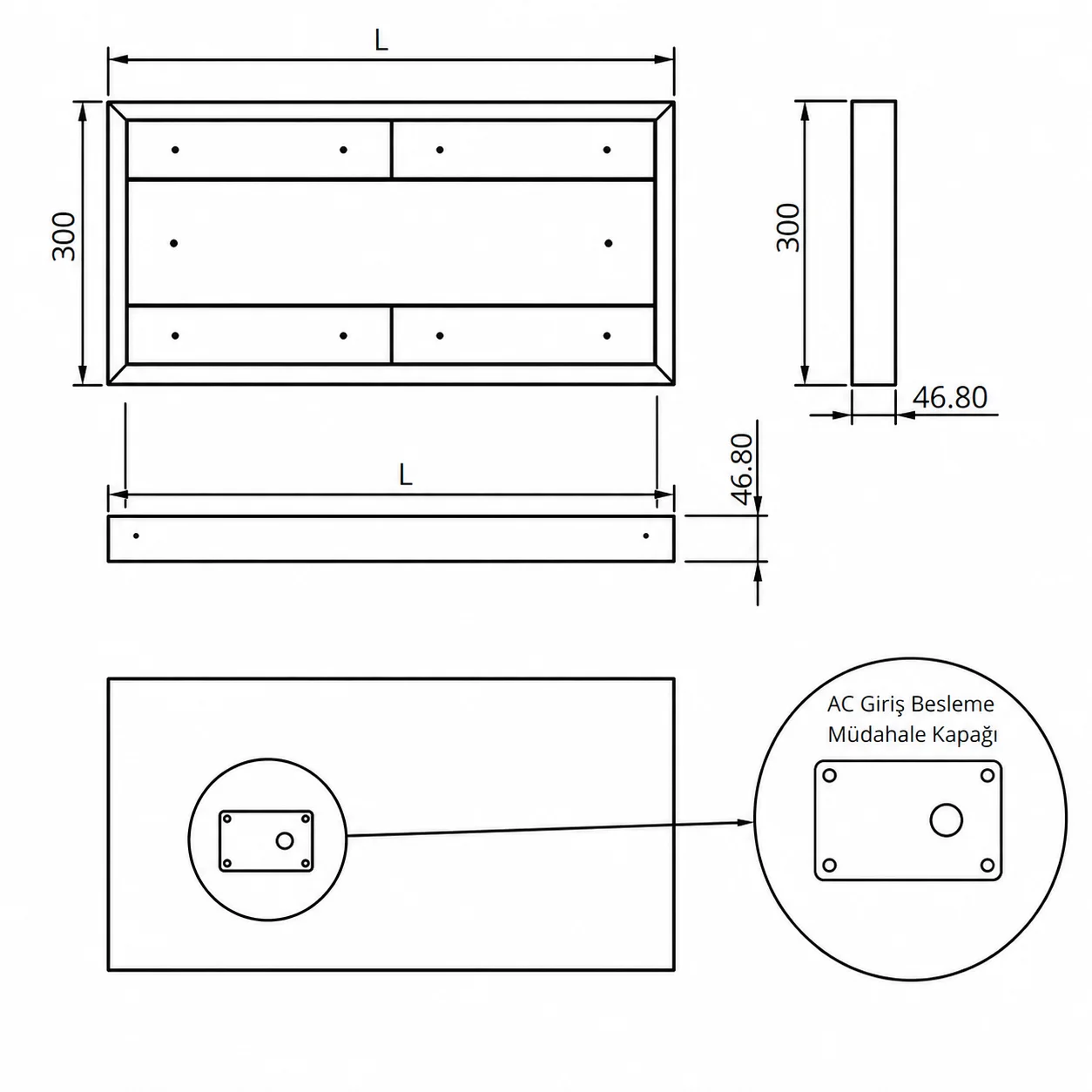

Luminaire cross-section: 300 mm wide × approximately 46.80 mm high. Overall length L corresponds to each model's stated size (30×60 / 30×90 / 30×120 cm) — see the model table above for exact per-model dimensions.

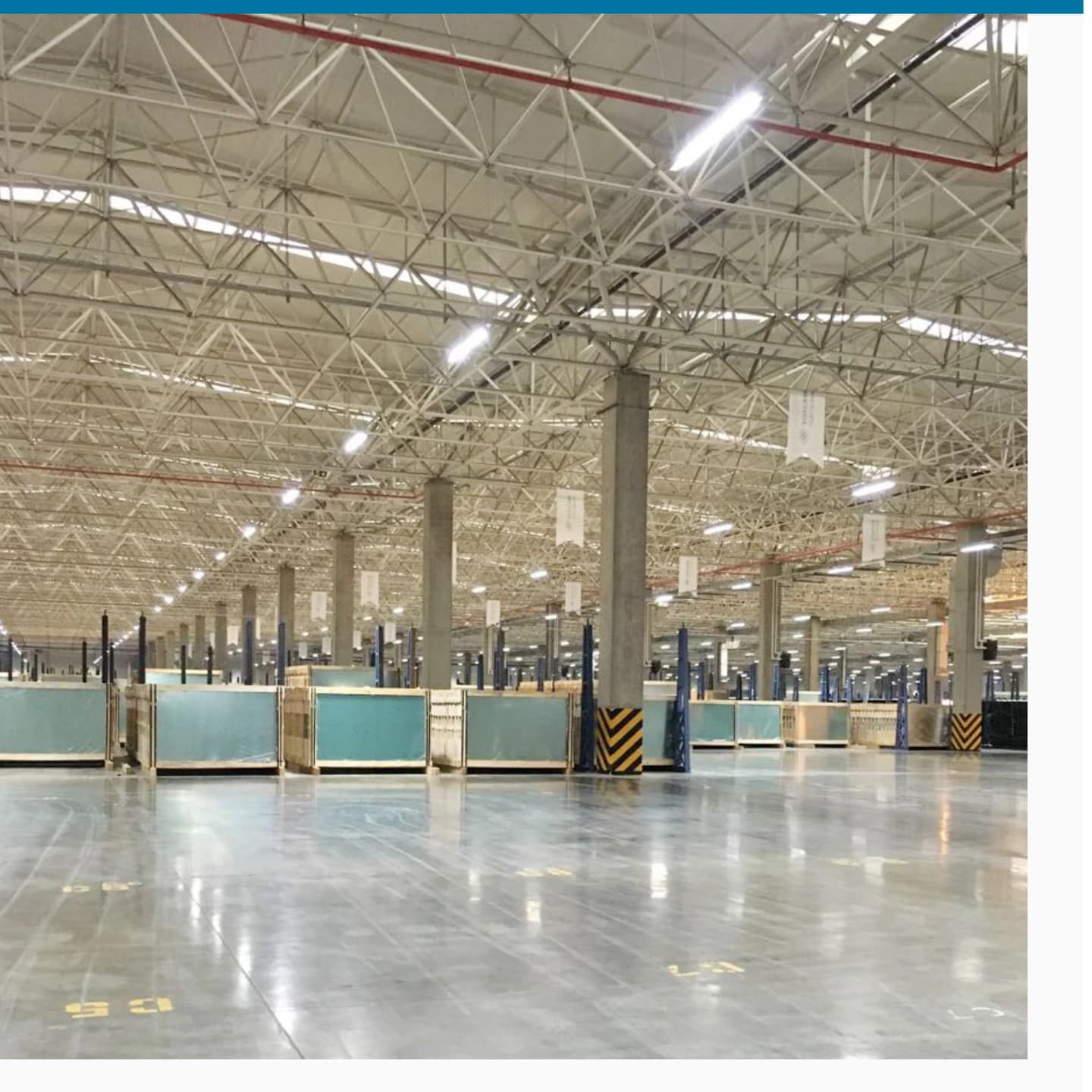

Large-span industrial and production facilities.

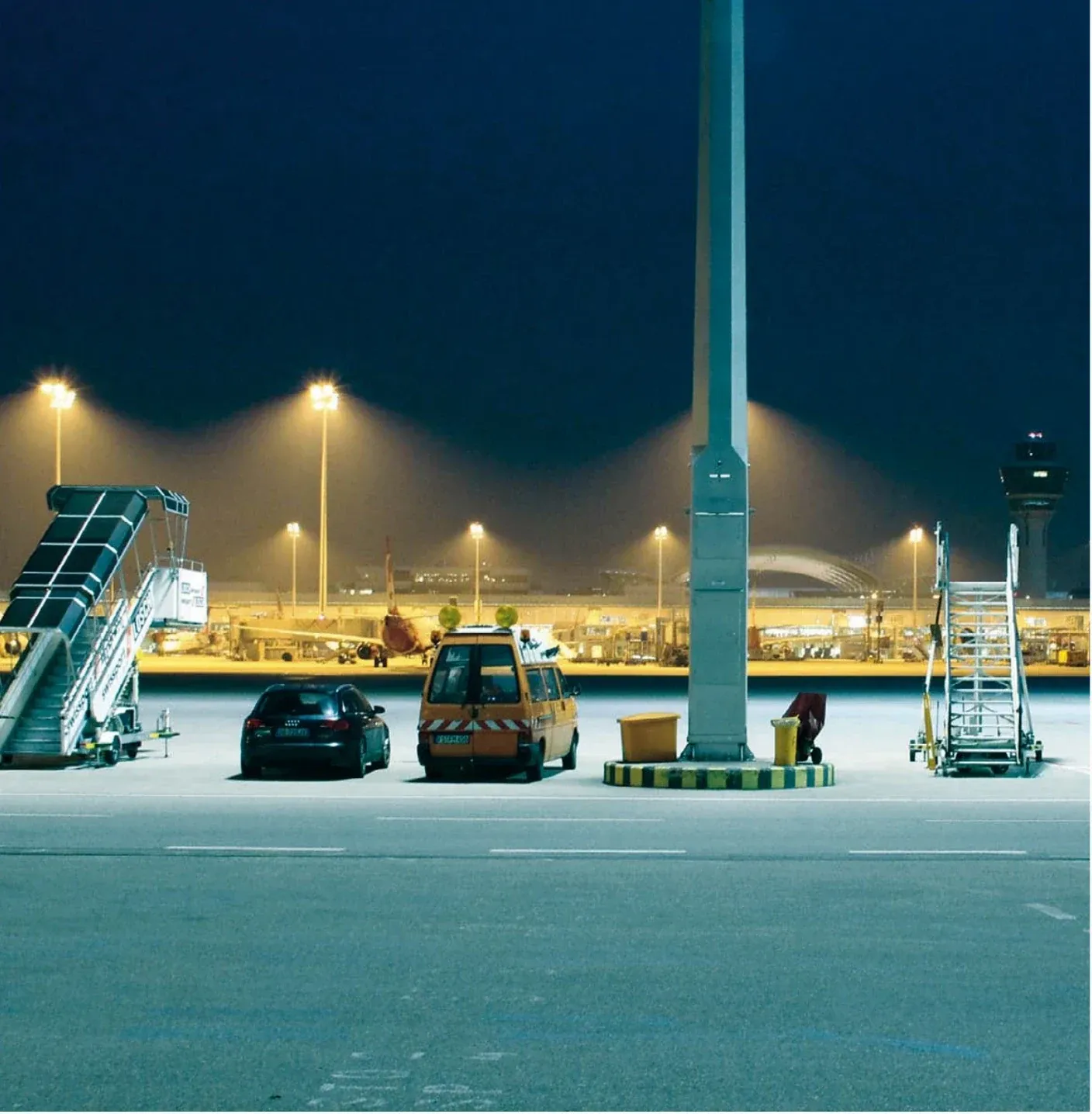

Airport ground-operations and aviation environments.

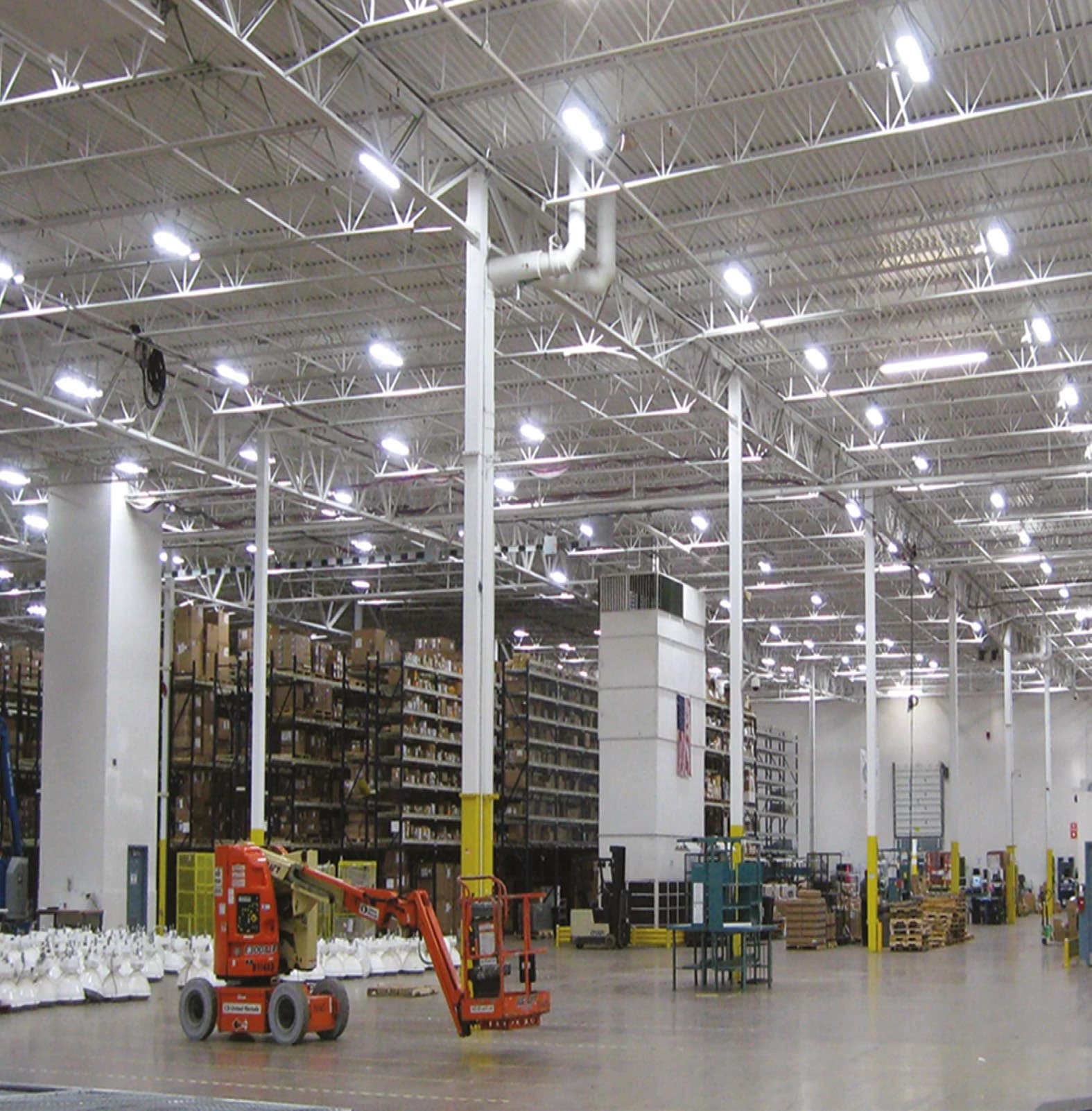

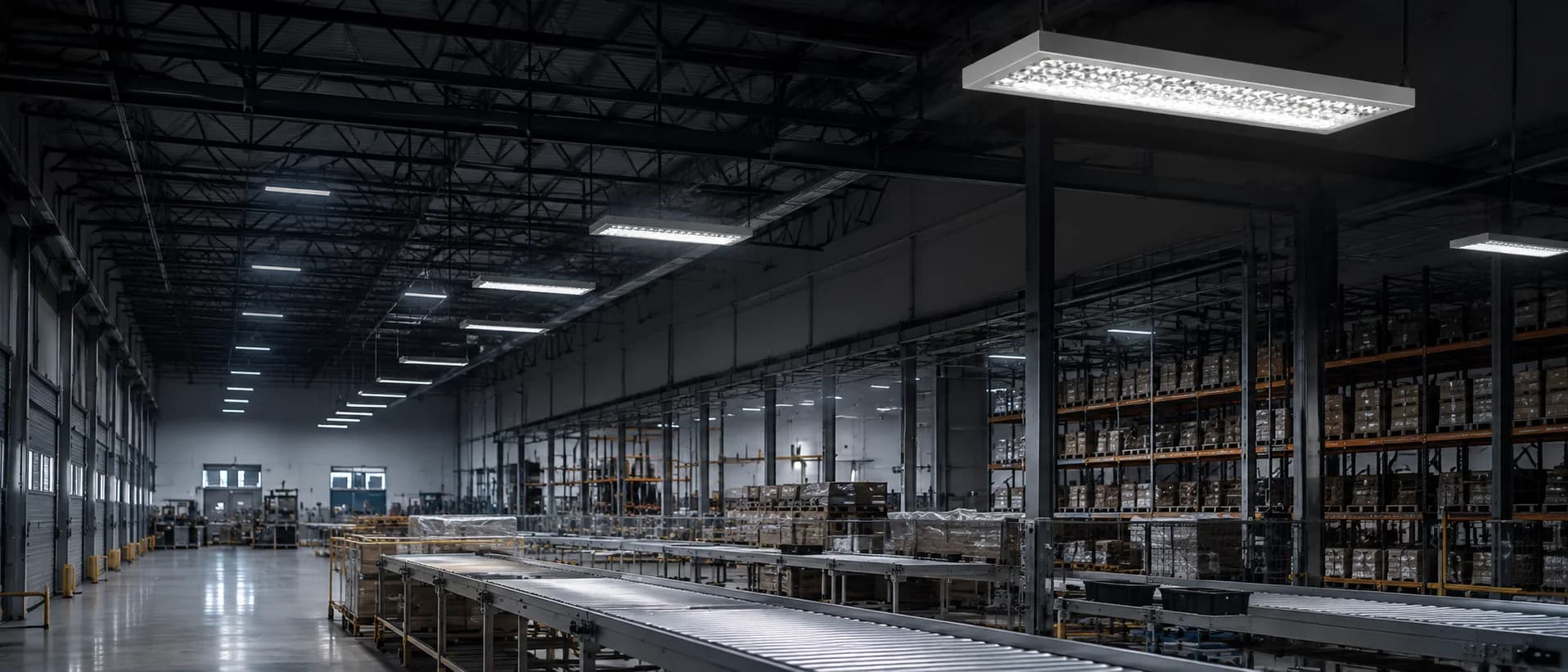

Logistics aisles and high-bay storage halls.
Large-span industrial and production facilities.
Our technical team can help with model selection, optical configuration, busbar or cable-channel integration, wall mounting and lighting controls.
Request Technical Support
