Performance
Power Range75–205 W
Luminous Flux9,983–27,800 lm
Luminous Efficiency>131–>135 lm/W
Models4 Variants
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.
LED SYSTEMS
Industrial & High-Bay Lighting

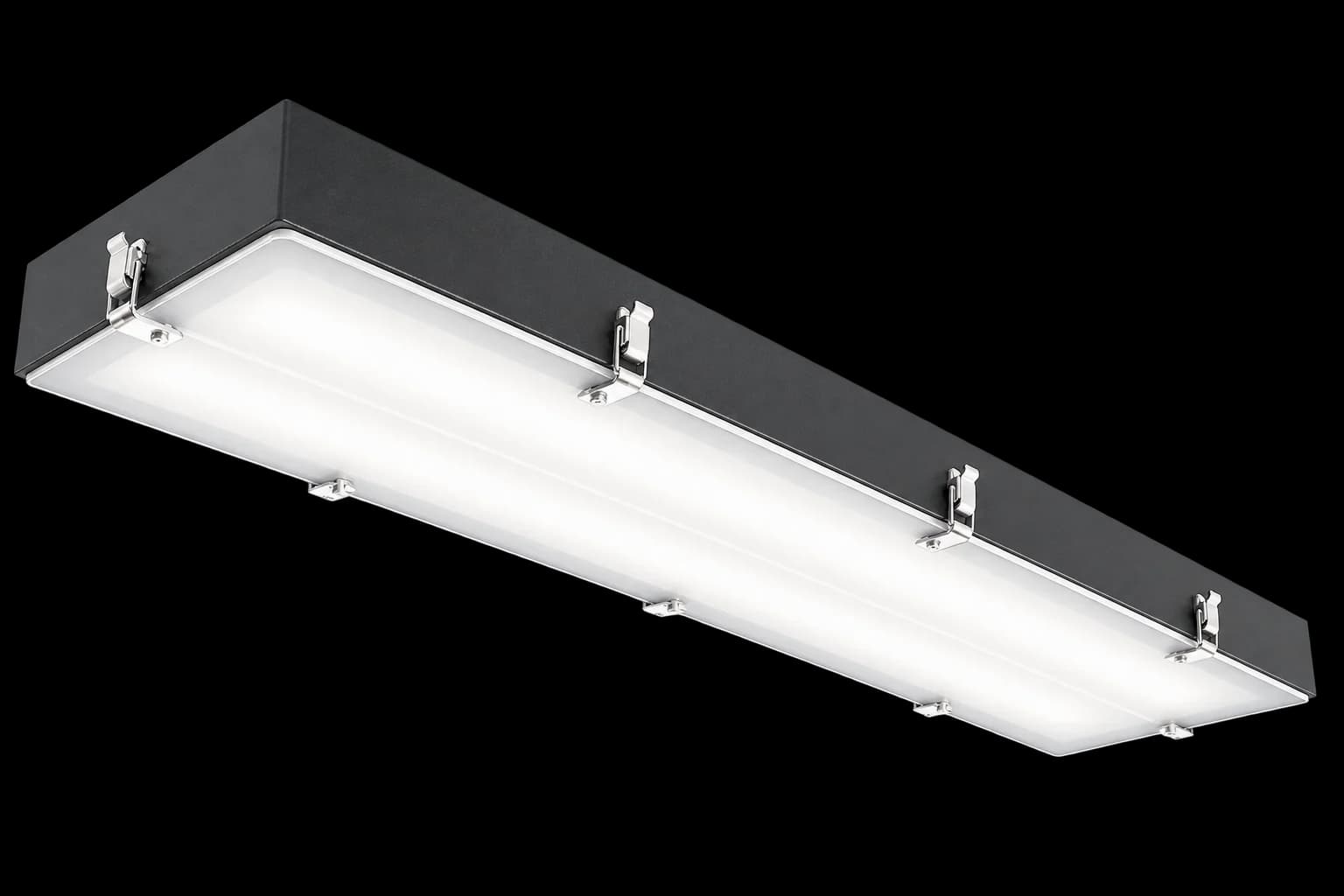

Rugged industrial LED lighting with a fabricated-steel housing, electrostatic powder-coated finish and 4 mm tempered-glass cover, engineered for industrial, aviation and logistics environments.
Four verified catalogue models — search or filter by power or length to find the right variant.
| Model / Catalogue Code | Power | Luminous Flux | Efficiency | CRI | Colour Temp. | Dimensions | Enquiry |
|---|---|---|---|---|---|---|---|
| 73O-LDB1FL | 75 W | 9,983 lm | >132 lm/W | >80 | 3000–6000 K | 210 × 1200 × 75 mm | |
| 73O-LDB2FL | 110 W | 14,600 lm | >132 lm/W | >80 | 3000–6000 K | 210 × 1200 × 75 mm | |
| 73O-LDB3FL | 160 W | 20,960 lm | >131 lm/W | >80 | 3000–6000 K | 210 × 1500 × 75 mm | |
| 73O-LDB4FL | 205 W | 27,800 lm | >135 lm/W | >80 | 3000–6000 K | 210 × 1500 × 75 mm |
Catalogue codes are reproduced from the source extraction. One printed character is visually ambiguous between ‘O’ and ‘0’; please confirm the final order code during enquiry.
Catalogue-listed switching, dimming and system options. Availability depends on project configuration.

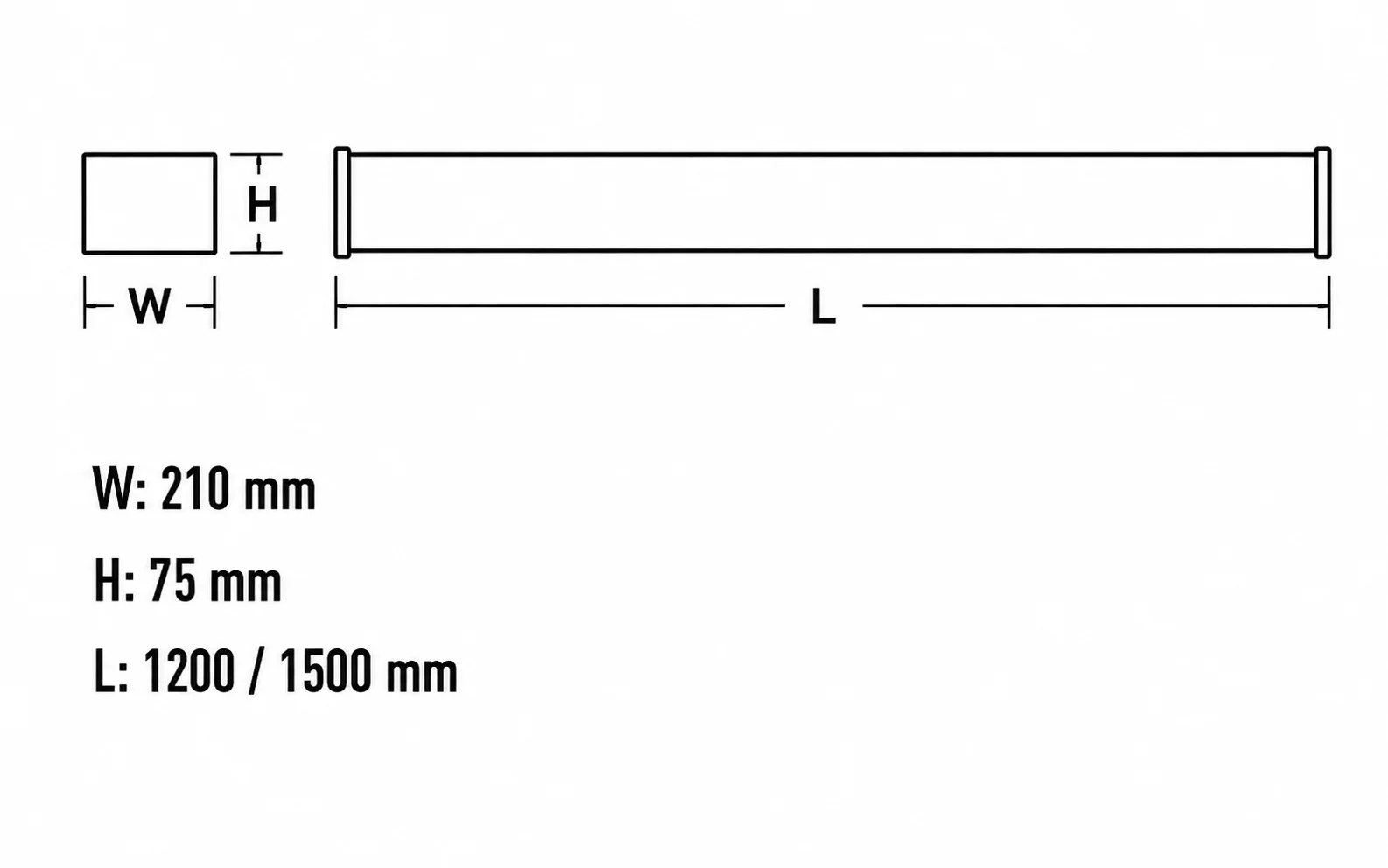

Luminaire profile: W 210 mm × H 75 mm (per the technical drawing). Overall length L corresponds to each model's stated size (1200 / 1500 mm) — see the model table above for exact per-model dimensions.

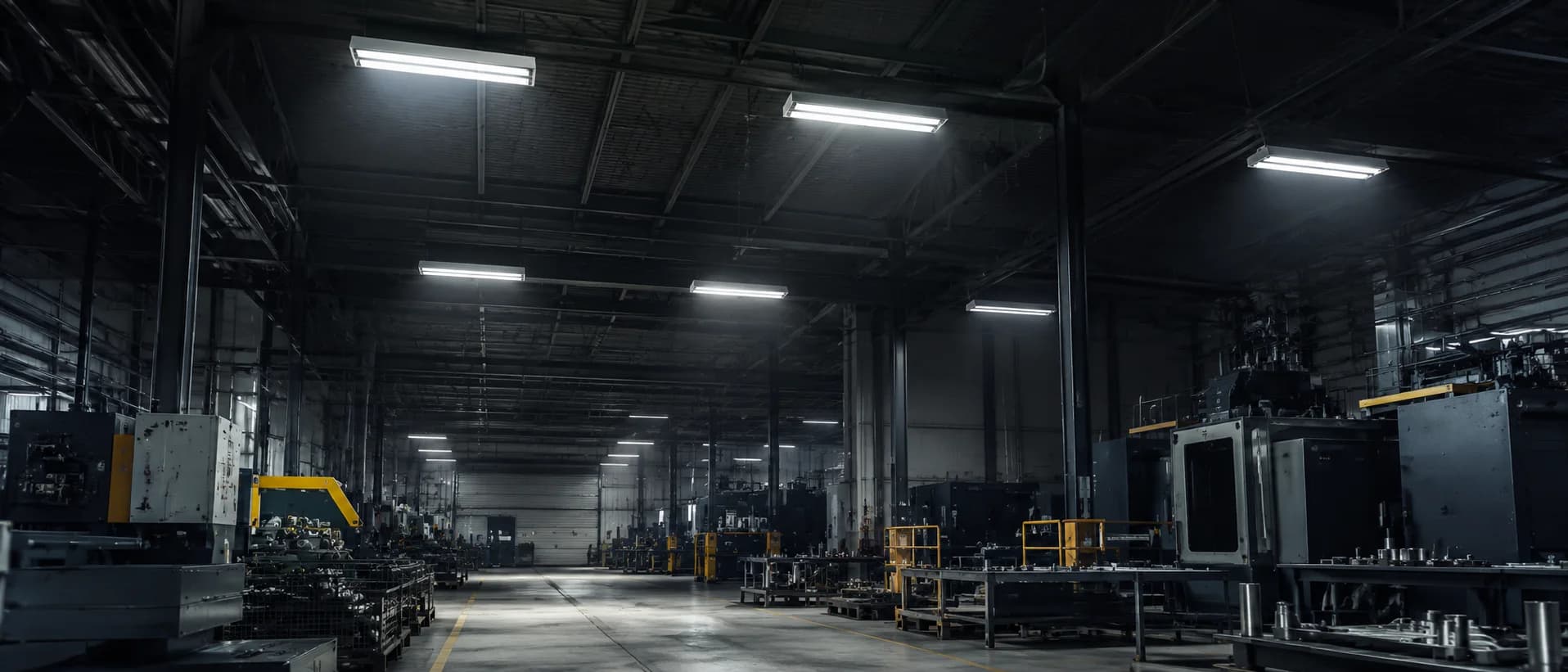

Industrial production and manufacturing environments.

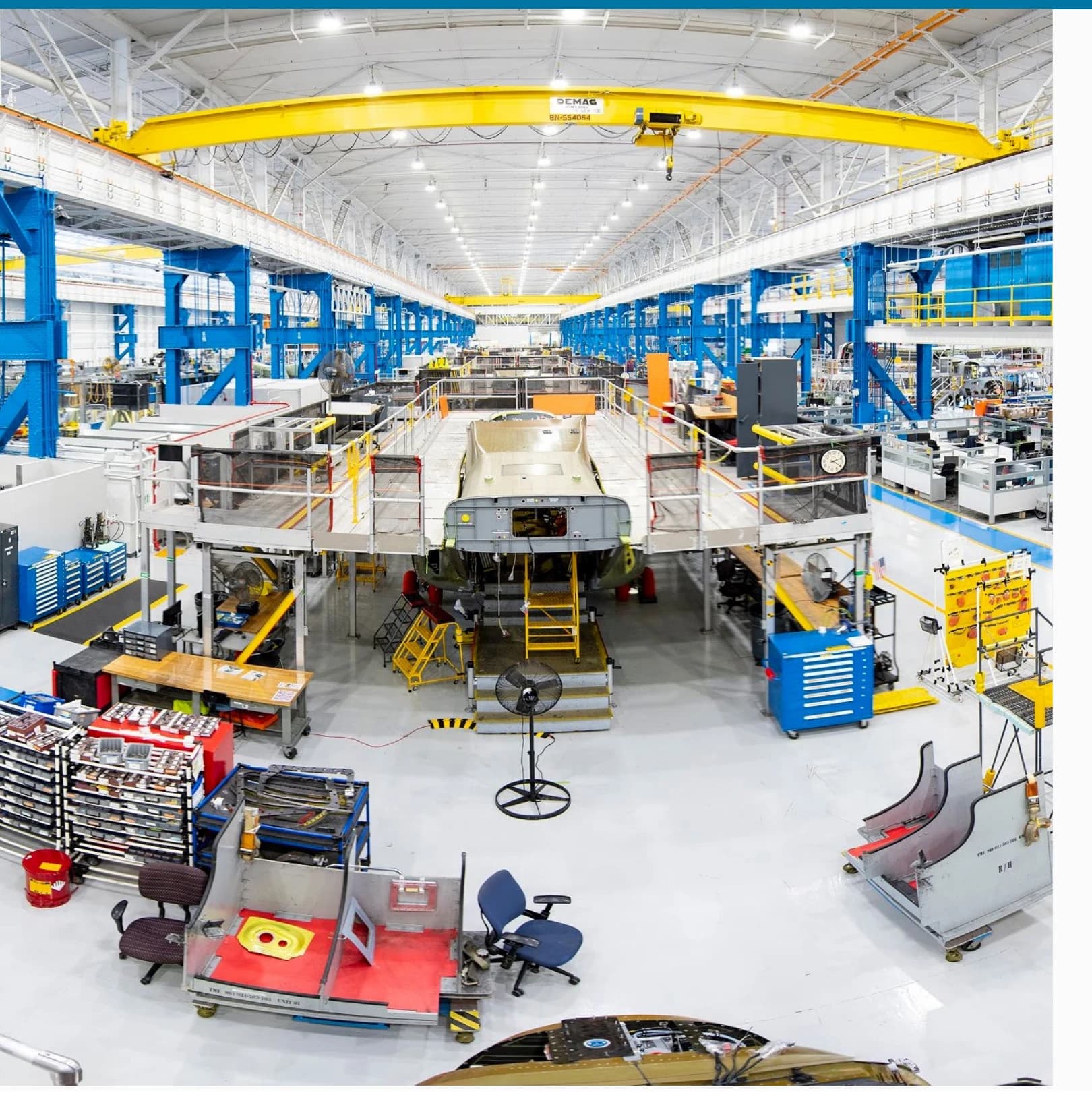

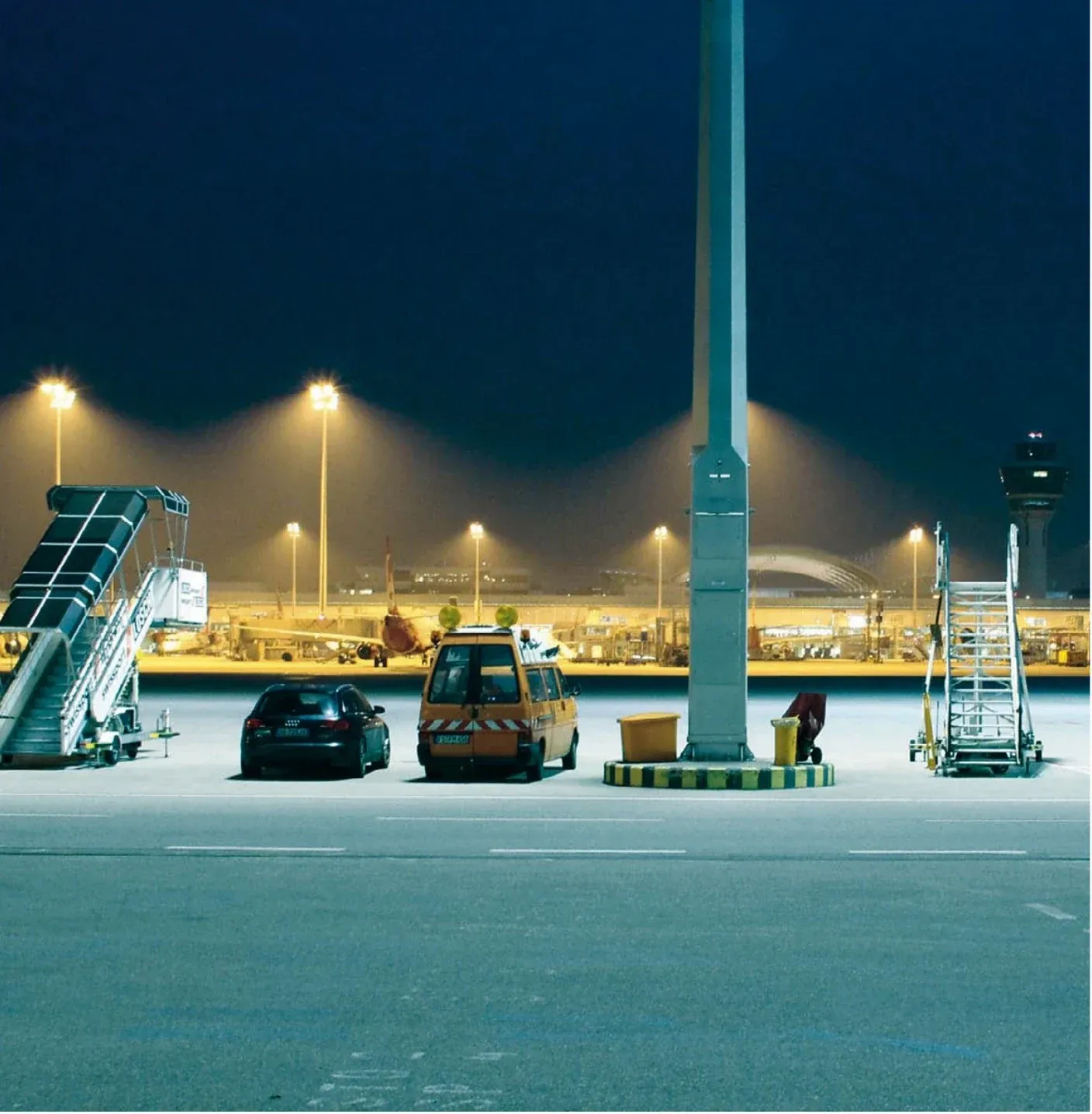

Large technical and aviation facilities requiring robust high-output lighting.

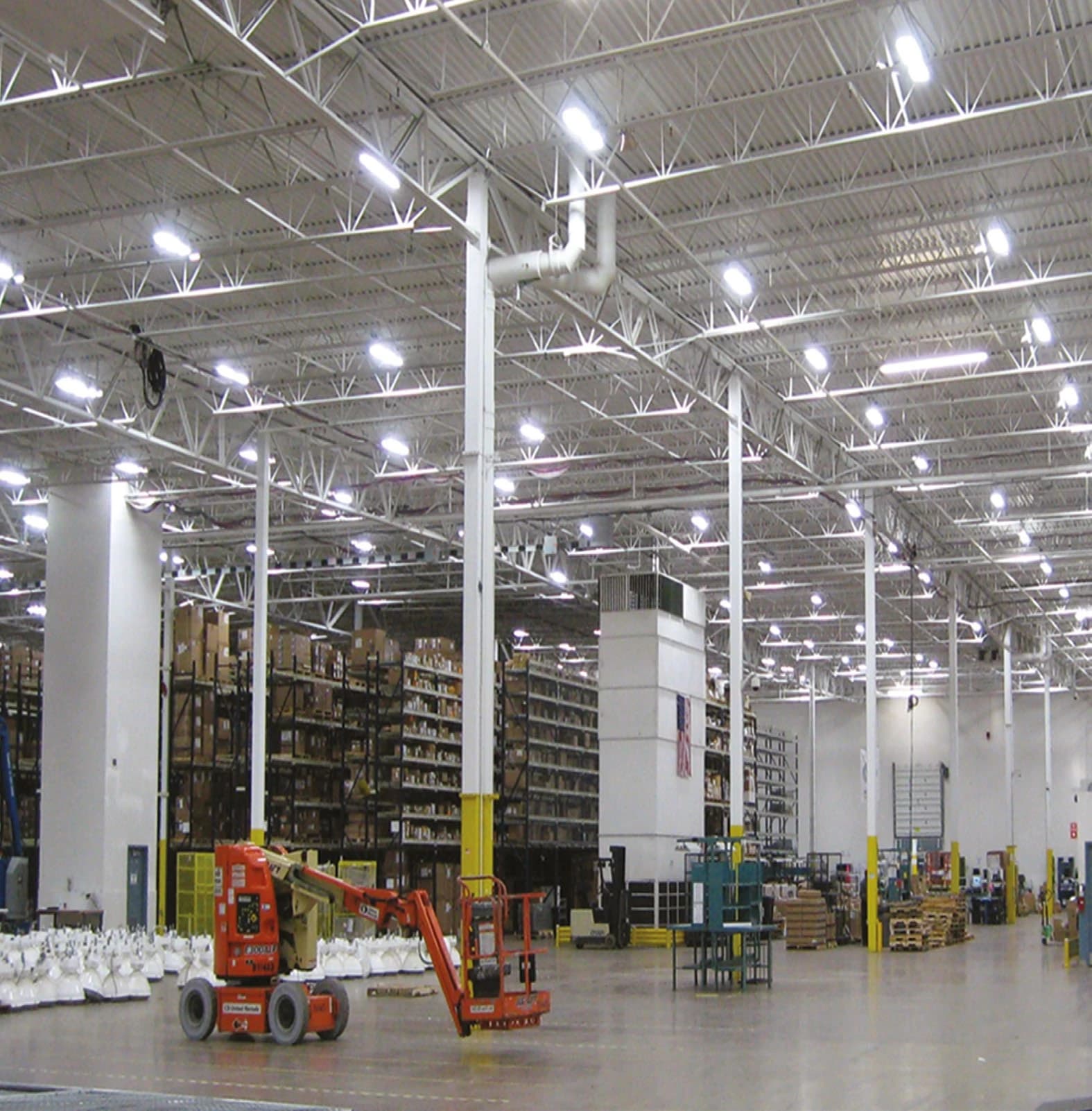

Warehouse and logistics environments with demanding industrial lighting requirements.
Industrial production and manufacturing environments.
Our technical team can help with model selection, controls, dimensions and project specification.
