Performance
Power Range35–250 W
Luminous Flux5,000–37,600 lm
Luminous Efficiency142.9–164.3 lm/W
Models9 Variants
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.

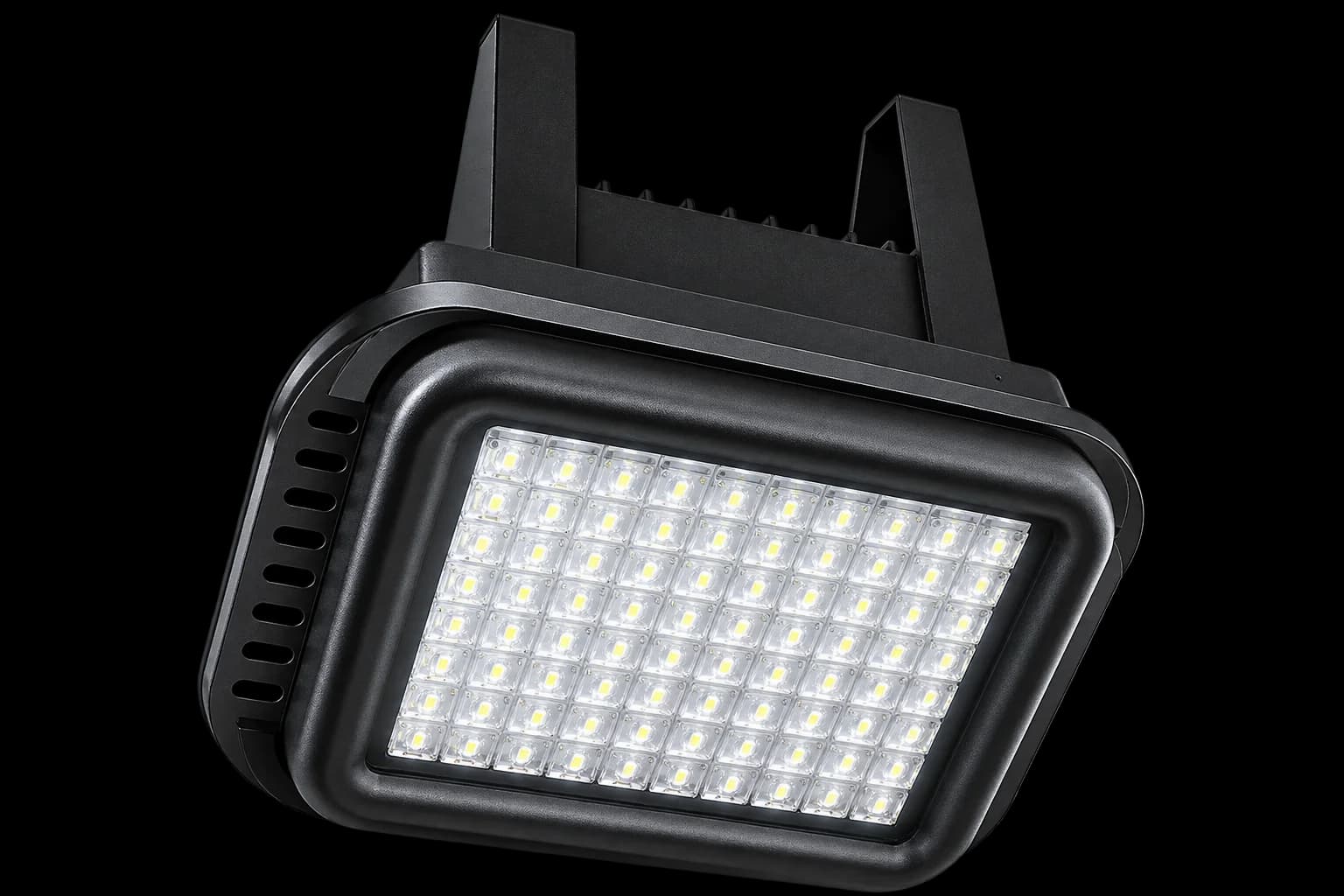

LED SYSTEMS
Industrial & High-Bay Lighting
Heavy-duty industrial high-ceiling LED lighting with modular plug-and-remove LED and driver sections, adjustable fixture angle and advanced monitoring and control options for demanding industrial environments.
Source catalogue states suitability for Zone 1 / Zone 2; certification details are not provided on this product page.
Nine verified catalogue models — search or filter by power, LED quantity or weight to find the right variant.
| Model / Catalogue Code | Power | LED Qty | Luminous Flux | Efficiency | Weight | Enquiry |
|---|---|---|---|---|---|---|
| GSL IND-35W | 35 W | 8 | 5,000 lm | 142.9 lm/W | 6.5 kg | |
| GSL IND-50W | 50 W | 36 | 7,500 lm | 150.0 lm/W | 6.5 kg | |
| GSL IND-75W | 70 W | 48 | 11,500 lm | 164.3 lm/W | 6.5 kg | |
| GSL IND-100W | 100 W | 60 | 14,500 lm | 145.0 lm/W | 6.5 kg | |
| GSL IND-125W | 125 W | 64 | 18,750 lm | 150.0 lm/W | 7.0 kg | |
| GSL IND-150W | 150 W | 64 | 22,750 lm | 151.0 lm/W | 7.0 kg | |
| GSL IND-185W | 185 W | 80 | 27,800 lm | 150.2 lm/W | 7.0 kg | |
| GSL IND-200W | 200 W | 80 | 29,750 lm | 148.75 lm/W | 7.0 kg | |
| GSL IND-250W | 250 W | 80 | 37,600 lm | 150.4 lm/W | 7.0 kg |
GSL IND-75W is reproduced exactly from the source catalogue; its corresponding catalogue power value is 70 W.
Modular luminaire construction designed for easier connection, servicing and fixture adjustment.
Multi-contact screwless, solderless and tapeless socket system with a standard 50 cm rubber-insulated connection cable.
The LED section is independent from the fixture driver section and uses a plug-and-remove socket structure.
The driver section is independently arranged and uses a plug-and-remove connection structure.
Fixture angle can be adjusted using the catalogue-defined special geared mechanism.
Catalogue-listed control, sensing and smart-integration capabilities; availability depends on project configuration.

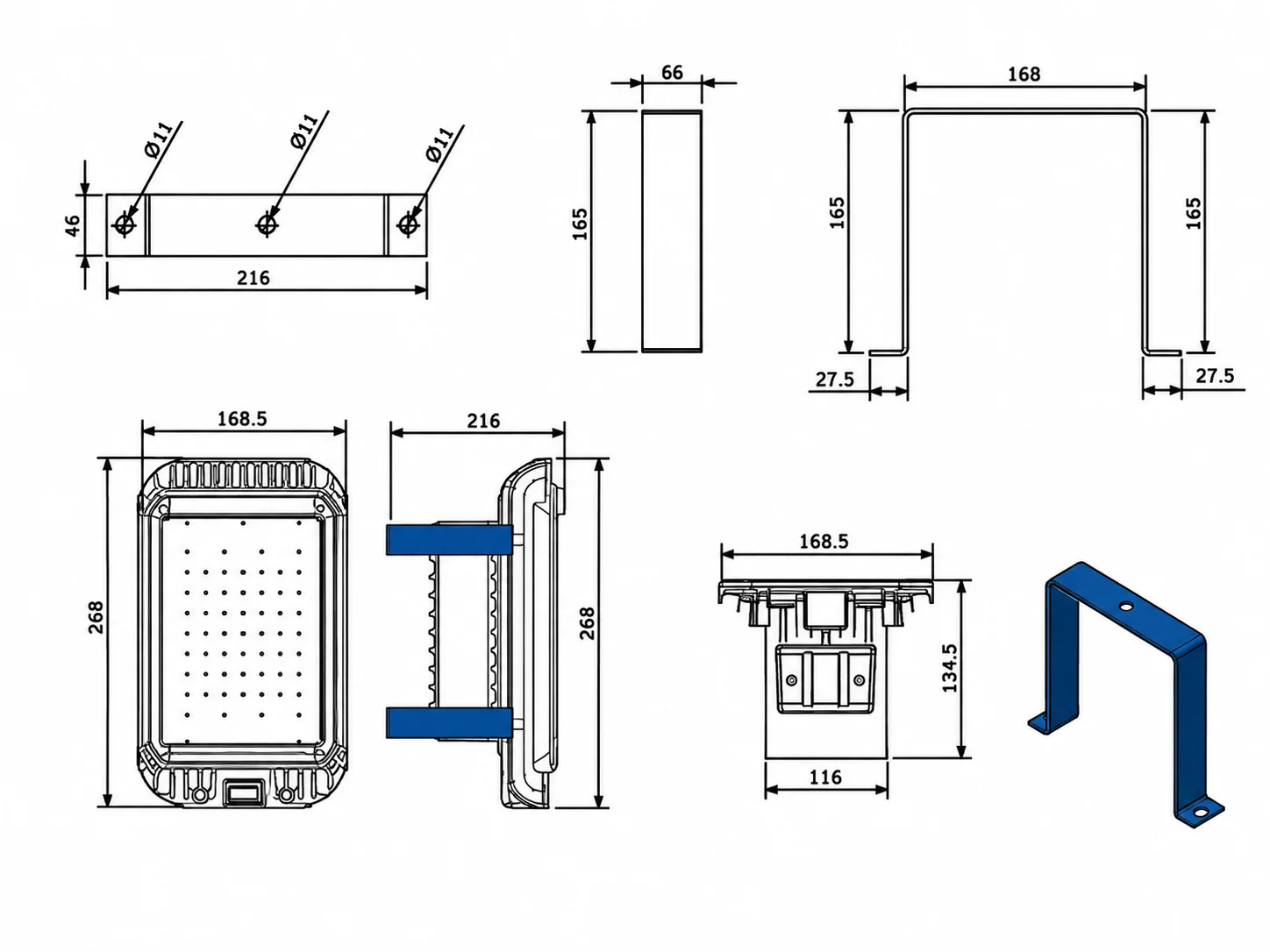

Refer to the technical drawing for fixture dimensions.

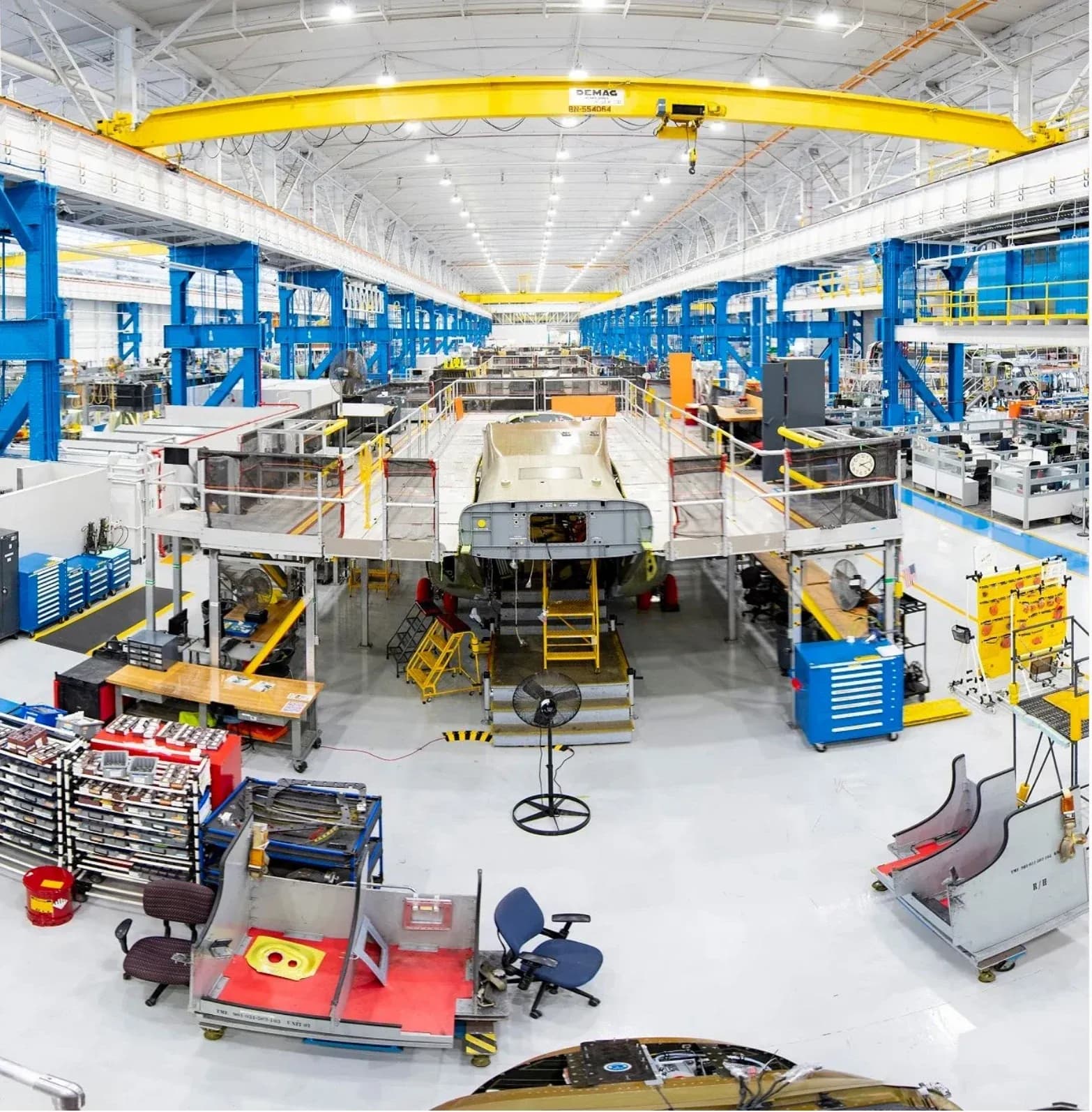

Aircraft hangars and technical maintenance facilities.

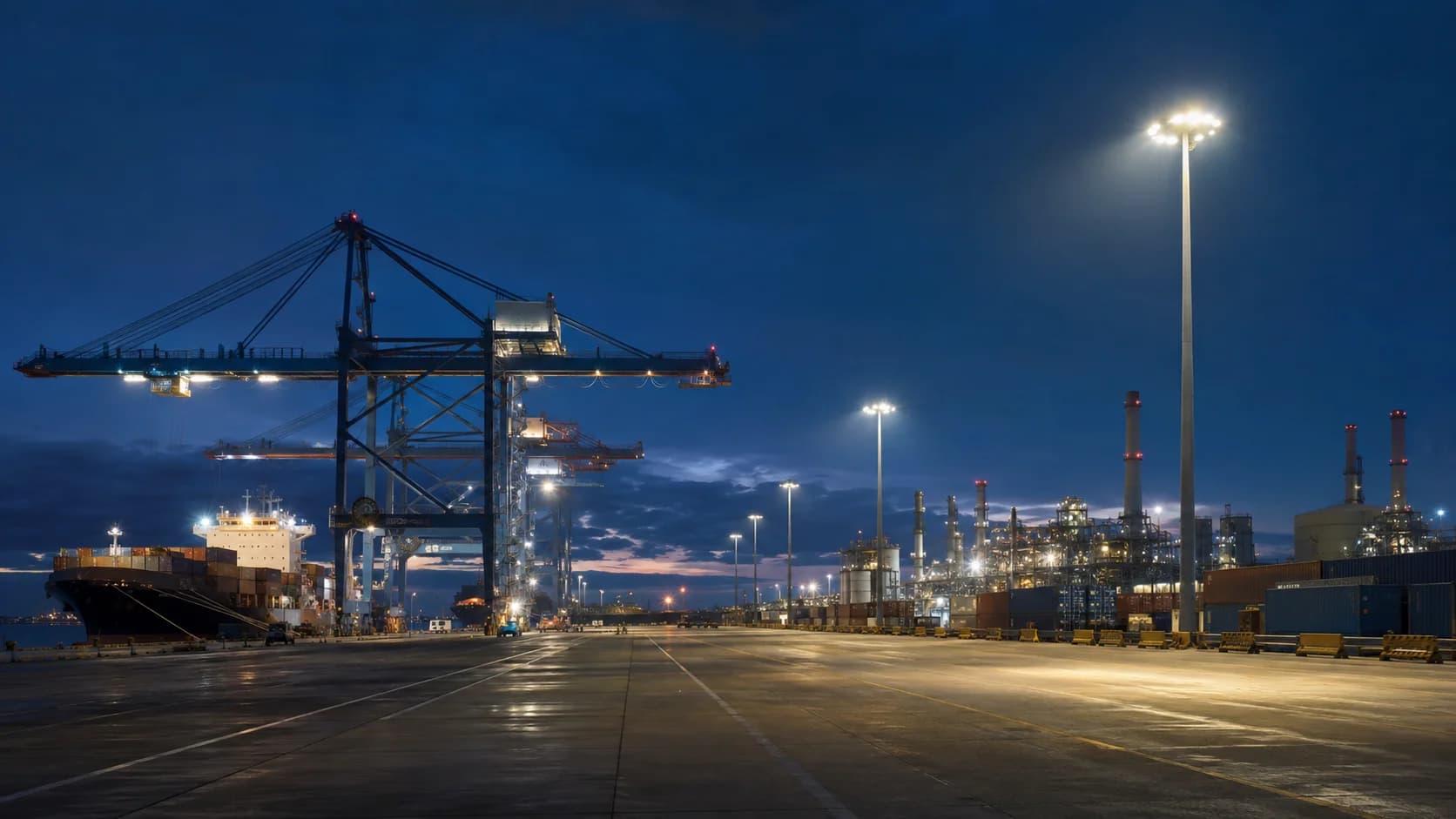

Heavy-duty loading and port environments.

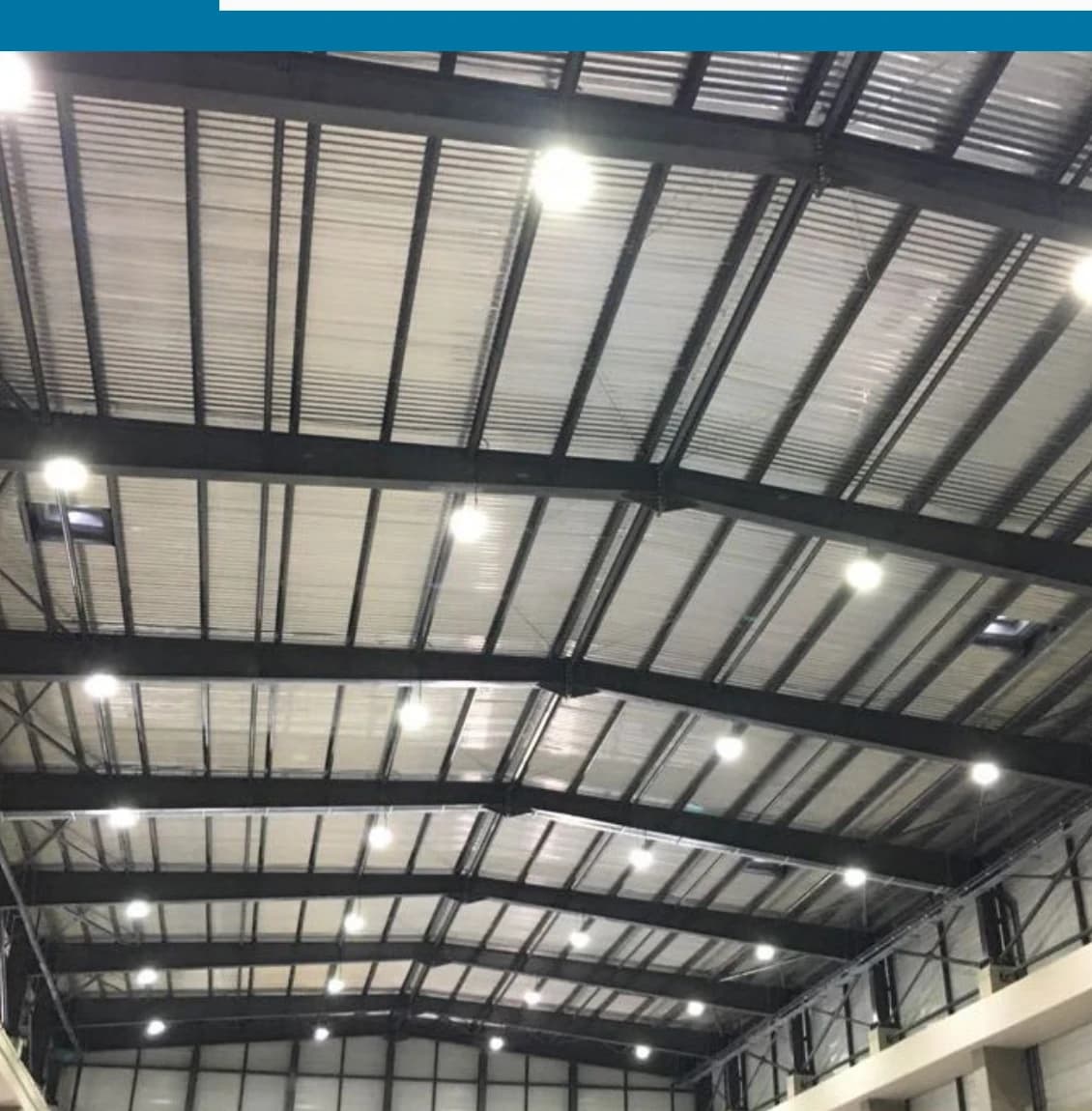

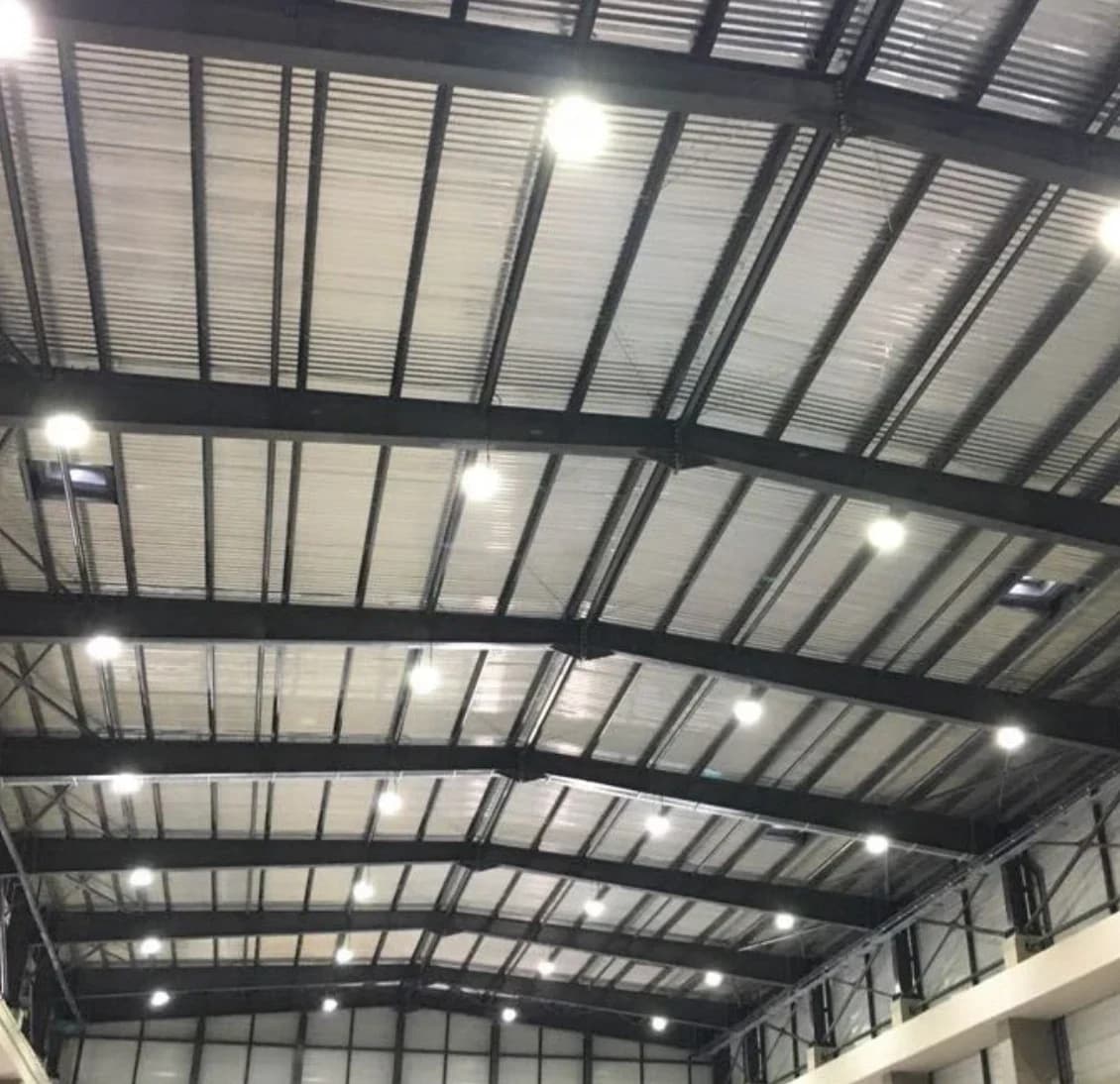

Large-span warehouse and storage facilities.

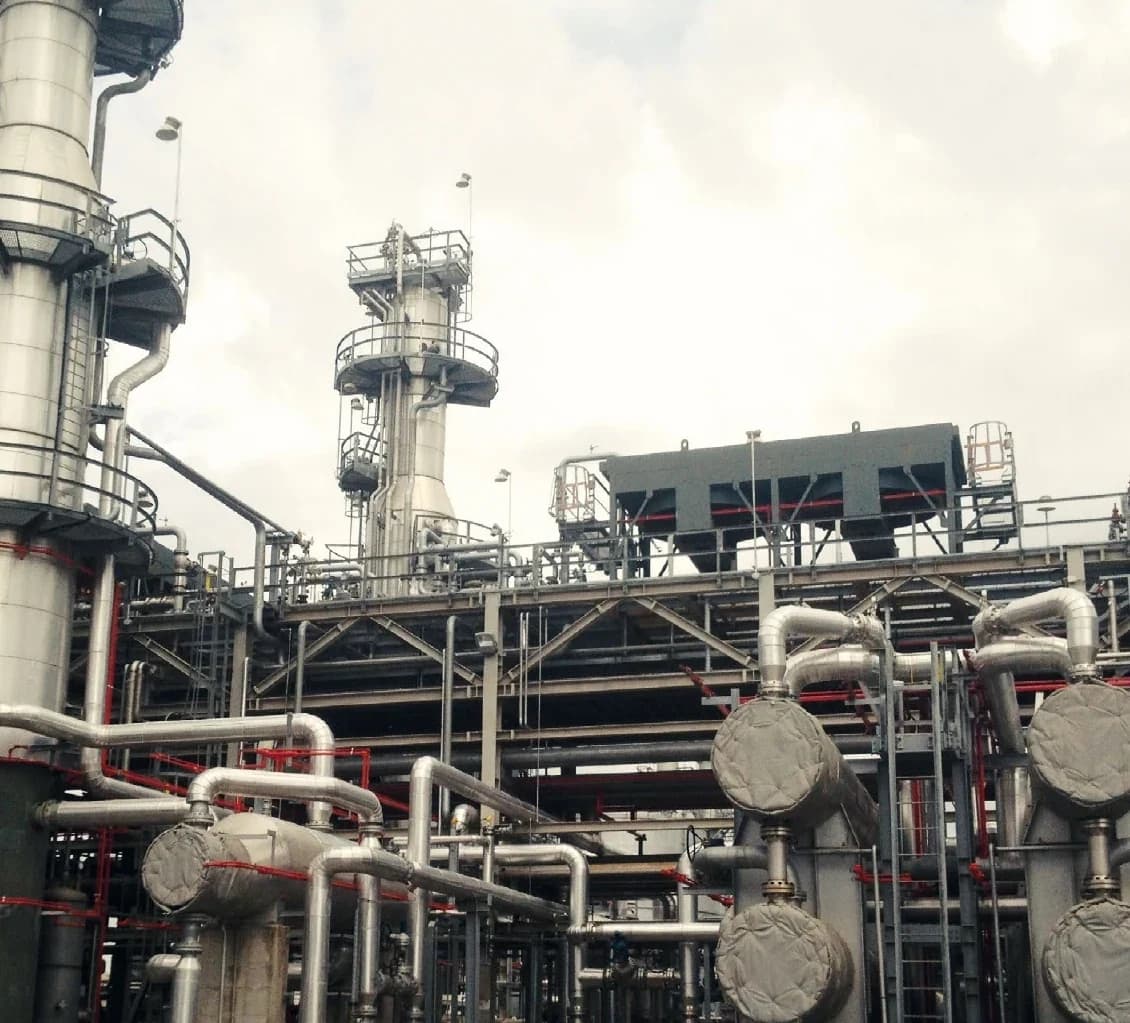

Petrochemical plants and fuel/gas station environments.

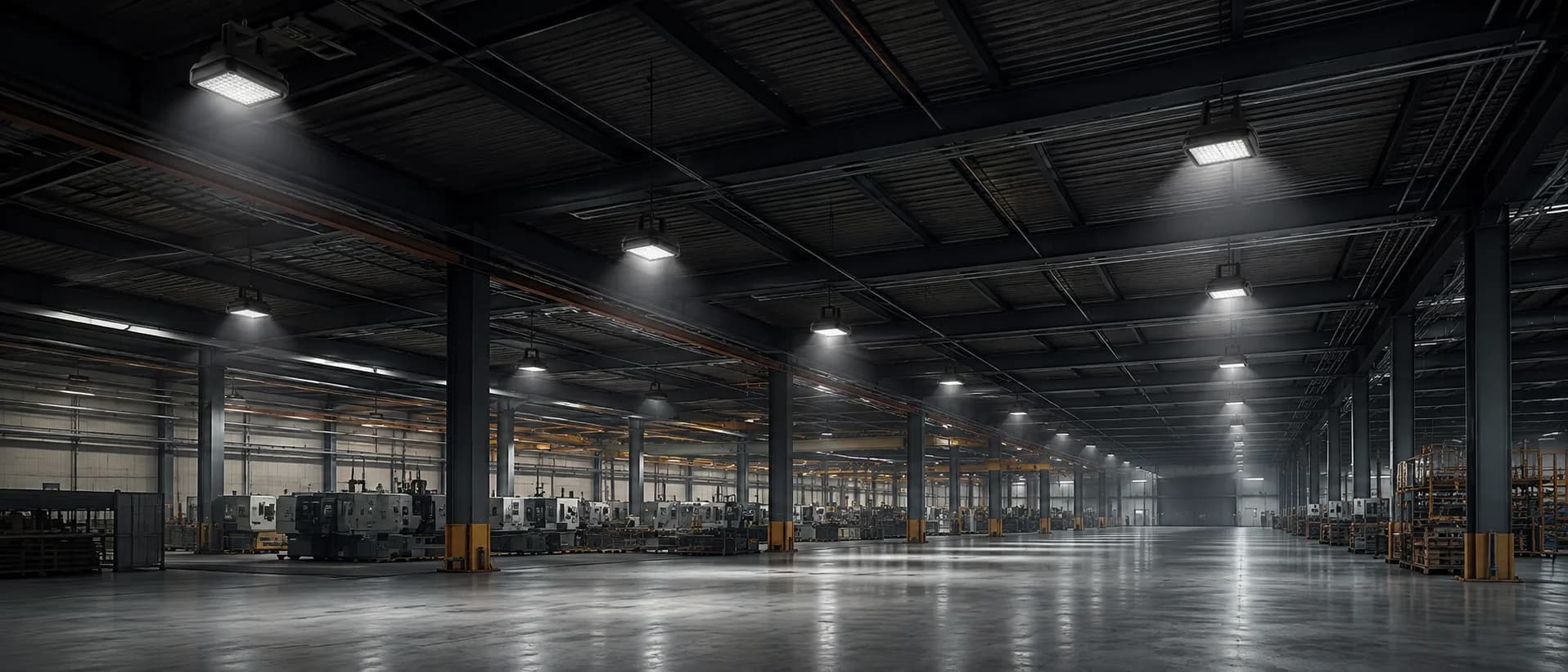

Flour mills, dye plants and similar production facilities.

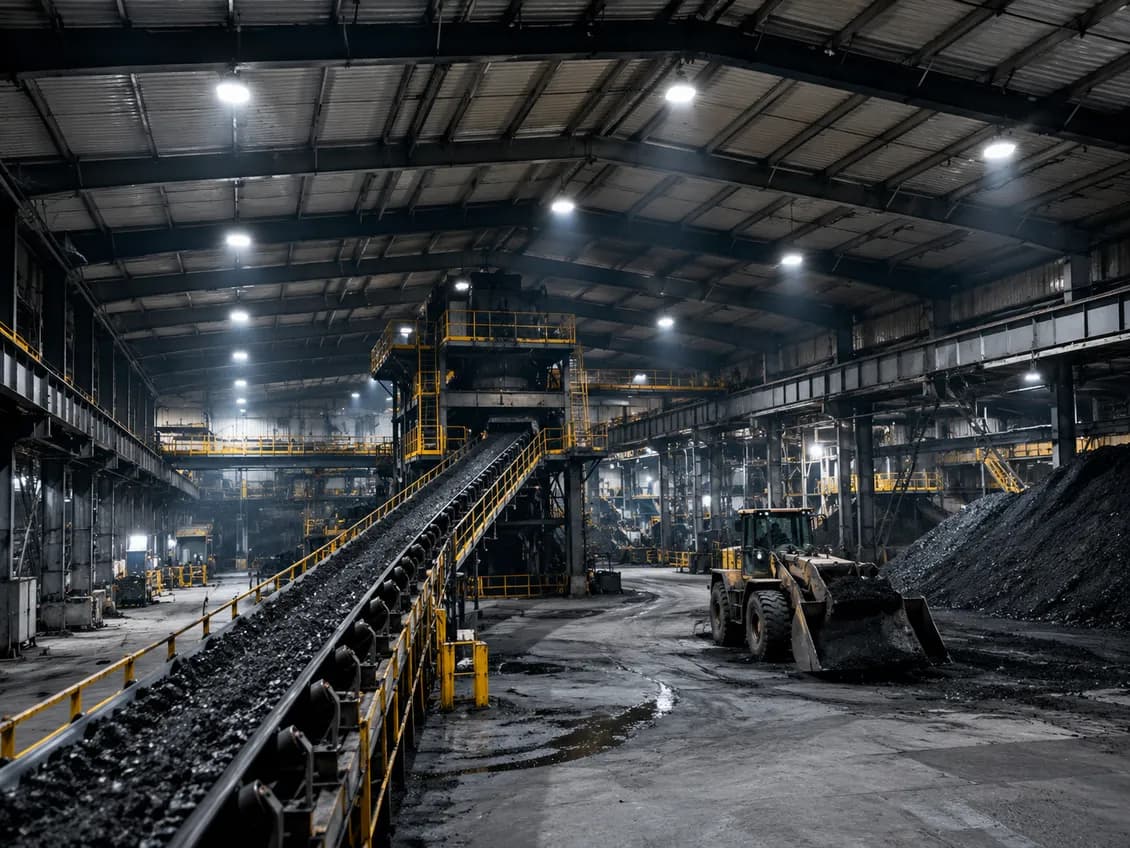

Coal and mining sector facilities.
Aircraft hangars and technical maintenance facilities.
Our technical team can help with model selection, fixture adjustment, smart controls, sensing and project specification.
