Cable Management Systems

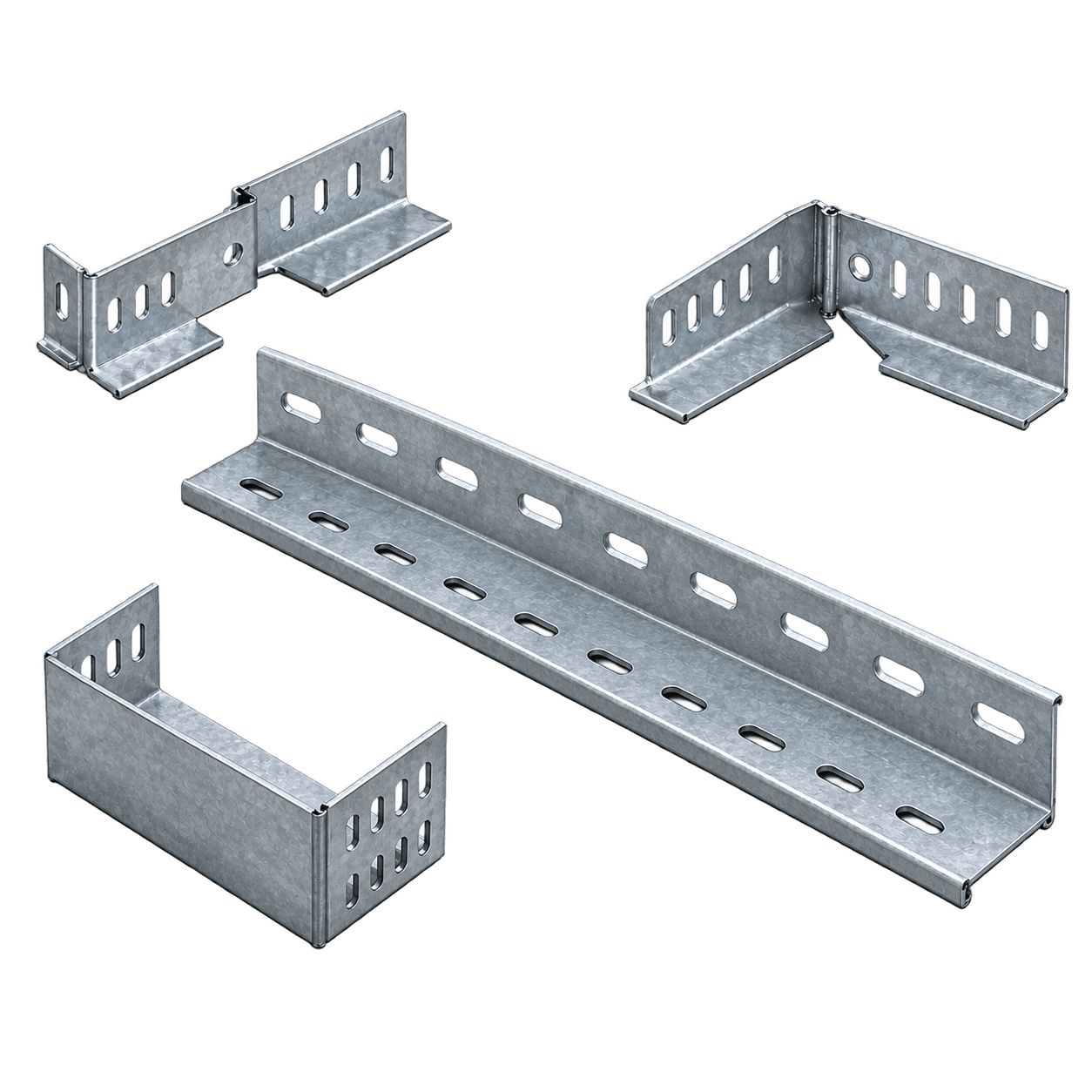

Compartment separators, end caps, cover clamps and level/direction-changing elements for organizing and terminating cable tray runs.
Every model, stock code, dimension and weight below is drawn directly from the Gersan Cable Support catalogue.
| Model | Stock Code | Width (mm) | Height (mm) | Thickness (mm) | Material / Finish | Action |
|---|---|---|---|---|---|---|
| GKK-B DCover Clamps | 1304000139140 | 2 | — | — | Aluminium | |
| GES-40-C DSeparator (Cable) | 1305004049140 | 38 | 1 | — | Aluminium | |
| GES-50-C DSeparator (Cable) | 1305005049140 | 48 | 1.5 | — | Aluminium | |
| GES-60-C DSeparator (Cable) | 1305006049140 | 58 | 1.5 | — | Aluminium | |
| GES-70-C DSeparator (Cable) | 1305007049140 | 68 | 1.5 | — | Aluminium | |
| GES-100-C DSeparator (Cable) | 1305010039140 | 98 | 2 | — | Aluminium | |
| GES-40-L DSeparator (Ladder) | 1305L04029140 | 24 | 1 | — | Aluminium | |
| GES-50-L DSeparator (Ladder) | 1305L05029140 | 34 | 1.5 | — | Aluminium | |
| GES-60-L DSeparator (Ladder) | 1305L06029140 | 44 | 1.5 | — | Aluminium | |
| GES-70-L DSeparator (Ladder) | 1305L07029140 | 54 | 1.5 | — | Aluminium | |
| GES-100-L DSeparator (Ladder) | 1305L10039140 | 84 | 2 | — | Aluminium | |
| G-SON - 5 DEnd Cap | 1306005019140 | 52 | 40 | 1 | Aluminium | |
| G-SON - 10 DEnd Cap | 1306010029140 | 102 | 40 | 1.5 | Aluminium | |
| G-SON - 20 DEnd Cap | 1306020029140 | 202 | 40 | 1.5 | Aluminium | |
| G-SON - 30 DEnd Cap | 1306030039140 | 302 | 40 | 2 | Aluminium | |
| G-SON - 40 DEnd Cap | 1306040039140 | 402 | 40 | 2 | Aluminium | |
| G-SON - 50 DEnd Cap | 1306050039140 | 502 | 40 | 2 | Aluminium | |
| G-SON - 60 DEnd Cap | 1306060039140 | 602 | 40 | 2 | Aluminium | |
| G-SON - 5/5 DEnd Cap | 1306005519140 | 52 | 50 | 1 | Aluminium | |
| G-SON - 10/5 DEnd Cap | 1306010529140 | 102 | 50 | 1.5 | Aluminium | |
| G-SON - 20/5 DEnd Cap | 1306020529140 | 202 | 50 | 1.5 | Aluminium | |
| G-SON-D G-SON - 30/5 DEnd Cap | 1306030539140 | 302 | 50 | 2 | Aluminium | |
| G-SON - 40/5 DEnd Cap | 1306040539140 | 402 | 50 | 2 | Aluminium | |
| G-SON - 50/5 DEnd Cap | 1306050539140 | 502 | 50 | 2 | Aluminium | |
| G-SON - 60/5 DEnd Cap | 1306060539140 | 602 | 50 | 2 | Aluminium | |
| G-SON - B10 DEnd Cap | 1306B10029140 | 102 | 60 | 1.5 | Aluminium | |
| G-SON - B20 DEnd Cap | 1306B20029140 | 202 | 60 | 1.5 | Aluminium | |
| G-SON - B30 DEnd Cap | 1306B30039140 | 302 | 60 | 2 | Aluminium | |
| G-SON - B40 DEnd Cap | 1306B40039140 | 402 | 60 | 2 | Aluminium | |
| G-SON - B50 DEnd Cap | 1306B50039140 | 502 | 60 | 2 | Aluminium | |
| G-SON - B60 DEnd Cap | 1306B60039140 | 602 | 60 | 2 | Aluminium | |
| G-SON - C10 DEnd Cap | 1306C10029140 | 102 | 100 | 1.5 | Aluminium | |
| G-SON - C20 DEnd Cap | 1306C20029140 | 202 | 100 | 1.5 | Aluminium | |
| G-SON - C30 DEnd Cap | 1306C30039140 | 302 | 100 | 2 | Aluminium | |
| G-SON - C40 DLevel Changer / Direction Changer | 1306C40039140 | 402 | 100 | 2 | Aluminium | |
| G-SON - C50 DLevel Changer / Direction Changer | 1306C50039140 | 502 | 100 | 2 | Aluminium | |
| D G-SON - C60 DLevel Changer / Direction Changer | 1306C60039140 | 602 | 100 | 2 | Aluminium | |
| GYD-40 DLevel Changer / Direction Changer | 1304004039141 | 46 | 2 | — | Aluminium | |
| GYD-50 DLevel Changer / Direction Changer | 1304005039141 | 56 | 2 | — | Aluminium | |
| GYD-60 DLevel Changer / Direction Changer | 1304006039141 | 66 | 2 | — | Aluminium | |
| GYD-70 DLevel Changer / Direction Changer | 1304007039141 | 76 | 2 | — | Aluminium | |
| GYD-100 DLevel Changer / Direction Changer | 13040100039141 | 106 | 2 | 0.6 | Aluminium | |
| GYD-M40 DLevel Changer / Direction Changer | 1304M04039141 | 40 | 2 | — | Aluminium | |
| GYD-M50 DLevel Changer / Direction Changer | 1304M05039141 | 50 | 2 | — | Aluminium | |
| GYD-M60 DLevel Changer / Direction Changer | 1304M06039141 | 60 | 2 | — | Aluminium | |
| GYD-M70 DLevel Changer / Direction Changer | 1304M07039141 | 70 | 2 | — | Aluminium | |
| GYD- M D GYD-M100 DLevel Changer / Direction Changer | 1304M100039141 | 100 | 2 | — | Aluminium | |
| GH-820/40 DCover Clamps | 1311004039140 | 90 | 2 | — | Aluminium | |
| GH-820/50 DCover Clamps | 1311005039140 | 100 | 2 | — | Aluminium | |
| GH-820/60 DCover Clamps | 1311006039140 | 110 | 2 | — | Aluminium |
