Cable Management Systems

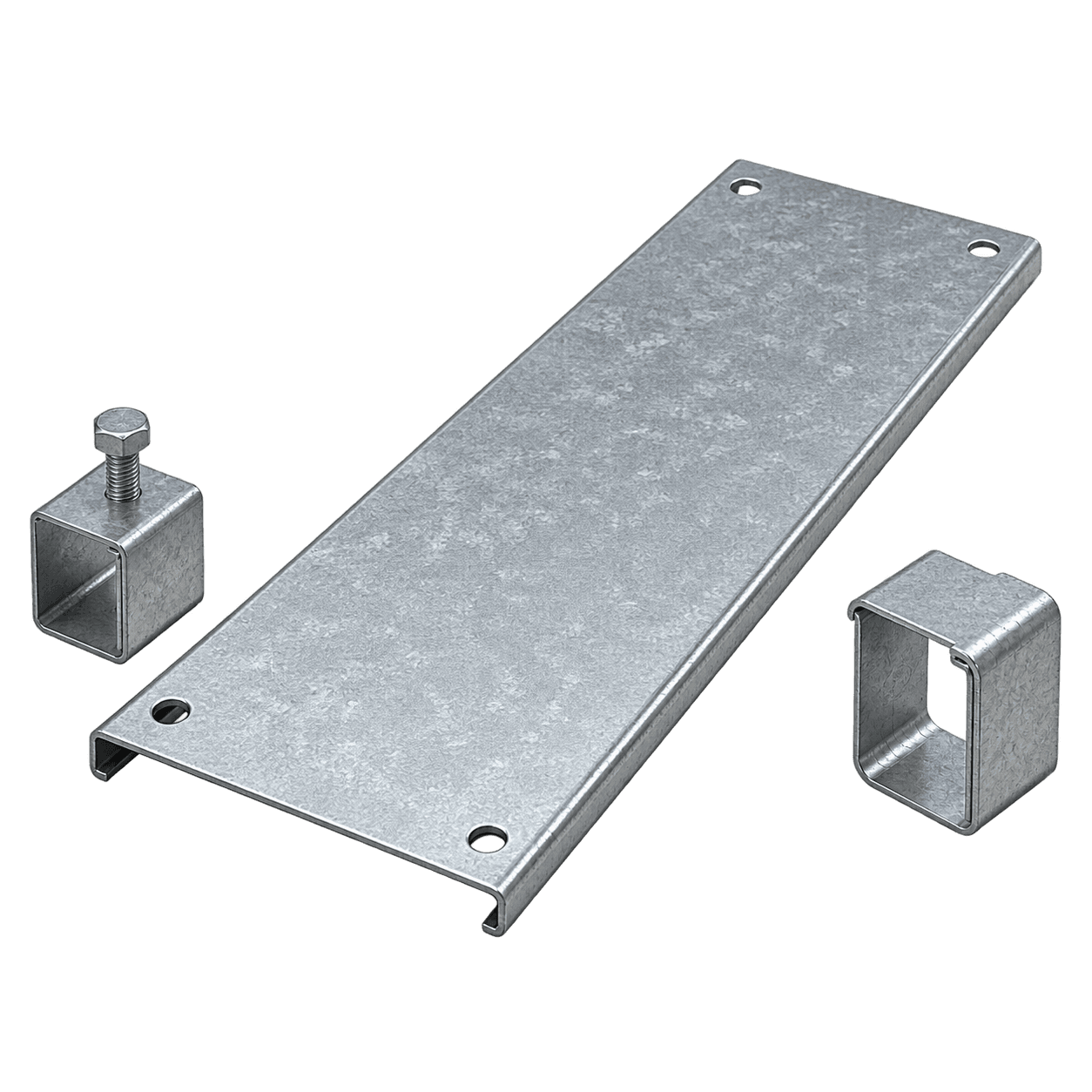

Covers, duct-type roofed covers and cover clamps for enclosing cable tray runs.
Every model, stock code, dimension and weight below is drawn directly from the Gersan Cable Support catalogue.
| Model | Stock Code | Width (mm) | Height (mm) | Thickness (mm) | Material / Finish | Action |
|---|---|---|---|---|---|---|
| GKT-5K DCover for Cable Tray | 1301005019140 | 53 | 9 | 1 | Aluminium | |
| GKT-10K DCover for Cable Tray | 1301010019140 | 103 | 9 | 1 | Aluminium | |
| GKT-20K DCover for Cable Tray | 1301020019140 | 203 | 9 | 1 | Aluminium | |
| GKT-30K DCover for Cable Tray | 1301030019140 | 305 | 9 | 1 | Aluminium | |
| GKT-30-2K DCover for Cable Tray | 1301030229140 | 305 | 9 | 1.5 | Aluminium | |
| GKT-40K DCover for Cable Tray | 1301040029140 | 405 | 9 | 1.5 | Aluminium | |
| D GKT-K D GKT-50K DCover for Cable Tray | 1301050029140 | 505 | 9 | 1.5 | Aluminium | |
| GKT-5K-V D GKT-60K DCover for Cable Tray | 1301060029140 | 605 | 9 | 1.5 | Aluminium | |
| GKT-10K SPC C DDuct Type Roofed Cover | 1312001019140 | 105 | 9 | 1 | Aluminium | |
| GKT-20K SPC C DDuct Type Roofed Cover | 1312002019140 | 205 | 9 | 1 | Aluminium | |
| GKT-30K SPC C DDuct Type Roofed Cover | 1312003019140 | 305 | 9 | 1 | Aluminium | |
| A GKT-40K SPC C DDuct Type Roofed Cover | 1312004039140 | 405 | 9 | 1.5 | Aluminium | |
| GKT-50K SPC C DDuct Type Roofed Cover | 1312005039140 | 505 | 9 | 1.5 | Aluminium | |
| GKT-60K SPC C DDuct Type Roofed Cover | 1312006039140 | 605 | 9 | 1.5 | Aluminium | |
| GKK-45 DCover Clamps | 1303004539141 | 45 | 2 | 0.055 | Aluminium | |
| GKK-55 DCover Clamps | 1303005539141 | 55 | 2 | — | Aluminium | |
| GKK-65 DCover Clamps | 1303006539141 | 65 | 2 | — | Aluminium | |
| GKK-75 DCover Clamps | 1303007539141 | 75 | 2 | — | Aluminium | |
| GKK- D GKK-105 DCover Clamps | 1303010539141 | 105 | 2 | — | Aluminium | |
| GKK-A45 DCover Clamps | 1302004539141 | 45 | 2 | 0.045 | Aluminium | |
| GKK-A55 DCover Clamps | 1302005539141 | 55 | 2 | 0.05 | Aluminium | |
| GKK-A65 DCover Clamps | 1302006539141 | 65 | 2 | — | Aluminium | |
| GKK- A D GKK-A75 DCover Clamps | 1302007539141 | 75 | 2 | — | Aluminium | |
| GKK-A105 DCover Clamps | 1302010539141 | 105 | 2 | — | Aluminium |
Screw sets, rods, anchors, paint & more
97 order codesCovers, roofed covers & cover clamps
24 order codesWidth-transition reducers between tray sizes
55 order codesSeparators, end caps & level/direction changers
51 order codesSingle & double bolt cable cleats
61 size variantsC-profile & angle crochets for direct support
34 order codesFixing elements for granite & stone surfaces
6 order codesSupport for holding & paying out cable drums
7 order codesExpansion-joint elements for thermal movement
10 order codesCustom, made-to-order shaft access cover
Made to OrderOur technical team can help with cover selection, clamp spacing and enclosure planning.
