Cable Management Systems

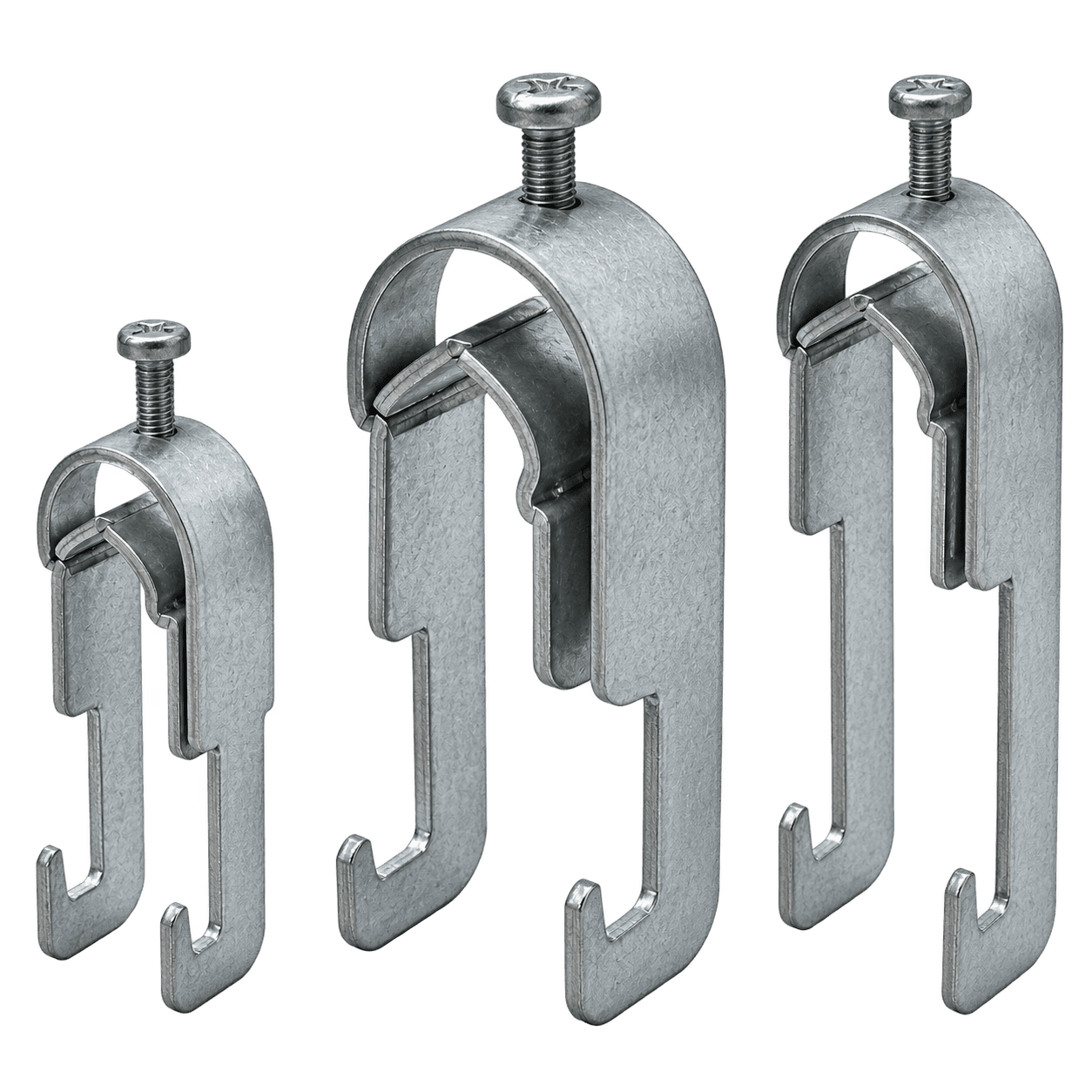

C-profile and angle crochets for direct cable support off structure, in standard aluminium and antimagnetic (Cr-Ni stainless steel) variants.
Every model, stock code, dimension and weight below is drawn directly from the Gersan Cable Support catalogue.
| Model | Stock Code | Width (mm) | Height (mm) | Thickness (mm) | Material / Finish | Action |
|---|---|---|---|---|---|---|
| 15 KKA-10 DCable Crochet | 3034K01029140 | 18 | 45 | 1.5 | Aluminium | |
| KKA-11 DCable Crochet | 3034K01129140 | 30 | 60 | 1.5 | Aluminium | |
| KKA-12 DCable Crochet | 3034K01239140 | 46 | 80 | 2 | Aluminium | |
| KKA-13 DCable Crochet | 3034K01339140 | 66 | 100 | 2 | Aluminium | |
| KKA-10-PAntimagnetic Crochet (Cr-Ni) | 3034K10P23040 | 18 | 45 | 1.5 | Stainless Steel (Cr-Ni) | |
| KKA-11-PAntimagnetic Crochet (Cr-Ni) | 3034K11P23040 | 30 | 60 | 1.5 | Stainless Steel (Cr-Ni) | |
| KKA-12-PAntimagnetic Crochet (Cr-Ni) | 3034K12P33040 | 46 | 80 | 2 | Stainless Steel (Cr-Ni) | |
| KKA D KKA-13-PAntimagnetic Crochet (Cr-Ni) | 3034K13P33040 | 66 | 100 | 2 | Stainless Steel (Cr-Ni) | |
| KKA-20 DAntimagnetic Crochet (Cr-Ni) | 3034K02029140 | 18 | 45 | 1.5 | Stainless Steel (Cr-Ni) | |
| KKA-21 DAntimagnetic Crochet (Cr-Ni) | 3034K02129140 | 30 | 60 | 1.5 | Stainless Steel (Cr-Ni) | |
| KKA-22 DAntimagnetic Crochet (Cr-Ni) | 3034K02239140 | 46 | 80 | 2 | Stainless Steel (Cr-Ni) | |
| KKA-23 DAntimagnetic Crochet (Cr-Ni) | 3034K02339140 | 66 | 100 | 2 | Stainless Steel (Cr-Ni) | |
| KKA-20 PAntimagnetic Crochet (Cr-Ni) | 3034K20P23040 | 18 | 45 | 1.5 | Stainless Steel (Cr-Ni) | |
| KKA-21 PAntimagnetic Crochet (Cr-Ni) | 3034K21P23040 | 30 | 60 | 1.5 | Stainless Steel (Cr-Ni) | |
| KKA-22 PAntimagnetic Crochet (Cr-Ni) | 3034K22P33040 | 46 | 80 | 2 | Stainless Steel (Cr-Ni) | |
| KKA P KKA-23 PAntimagnetic Crochet (Cr-Ni) | 3034K23P33040 | 66 | 100 | 2 | Stainless Steel (Cr-Ni) | |
| KKA-30 DAntimagnetic Crochet (Cr-Ni) | 3034K03029140 | 94 | 1.5 | 0.05 | Stainless Steel (Cr-Ni) | |
| KKA-31 DAntimagnetic Crochet (Cr-Ni) | 3034K03129140 | 98 | 1.5 | 0.06 | Stainless Steel (Cr-Ni) | |
| KKA-32 DAntimagnetic Crochet (Cr-Ni) | 3034K03239140 | 102 | 2 | 0.08 | Stainless Steel (Cr-Ni) | |
| KKA-33 DAntimagnetic Crochet (Cr-Ni) | 3034K03339140 | 110 | 2 | 0.1 | Stainless Steel (Cr-Ni) | |
| KKA-34 DAntimagnetic Crochet (Cr-Ni) | 3034K03439140 | 115 | 2 | 0.11 | Stainless Steel (Cr-Ni) | |
| KKA-35 DAntimagnetic Crochet (Cr-Ni) | 3034K03539140 | 122 | 2 | 0.13 | Stainless Steel (Cr-Ni) | |
| KKA-36 DAntimagnetic Crochet (Cr-Ni) | 3034K03639140 | 135 | 2 | 0.14 | Stainless Steel (Cr-Ni) | |
| KKA-37 DAntimagnetic Crochet (Cr-Ni) | 3034K03739140 | 140 | 2 | 0.15 | Stainless Steel (Cr-Ni) | |
| KKA-38 DAntimagnetic Crochet (Cr-Ni) | 3034K03839140 | 148 | 2 | 0.16 | Stainless Steel (Cr-Ni) | |
| KKA-30 PAntimagnetic Crochet (Cr-Ni) | 3034K03029141 | 94 | 1.5 | 0.05 | Stainless Steel (Cr-Ni) | |
| KKA-31 PAntimagnetic Crochet (Cr-Ni) | 3034K03129141 | 98 | 1.5 | 0.06 | Stainless Steel (Cr-Ni) | |
| KKA-32 PAntimagnetic Crochet (Cr-Ni) | 3034K03239141 | 102 | 2 | 0.08 | Stainless Steel (Cr-Ni) | |
| KKA-33 PAntimagnetic Crochet (Cr-Ni) | 3034K03339141 | 110 | 2 | 0.1 | Stainless Steel (Cr-Ni) | |
| KKA-34 PAntimagnetic Crochet (Cr-Ni) | 3034K03439141 | 115 | 2 | 0.11 | Stainless Steel (Cr-Ni) | |
| KKA-35 PAntimagnetic Crochet (Cr-Ni) | 3034K03539141 | 122 | 2 | 0.13 | Stainless Steel (Cr-Ni) | |
| KKA-36 PAntimagnetic Crochet (Cr-Ni) | 3034K03639141 | 135 | 2 | 0.14 | Stainless Steel (Cr-Ni) | |
| KKA-37 PAntimagnetic Crochet (Cr-Ni) | 3034K03739141 | 140 | 2 | 0.15 | Stainless Steel (Cr-Ni) | |
| / KKA P KKA-38 PAntimagnetic Crochet (Cr-Ni) | 3034K03839141 | 148 | 2 | 0.16 | Stainless Steel (Cr-Ni) |
