Cable Management Systems

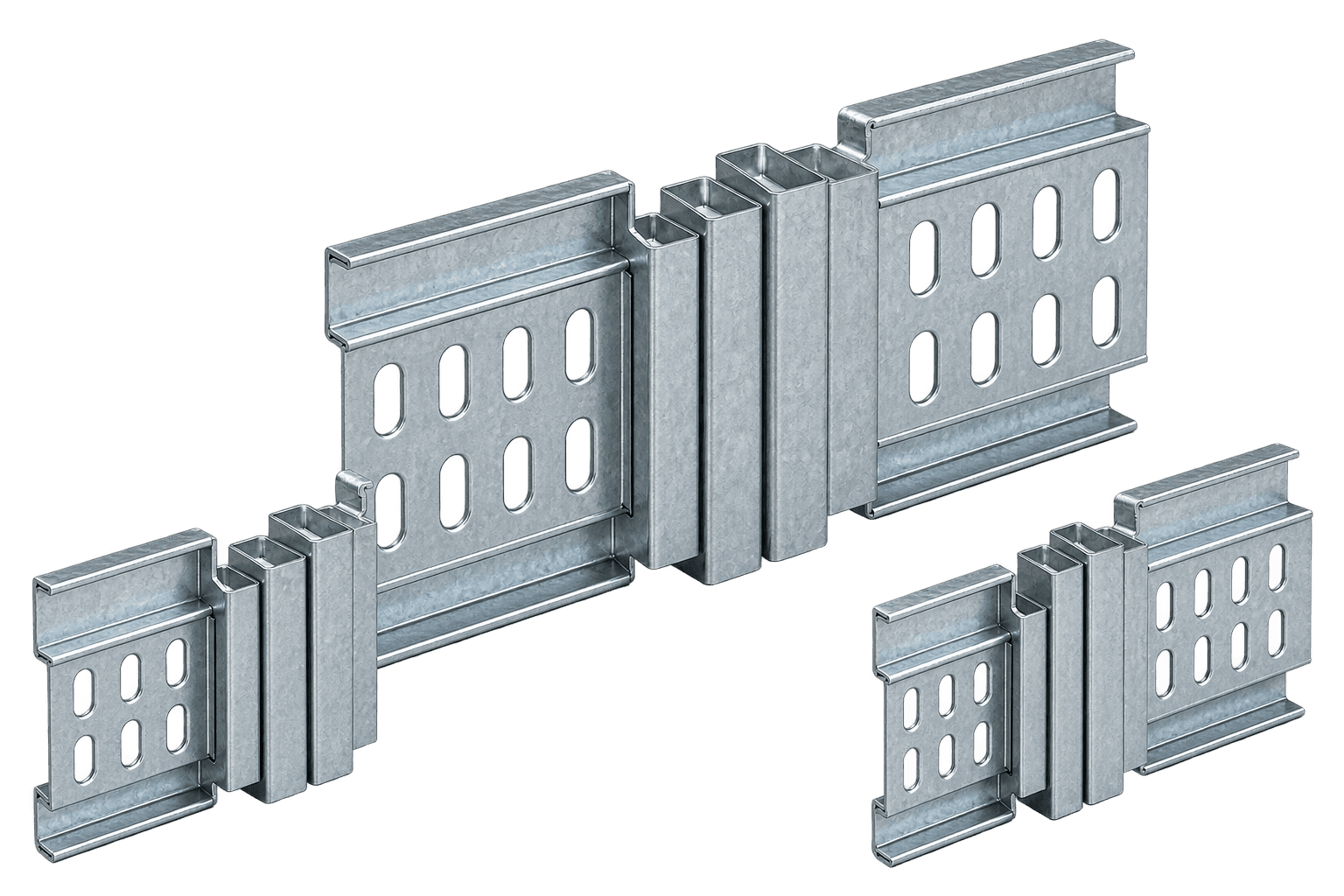

G1-EXP expansion-joint elements accommodating thermal movement along a cable tray containment run, h=40–100 mm.
Every model, stock code, dimension and weight below is drawn directly from the Gersan Cable Support catalogue.
| Model | Stock Code | Width (mm) | Height (mm) | Thickness (mm) | Material / Finish | Action |
|---|---|---|---|---|---|---|
| G1-40 EXP DMechanical Dilatation Element | 1310004039141 | 40 | 2 | — | Aluminium | |
| G1-50 EXP DMechanical Dilatation Element | 1310005039141 | 50 | 2 | — | Aluminium | |
| G1-60 EXP DMechanical Dilatation Element | 1310006039141 | 60 | 2 | — | Aluminium | |
| G1-70 EXP DMechanical Dilatation Element | 1310007039141 | 70 | 2 | — | Aluminium | |
| G1-100 EXP DMechanical Dilatation Element | 13100100039141 | 100 | 2 | — | Aluminium | |
| G1-A40 EXP DMechanical Dilatation Element | 1310A04039140 | 46 | 2 | — | Aluminium | |
| G1-A50 EXP DMechanical Dilatation Element | 1310A05039140 | 56 | 2 | — | Aluminium | |
| G1-A60 EXP DMechanical Dilatation Element | 1310A06039140 | 66 | 2 | — | Aluminium | |
| G1-A70 EXP DMechanical Dilatation Element | 1310A07039140 | 76 | 2 | — | Aluminium | |
| G1-A100 EXP DMechanical Dilatation Element | 1310A100039140 | 106 | 2 | — | Aluminium |
