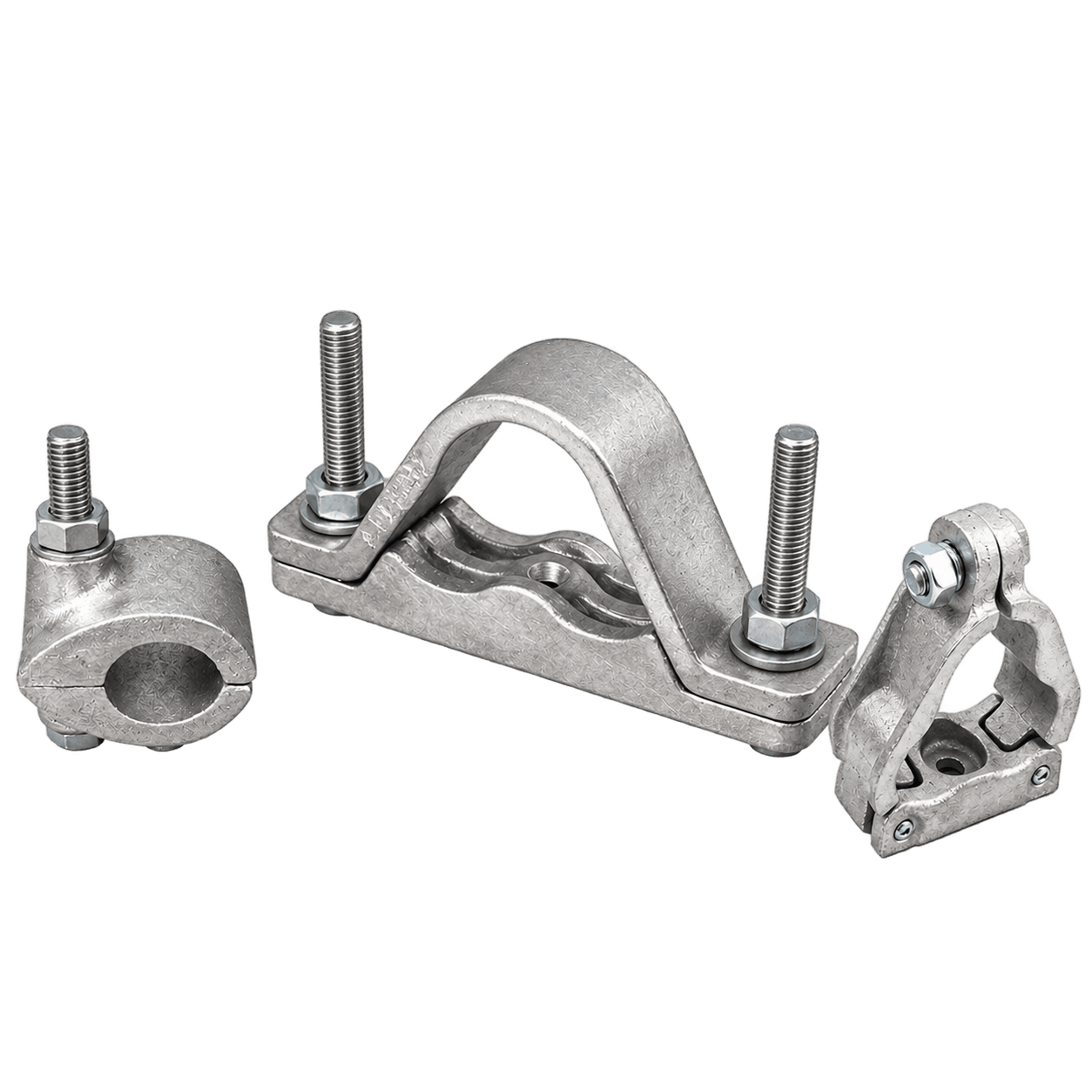

Single and double bolt fixing type aluminium cleats (GATFC, GATFC (SP), GACC) for securing single and trefoil cable groups along a route, across 10–155 mm clamping diameters depending on sub-series. The catalogue publishes no order or stock code for individual size variants — every size below confirms on request.
Every size variant and dimension below is drawn directly from the Gersan Cable Support catalogue. No order or stock code is published for this series — confirm the code for your selected size with our technical team.
| Model | Type | Clamping Range | Key Dimensions (mm) | Material / Finish |
|---|---|---|---|---|
| GATFC | Single Bolt Fixing | 24–25 mm | B=94; D=38; C(single fixing)=75; C(double fixing)=128; E(double fixing)=102 | Aluminium |
| GATFC | Single Bolt Fixing | 25–27 mm | B=97; D=38; C(single fixing)=75; C(double fixing)=128; E(double fixing)=102 | Aluminium |
| GATFC | Single Bolt Fixing | 27–28 mm | B=100; D=38; C(single fixing)=75; C(double fixing)=128; E(double fixing)=102 | Aluminium |
| GATFC | Single Bolt Fixing | 28–30 mm | B=103; D=38; C(single fixing)=76; C(double fixing)=130; E(double fixing)=104 | Aluminium |
| GATFC | Single Bolt Fixing | 30–32 mm | B=105; D=38; C(single fixing)=79; C(double fixing)=133; E(double fixing)=107 | Aluminium |
| GATFC | Single Bolt Fixing | 32–34 mm | B=106; D=38; C(single fixing)=83; C(double fixing)=135; E(double fixing)=109 | Aluminium |
| GATFC | Single Bolt Fixing | 34–35 mm | B=109; D=38; C(single fixing)=86; C(double fixing)=137; E(double fixing)=110 | Aluminium |
| GATFC | Single Bolt Fixing | 35–36 mm | B=113; D=38; C(single fixing)=89; C(double fixing)=138; E(double fixing)=113 | Aluminium |
| GATFC | Single Bolt Fixing | 36–38 mm | B=116; D=38; C(single fixing)=92; C(double fixing)=140; E(double fixing)=114 | Aluminium |
| GATFC | Single Bolt Fixing | 38–40 mm | B=119; D=38; C(single fixing)=95; C(double fixing)=145; E(double fixing)=118 | Aluminium |
| GATFC | Single Bolt Fixing | 40–41 mm | B=122; D=38; C(single fixing)=99; C(double fixing)=147; E(double fixing)=121 | Aluminium |
| GATFC | Single Bolt Fixing | 41–43 mm | B=124; D=38; C(single fixing)=105; C(double fixing)=149; E(double fixing)=123 | Aluminium |
| GATFC | Single Bolt Fixing | 43–44 mm | B=127; D=38; C(single fixing)=108; C(double fixing)=150; E(double fixing)=124 | Aluminium |
| GATFC | Single Bolt Fixing | 44–46 mm | B=130; D=38; C(single fixing)=112; C(double fixing)=154; E(double fixing)=128 | Aluminium |
| GATFC | Single Bolt Fixing | 46–48 mm | B=133; D=38; C(single fixing)=114; C(double fixing)=156; E(double fixing)=129 | Aluminium |
| GATFC | Single Bolt Fixing | 48–49 mm | B=137; D=38; C(single fixing)=118; C(double fixing)=159; E(double fixing)=133 | Aluminium |
| GATFC | Single Bolt Fixing | 49–51 mm | B=140; D=38; C(single fixing)=121; C(double fixing)=165; E(double fixing)=135 | Aluminium |
| GATFC | Single Bolt Fixing | 51–53 mm | B=143; D=38; C(single fixing)=124; C(double fixing)=165; E(double fixing)=137 | Aluminium |
| GATFC | Single Bolt Fixing | 53–54 mm | B=146; D=38; C(single fixing)=127; C(double fixing)=172; E(double fixing)=141 | Aluminium |
| GATFC | Single Bolt Fixing | 54–55.5 mm | B=155; D=44; C(single fixing)=133; C(double fixing)=183; E(double fixing)=152 | Aluminium |
| GATFC | Single Bolt Fixing | 55.5–57 mm | B=158; D=44; C(single fixing)=137; C(double fixing)=187; E(double fixing)=155 | Aluminium |
| GATFC | Single Bolt Fixing | 57–59 mm | B=160; D=44; C(single fixing)=141; C(double fixing)=189; E(double fixing)=157 | Aluminium |
| GATFC | Single Bolt Fixing | 59–60 mm | B=163; D=44; C(single fixing)=145; C(double fixing)=191; E(double fixing)=160 | Aluminium |
| GATFC | Single Bolt Fixing | 60–62 mm | B=165; D=44; C(single fixing)=148; C(double fixing)=194; E(double fixing)=162 | Aluminium |
| GATFC | Single Bolt Fixing | 62–63.5 mm | B=168; D=44; C(single fixing)=152; C(double fixing)=196; E(double fixing)=165 | Aluminium |
| GATFC | Single Bolt Fixing | 63.5–65 mm | B=172; D=44; C(single fixing)=156; C(double fixing)=199; E(double fixing)=168 | Aluminium |
| GATFC | Single Bolt Fixing | 65–66.5 mm | B=176; D=44; C(single fixing)=160; C(double fixing)=202; E(double fixing)=170 | Aluminium |
| GATFC | Single Bolt Fixing | 66.5–68 mm | B=178; D=44; C(single fixing)=164; C(double fixing)=205; E(double fixing)=173 | Aluminium |
| GATFC | Single Bolt Fixing | 68–70 mm | B=181; D=44; C(single fixing)=168; C(double fixing)=208; E(double fixing)=176 | Aluminium |
| GATFC | Single Bolt Fixing | 70–71.5 mm | B=187; D=44; C(single fixing)=171; C(double fixing)=215; E(double fixing)=183 | Aluminium |
| GATFC | Single Bolt Fixing | 71.5–73 mm | B=190; D=44; C(single fixing)=175; C(double fixing)=217; E(double fixing)=186 | Aluminium |
| GATFC | Single Bolt Fixing | 73–74.5 mm | B=193; D=44; C(single fixing)=179; C(double fixing)=220; E(double fixing)=188 | Aluminium |
| GATFC | Single Bolt Fixing | 74.5–76 mm | B=197; D=44; C(single fixing)=183; C(double fixing)=222; E(double fixing)=191 | Aluminium |
| GATFC (SP) | Single Bolt Fixing | 10–13 mm | B=6.50; C=3; D=5; E=6.30; F=40; G=46.80; H=7.50 | Aluminium |
| GATFC (SP) | Single Bolt Fixing | 13–16 mm | B=9; C=3; D=6.50; E=8.30; F=40; G=46.80; H=7.50 | Aluminium |
| GATFC (SP) | Single Bolt Fixing | 16–19 mm | B=10; C=3.5; D=8.30; E=9.30; F=12; G=46.80; H=7.50 | Aluminium |
| GATFC (SP) | Single Bolt Fixing | 19–22 mm | B=11.30; C=3.5; D=11; E=9.70; F=16; G=46.80; H=7.50 | Aluminium |
| GATFC (SP) | Single Bolt Fixing | 22–25 mm | B=12.70; C=4.25; D=12.50; E=11.30; F=50; G=46.80; H=7.50 | Aluminium |
| GATFC (SP) | Single Bolt Fixing | 25–32 mm | B=16.30; C=4.25; D=16.20; E=12.50; F=56; G=46.80; H=7.50 | Aluminium |
| GATFC (SP) | Single Bolt Fixing | 32–38 mm | B=19.60; C=6; D=16; E=19.30; F=62; G=47.00; H=7.50 | Aluminium |
| GATFC (SP) | Single Bolt Fixing | 38–44 mm | B=23; C=6; D=19; E=22.30; F=69; G=47.00; H=7.50 | Aluminium |
| GATFC (SP) | Single Bolt Fixing | 44–51 mm | B=26; C=6.20; D=22; E=25.30; F=75; G=47.00; H=7.50 | Aluminium |
| GACC | Double Bolt Fixing | 40–50 mm | B=50.20; C=20.20; D=4; E=30; F=84.50; G=110; H=45 | Aluminium |
| GACC | Double Bolt Fixing | 48–55 mm | B=55.50; C=24.30; D=4; E=30.50; F=84.50; G=110; H=45 | Aluminium |
| GACC | Double Bolt Fixing | 57–64 mm | B=64.40; C=28.80; D=4; E=37.80; F=94; G=122; H=48 | Aluminium |
| GACC | Double Bolt Fixing | 64–70 mm | B=70.50; C=32.20; D=4; E=40; F=98; G=124; H=46 | Aluminium |
| GACC | Double Bolt Fixing | 70–76 mm | B=76.50; C=35.20; D=4; E=44.80; F=110.70; G=136; H=48 | Aluminium |
| GACC | Double Bolt Fixing | 76–83 mm | B=83.50; C=38.20; D=4; E=48; F=117.70; G=143; H=52 | Aluminium |
| GACC | Double Bolt Fixing | 83–89 mm | B=89.50; C=41; D=4; E=48.80; F=124.20; G=149.20; H=60 | Aluminium |
| GACC | Double Bolt Fixing | 89–95 mm | B=95.50; C=44.80; D=4; E=52.80; F=130.50; G=158.20; H=59 | Aluminium |
| GACC | Double Bolt Fixing | 95–101 mm | B=101.50; C=47.80; D=4; E=55.80; F=126.10; G=154; H=65 | Aluminium |
| GACC | Double Bolt Fixing | 115–125 mm | B=125.50; C=58; D=4; E=63.50; F=150; G=175; H=85 | Aluminium |
| GACC | Double Bolt Fixing | 125–135 mm | B=136.10; C=62.80; D=4; E=70.20; F=166; G=194; H=85 | Aluminium |
| GATFC (SP) | Trefoil Type | 15–30 mm | B=108; C=80; D=45; E=30 | Aluminium |
| GATFC (SP) | Trefoil Type | 30–45 mm | B=151; C=120; D=66; E=30 | Aluminium |
| GATFC (SP) | Trefoil Type | 45–60 mm | B=184; C=151; D=85; E=40 | Aluminium |
| GATFC (SP) | Trefoil Type | 60–75 mm | B=226; C=193; D=114; E=40 | Aluminium |
| GATFC (SP) | Trefoil Type | 75–90 mm | B=267; C=235; D=142; E=40 | Aluminium |
| GATFC (SP) | Trefoil Type | 90–107 mm | B=319; C=282; D=171; E=50 | Aluminium |
| GATFC (SP) | Trefoil Type | 107–129 mm | B=390; C=352; D=203; E=57 | Aluminium |
| GATFC (SP) | Trefoil Type | 129–155 mm | B=455; C=397; D=244; E=57 | Aluminium |
