Performance
Selected Power100 W · 150 W
Efficiency>125 lm/W
Luminous Flux12,500 lm · 18,750 lm
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.
100–150 W Body
Outdoor & Infrastructure Lighting

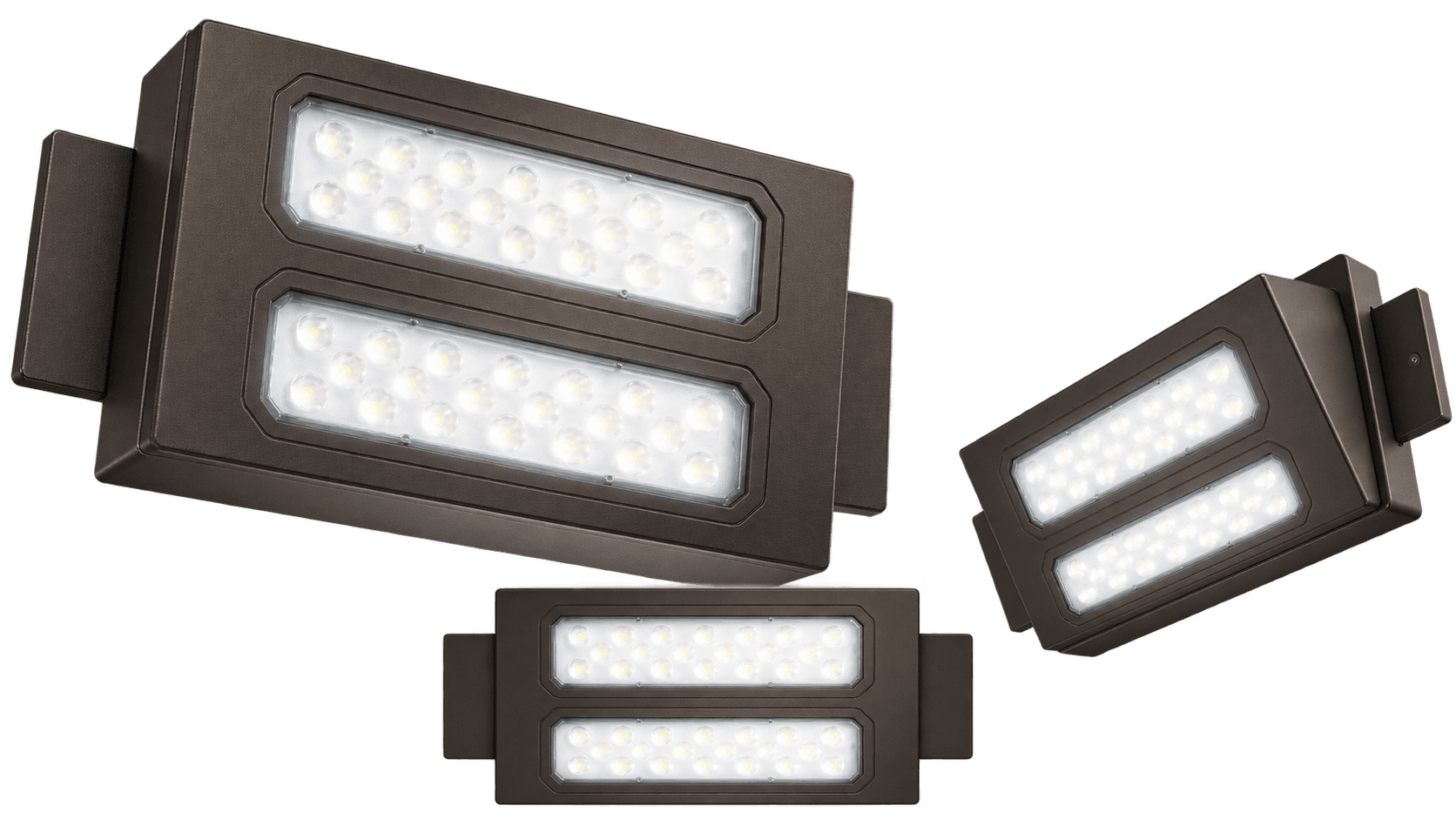

Robust canopy luminaires for covered outdoor infrastructure and demanding project environments, with multiple power levels, protected construction and configurable optical/control options.
Complete five-model LDB-KMX catalogue schedule. The body selector changes the product visual and matching technical assets without hiding models from the family schedule.
| Model / Catalogue Code | Power | Luminous Flux | Voltage | Operating Temp. | Efficiency | CCT | Dimensions | IP | IK | Enquiry |
|---|---|---|---|---|---|---|---|---|---|---|
| LED-BUS LDB-KMX2100 | 100 W | 12,500 lm | 220–240 Vac | −20 to +45 °C | >125 lm/W | 3000–6500 K | 230 × 345 × 90 mm | IP66 | IK08 | |
| LED-BUS LDB-KMX2150 | 150 W | 18,750 lm | 220–240 Vac | −20 to +45 °C | >125 lm/W | 3000–6500 K | 230 × 345 × 90 mm | IP66 | IK08 | |
| LED-BUS LDB-KMX3200 | 200 W | 25,000 lm | 220–240 Vac | −20 to +45 °C | >125 lm/W | 3000–6500 K | 315 × 345 × 90 mm | IP66 | IK08 | |
| LED-BUS LDB-KMX3300 | 300 W | 37,500 lm | 220–240 Vac | −20 to +45 °C | >125 lm/W | 3000–6500 K | 315 × 345 × 90 mm | IP66 | IK08 | |
| LED-BUS LDB-KMX4400 | 400 W | 50,000 lm | 220–240 Vac | −20 to +45 °C | >125 lm/W | 3000–6500 K | 400 × 345 × 90 mm | IP66 | IK08 |
Catalogue-listed optical and control methods are configurable options; they are not presented as simultaneously fitted standard equipment.

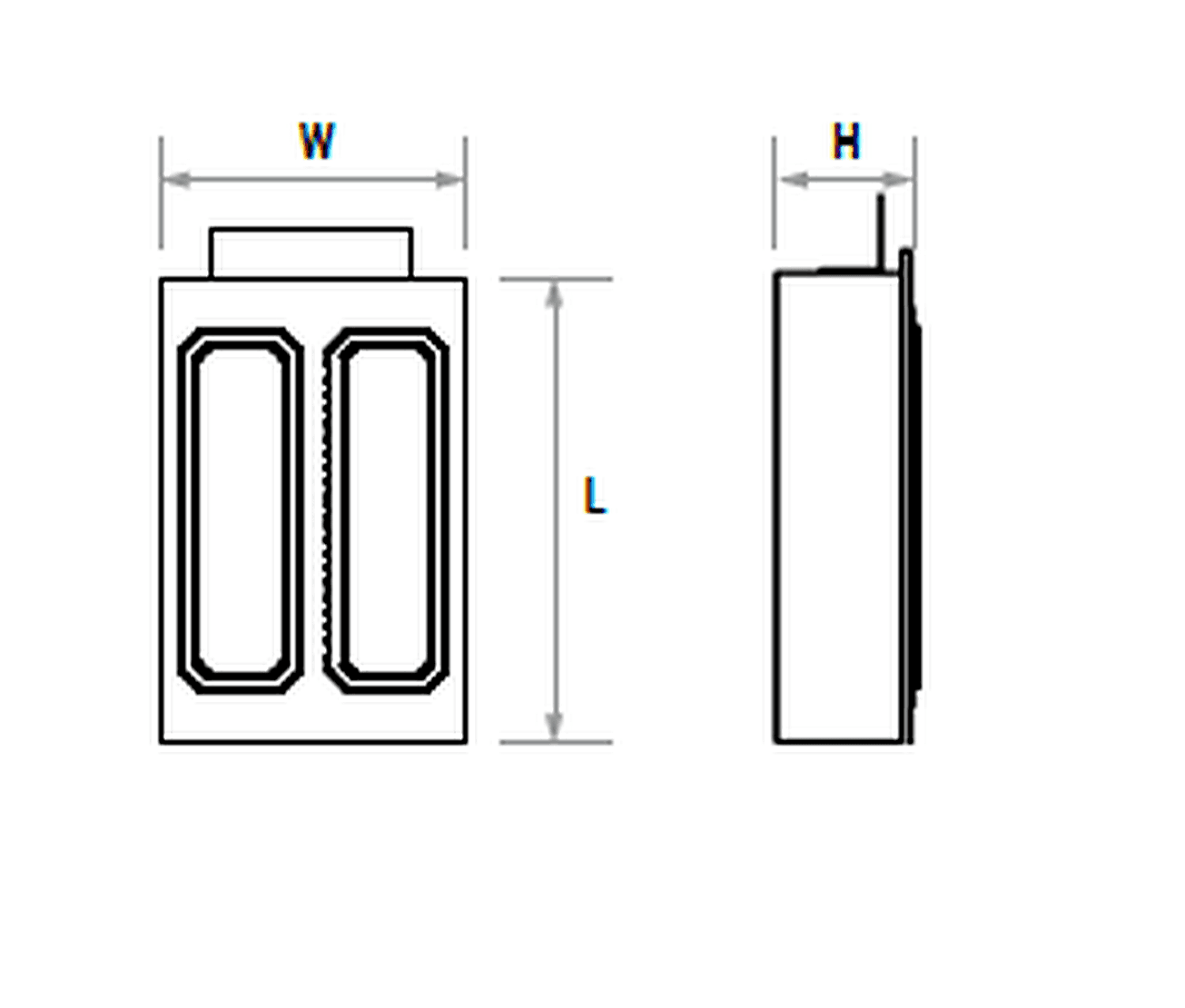

Technical assets shown are shared across the LDB-KMX family; the 100–150 W Body dimensions above are configuration-specific.

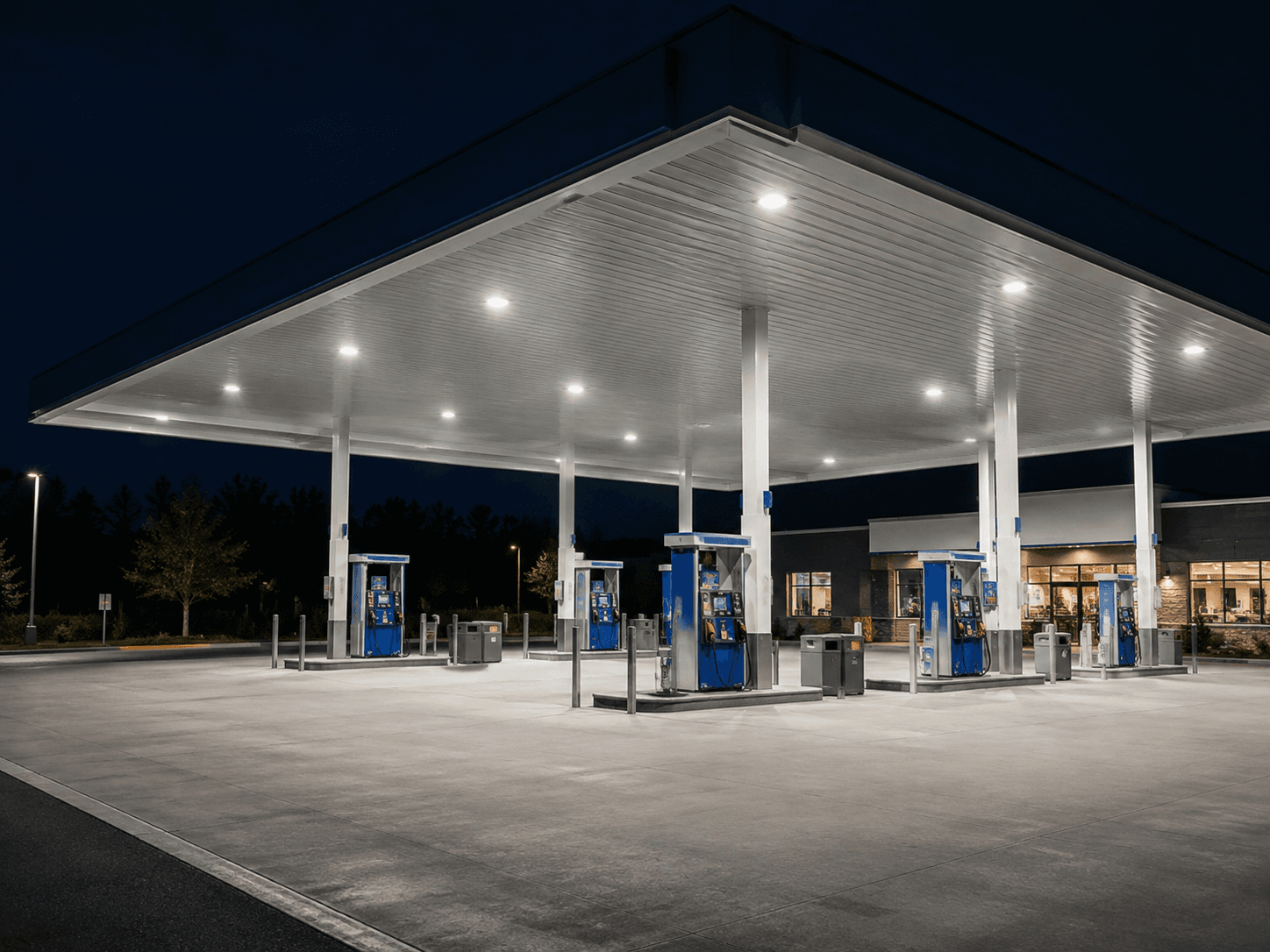

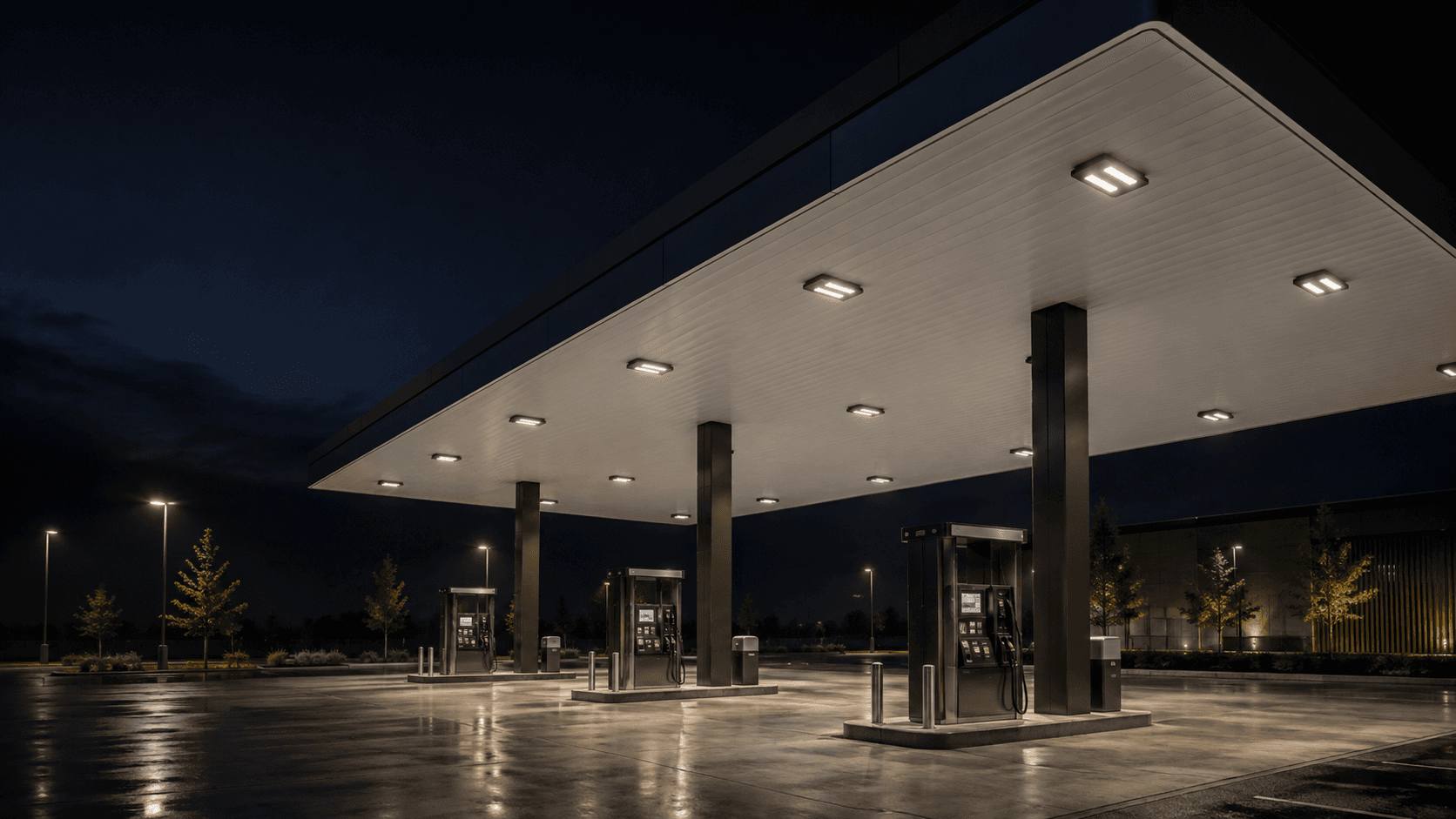

Protected lighting for canopy and covered-service environments.
Covered infrastructure around airport and transport facilities.
Canopy and covered-area lighting for port environments.

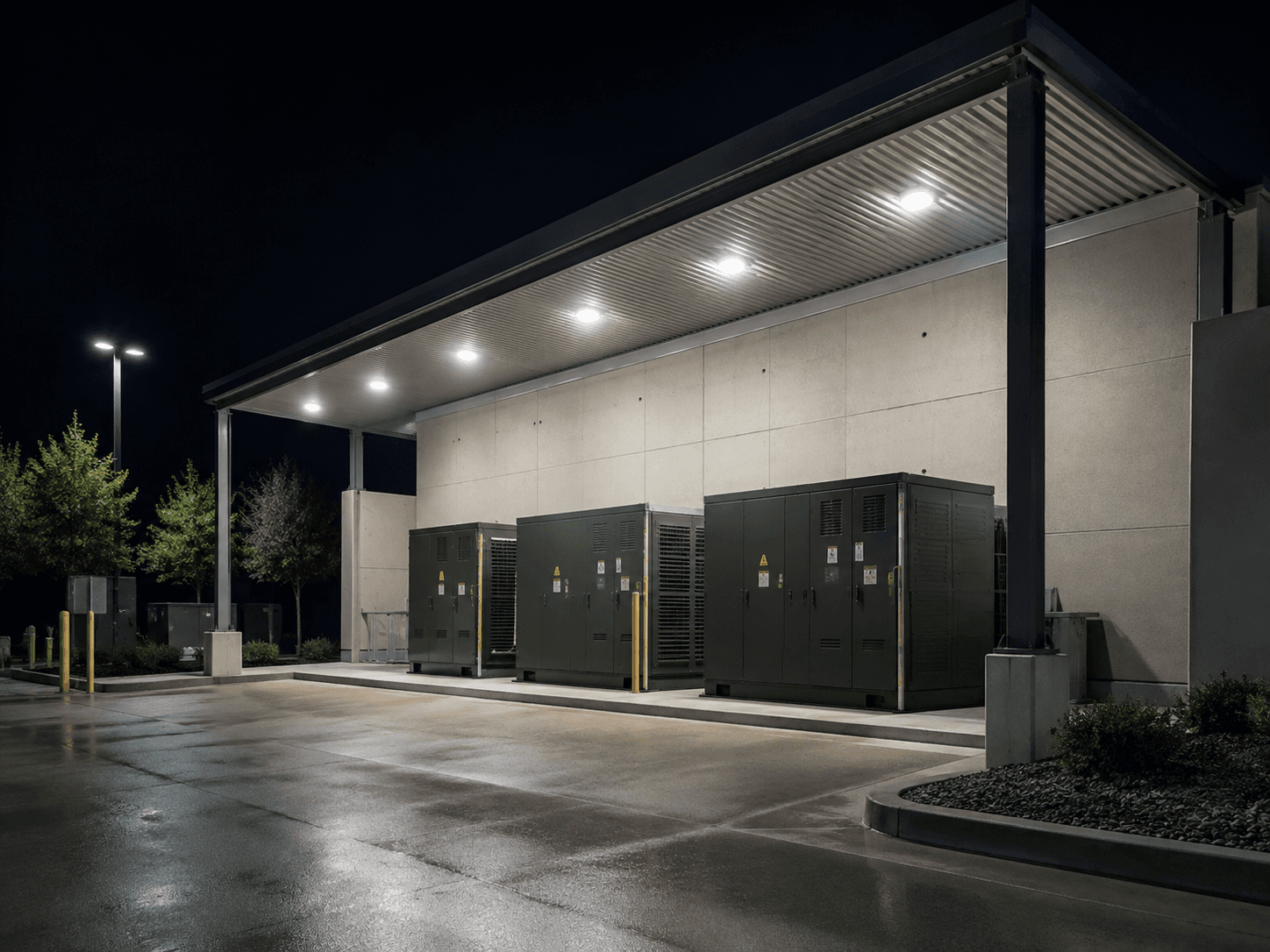

Robust lighting for protected outdoor infrastructure.

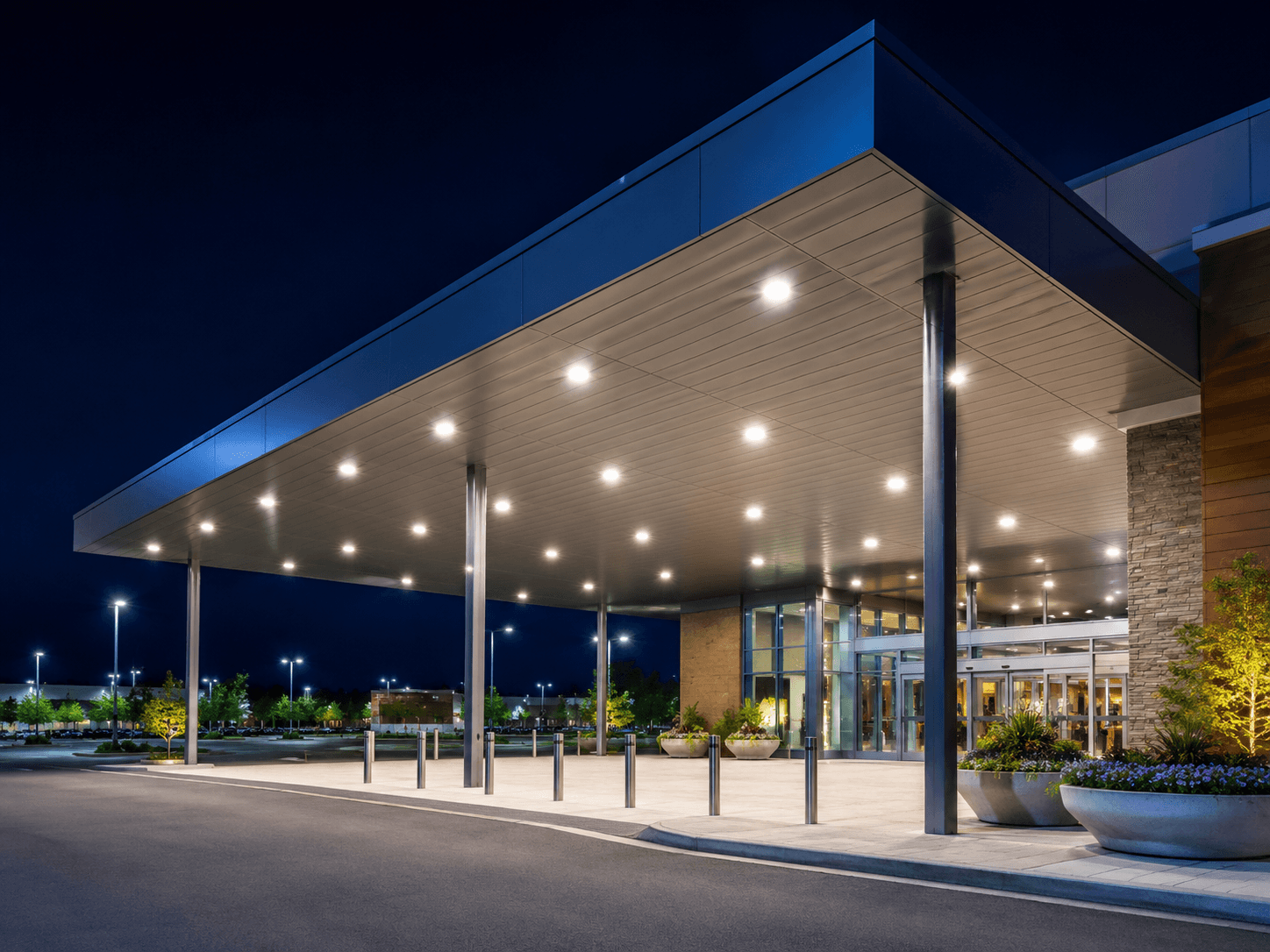

Covered public and commercial project environments.
Protected lighting for canopy and covered-service environments.
Discuss the body size, power, beam and control configuration with our technical team.
Talk to Our Technical Team
