Performance
Power20–150 W
Luminous Flux3,480–21,000 lm
Efficiency128.5–174.0 lm/W
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.
GSL100
Outdoor & Infrastructure Lighting

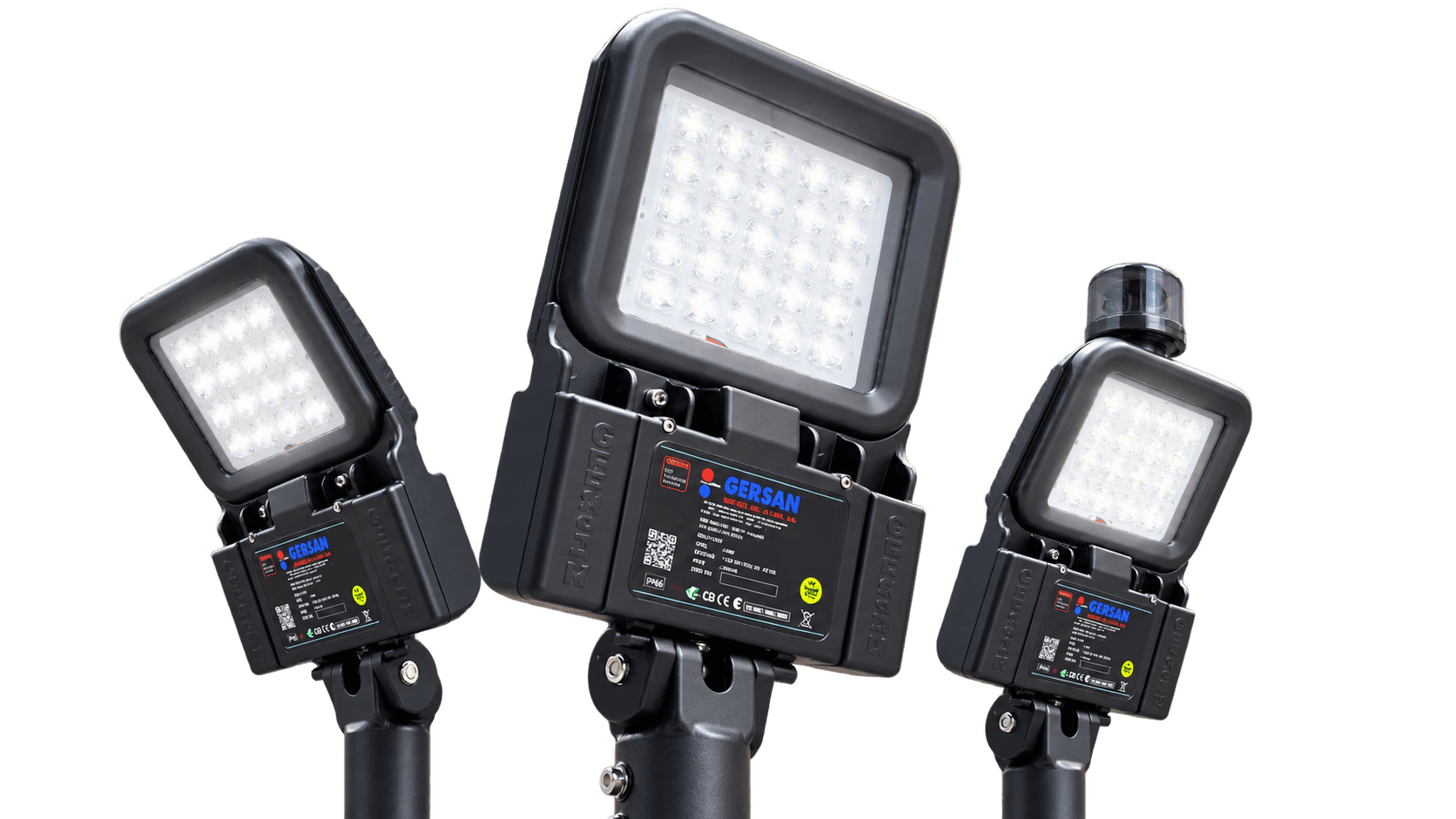

Efficient GER-LED street luminaires for highways, public spaces and urban infrastructure, available in GSL100 and 730-GSL-D configurations across multiple power levels.
Exact GSL100 catalogue schedule. The configuration-specific temperature and light-quality values are not shared with the other street body.
| Model / Catalogue Code | Power | Luminous Flux | Voltage | PF | Operating Temp. | Efficiency | CCT | IP | Weight | Enquiry |
|---|---|---|---|---|---|---|---|---|---|---|
| GSL100-20W | 20 W | 3,480 lm | 100–240 Vac | >0.95 | −30 to +60 °C | 174.0 lm/W | 3000–6500 K | IP66 | 5.0 kg | |
| GSL100-30W | 30 W | 4,640 lm | 100–240 Vac | >0.95 | −30 to +60 °C | 154.7 lm/W | 3000–6500 K | IP66 | 5.0 kg | |
| GSL100-40W | 40 W | 6,250 lm | 100–240 Vac | >0.95 | −30 to +60 °C | 156.3 lm/W | 3000–6500 K | IP66 | 5.0 kg | |
| GSL100-50W | 50 W | 8,320 lm | 100–240 Vac | >0.95 | −30 to +60 °C | 166.4 lm/W | 3000–6500 K | IP66 | 5.0 kg | |
| GSL100-60W | 60 W | 8,800 lm | 100–240 Vac | >0.95 | −30 to +60 °C | 146.7 lm/W | 3000–6500 K | IP66 | 5.0 kg | |
| GSL100-70W | 70 W | 9,900 lm | 100–240 Vac | >0.95 | −30 to +60 °C | 141.4 lm/W | 3000–6500 K | IP66 | 5.2 kg | |
| GSL100-80W | 80 W | 10,280 lm | 100–240 Vac | >0.95 | −30 to +60 °C | 128.5 lm/W | 3000–6500 K | IP66 | 5.2 kg | |
| GSL100-90W | 90 W | 11,860 lm | 100–240 Vac | >0.95 | −30 to +60 °C | 131.8 lm/W | 3000–6500 K | IP66 | 5.2 kg | |
| GSL100-100W | 100 W | 14,500 lm | 100–240 Vac | >0.95 | −30 to +60 °C | 145.0 lm/W | 3000–6500 K | IP66 | 5.35 kg | |
| GSL100-125W | 125 W | 17,800 lm | 100–240 Vac | >0.95 | −30 to +60 °C | 142.4 lm/W | 3000–6500 K | IP66 | 5.35 kg | |
| GSL100-150W | 150 W | 21,000 lm | 100–240 Vac | >0.95 | −30 to +60 °C | 140.0 lm/W | 3000–6500 K | IP66 | 5.35 kg |

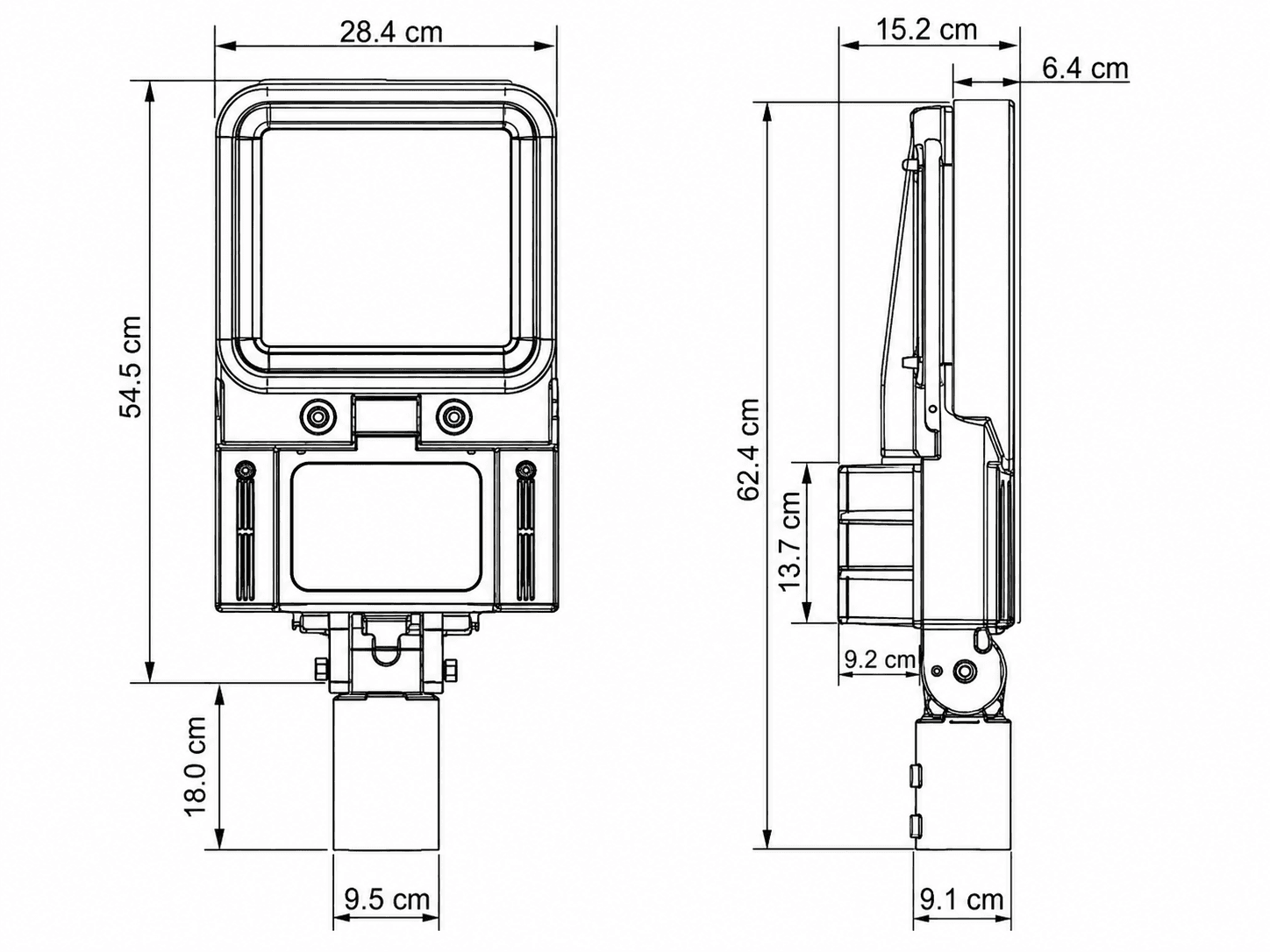

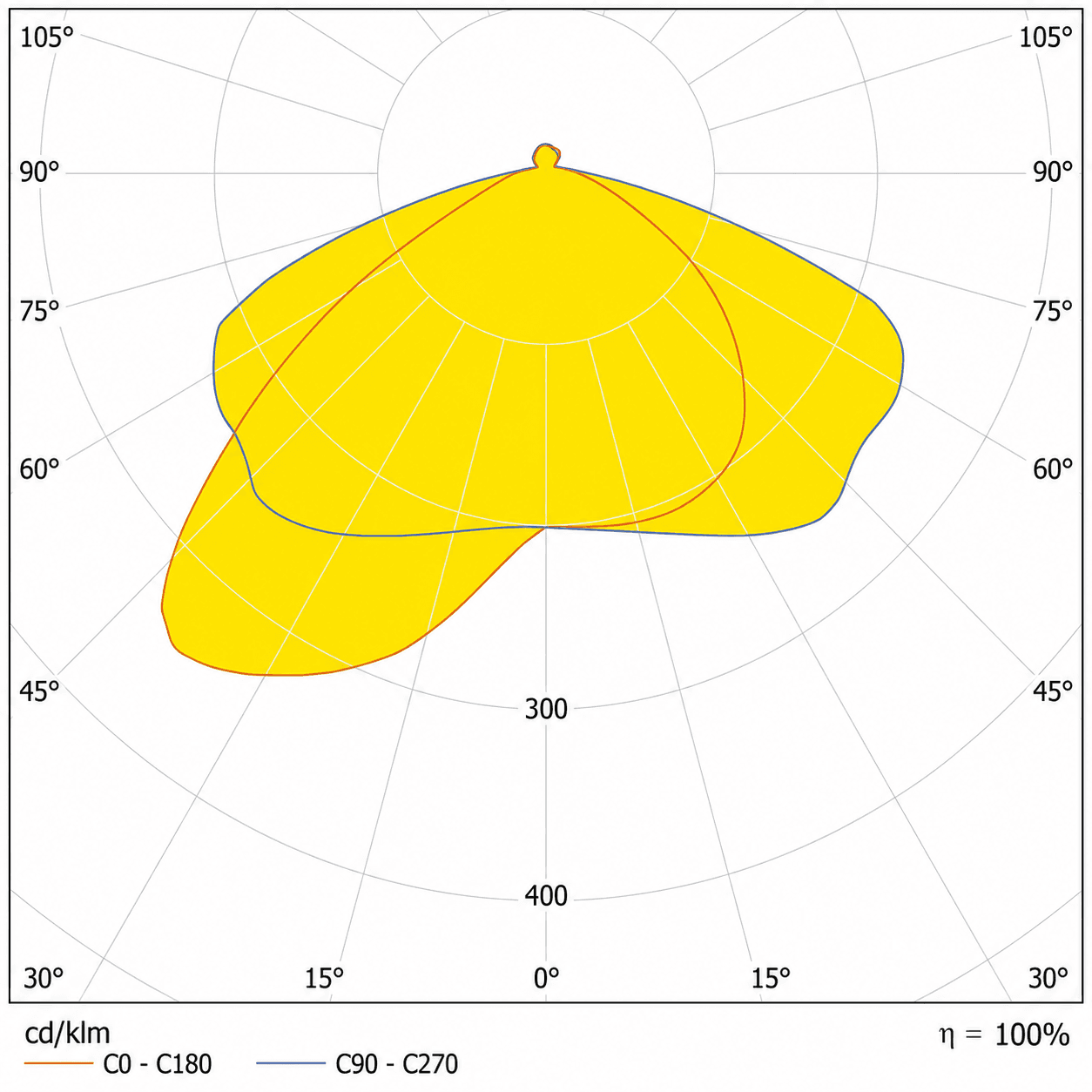

Technical assets shown are shared across the GER-LED Street Lighting family; the GSL100 catalogue schedule above lists the exact model-level values.

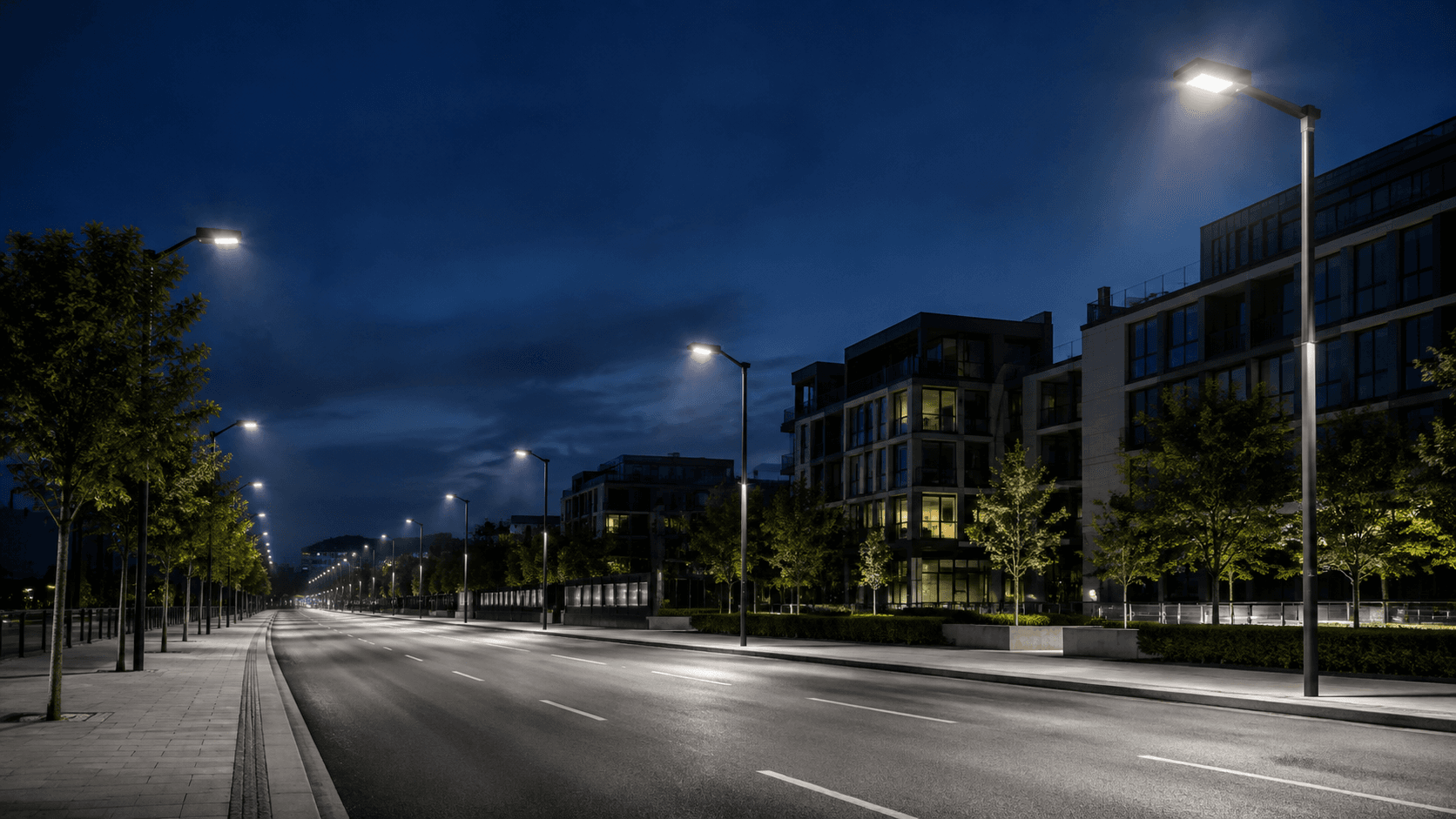

Efficient road lighting for highway and major-route infrastructure.
Road and public-area lighting around airport infrastructure.
Outdoor route and public-area lighting for port environments.
Lighting for public parks, gardens and pedestrian surroundings.
Lighting for squares and shared civic spaces.
Public routes around mass housing and shopping environments.
Efficient road lighting for highway and major-route infrastructure.
Discuss the road environment, power level and GER-LED configuration with our technical team.
Talk to Our Technical Team
