Performance
Power6–48 W
Length19–124 cm
Wall-Washing ReachUp to 12 m
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.

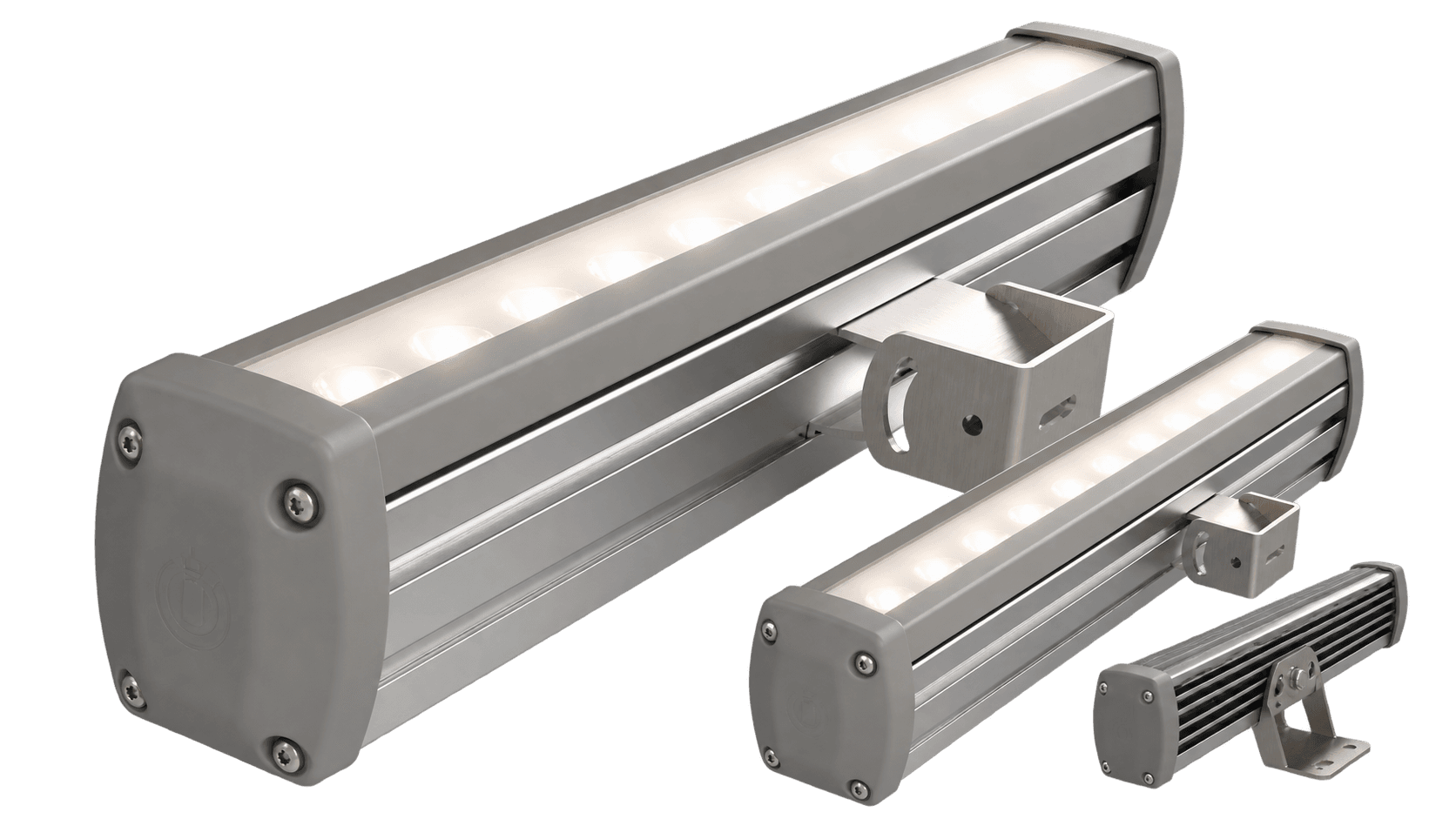

GER-LED WALL WASHER
Outdoor & Infrastructure Lighting
Linear architectural wall-washing luminaires for facade and exterior accent applications, with multiple lengths, standard and DMX-coded configurations.
IP66 is the main product-specification value used on this page. The catalogue also displays IP20 / IP44 / IP66 configuration icons; these are configuration references and are not universal ratings for every model.
Complete eight-row catalogue schedule covering standard and DMX-coded wall-washer variants. Repeated source rows and source-field notation are preserved rather than normalised.
| Model / Catalogue Code | Power | Catalogue Output / Source Field | Voltage | Length | IP | Weight | Enquiry |
|---|---|---|---|---|---|---|---|
| GSL-WWM12 | 6 W | 1,080 lm | 220 V AC | 19 cm | IP66 | 0.8 kg | |
| GSL-WWM18 | 12 W | 1,440 lm | 220 V AC | 34 cm | IP66 | 1.3 kg | |
| GSL-WWM24 | 18 W | 2,160 lm | 220 V AC | 49 cm | IP66 | 1.8 kg | |
| GSL-WWM36 | 24 W | 2,880 lm | 220 V AC | 64 cm | IP66 | 2.6 kg | |
| GSL-WWM48 | 36 W | 4,320 lm | 220 V AC | 94 cm | IP66 | 3.1 kg | |
| GSL-WWMX36-DMX | 48 W | 5,760 lm | 220 V AC | 124 cm | IP66 | 3.6 kg | |
| GSL-WWMX45-DMX22 | 36 W | 4PX | 220 V AC | 94 cm | IP66 | 3.1 kg | |
| GSL-WWMX45-DMX22 | 45 W | 5PX | 220 V AC | 116 cm | IP66 | 3.0 kg |
GSL-WWMX45-DMX22 appears twice in the source with different published configurations. Both rows are retained. 4PX and 5PX remain catalogue field values and are not presented as lumens.
Designed for architectural wall-washing applications, with the catalogue indicating facade coverage up to approximately 12 m depending on project conditions.
Catalogue-listed control methods are configuration-dependent and are not presented as standard on every model.

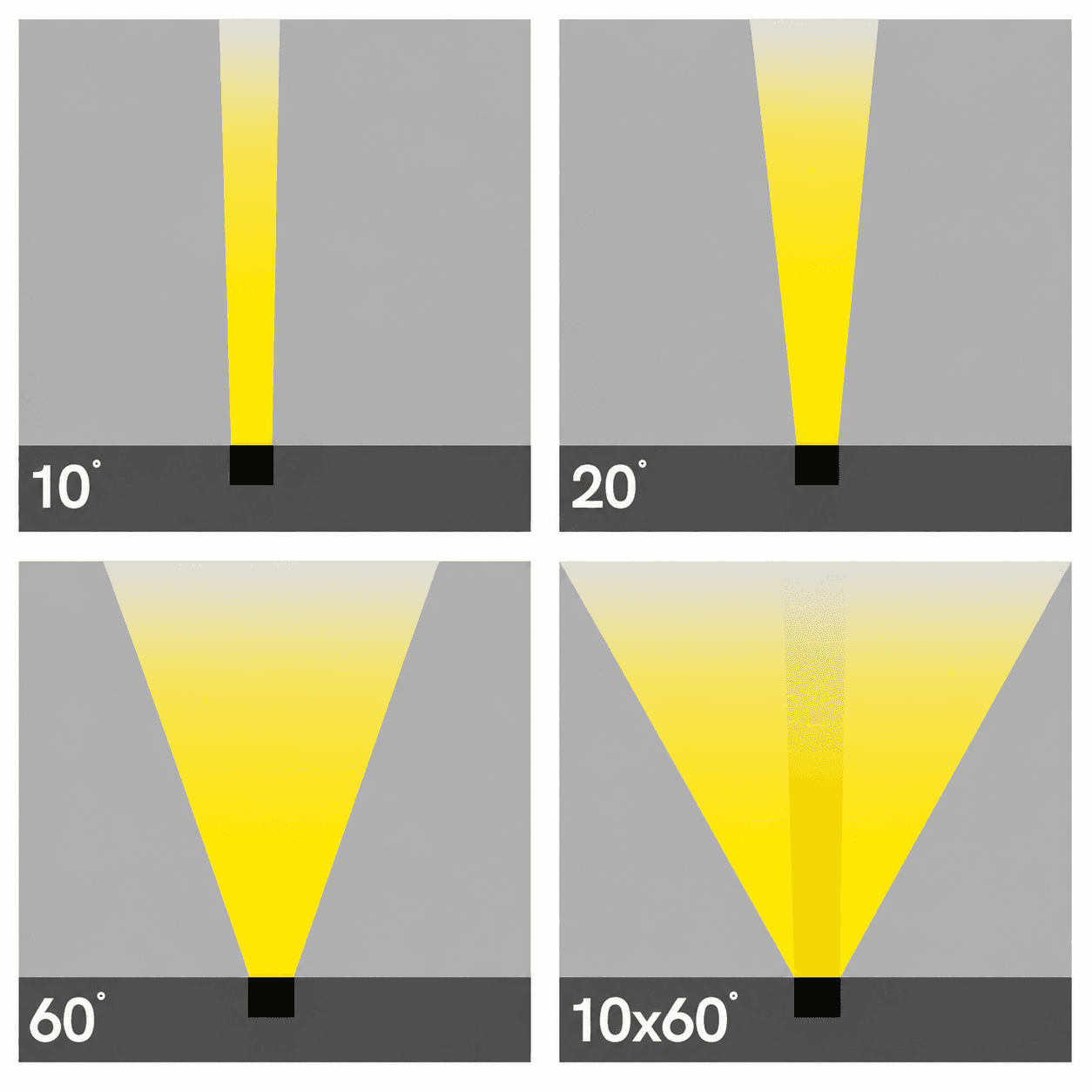

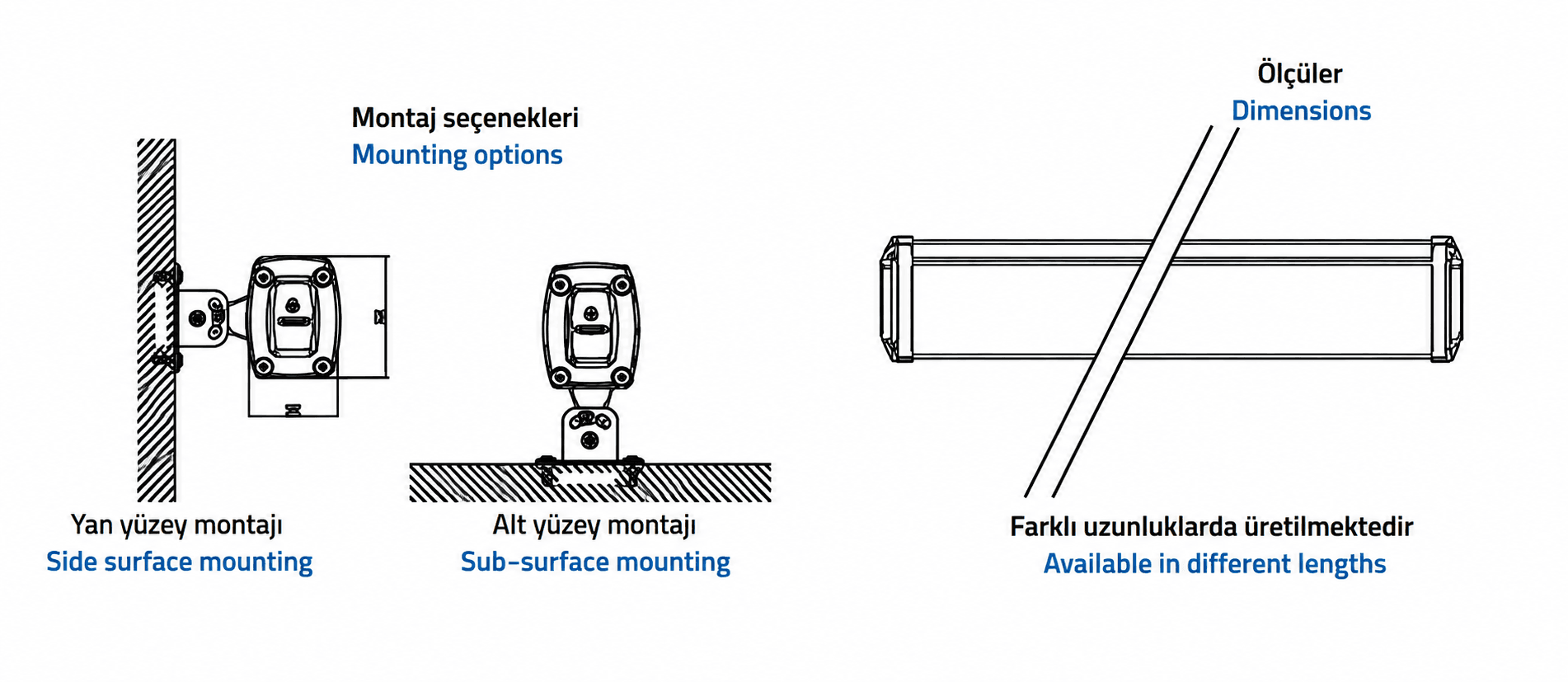

Photometric and mounting detail shown for the GER-LED Wall Washer family; no separate installation section is used.

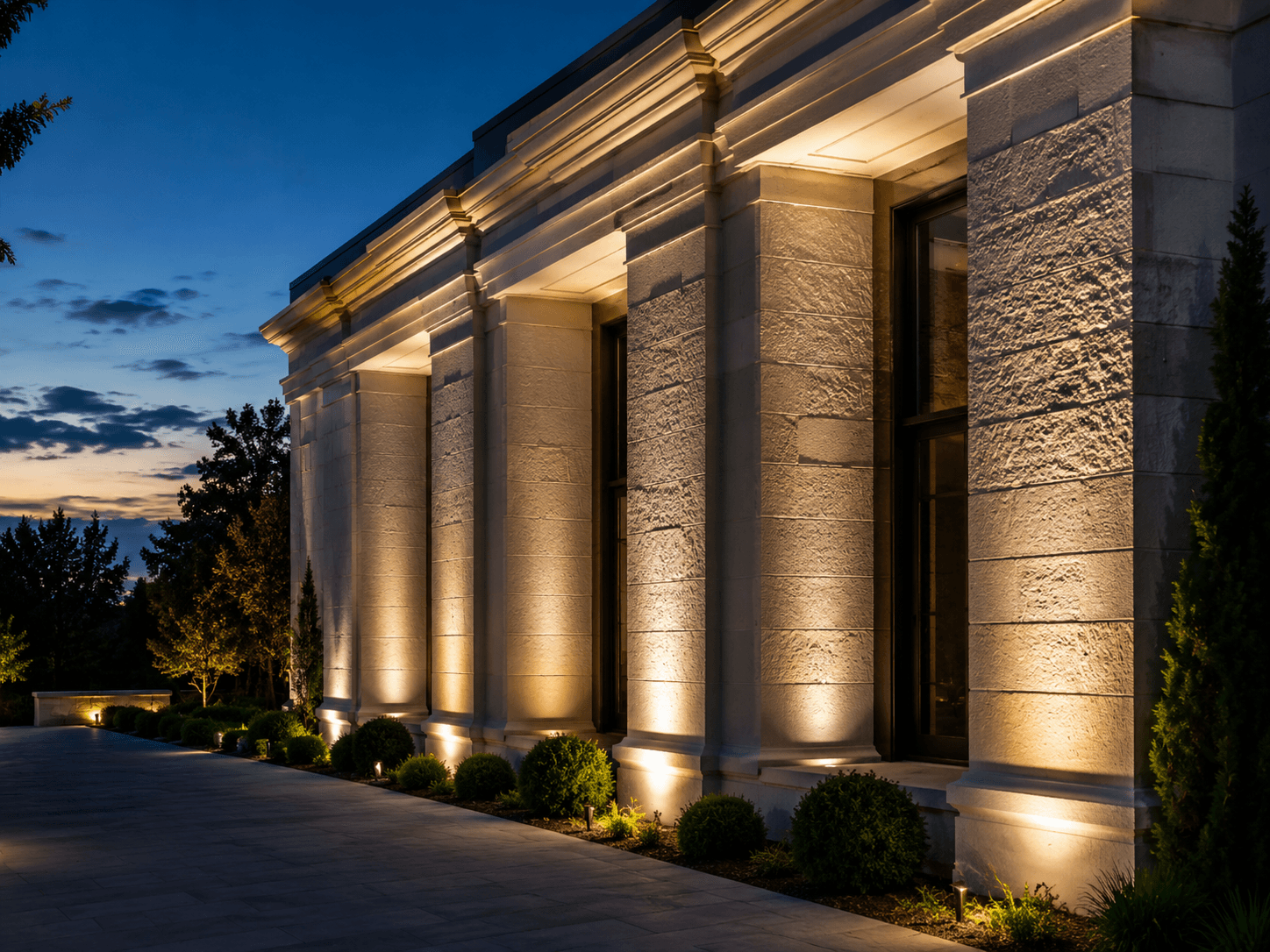

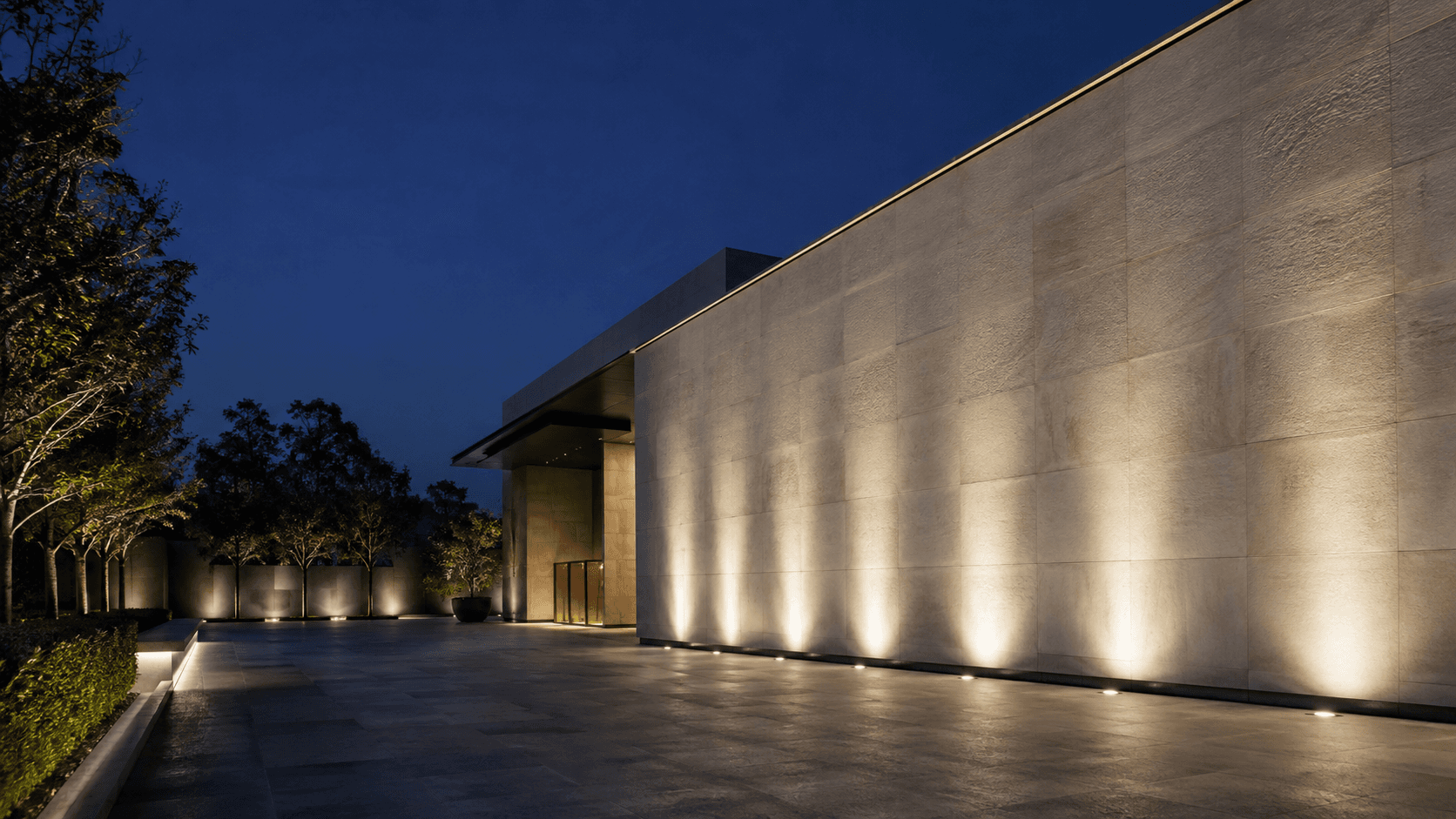

Linear wall washing for exterior building facade.

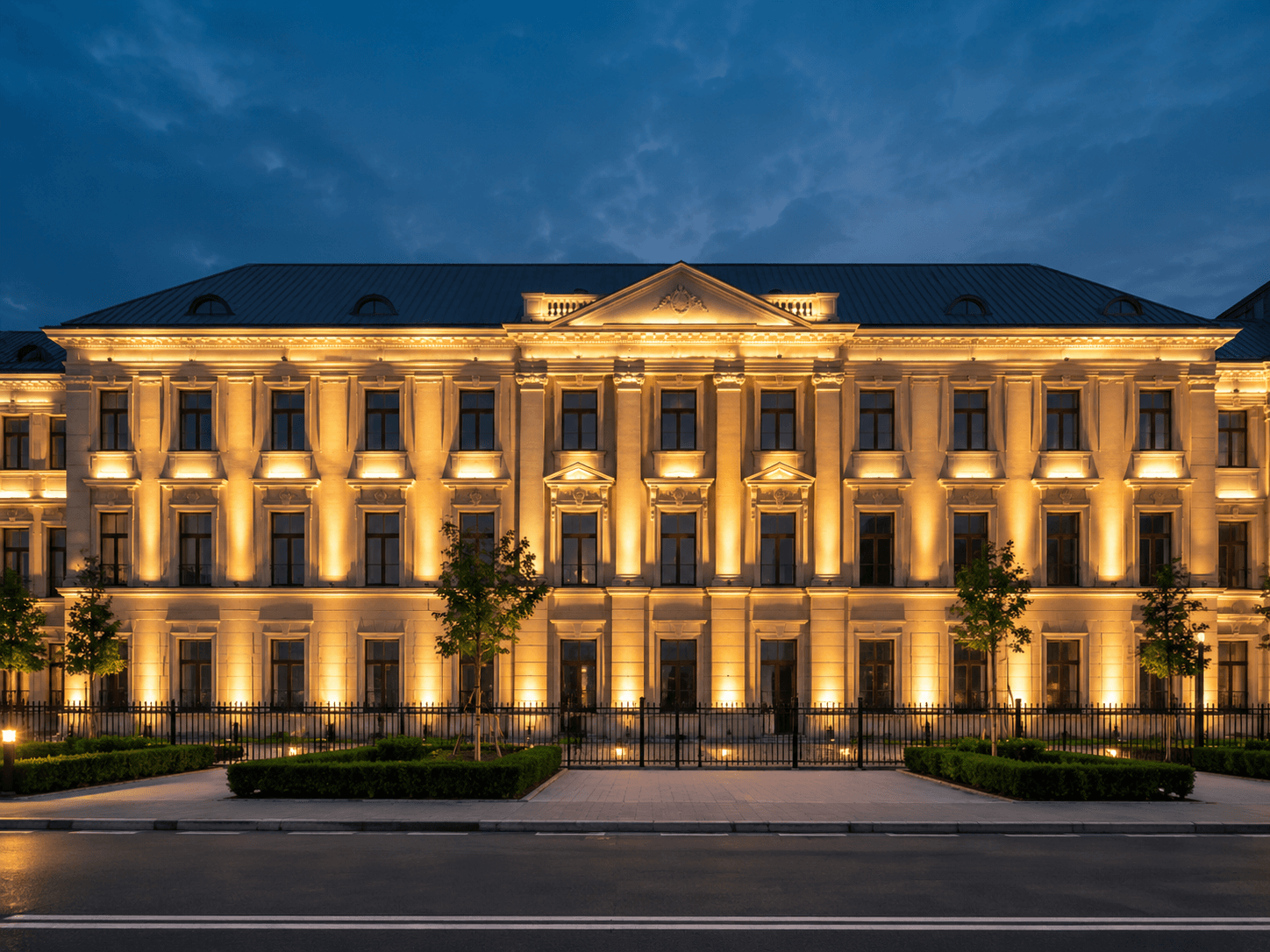

Accent illumination for exterior architectural surfaces.
Facade lighting for shopping and commercial environments.

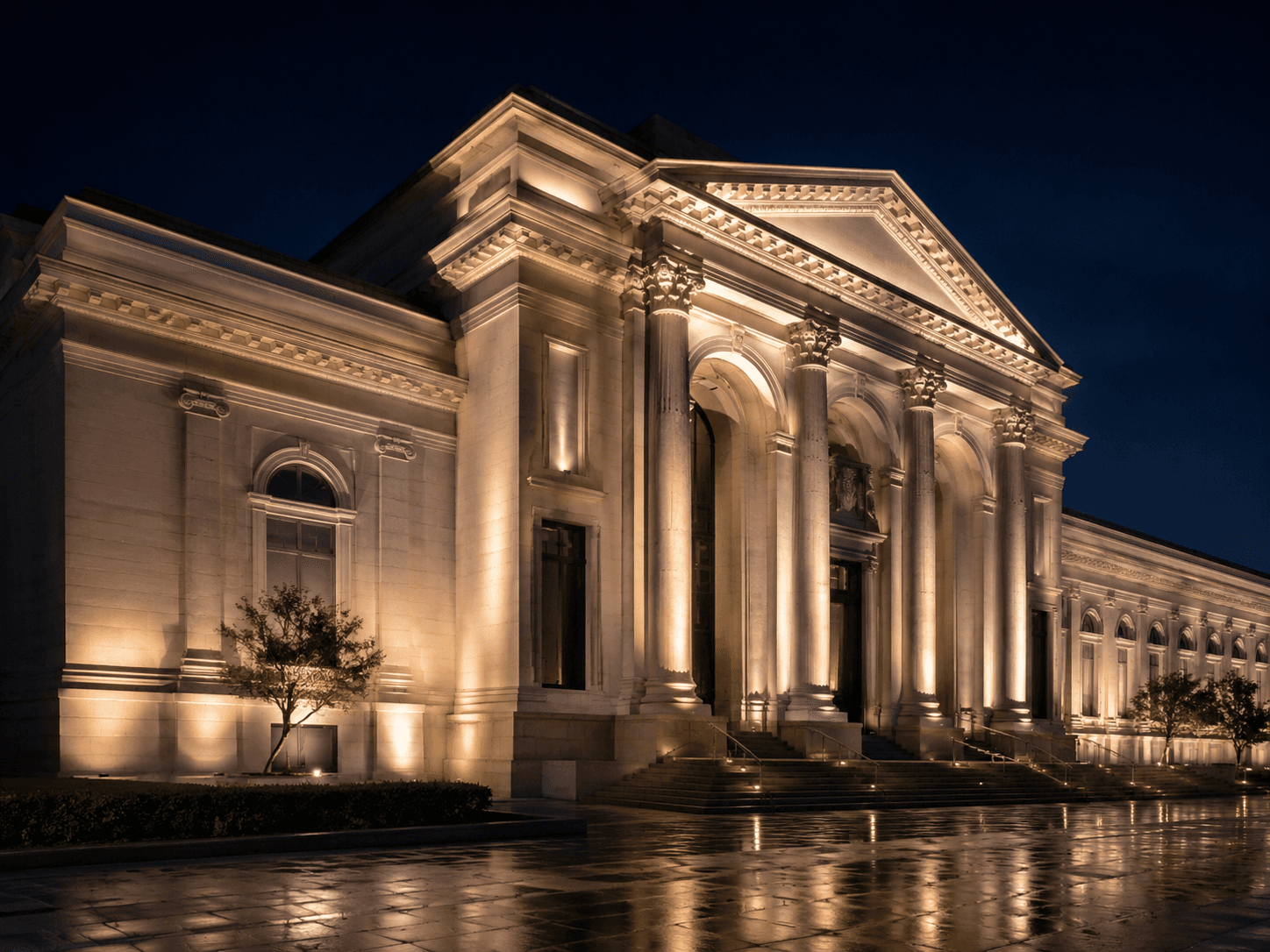

Architectural accent lighting for museums and cultural buildings.

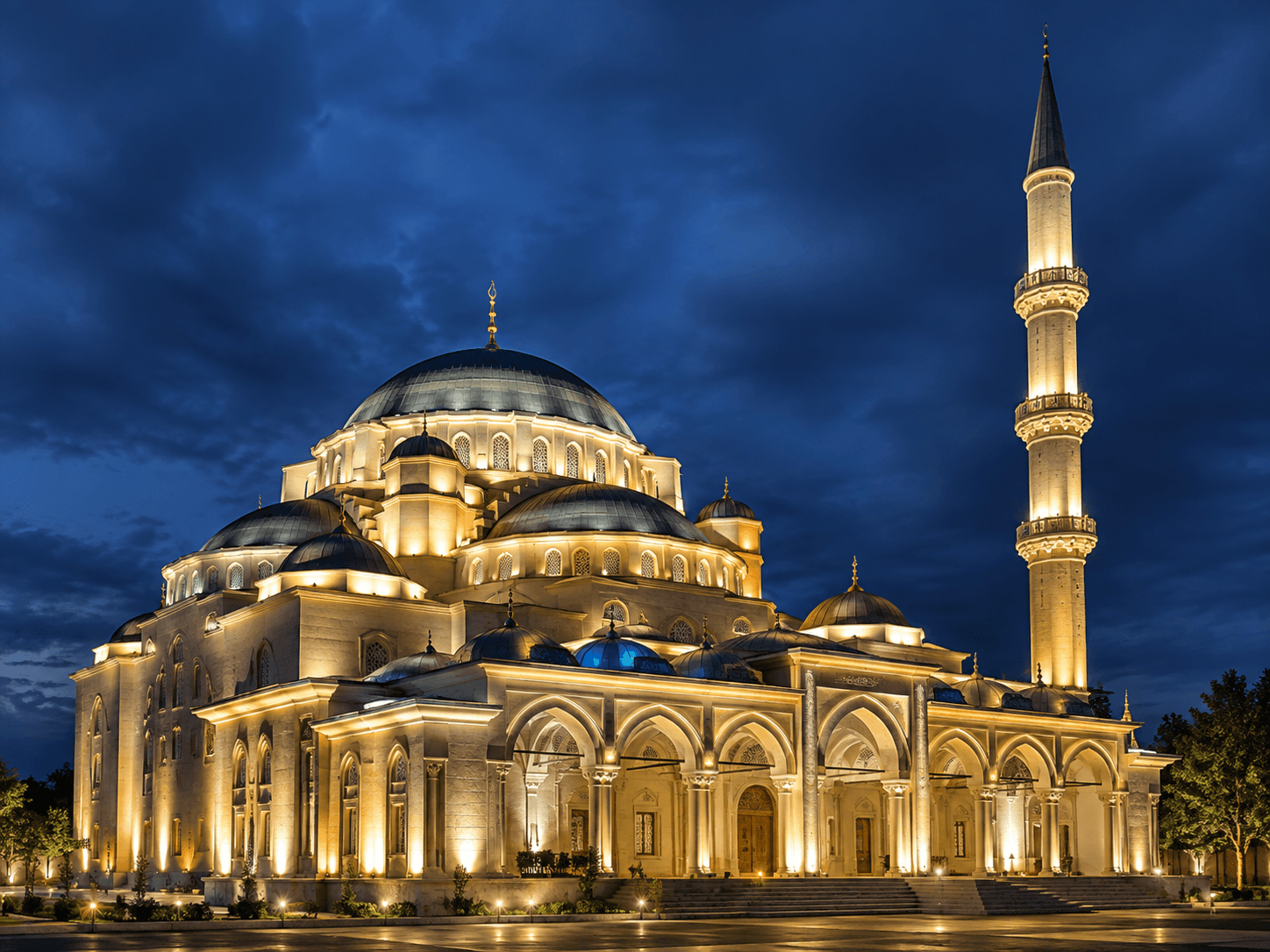

Exterior wall washing for religious and civic sites.

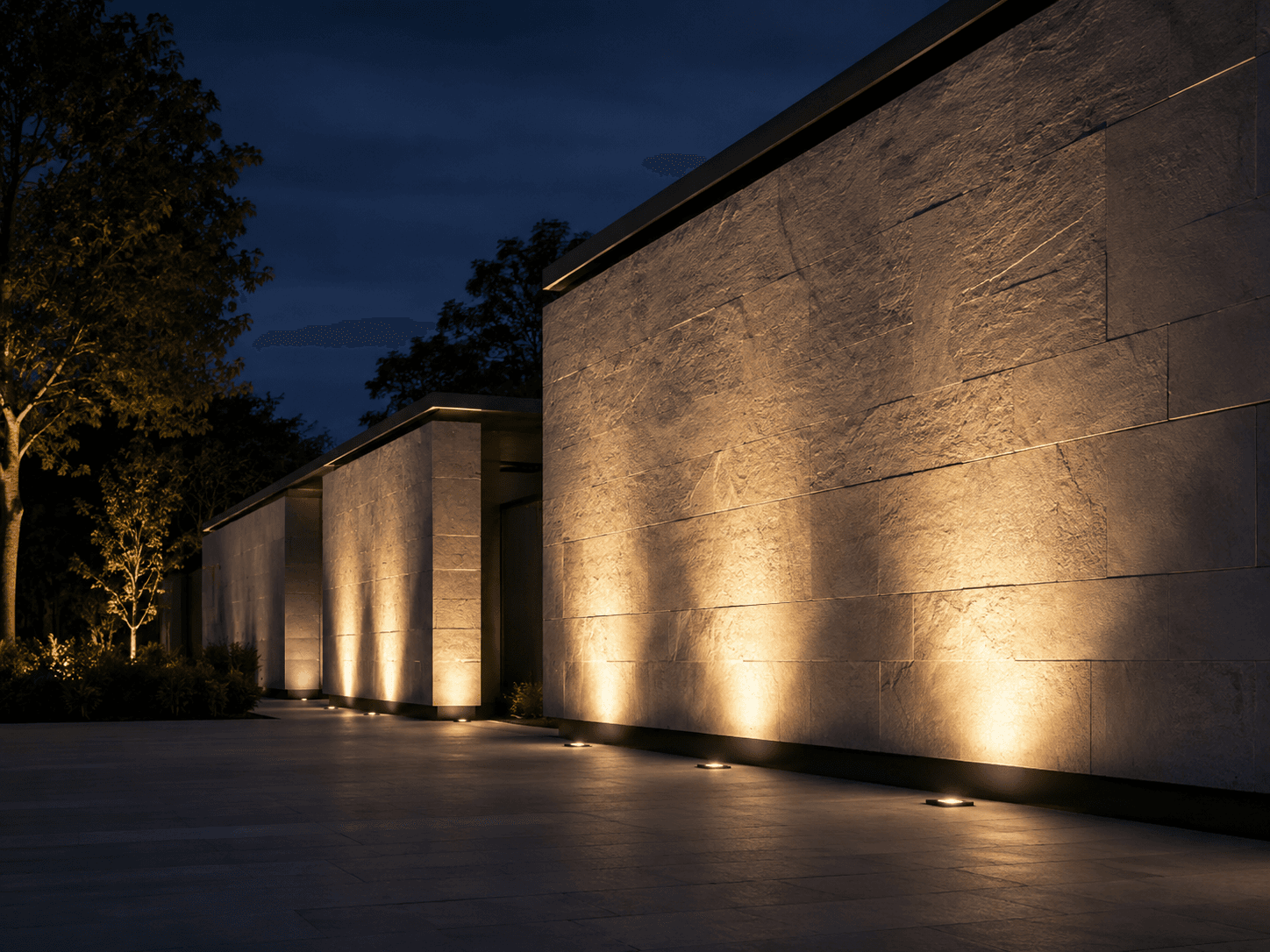

Controlled exterior accent illumination for architectural projects.
Linear wall washing for exterior building facade.
Discuss the facade, length, output notation and standard or DMX configuration with our technical team.
