Emergency Performance
Light SourceLED
Power<3 W
Charge Time24 h
Duration1 h / 3 h
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.

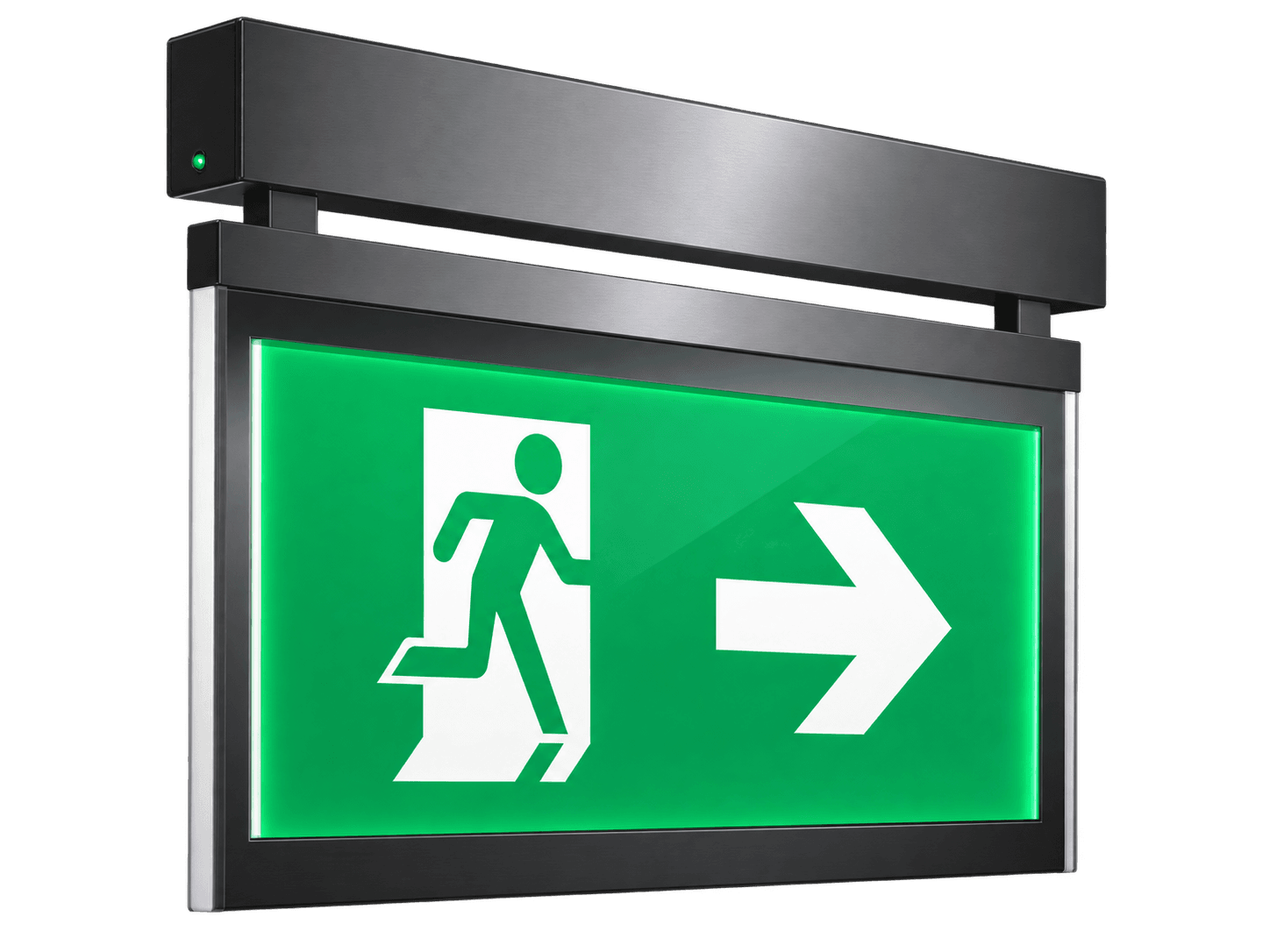

HPL Series
Emergency & Guidance Lighting
Wall and ceiling-mounted LED exit and directional-guidance family with maintained and non-maintained configurations and DA/TD mounting variants.
Catalogue-verified HPL Exit & Guidance Series order codes.
| Mounting | Model / Catalogue Code | Power | Voltage | Operating Temp. | CCT | Enquiry |
|---|---|---|---|---|---|---|
| Rear Wall (DA) | LDB HPL N2 DA 3H P.... | <3 W | 220/230 Vac | 0 to +40 °C | 6500 K | |
| Rear Wall (DA) | LDB HPL M2 DA 3H P.... | <3 W | 220/230 Vac | 0 to +40 °C | 6500 K | |
| Ceiling (TD) | LDB HPL N2 TD 3H P.... | <3 W | 220/230 Vac | 0 to +40 °C | 6500 K | |
| Ceiling (TD) | LDB HPL M2 TD 3H P.... | <3 W | 220/230 Vac | 0 to +40 °C | 6500 K | |
| Rear Wall (DA) | LDB HPL/ST M2 DA 3H P.... | <3 W | 220/230 Vac | 0 to +40 °C | 6500 K | |
| Rear Wall (DA) | LDB HPL/DL M2 DA 3H P.... | <3 W | 220/230 Vac | 0 to +40 °C | 6500 K |
Codes ending in N2 or M2 denote Non-Maintained and Maintained configurations; DA and TD denote rear-wall and ceiling mounting.

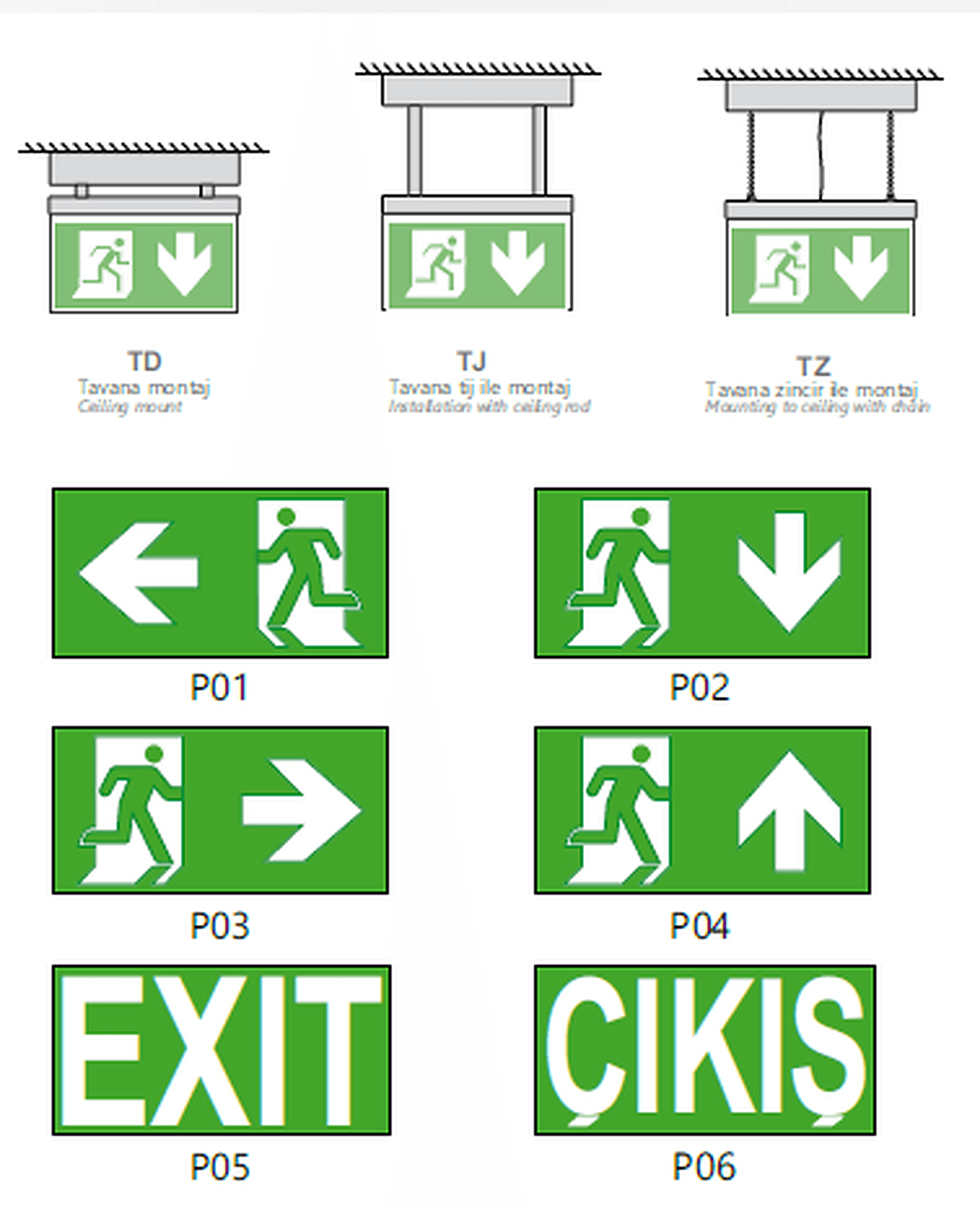

Rear-of-wall (DA) or side-of-wall (DY) mounting.
Direct surface mounting to the ceiling.
Suspended installation on a ceiling rod or chain.
Catalogue-listed monitoring and test options — not every option is standard on every model.
Images are reproduced exactly from the prepared catalogue reference material — raw catalogue-page screenshots are not used.

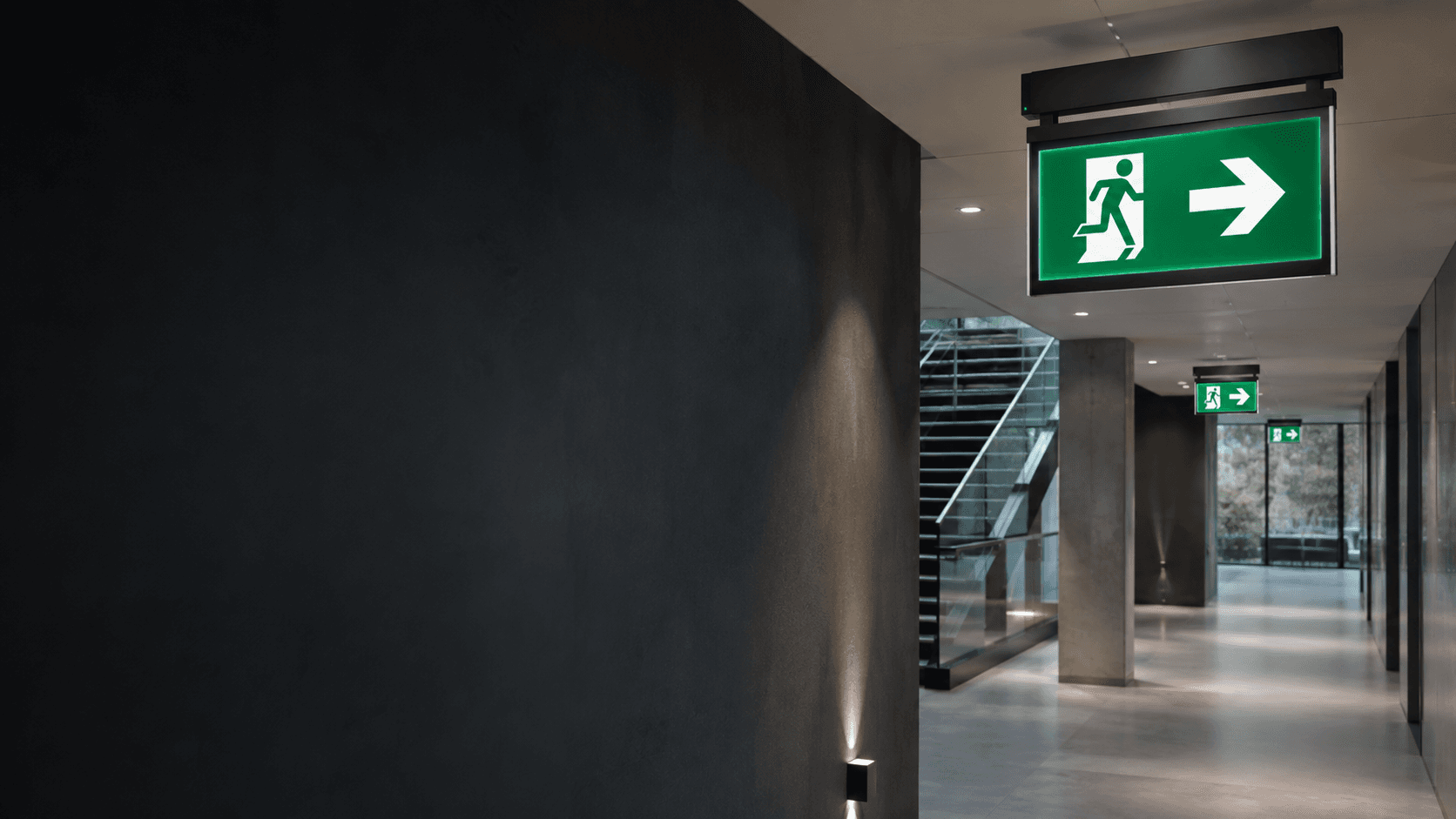

Guidance along designated escape routes and circulation corridors.

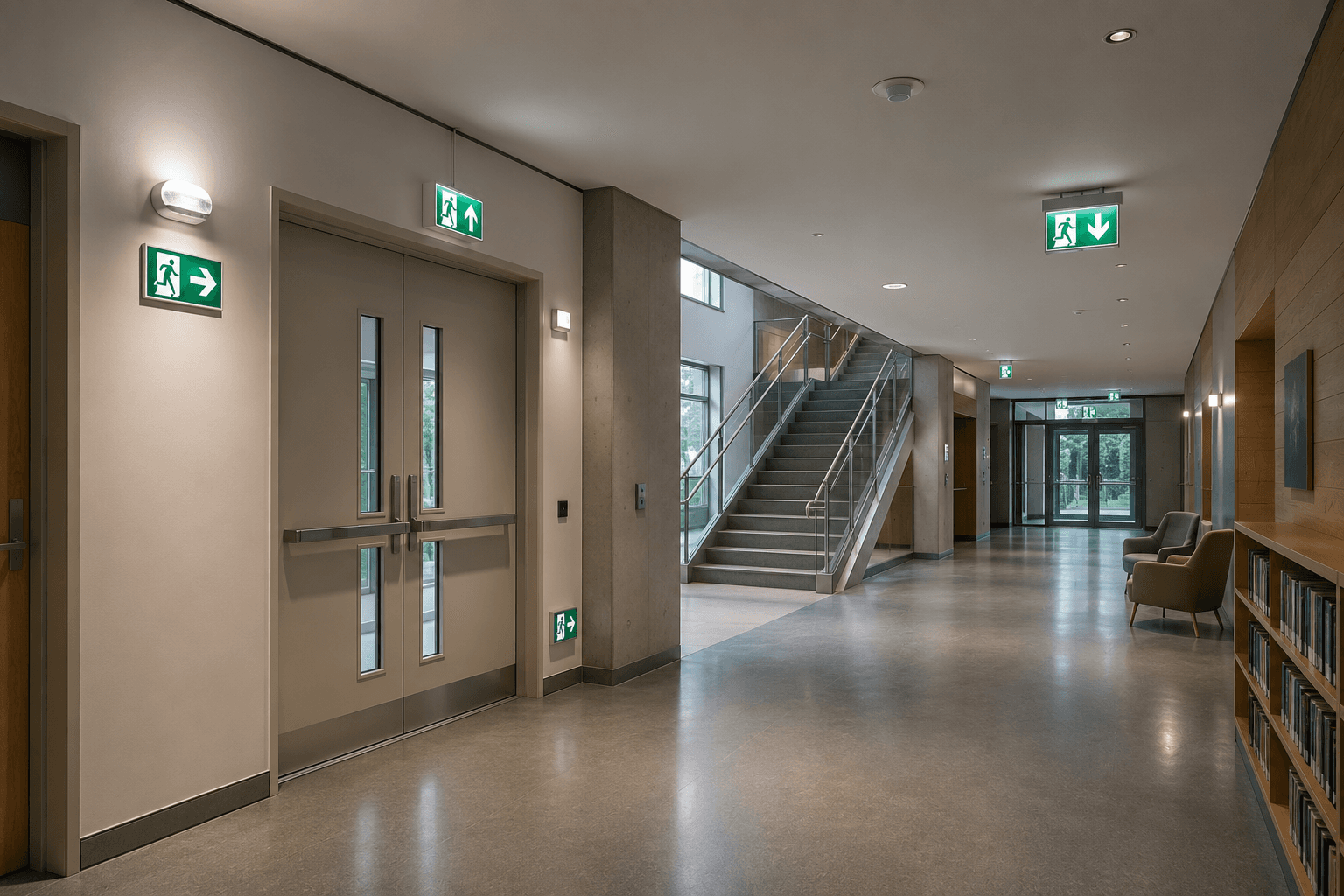

Exit guidance for public and commercial buildings.

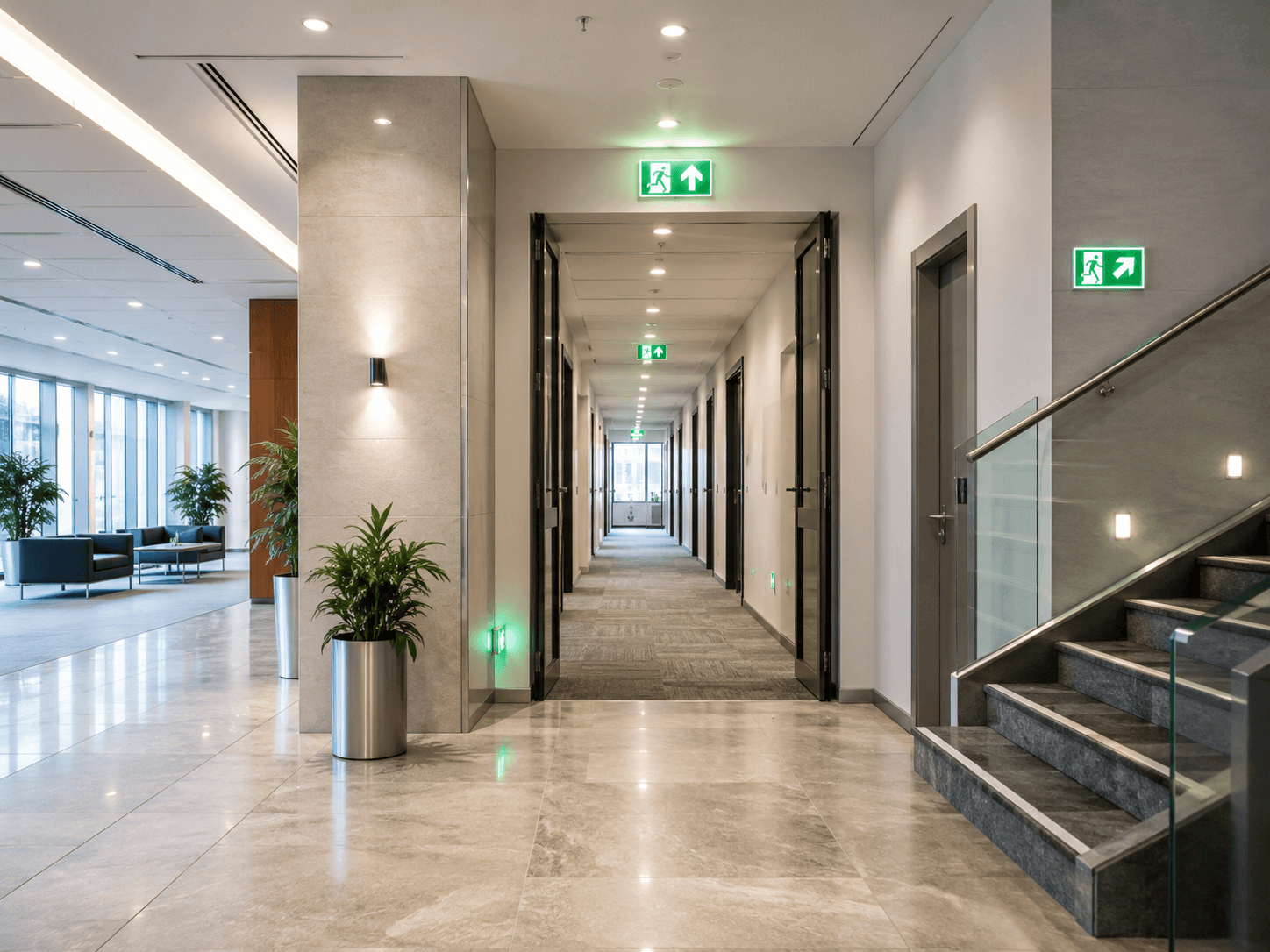

Exit guidance for office and commercial interiors.

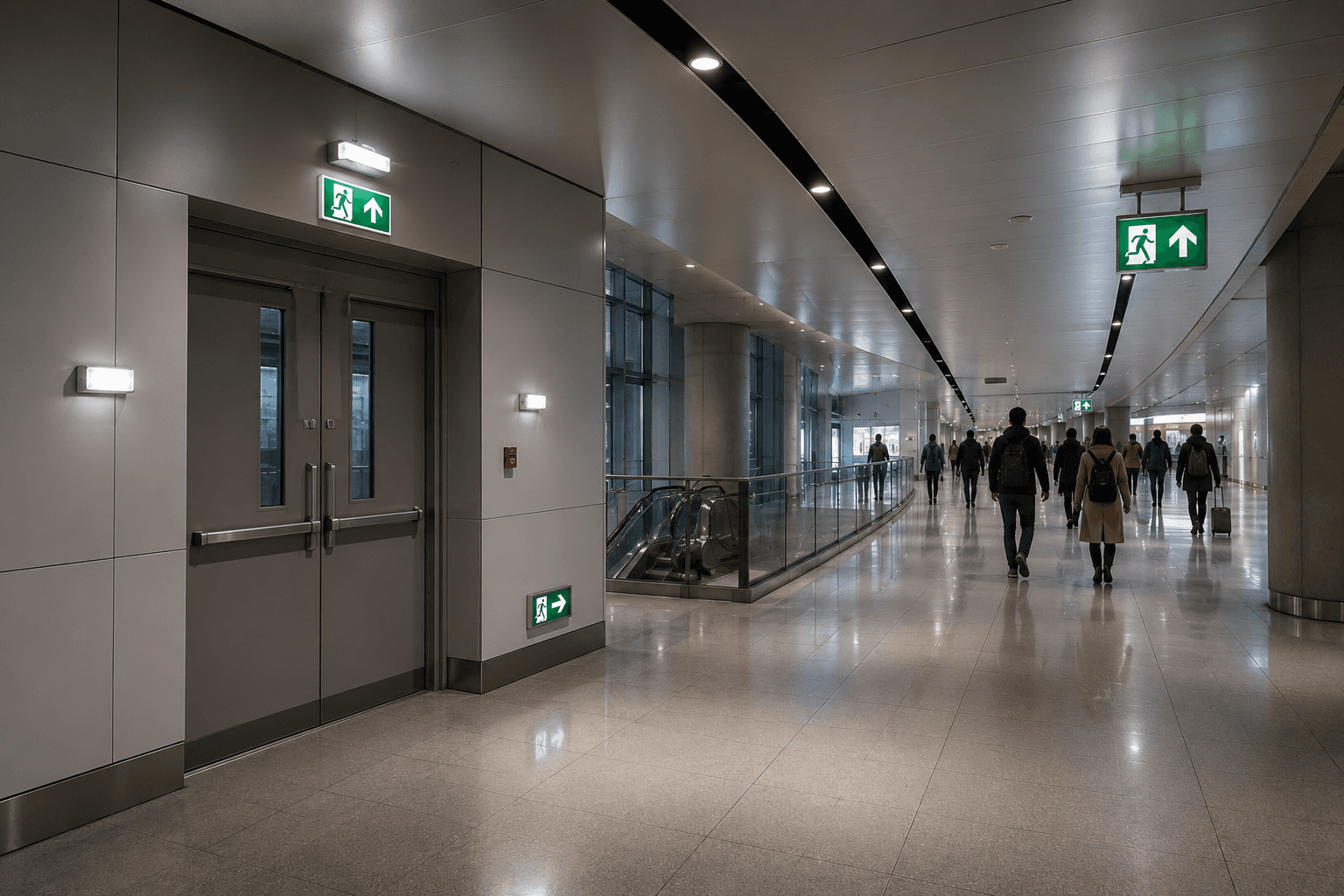

Guidance for transport and high-circulation areas.
Guidance along designated escape routes and circulation corridors.
Our technical team can help with model selection, mounting and project specification.
Request Technical Support
