Performance
Power20–100 W
Luminous Flux300–1,750 lm
Duration1 h / 3 h
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.
ELH Series
Emergency & Guidance Lighting

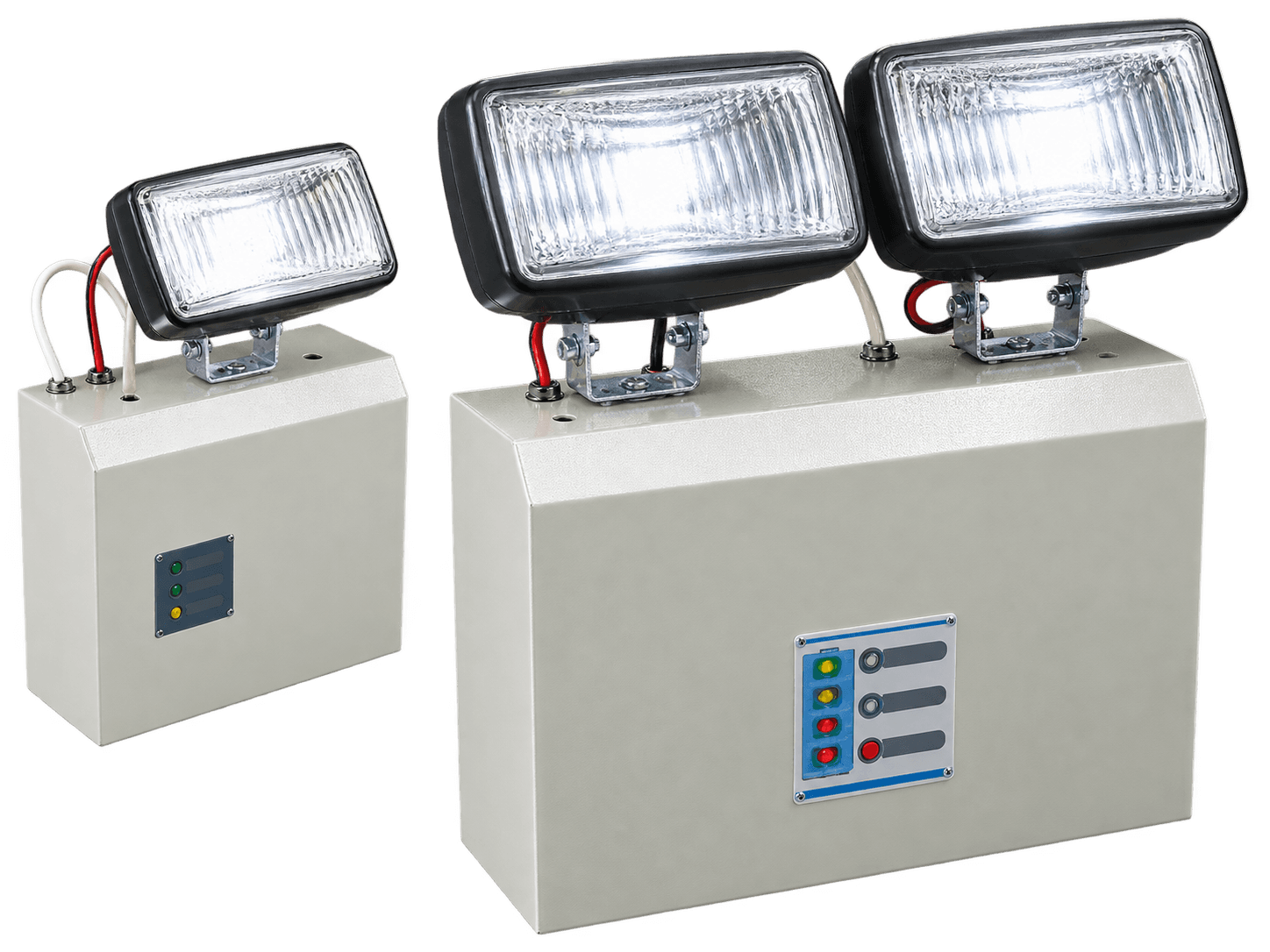

High-output emergency spotlights in single and twin-head configurations for larger and critical areas.
Six catalogue-verified ELH models with exact published luminous flux, battery and weight figures.
| Model / Catalogue Code | Power | Luminous Flux | Battery | Duration | Weight | Enquiry |
|---|---|---|---|---|---|---|
| LDB ELHA 211 | 1 × 20 W | 300 lm | 12 V/7 Ah | 3 h | 3 kg | |
| LDB ELHA 511 | 1 × 50 W | 875 lm | 12 V/7 Ah | 3 h | 3 kg | |
| LDB ELHA 221 | 2 × 20 W | 300 lm | 12 V/7 Ah | 1 h | 7 kg | |
| LDB ELHB 223 | 2 × 20 W | 600 lm | 2 × 12 V/7 Ah | 3 h | 8 kg | |
| LDB ELHB 521 | 2 × 50 W | 1,750 lm | 2 × 12 V/7 Ah | 1 h | 10 kg | |
| LDB ELHC 523 | 2 × 50 W | 1,750 lm | 4 × 12 V/7 Ah | 3 h | 12 kg |
Luminous-flux values are transcribed exactly from the catalogue — e.g. LDB ELHA 221 (2×20 W) is published as 300 lm and is not arithmetic-corrected.
Six catalogue-verified ELH configurations span single- and twin-head variants with different duration and battery pairings.
Catalogue-listed test options — not every option is standard on every model.
Images are reproduced exactly from the prepared catalogue reference material — raw catalogue-page screenshots are not used.
Emergency illumination for designated escape routes.
Emergency illumination for larger open interior spaces.
Emergency illumination for vertical escape routes.
High-output emergency illumination for critical circulation zones.
Emergency illumination for designated escape routes.
Our technical team can help with model selection, battery configuration and project specification.
