Performance
Power15 W
Light Output (Normal)1,200 lm
Light Output (3 h Emergency)150 lm
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.
INKL · INL · NMSL
Emergency & Guidance Lighting

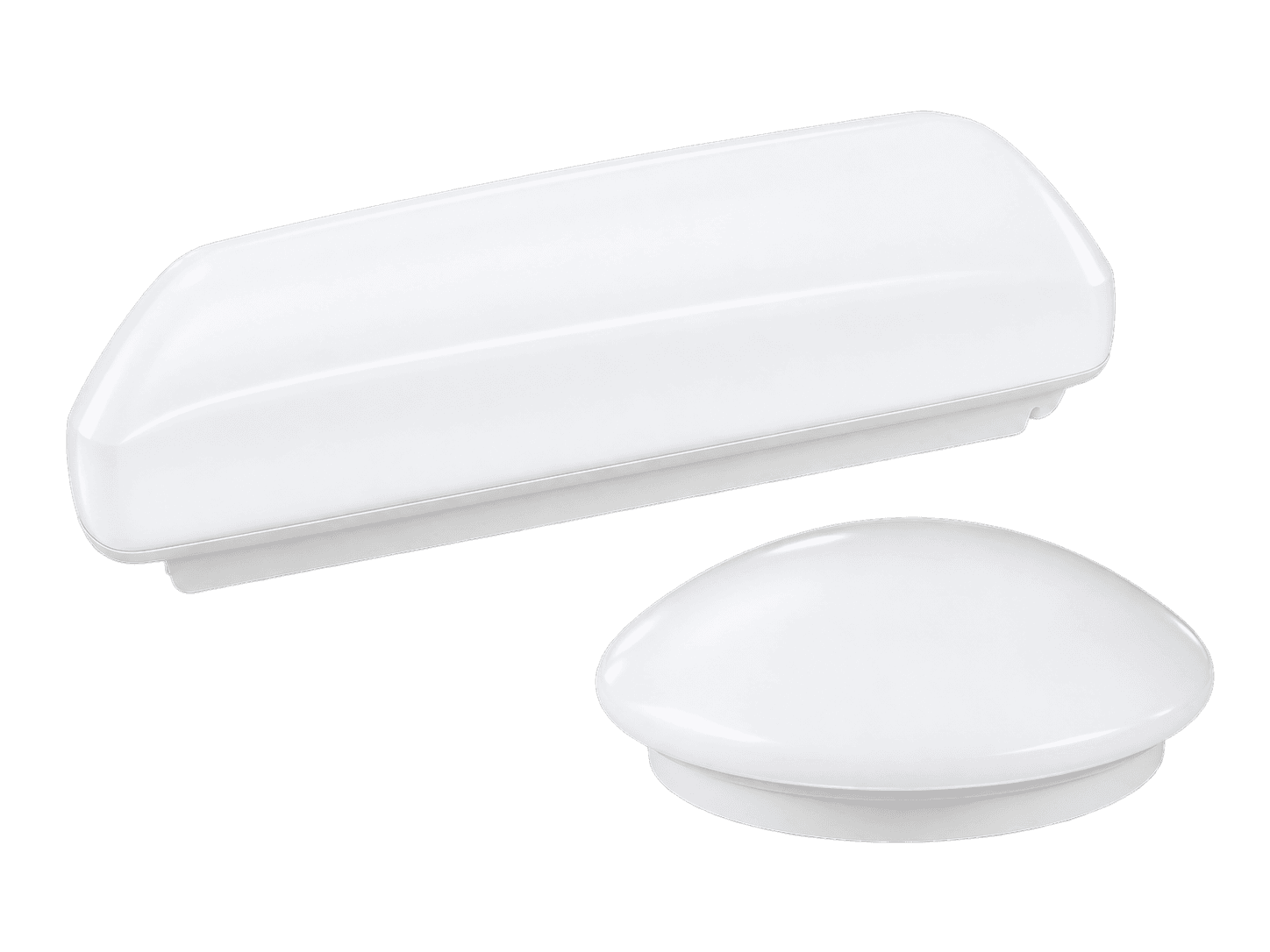

15 W linear (INKL/INL) and bulkhead (NMSL) luminaires with a heat-treated opal diffuser and 3-hour emergency variants.
Six catalogue-verified INKL, INL and NMSL 15 W order codes.
| Model / Catalogue Code | Power | Light Output | Operating Temp. | CCT | Enquiry |
|---|---|---|---|---|---|
| LDB INKL 15W HF 3H 4K | 15 W | 150 lm (3 h emergency) | −5 to +55 °C | 4000 K | |
| LDB INL 15W HF 4K | 15 W | 1,200 lm | −5 to +55 °C | 4000 K | |
| LDB INL 15W 4K | 15 W | 1,200 lm | −5 to +55 °C | 4000 K | |
| LDB NMSL 15W HF 3H 4K | 15 W | 150 lm (3 h emergency) | −5 to +55 °C | 4000 K | |
| LDB NMSL 15W HF 4K | 15 W | 1,200 lm | −5 to +55 °C | 4000 K | |
| LDB NMSL 15W 4K | 15 W | 1,200 lm | −5 to +55 °C | 4000 K |
The INKL code is transcribed exactly as printed in the catalogue and is not corrected to INL.
One website grouping covering two verified 15 W catalogue form factors.
Catalogue-listed options — not every option is standard on every code.
Images are reproduced exactly from the prepared catalogue reference material — raw catalogue-page screenshots are not used.

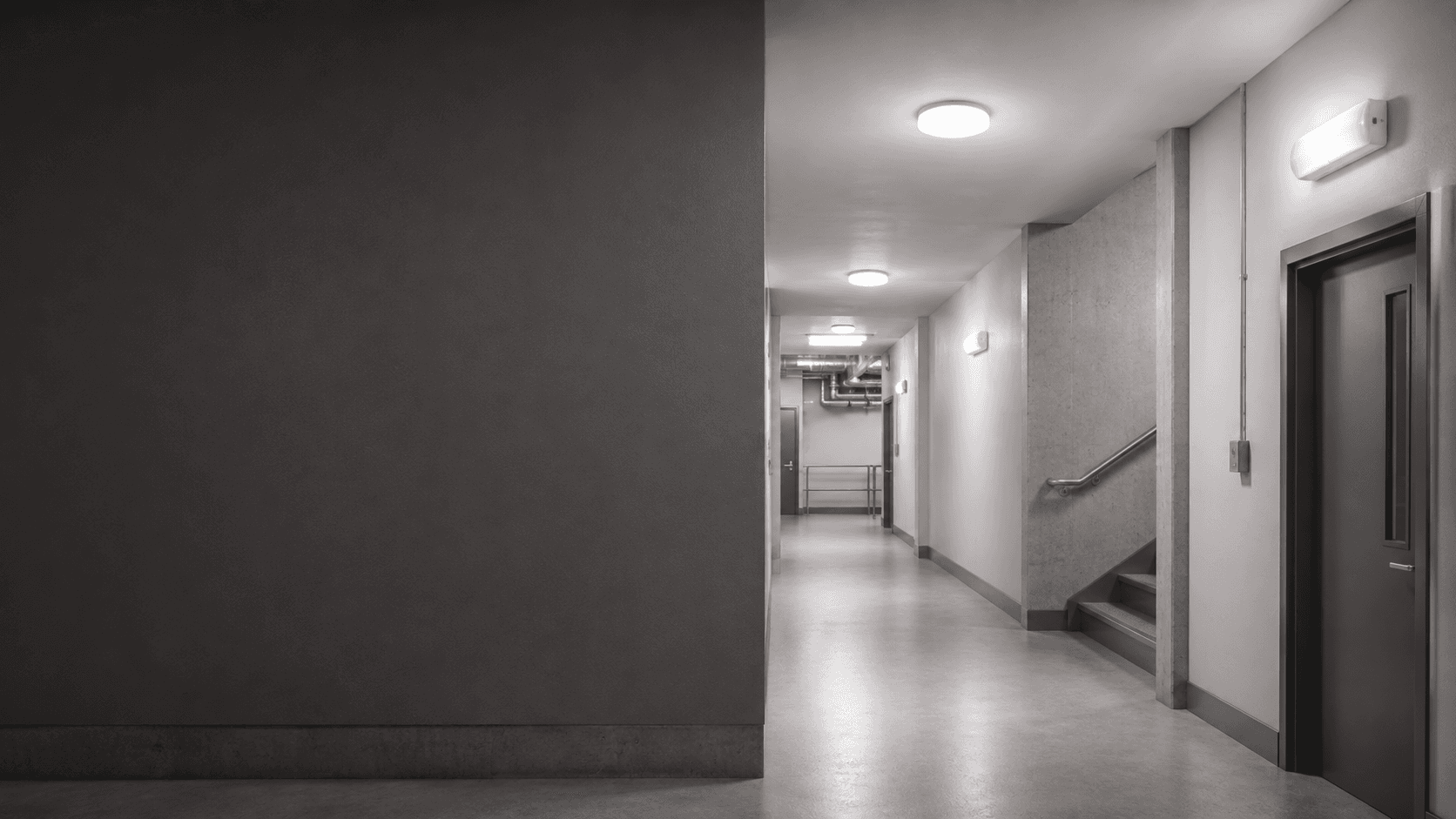

General and emergency illumination for corridors.
Emergency illumination for stairwells.
Emergency illumination for designated escape routes.
Lighting for service and utility areas.
General and emergency illumination for corridors.
Our technical team can help with form-factor selection, mounting and project specification.
