Emergency Operation
Power2 × 3 W / 2 × 10 W
Duration1 h / 3 h
ChargeAutomatic
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.
EML Series
Emergency & Guidance Lighting

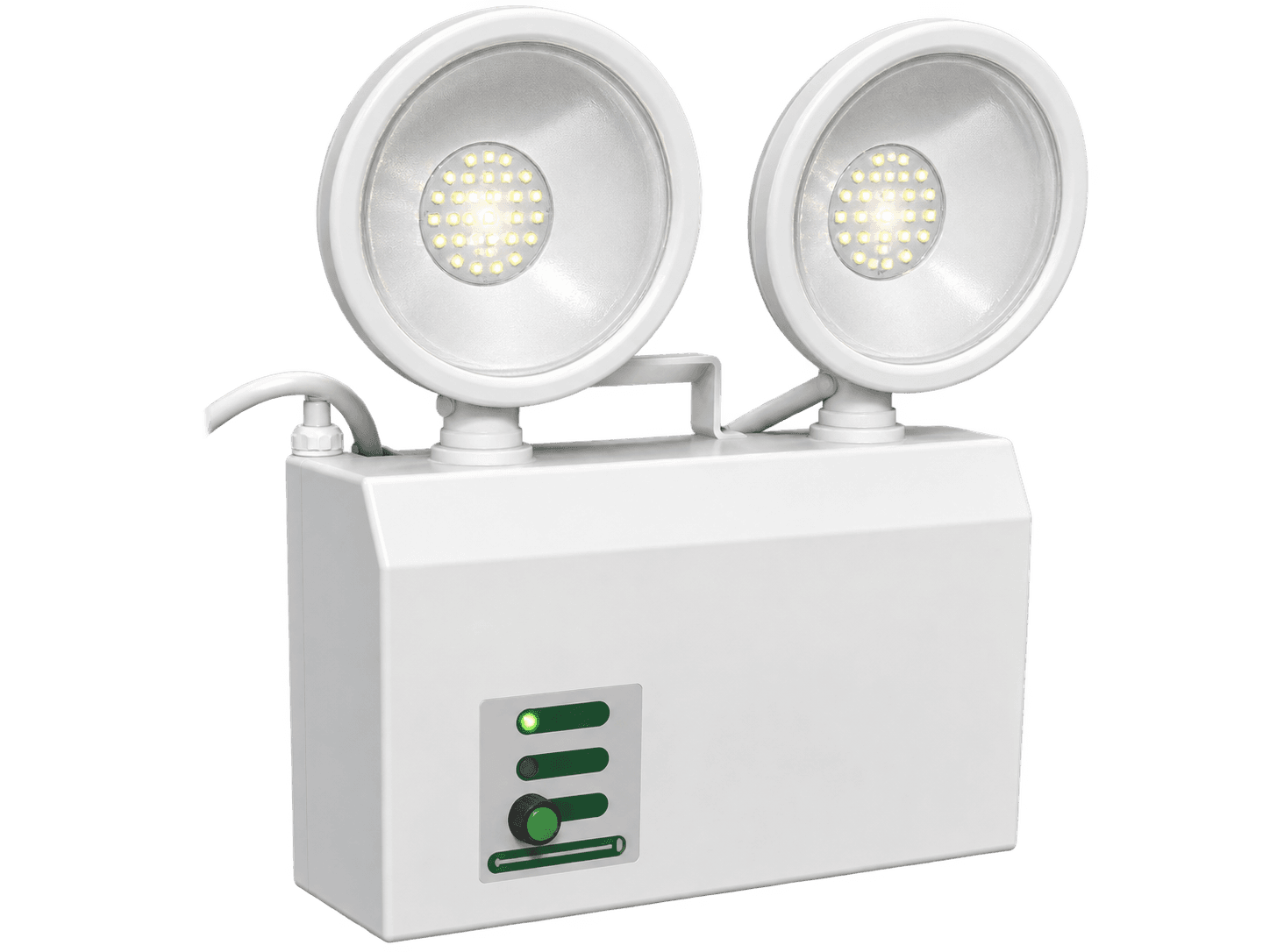

Twin-spot emergency luminaire with adjustable LED heads, wall or ceiling mounting and 1 h/3 h duration options.
Four catalogue-verified EML models with published emergency-mode light output per head.
| Model / Catalogue Code | Power | Emergency-Mode Light Output | Voltage | CCT | Duration | Enquiry |
|---|---|---|---|---|---|---|
| LDB EML 1021 | 2 × 10 W | 650 lm | 220/230 Vac | 6500 K | 1 h | |
| LDB EML 1023 | 2 × 10 W | 650 lm | 220/230 Vac | 6500 K | 3 h | |
| LDB EML/ST 323 | 2 × 3 W | 180 lm | 220/230 Vac | 6500 K | 3 h | |
| LDB EML/DL 323 | 2 × 3 W | 180 lm | 220/230 Vac | 6500 K | 3 h |
Key catalogue-verified characteristics of the EML family.
Catalogue-listed monitoring and test options — not every option is standard on every model.
Images are reproduced exactly from the prepared catalogue reference material — raw catalogue-page screenshots are not used.

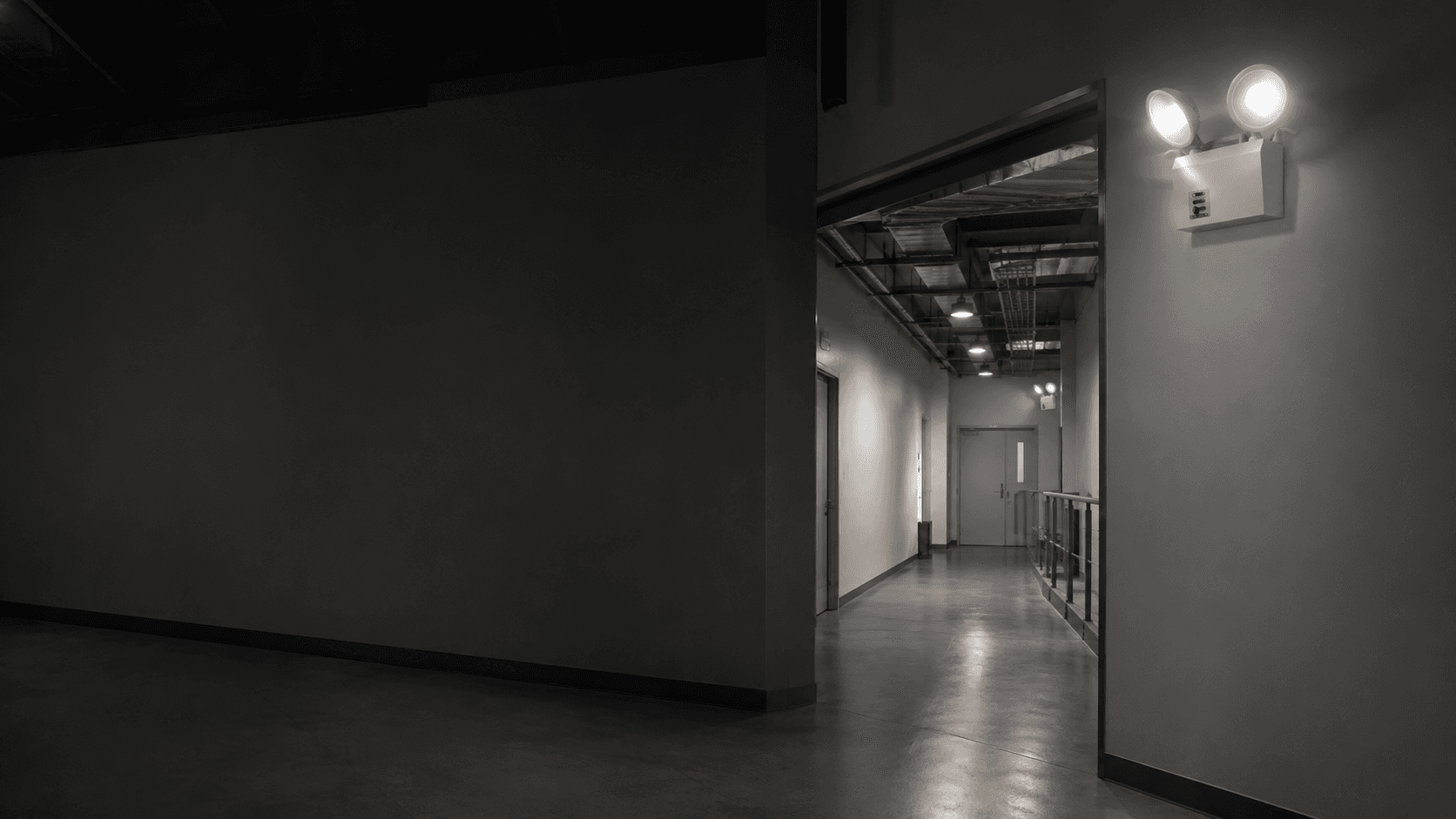

Emergency illumination for designated escape routes.
Emergency illumination for larger open interior spaces.
Emergency illumination for vertical escape routes.

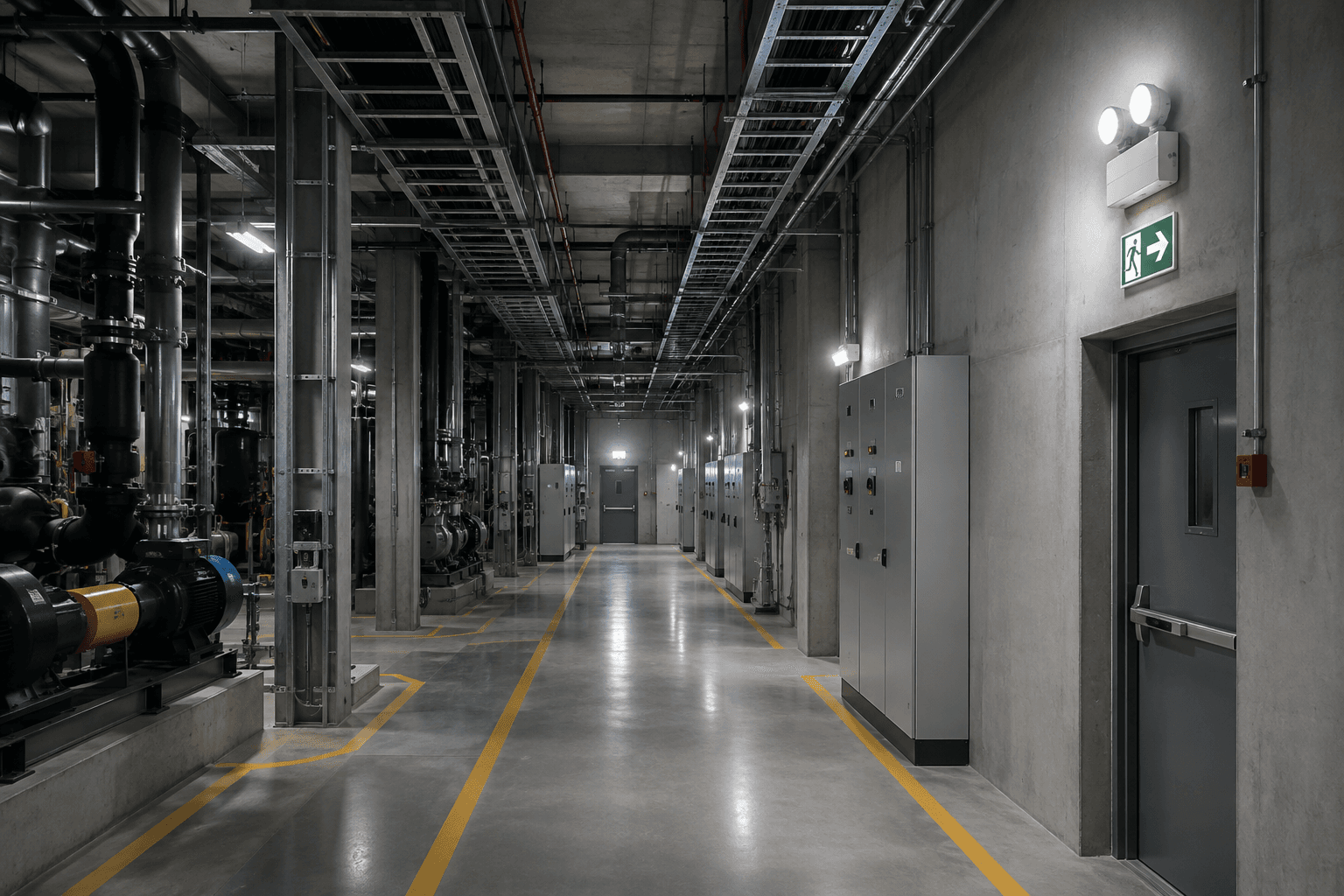

Emergency illumination for industrial and utility interiors.
Emergency illumination for designated escape routes.
Our technical team can help with model selection, mounting and project specification.
Request Technical Support
