Emergency Performance
Light SourceLED
Power<3 W
Charge Time24 h
Duration1 h / 3 h
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.

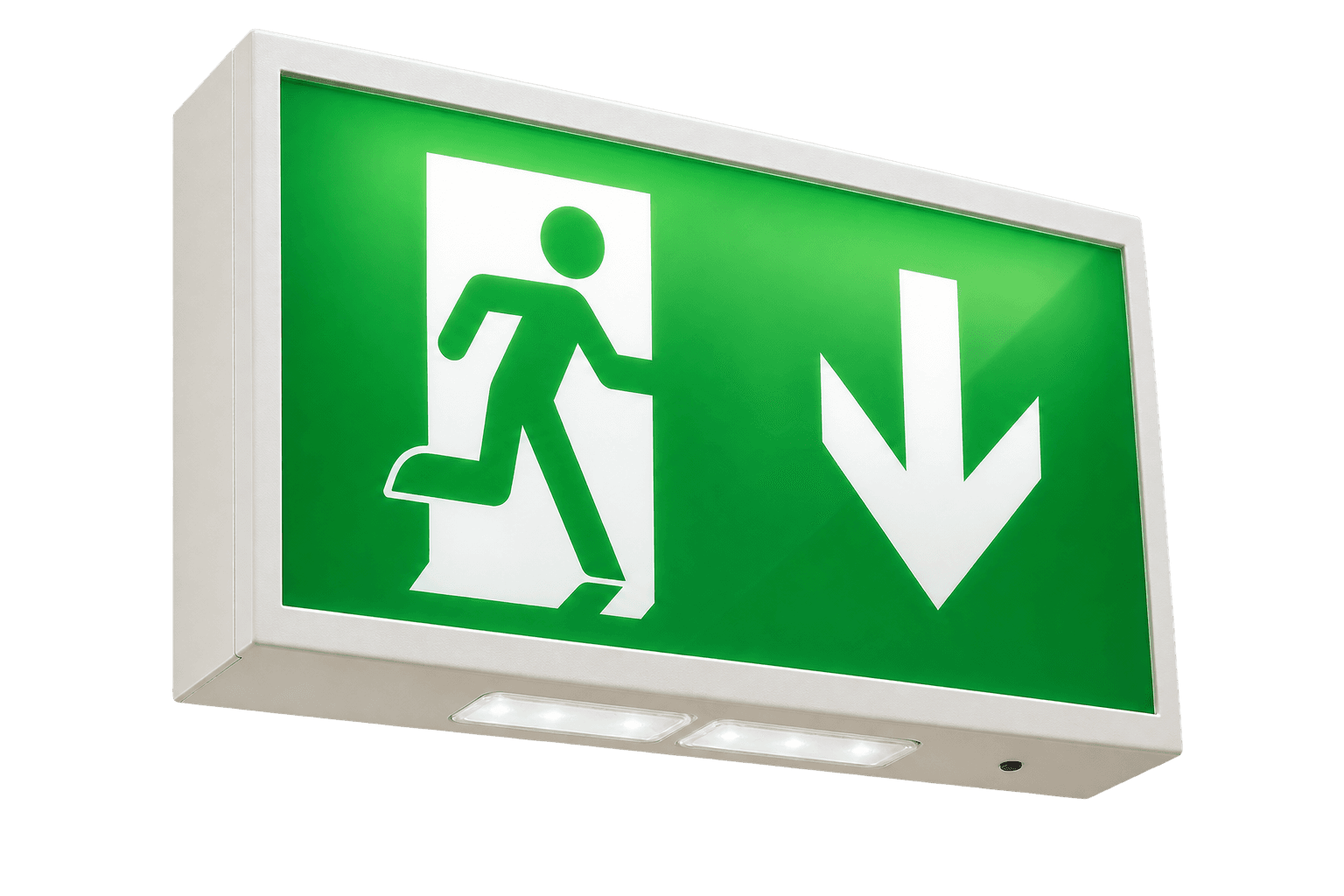

ARL Series
Emergency & Guidance Lighting
Wall and ceiling-mounted LED exit-sign family with maintained and non-maintained configurations, 1 h/3 h emergency duration and DALI central-monitoring options.
Catalogue-verified ARL Exit Sign Series order codes.
| Model / Catalogue Code | Power | Voltage | Frequency | Operating Temp. | CCT | Enquiry |
|---|---|---|---|---|---|---|
| LDB ARL N1 DA 3H P.... | <3 W | 220/230 Vac | 50/60 Hz | 0 to +40 °C | 6500 K | |
| LDB ARL M1 DA 3H P.... | <3 W | 220/230 Vac | 50/60 Hz | 0 to +40 °C | 6500 K | |
| LDB ARL/ST N1 DA 3H P.... | <3 W | 220/230 Vac | 50/60 Hz | 0 to +40 °C | 6500 K | |
| LDB ARL/ST M1 DA 3H P.... | <3 W | 220/230 Vac | 50/60 Hz | 0 to +40 °C | 6500 K | |
| LDB ARL/DL M1 DA 3H P.... | <3 W | 220/230 Vac | 50/60 Hz | 0 to +40 °C | 6500 K |

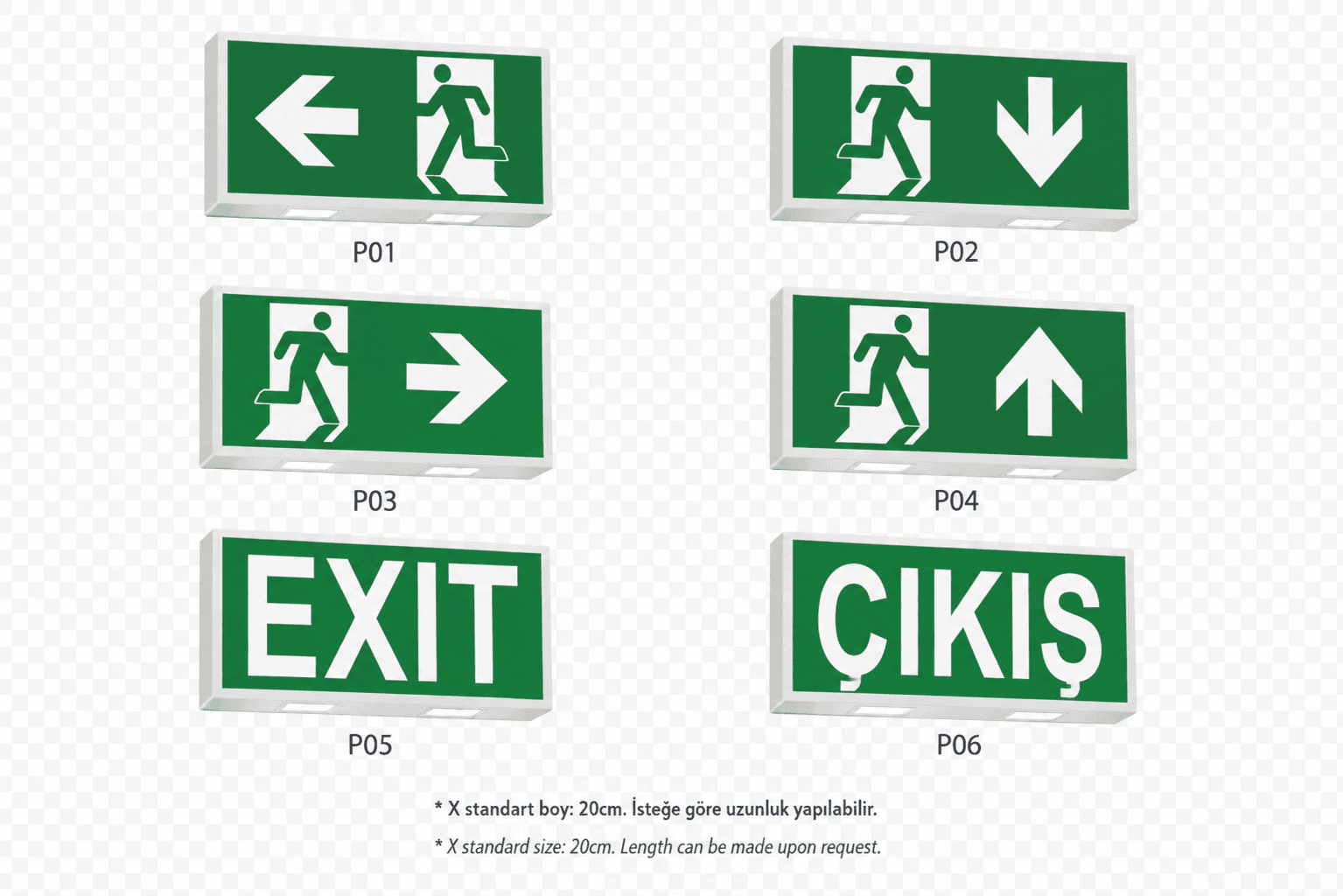

Codes ending in N1 or M1 denote Non-Maintained and Maintained configurations.

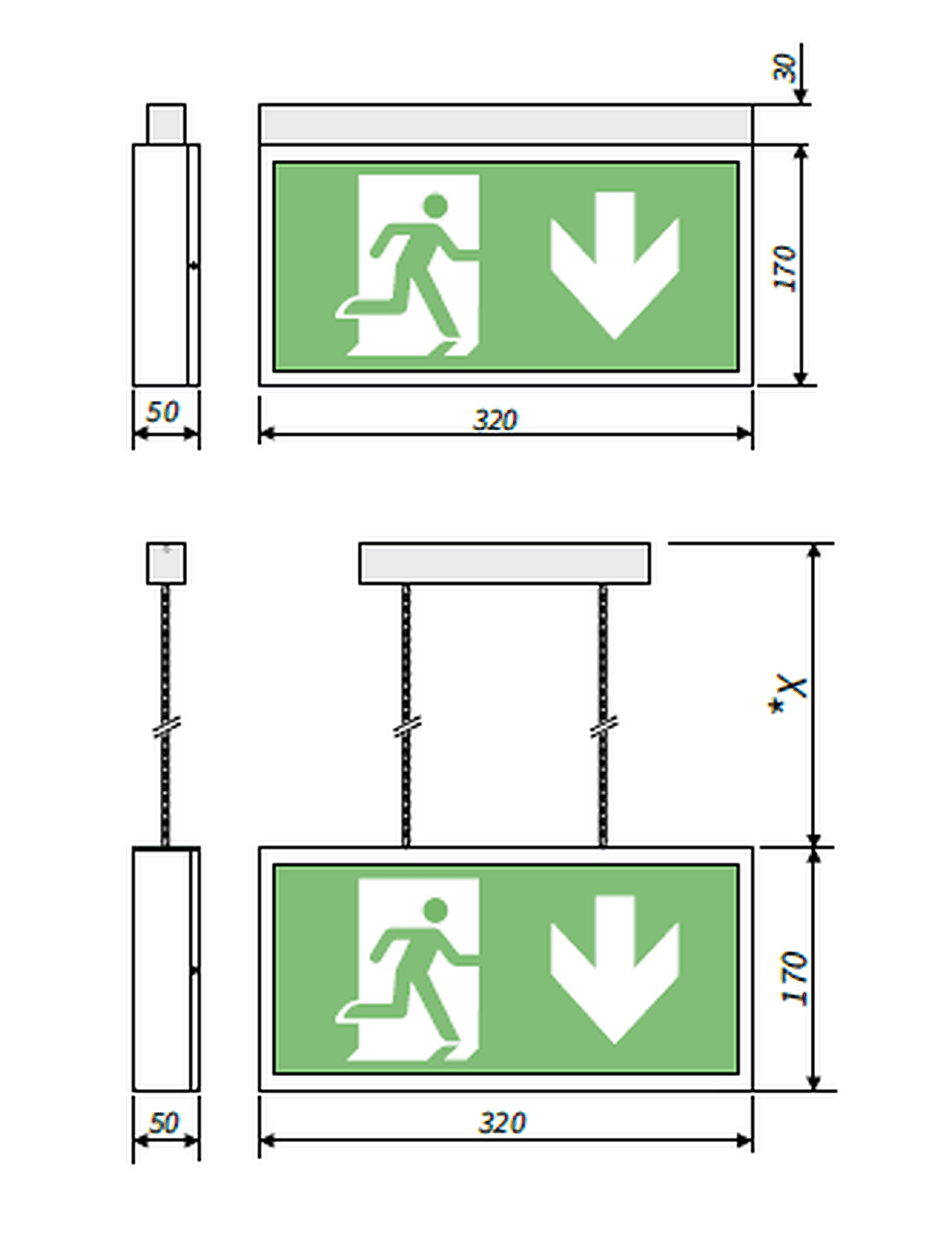

Rear-of-wall (DA) or side-of-wall (DY) mounting.
Direct surface mounting to the ceiling.
Suspended installation on a ceiling rod or chain.
Catalogue-listed monitoring and test options — not every option is standard on every model.
Images are reproduced exactly from the prepared catalogue reference material — raw catalogue-page screenshots are not used.

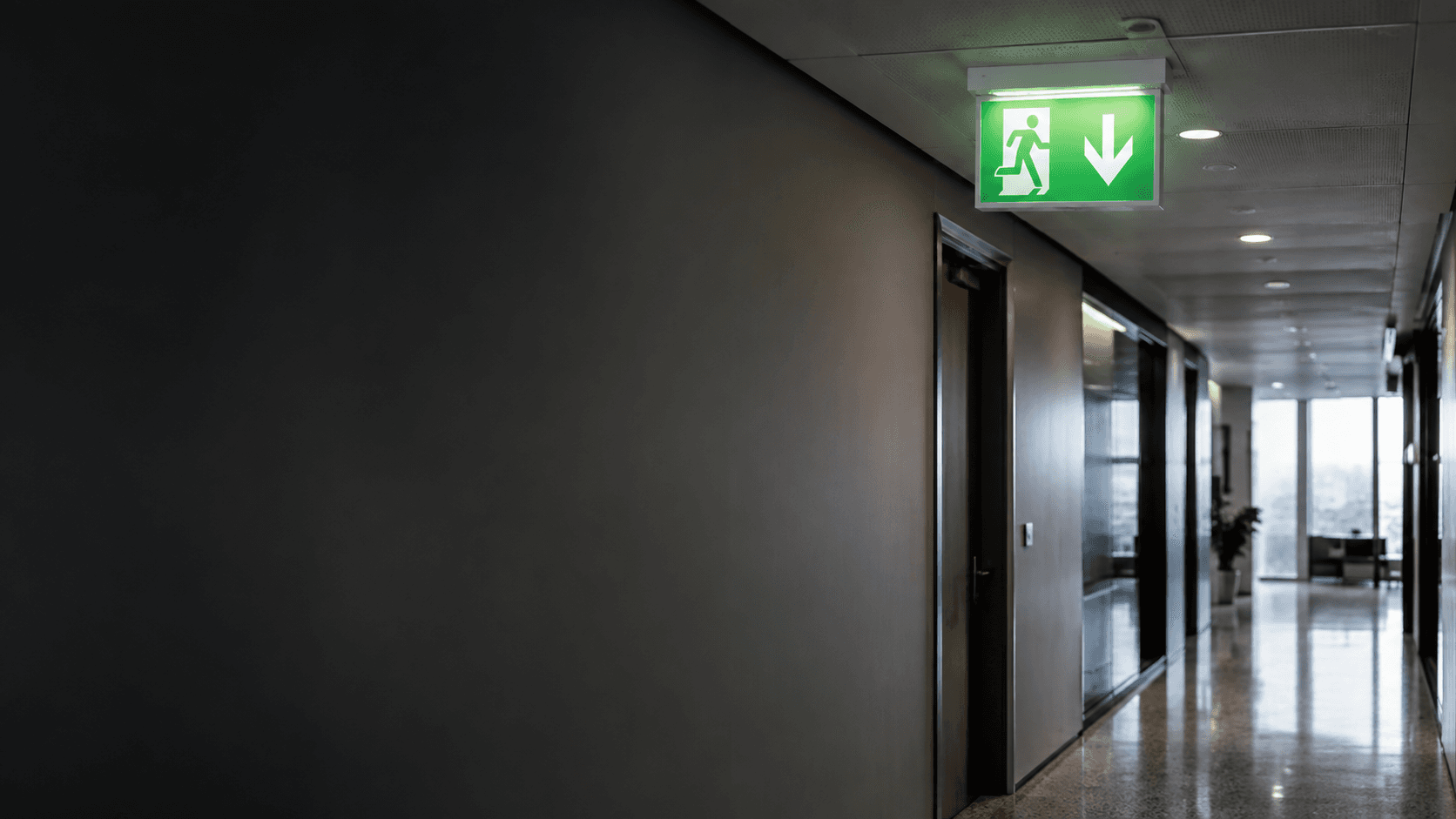

Guidance along designated escape routes and circulation corridors.
Exit guidance for public and commercial buildings.
Exit guidance for office and commercial interiors.
Guidance for transport and high-circulation areas.
Guidance along designated escape routes and circulation corridors.
Our technical team can help with model selection, mounting and project specification.
Request Technical Support
