Performance
Power40 W · 75 W
Luminous Flux3,207 lm · 5,988 lm
Efficiency80+ lm/W
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.
Single · Double
Decorative Lighting
Geometric suspended square-ring luminaires in exact single- and double-ring catalogue configurations.
Complete exact Square Ring schedule from PDF page 94.
| Model / Catalogue Code | Power | Luminous Flux | Voltage | Frequency | Operating Temp. | Efficiency | CRI | CCT | Dimensions | IP | Enquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SQUARE 1 RING 25 | 40 W | 3,207 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 80+ lm/W | 80+ | 2700–6500 K | 600 × 600 mm | IP40 | |
| SQUARE 2 RING 25 | 75 W | 5,988 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 80+ lm/W | 80+ | 2700–6500 K | 600 × 600 mm | IP40 |
Both genuine catalogue forms remain within one family route.
Options shown are catalogue-listed project configurations and are not standard on every model.

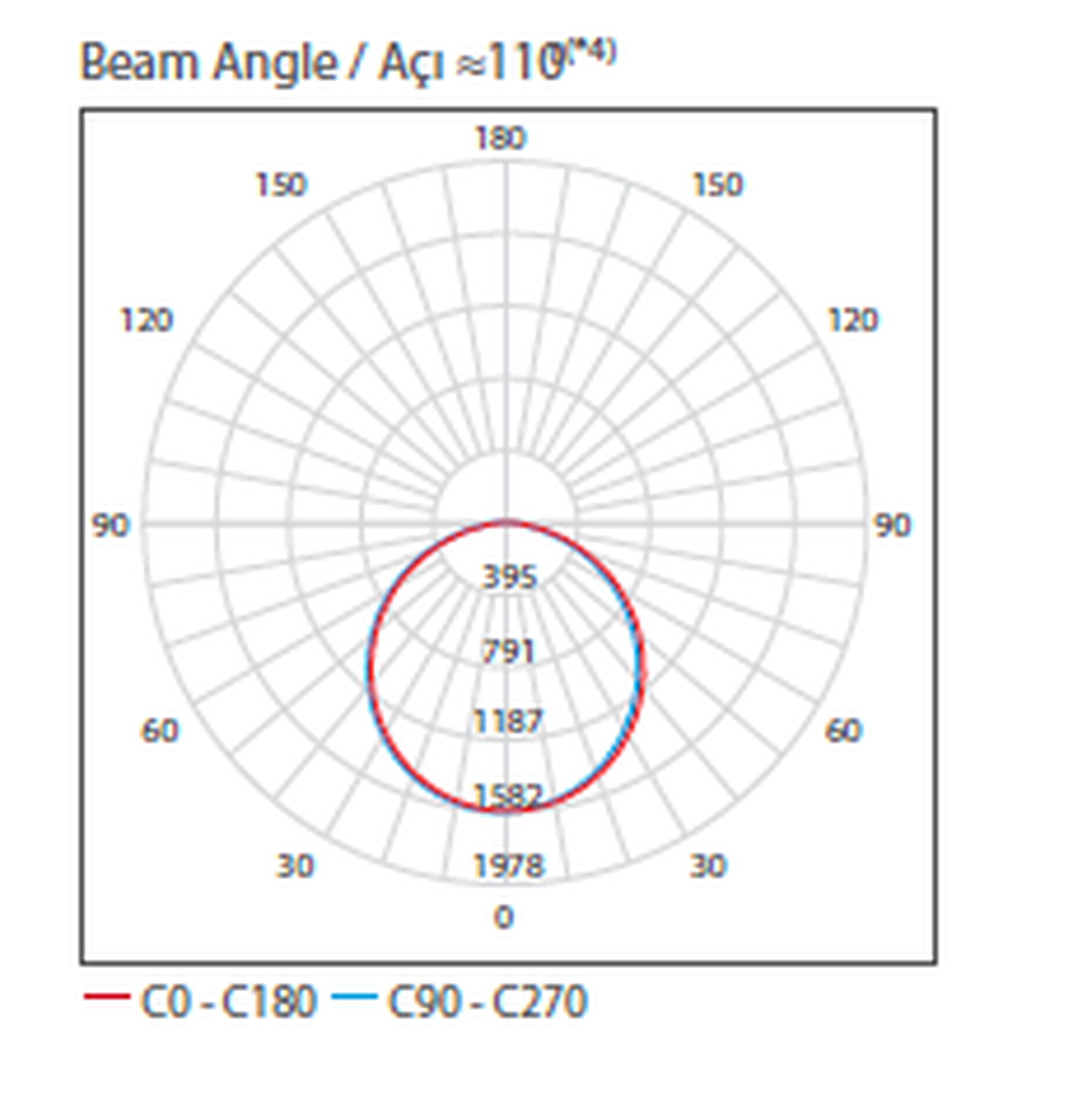

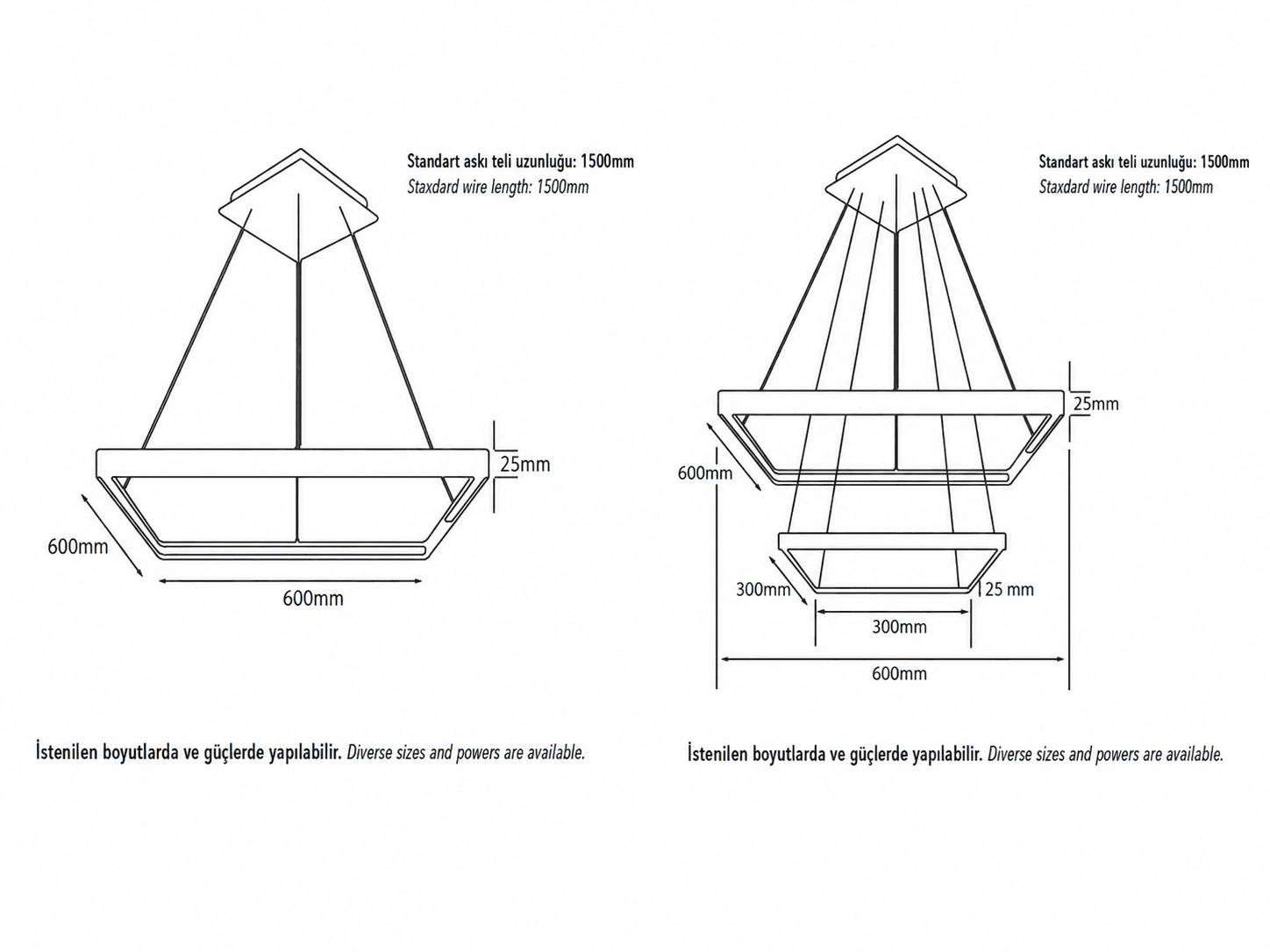

Prepared catalogue photometric and dimensional reference material.
Decorative general lighting for offices and shared workspaces.
Feature and general lighting for shops and customer areas.
Decorative illumination for learning and communal interiors.
Catalogue decorative forms for designed interior spaces.
Decorative general lighting for offices and shared workspaces.
Discuss the single- or double-ring configuration with our technical team.
Talk to Our Technical Team
