Performance
Published Power12–200 W
VK-QTPO Output15,696–21,000 lm
E100SQBL Output1,320 lm
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.

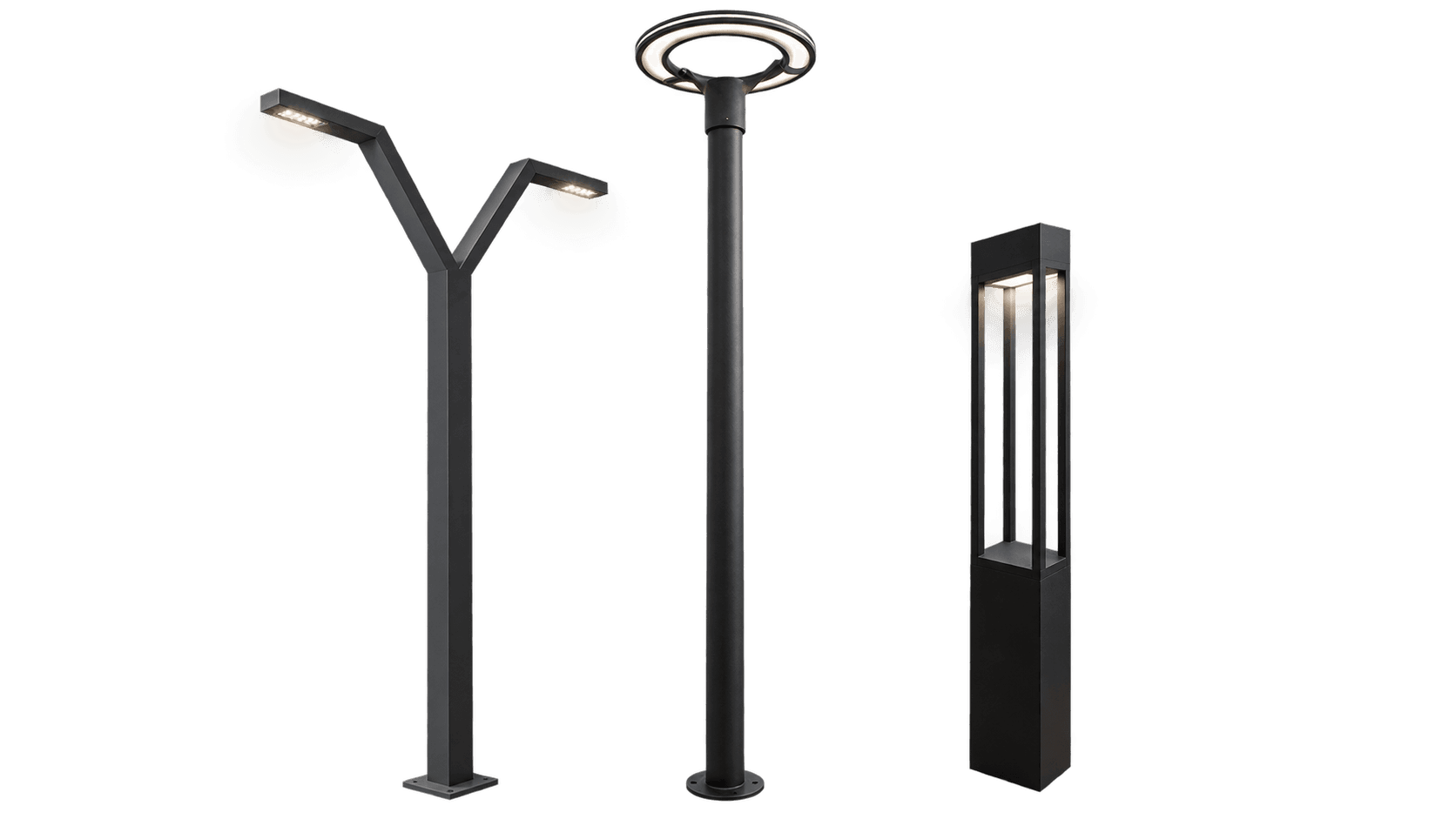

GER-LED7043 · VK-QTPO · E100SQBL
Decorative Lighting
Architectural park and landscape pole systems with exact catalogue codes and family-specific schedules.
Complete exact product schedule from catalogue PDF pages 109–110.
| Configuration | Model / Catalogue Code | Power | Luminous Flux | Voltage | Frequency | Operating Temp. | Efficiency | CRI | CCT | Dimensions | IP | Enquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GER-LED7043 | GER-LED7043-1 | 40 W | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 300 cm height | IP65 | |||||
| GER-LED7043 | GER-LED7043-2 | 60 W | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 400 cm height | IP65 | |||||
| GER-LED7043 | GER-LED7043-3 | 75 W | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 500 cm height | IP65 | |||||
| VK-QTPO | LDB-VK-QTPO144 | 144 W | 15,696 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 109+ lm/W | >80 | 3000–6500 K | IP65 | ||
| VK-QTPO | LDB-VK-QTPO200 | 200 W | 21,000 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 105+ lm/W | >80 | 3000–6500 K | IP65 | ||
| E100SQBL | LDB-VK-E100SQBL7512 | 12 W | 1,320 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 110+ lm/W | 80+ | 3000–6500 K | 750 mm | IP65 | |
| E100SQBL | LDB-VK-E100SQBL9512 | 12 W | 1,320 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 110+ lm/W | 80+ | 3000–6500 K | 950 mm | IP65 |
The GER-LED7043 source publishes 300, 400 and 500 as pole heights (cm), not luminous-flux values.
The page keeps three distinct catalogue product groups without inventing a shared order-code family.

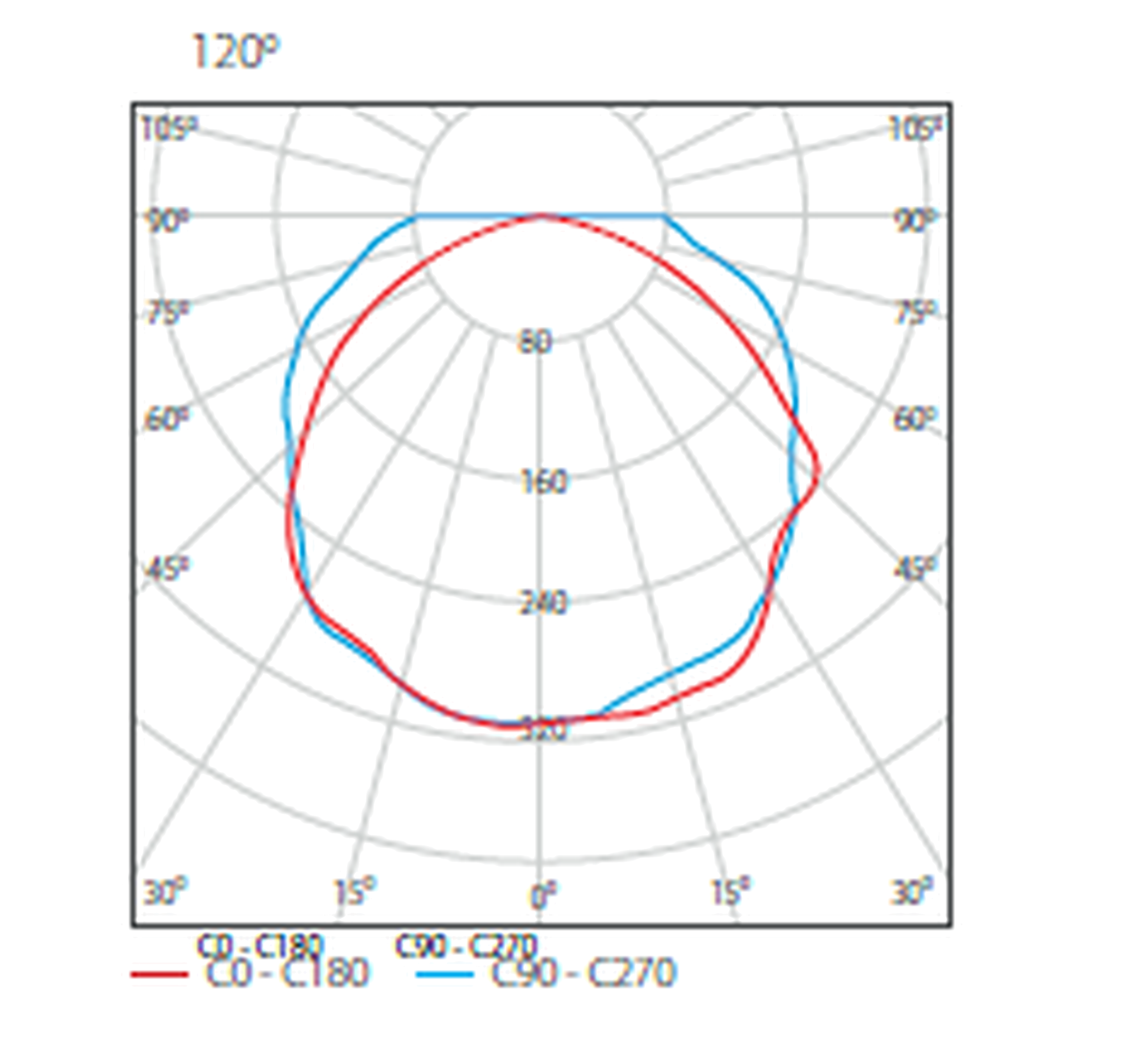

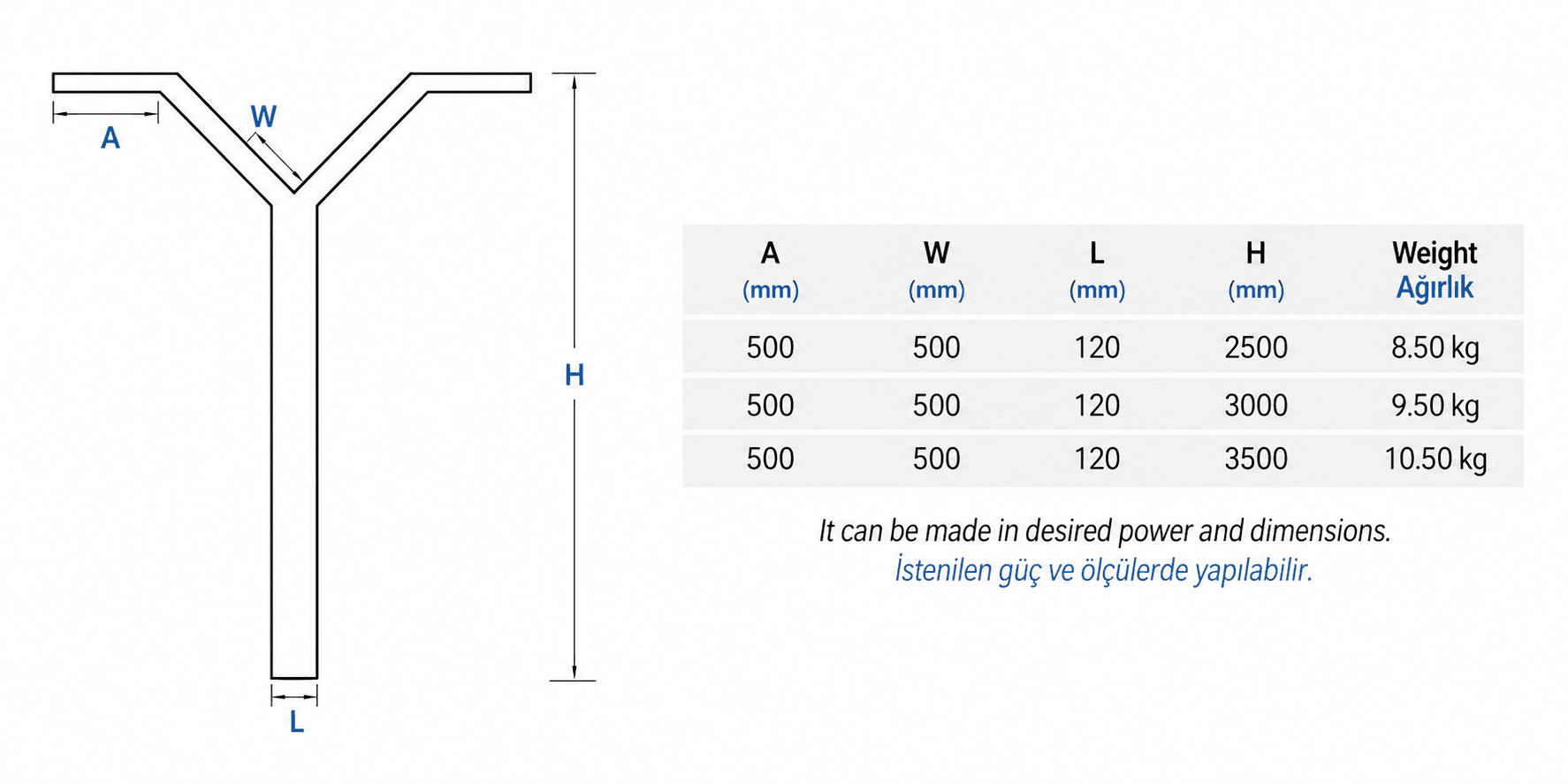

Prepared catalogue photometric and dimensional reference material for the VK-QTPO pole; GER-LED7043 and E100SQBL share this family route.

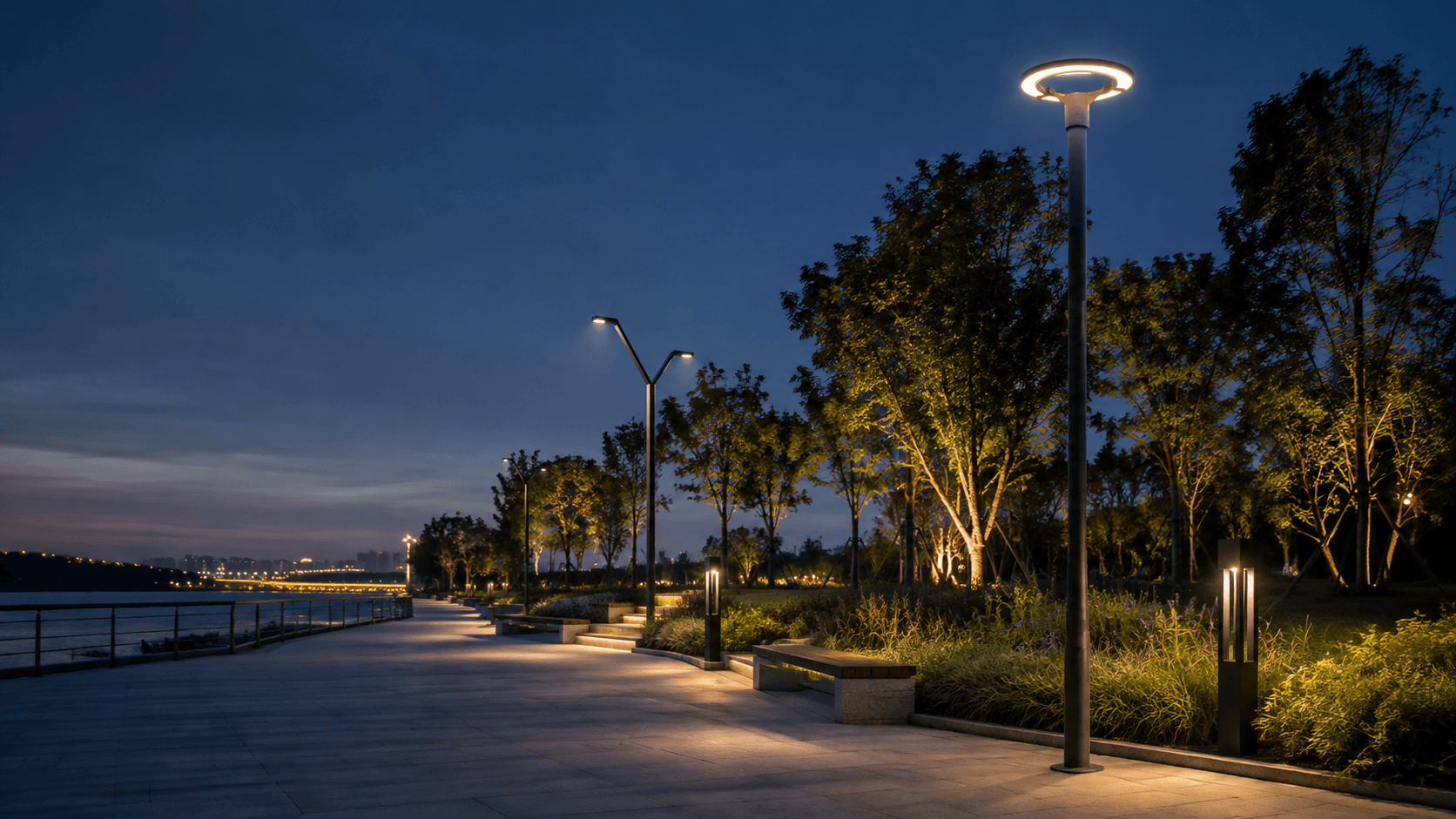

Decorative outdoor lighting for parks, gardens and planted areas.
Lighting for pedestrian routes and public circulation spaces.
Low-level or pole lighting for paths and sidewalks.
Decorative illumination around approaches and public areas.
Decorative outdoor lighting for parks, gardens and planted areas.
Discuss the pole family, height and project output requirement with our technical team.
Talk to Our Technical Team
