Performance
Catalogue Power27–120 W
Luminous Flux2,165–8,803 lm
Model Efficiency70+ to 80+ lm/W
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.
Single · Multiple · Orbit
Decorative Lighting

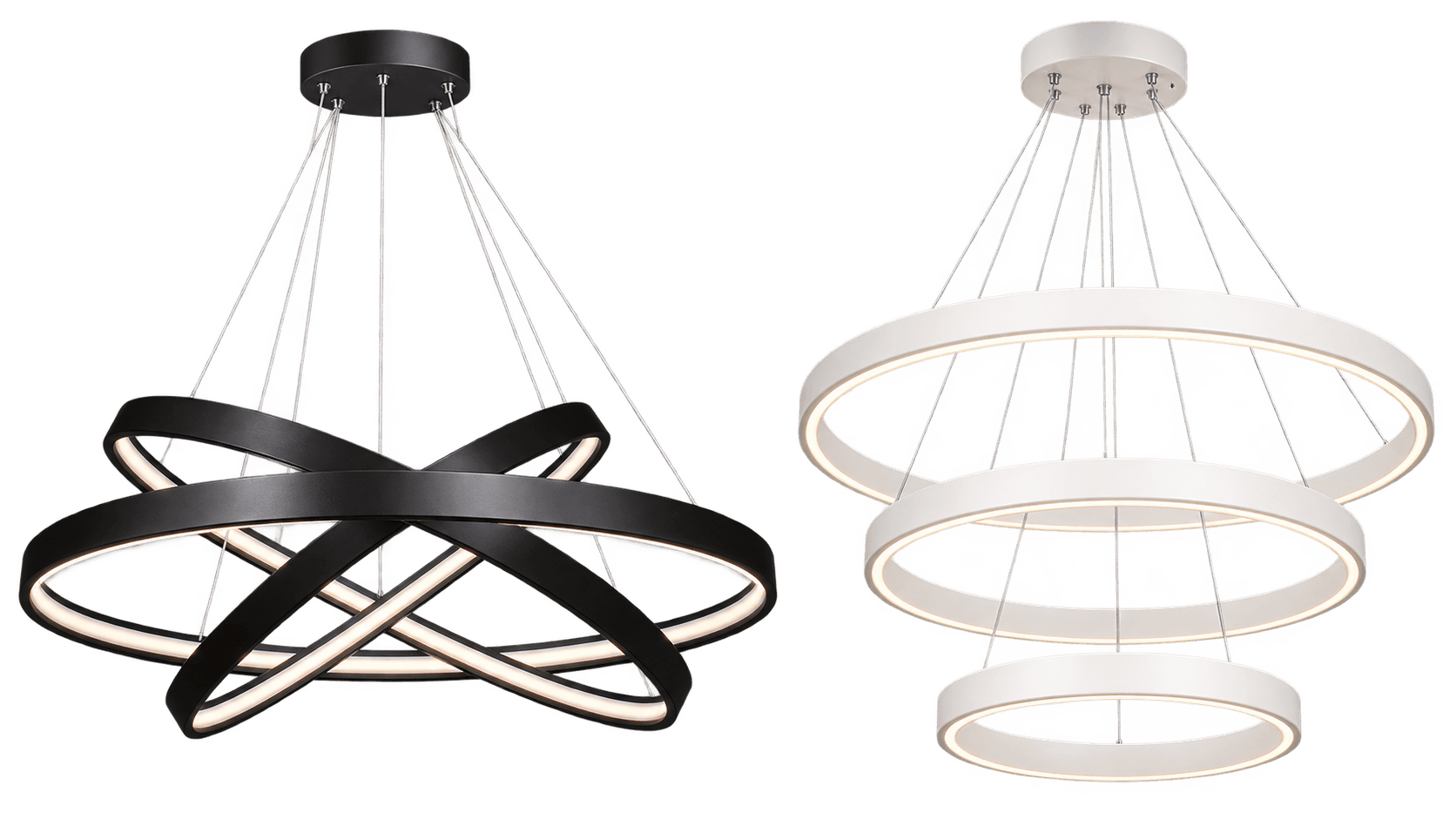

Suspended round-ring luminaires in single, three-ring and Orbit catalogue configurations.
All exact Round Ring configurations and catalogue rows from PDF pages 92–93.
| Model / Catalogue Code | Power | Luminous Flux | Voltage | Frequency | Operating Temp. | Efficiency | CRI | CCT | Dimensions | IP | Enquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ROUND 1 RING 25 | 27 W | 2,165 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 80+ lm/W | 80+ | Ø450 mm | IP40 | ||
| ROUND 1 RING 25 | 35 W | 2,806 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 80+ lm/W | 80+ | Ø600 mm | IP40 | ||
| ROUND 1 RING 25 | 45 W | 3,619 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 80+ lm/W | 80+ | Ø750 mm | IP40 | ||
| ROUND 3 RING 25 | 120 W | 8,803 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 73+ lm/W | 80+ | 2700–6500 K | Ø450 / 600 / 750 mm | IP40 | |
| ROUND 3 RING 25 (ORBIT) | 96 W | 6,728 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | 70+ lm/W | 80+ | 2700–6500 K | Ø750 mm | IP40 |
The family combines three genuine catalogue arrangements on one series page.
Options shown are catalogue-listed project configurations and are not standard on every model.

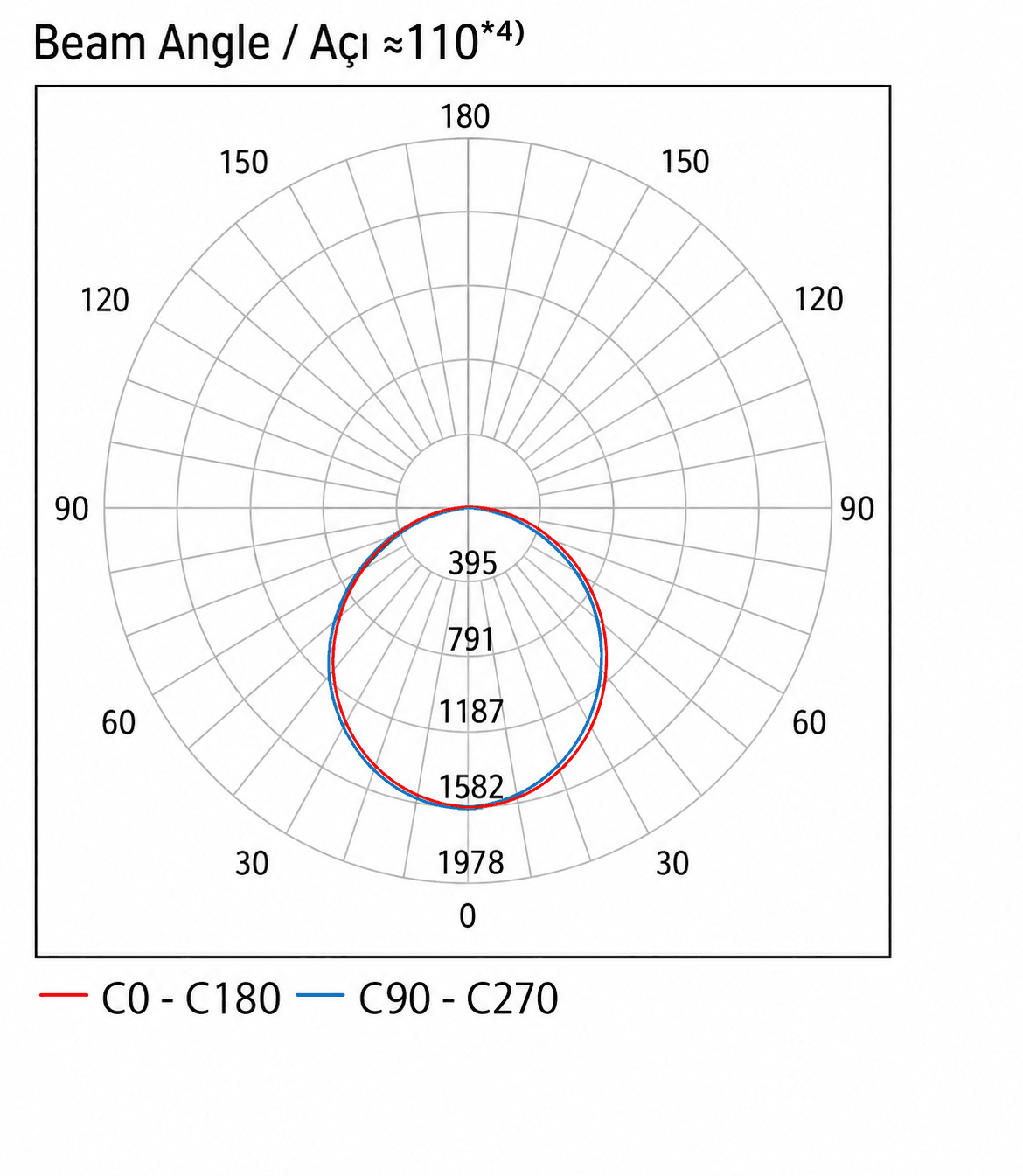

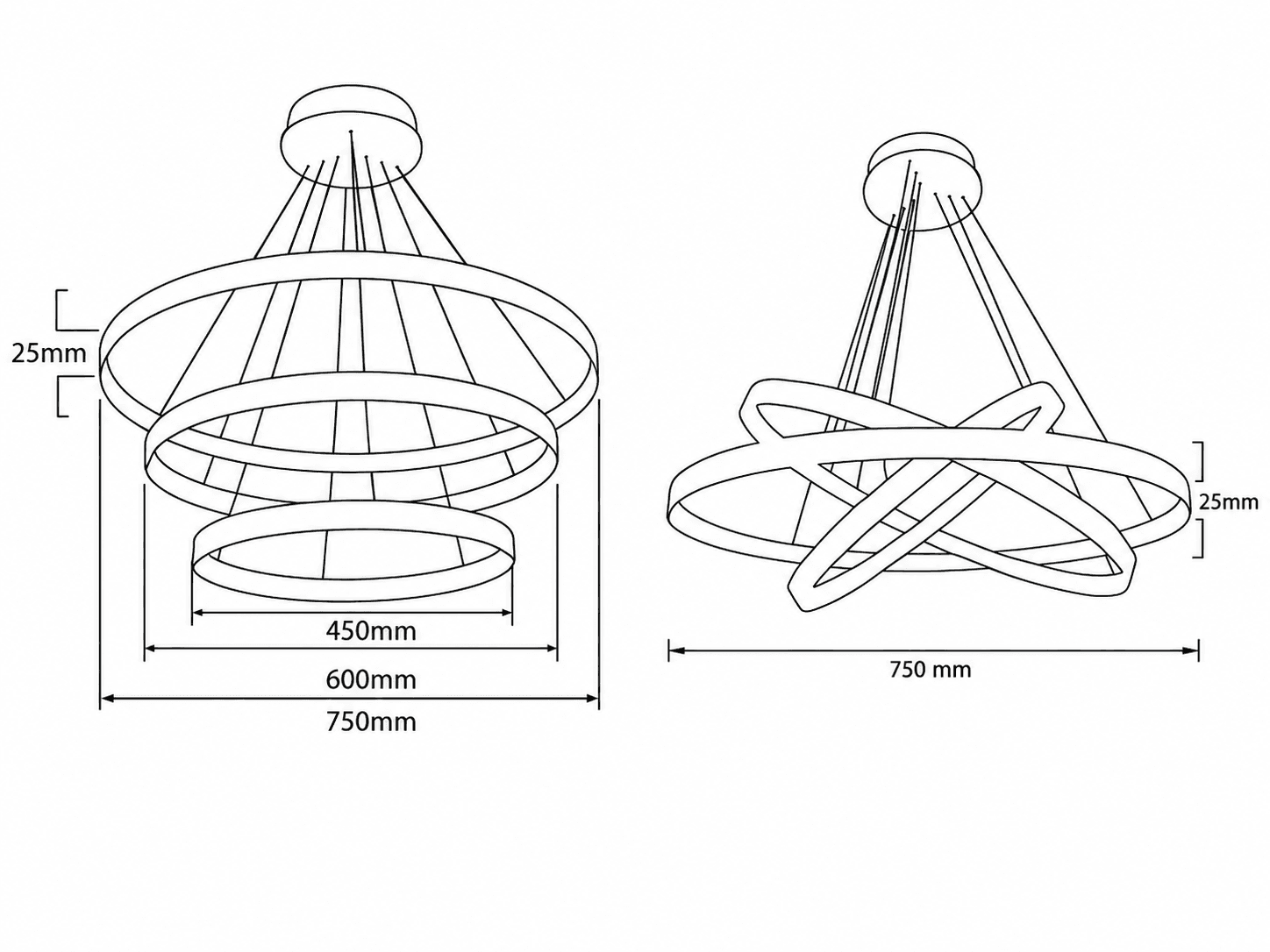

Prepared catalogue photometric and dimensional reference material.
Decorative general lighting for offices and shared workspaces.
Feature and general lighting for shops and customer areas.
Decorative illumination for learning and communal interiors.
Catalogue decorative forms for designed interior spaces.
Decorative general lighting for offices and shared workspaces.
Discuss the required ring arrangement, output and control option with our technical team.
Talk to Our Technical Team
