Performance
Power5–18 W
Luminous Flux550–1,980 lm
Efficiency>110 to >120 lm/W by model
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.
BON · DEU · BRC

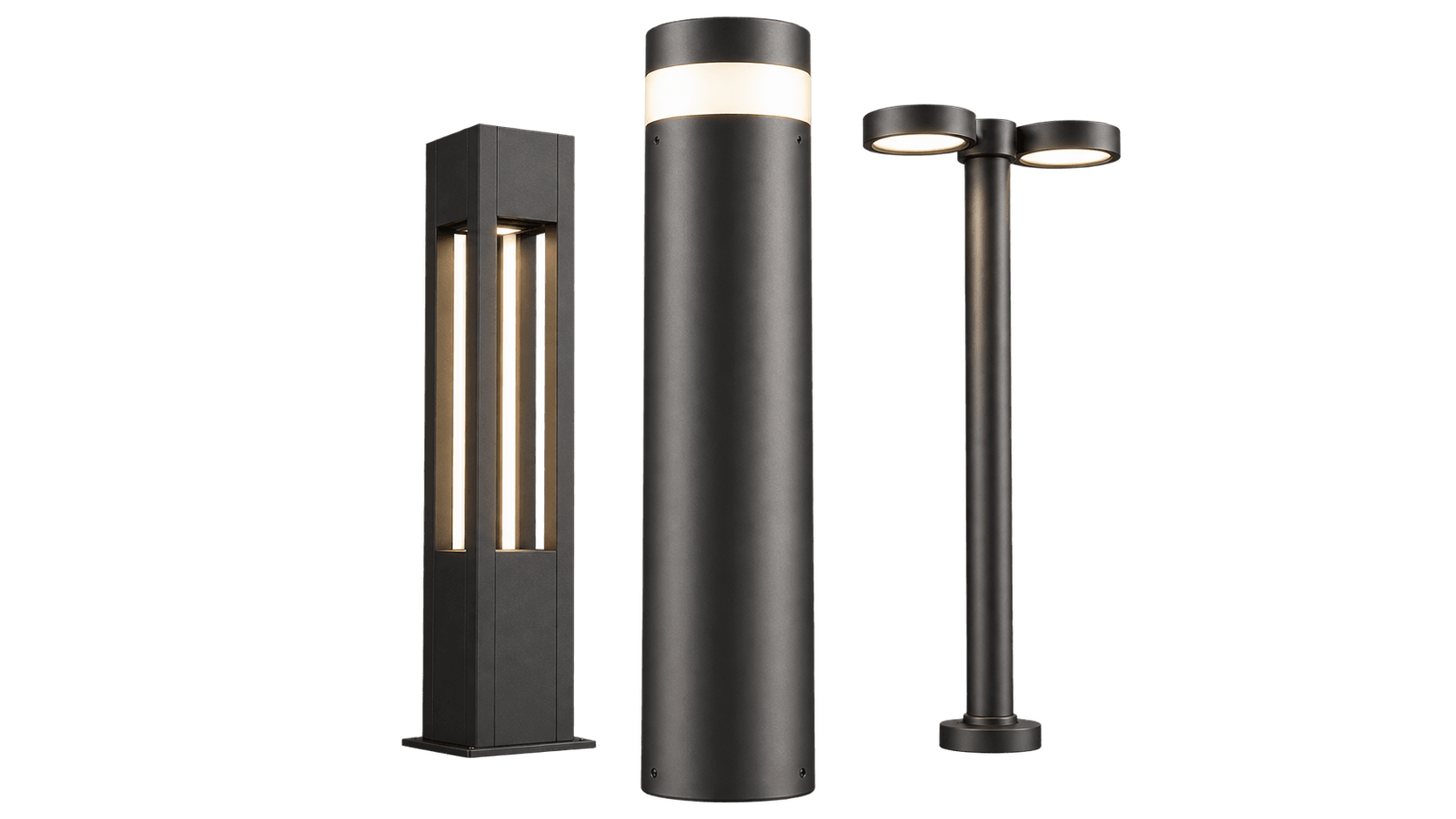

Decorative Lighting
Outdoor decorative bollards for paths, entrances and landscape areas with family-specific catalogue protection data.
Complete exact BON, DEU and BRC catalogue schedule from PDF pages 101–102.
| Configuration | Model / Catalogue Code | Power | Luminous Flux | Voltage | Frequency | Operating Temp. | Efficiency | CRI | CCT | Dimensions | IP | Enquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BON | LDB-BON.05.03 | 5 W | 550 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | Ø120 × 1000 mm | IP66 | |
| BON | LDB-BON.09.03 | 9 W | 990 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | Ø120 × 1000 mm | IP66 | |
| BON | LDB-BON.12.03 | 12 W | 1,320 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | Ø120 × 1000 mm | IP66 | |
| DEU | LDB-DEU.05.03 | 5 W | 600 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | >120 lm/W | >80 | 3000–6500 K | 120 × 1000 mm | IP65 | |
| DEU | LDB-DEU.07.03 | 7 W | 840 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | >120 lm/W | >80 | 3000–6500 K | 120 × 1000 mm | IP65 | |
| DEU | LDB-DEU.09.03 | 9 W | 1,000 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | >111 lm/W | >80 | 3000–6500 K | 120 × 1000 mm | IP65 | |
| BRC | LDB-BRC.10.03 | 12 W | 1,320 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | 150 × 150 × 1000 mm | IP65 | |
| BRC | LDB-BRC.18.03 | 18 W | 1,980 lm | 220–240 Vac | 50–60 Hz | −20 to +35 °C | >110 lm/W | >80 | 3000–6500 K | 150 × 150 × 1000 mm | IP65 |
LDB-BRC.10.03 is preserved with its published 12 W value; power is not inferred from the code suffix.

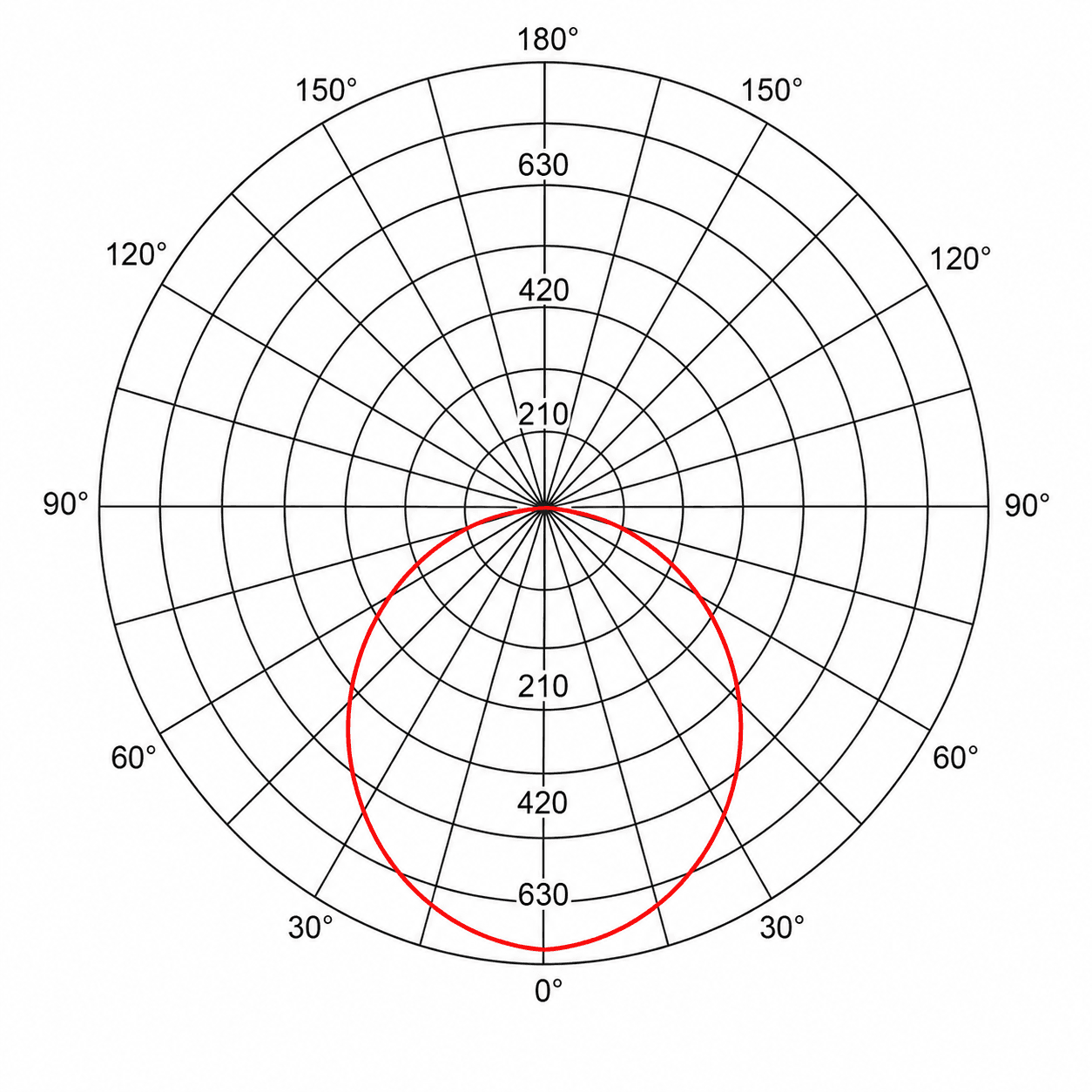

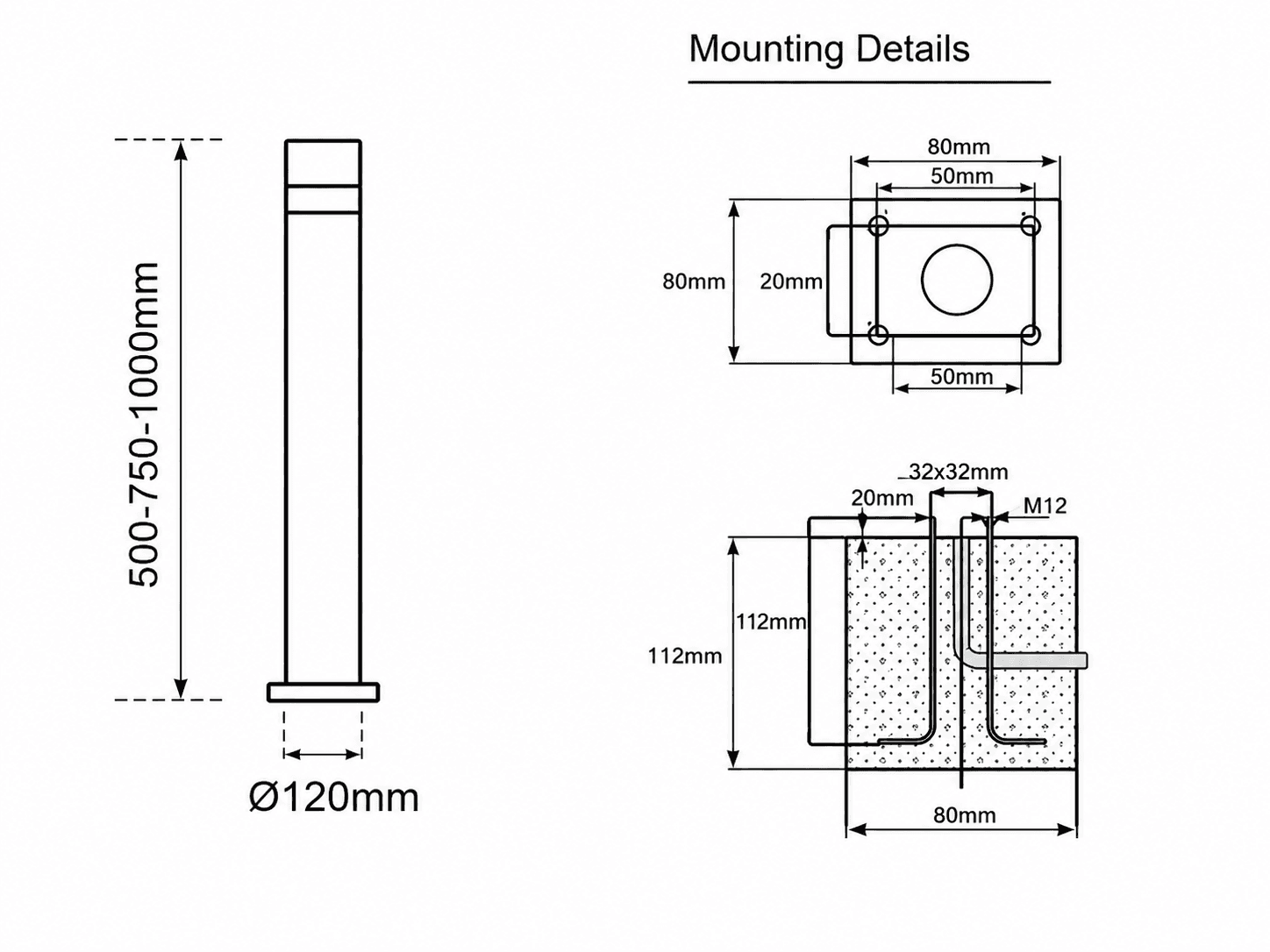

Prepared catalogue photometric and dimensional reference material for the BON bollard; DEU and BRC share this family route.
Decorative outdoor lighting for parks, gardens and planted areas.

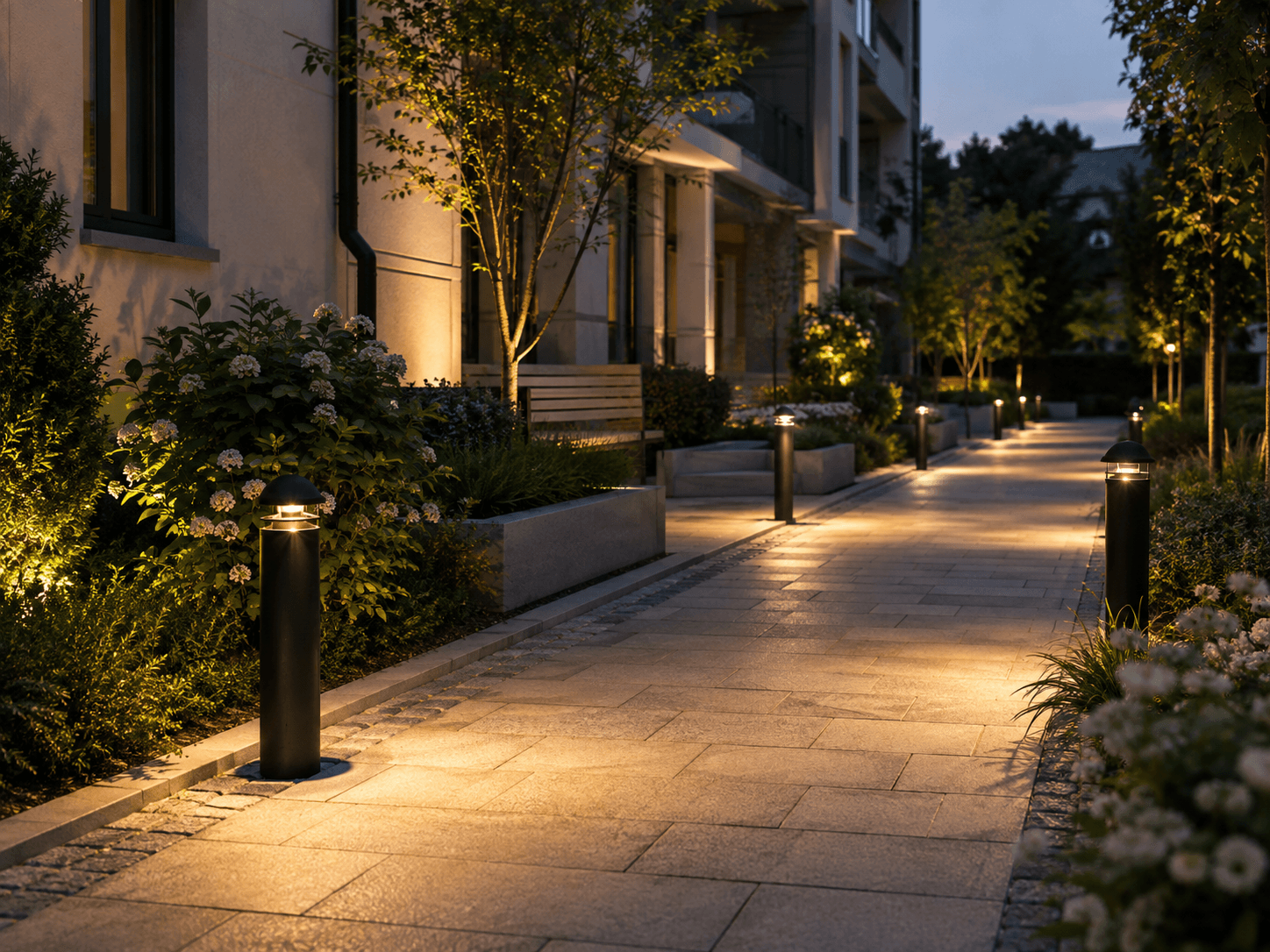

Lighting for pedestrian routes and public circulation spaces.
Low-level or pole lighting for paths and sidewalks.

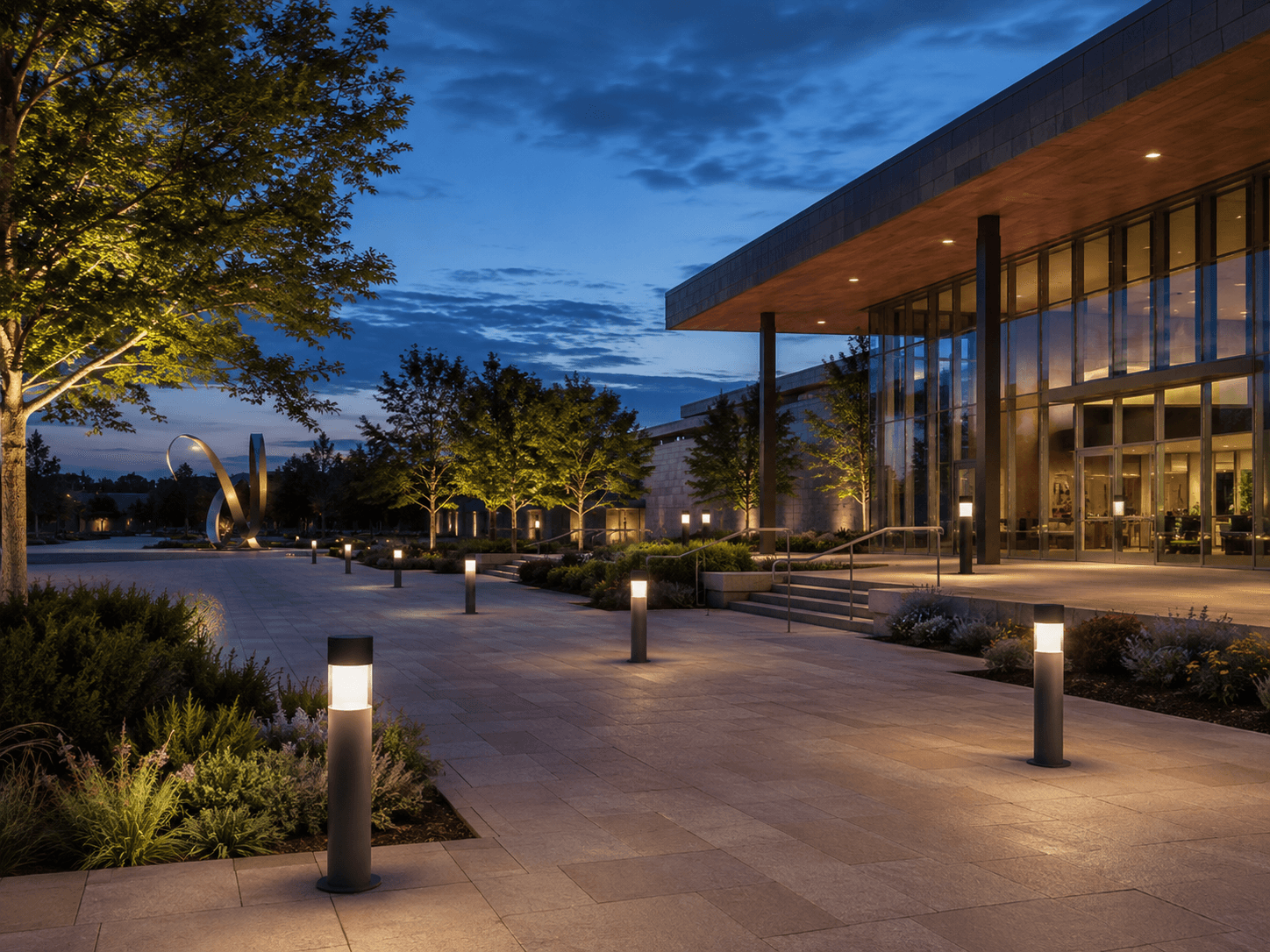

Decorative illumination around approaches and public areas.

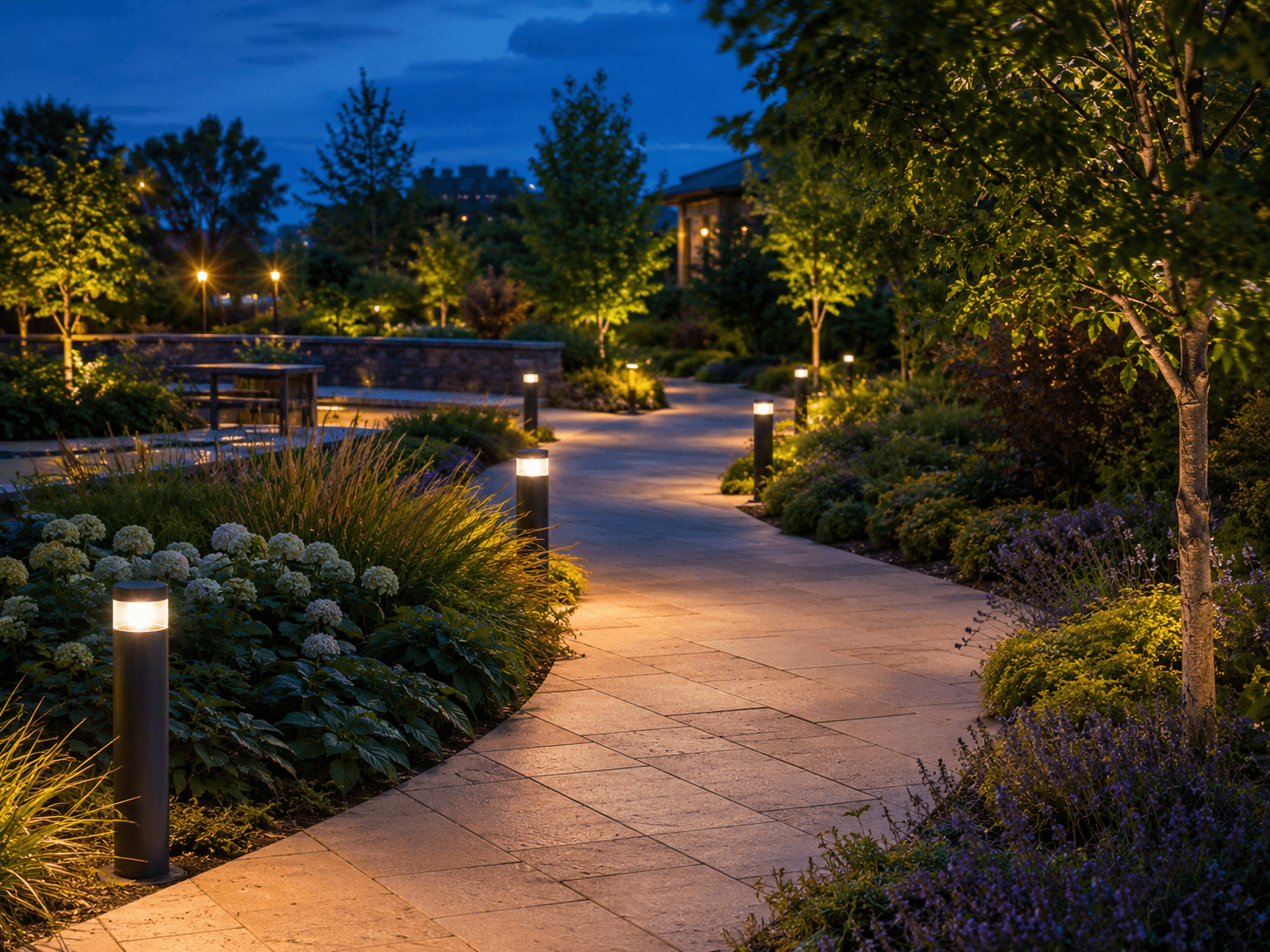

Decorative outdoor lighting for parks, gardens and planted areas.
Discuss the BON, DEU or BRC family and required project output with our technical team.
Talk to Our Technical Team
