Cable Management Systems

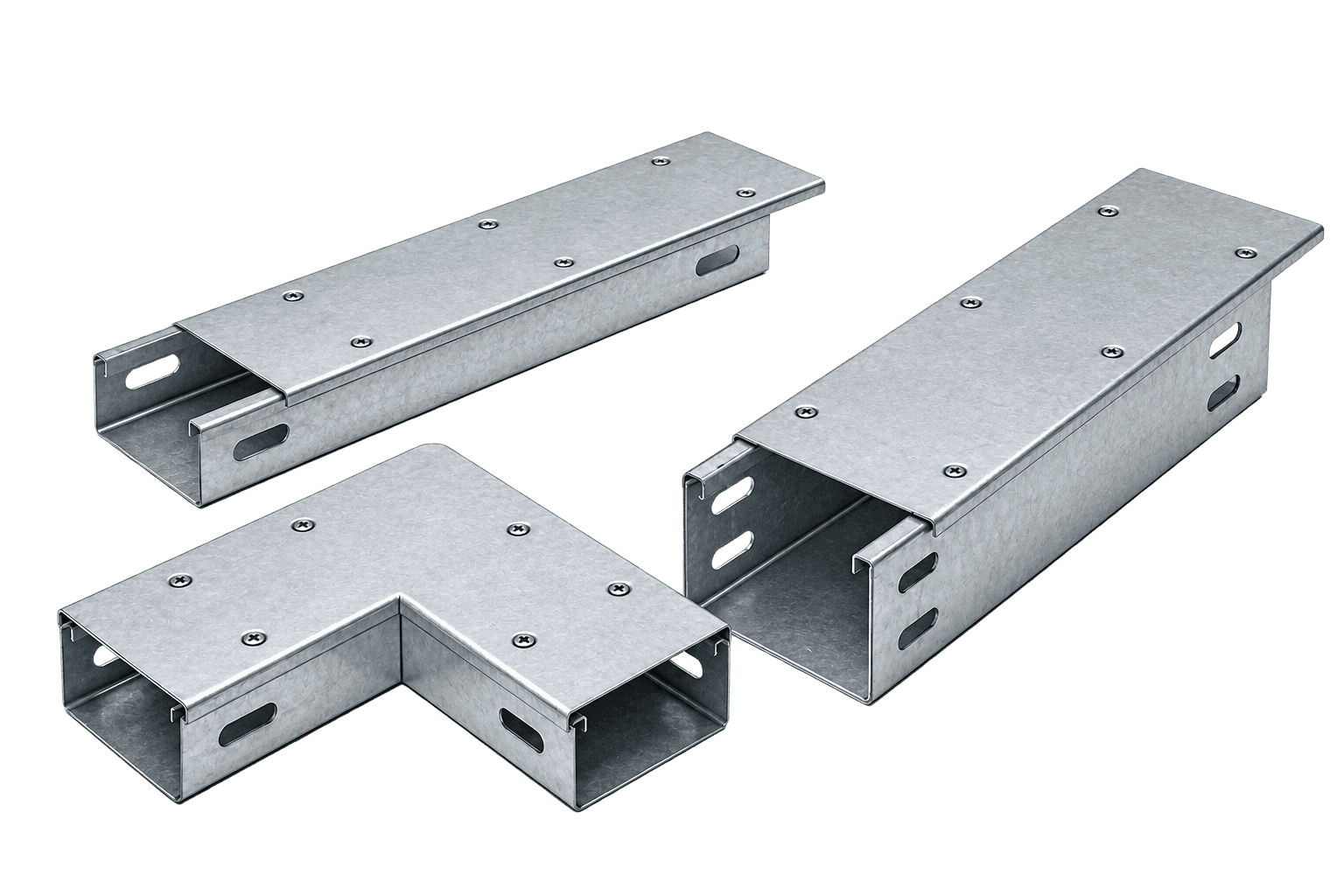

Quick-fix pregalvanized cable trunking for fast, tool-light installation, in h=50 to h=150 mm edge heights, with a full range of bends, tees, crossings, end caps and jointing pieces in the same system.
Every model, stock code, dimension and weight below is drawn directly from the Gersan Cable Support catalogue.
| Model | Stock Code | Width (mm) | Height (mm) | Thickness (mm) | Material / Finish | Action |
|---|---|---|---|---|---|---|
| GTKK - 5 PGQuick Fix Pregalvanized Cable Trunking (h=50) | 1020005018220 | 50 | 50 | 1 | Aluminium | |
| GTKK - 10 PGQuick Fix Pregalvanized Cable Trunking (h=50) | 1020010018220 | 100 | 50 | 1 | Aluminium | |
| GTKK - 15 PGQuick Fix Pregalvanized Cable Trunking (h=50) | 1020015018220 | 150 | 50 | 1 | Aluminium | |
| GTKK - 20 PGQuick Fix Pregalvanized Cable Trunking (h=50) | 1020020018220 | 200 | 50 | 1 | Aluminium | |
| GDTKK - 5 PG90° Bend Elements Quick Fix Pregalvanized Cable Trunking (h=50) | 1645005018220 | 50 | 50 | 1 | Aluminium | |
| GDTKK - 10 PG90° Bend Elements Quick Fix Pregalvanized Cable Trunking (h=50) | 1645010018220 | 100 | 50 | 1 | Aluminium | |
| GDTKK - 15 PG90° Bend Elements Quick Fix Pregalvanized Cable Trunking (h=50) | 1645015018220 | 150 | 50 | 1 | Aluminium | |
| PG GDTKK - 20 PG90° Bend Elements Quick Fix Pregalvanized Cable Trunking (h=50) | 1645020018220 | 200 | 50 | 1 | Aluminium | |
| GDTKK-5 45 PG90° Bend Elements Quick Fix Pregalvanized Cable Trunking (h=50) | 1936005018220 | 50 | 50 | 1 | Aluminium | |
| GDTKK-10-45 PG90° Bend Elements Quick Fix Pregalvanized Cable Trunking (h=50) | 1936010018220 | 100 | 50 | 1 | Aluminium | |
| GDTKK-15-45 PG90° Bend Elements Quick Fix Pregalvanized Cable Trunking (h=50) | 1936015018220 | 150 | 50 | 1 | Aluminium | |
| GDTKK- 45 PG GDTKK-20-45 PG90° Bend Elements Quick Fix Pregalvanized Cable Trunking (h=50) | 1936020018220 | 200 | 50 | 1 | Aluminium | |
| GTTKK-5 PGTee "T" Elements Quick Fix Pregalvanized Cable Trunking (h=50) | 1727005018220 | 50 | 50 | 1 | Aluminium | |
| GTTKK-10 PGTee "T" Elements Quick Fix Pregalvanized Cable Trunking (h=50) | 1727010018220 | 100 | 50 | 1 | Aluminium | |
| GTTKK-15 PGTee "T" Elements Quick Fix Pregalvanized Cable Trunking (h=50) | 1727015018220 | 150 | 50 | 1 | Aluminium | |
| GTTKK- PG GTTKK-20 PGTee "T" Elements Quick Fix Pregalvanized Cable Trunking (h=50) | 1727020018220 | 200 | 50 | 1 | Aluminium | |
| GTDB-5 PGCrossing Elements Quick Fix Pregalvanized Cable Trunking (h=50mm) | 1825005018220 | 50 | 50 | 1 | Aluminium | |
| GTDB-10 PGCrossing Elements Quick Fix Pregalvanized Cable Trunking (h=50mm) | 1825010018220 | 100 | 50 | 1 | Aluminium | |
| GTDB-15 PGCrossing Elements Quick Fix Pregalvanized Cable Trunking (h=50mm) | 1825015018220 | 150 | 50 | 1 | Aluminium | |
| GTDB - PG GTDB-20 PGCrossing Elements Quick Fix Pregalvanized Cable Trunking (h=50mm) | 1825020018220 | 200 | 50 | 1 | Aluminium | |
| GTIB-5 PGInternal Bend Elements Quick Fix Pregalvanized Cable Trunking (H=50) | 1930005018220 | 50 | 50 | 1 | Aluminium | |
| GTIB-10 PGInternal Bend Elements Quick Fix Pregalvanized Cable Trunking (H=50) | 1930010018220 | 100 | 50 | 1 | Aluminium | |
| GTIB-15 PGInternal Bend Elements Quick Fix Pregalvanized Cable Trunking (H=50) | 1930015018220 | 150 | 50 | 1 | Aluminium | |
| GTIB-20 PGInternal Bend Elements Quick Fix Pregalvanized Cable Trunking (H=50) | 1930020018220 | 200 | 50 | 1 | Aluminium | |
| GTEB-5 PGEnternal Bend Elements Quick Fix Pregalvanized Cable Trunking (h=50 mm) | 1931005018220 | 50 | 50 | 1 | Aluminium | |
| GTEB-10 PGEnternal Bend Elements Quick Fix Pregalvanized Cable Trunking (h=50 mm) | 1931010018220 | 100 | 50 | 1 | Aluminium | |
| GTEB-15 PGEnternal Bend Elements Quick Fix Pregalvanized Cable Trunking (h=50 mm) | 1931015018220 | 150 | 50 | 1 | Aluminium | |
| GTEB-20 PGEnternal Bend Elements Quick Fix Pregalvanized Cable Trunking (h=50 mm) | 1931020018220 | 200 | 50 | 1 | Aluminium | |
| GTEB-5-45 PG45° Enternal Bend Elements Quick Fix Pregalvanized Cable Trunking (H=50) | 1936005018220 | 50 | 50 | 1 | Aluminium | |
| GTEB-10-45 PG45° Enternal Bend Elements Quick Fix Pregalvanized Cable Trunking (H=50) | 1936010018220 | 100 | 50 | 1 | Aluminium | |
| GTEB-15-45 PG45° Enternal Bend Elements Quick Fix Pregalvanized Cable Trunking (H=50) | 1936015018220 | 150 | 50 | 1 | Aluminium | |
| - 45 PG GTEB-20-45 PG45° Enternal Bend Elements Quick Fix Pregalvanized Cable Trunking (H=50) | 1936020018220 | 200 | 50 | 1 | Aluminium | |
| GTSE-5 PGEnd Cap Elements For Quick Fix Pregalvanized Cable Trunking | 1307005018220 | 45 | 45 | 1.5 | Aluminium | |
| GTSE-10 PGEnd Cap Elements For Quick Fix Pregalvanized Cable Trunking | 1307010018220 | 95 | 45 | 1.5 | Aluminium | |
| GTSE-15 PGEnd Cap Elements For Quick Fix Pregalvanized Cable Trunking | 1307015018220 | 145 | 45 | 1.5 | Aluminium | |
| GTSE-20 PGEnd Cap Elements For Quick Fix Pregalvanized Cable Trunking | 1307020018220 | 195 | 45 | 1.5 | Aluminium | |
| GTEP-5 PGJointing Pieces For Quick Fix Pregalvanized Cable Trunking | 1308005028220 | 45 | 45 | 1.5 | Aluminium | |
| GTEP-10 PGJointing Pieces For Quick Fix Pregalvanized Cable Trunking | 1308010028220 | 95 | 45 | 1.5 | Aluminium | |
| GTEP-15 PGJointing Pieces For Quick Fix Pregalvanized Cable Trunking | 1308015028220 | 145 | 45 | 1.5 | Aluminium | |
| GTEP-20 PGJointing Pieces For Quick Fix Pregalvanized Cable Trunking | 1308020028220 | 195 | 45 | 1.5 | Aluminium | |
| GTGSR-50/50 PGReducer | 2009005028220 | 45 | 1.5 | — | Aluminium | |
| GTGSR-75/50 PG GTGSR-75/50 PGReducer | 2009007528220 | 70 | 1.5 | — | Aluminium | |
| GTGSR-100/50 PGReducer | 2009010028220 | 95 | 1.5 | — | Aluminium | |
| GTGSR-150/50 PGReducer | 2009015028220 | 145 | 1.5 | — | Aluminium | |
| GTGR-50/50 PGReducer | 2109005028220 | 45 | 1.5 | — | Aluminium | |
| GTGR-50/50 PG GTGR-75/50 PGReducer | 2109007528220 | 70 | 1.5 | — | Aluminium | |
| GTGR-100/50 PGReducer | 2109010028220 | 95 | 1.5 | — | Aluminium | |
| GTGR-150/50 PGReducer | 2109015028220 | 145 | 1.5 | — | Aluminium |
