Cable Management Systems

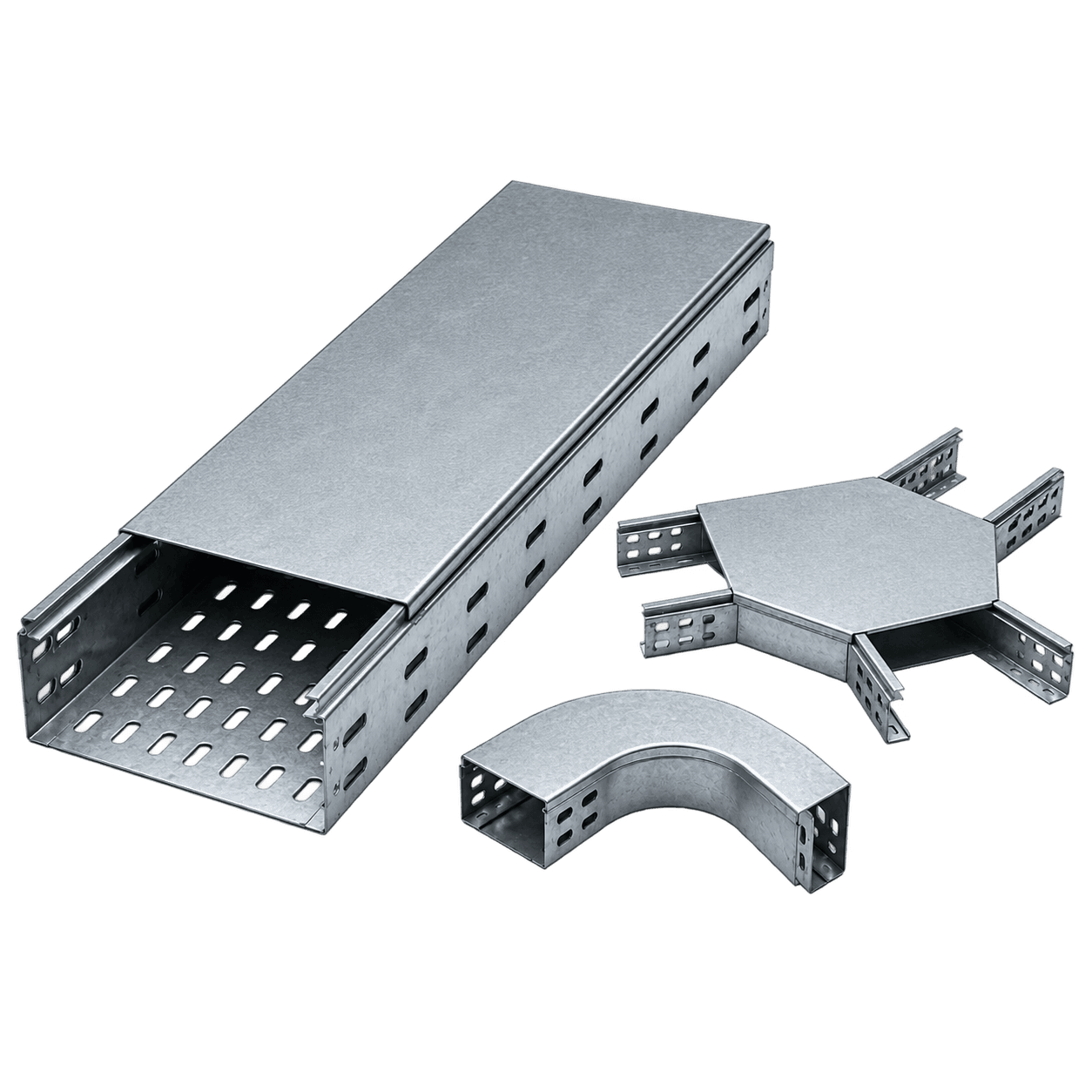

Press-fit clamping-lid cable trays for fast tool-free lid installation, in perforated and non-perforated straight lengths at h=100 mm, with bends, tees, crossings and vertical accessories available in h=60/70/100 mm compatible variants.
Every model, stock code, dimension and weight below is drawn directly from the Gersan Cable Support catalogue.
| Model | Stock Code | Width (mm) | Height (mm) | Thickness (mm) | Material / Finish | Action |
|---|---|---|---|---|---|---|
| GGKT-B10 DCable Tray With Clamping Lid | 1013010029140 | 100 | 100 | 1.5 | Aluminium | |
| GGKT-B20 DCable Tray With Clamping Lid | 1013020029140 | 200 | 100 | 1.5 | Aluminium | |
| GGKT-B30 DCable Tray With Clamping Lid | 1013030039140 | 300 | 100 | 2 | Aluminium | |
| GGKT-B40 DCable Tray With Clamping Lid | 1013040039140 | 400 | 100 | 2 | Aluminium | |
| GGKT-B50 DCable Tray With Clamping Lid | 1013050039140 | 500 | 100 | 2 | Aluminium | |
| GGKT-B60 DCable Tray With Clamping Lid | 1013060039140 | 600 | 100 | 2 | Aluminium | |
| GGKKT-B10 DCable Tray With Non Perforated Clamping Lid | 1013D10029140 | 100 | 100 | 1.5 | Aluminium | |
| GGKKT-B20 DCable Tray With Non Perforated Clamping Lid | 1013D20029140 | 200 | 100 | 1.5 | Aluminium | |
| GGKKT-B30 DCable Tray With Non Perforated Clamping Lid | 1013D30039140 | 300 | 100 | 2 | Aluminium | |
| GGKKT-B40 DCable Tray With Non Perforated Clamping Lid | 1013D40039140 | 400 | 100 | 2 | Aluminium | |
| GGKKT-B50 DCable Tray With Non Perforated Clamping Lid | 1013D50039140 | 500 | 100 | 2 | Aluminium | |
| GGKKT-B60 DCable Tray With Non Perforated Clamping Lid | 1013D60039140 | 600 | 100 | 2 | Aluminium | |
| G1-4 D/80 DCable Tray With Clamping Lid | 1301G08539140 | 80 | 2 | — | Aluminium | |
| GGD-10 D90° With Clamping Flat Bend Lid | 1612010029140 | 104 | 60 | 1.5 | Aluminium | |
| GGD-20 D90° With Clamping Flat Bend Lid | 1612020029140 | 204 | 60 | 1.5 | Aluminium | |
| GGD-30 D90° With Clamping Flat Bend Lid | 1612030039140 | 304 | 60 | 2 | Aluminium | |
| GGD-40 D90° With Clamping Flat Bend Lid | 1612040039140 | 404 | 60 | 2 | Aluminium | |
| GGD-50 D90° With Clamping Flat Bend Lid | 1612050039140 | 504 | 60 | 2 | Aluminium | |
| GGD-60 D90° With Clamping Flat Bend Lid | 1612060039140 | 604 | 60 | 2 | Aluminium | |
| GGD-A10 D90° With Clamping Flat Bend Lid | 1613010039140 | 104 | 70 | 1.5 | Aluminium | |
| GGD-A20 D90° With Clamping Flat Bend Lid | 1613020029140 | 204 | 70 | 1.5 | Aluminium | |
| GGD-A30 D90° With Clamping Flat Bend Lid | 1613030039140 | 304 | 70 | 2 | Aluminium | |
| GGD-D GGD-A40 D90° With Clamping Flat Bend Lid | 1613040039140 | 404 | 70 | 2 | Aluminium | |
| GGD-A D GGD-A50 D90° With Clamping Flat Bend Lid | 1613050039140 | 504 | 70 | 2 | Aluminium | |
| GGD-A60 D90° With Clamping Flat Bend Lid | 1613060039140 | 604 | 70 | 2 | Aluminium | |
| GGD-B10 D90° With Clamping Flat Bend Lid | 1614010029140 | 104 | 100 | 1.5 | Aluminium | |
| GGD-B20 D90° With Clamping Flat Bend Lid | 1614020029140 | 204 | 100 | 1.5 | Aluminium | |
| GGD-B30 D90° With Clamping Flat Bend Lid | 1614030039140 | 304 | 100 | 2 | Aluminium | |
| GGD-B40 D90° With Clamping Flat Bend Lid | 1614040039140 | 404 | 100 | 2 | Aluminium | |
| GGD-B50 D90° With Clamping Flat Bend Lid | 1614050039140 | 504 | 100 | 2 | Aluminium | |
| GGD-B60 D90° With Clamping Flat Bend Lid | 1614060039140 | 604 | 100 | 2 | Aluminium | |
| GGT-10 DTee "T" With Clamping | 17070110029140 | 104 | 60 | 1.5 | Aluminium | |
| GGT-20 DTee "T" With Clamping | 17070120029140 | 204 | 60 | 1.5 | Aluminium | |
| GGT-30 DTee "T" With Clamping | 17070130039140 | 304 | 60 | 2 | Aluminium | |
| GGT-40 DTee "T" With Clamping | 17070140039140 | 404 | 60 | 2 | Aluminium | |
| GGT-50 DTee "T" With Clamping | 17070150039140 | 504 | 60 | 2 | Aluminium | |
| GGT-60 DTee "T" With Clamping | 17070160039140 | 604 | 60 | 2 | Aluminium | |
| GGT-A10 DTee "T" With Clamping | 1708010029140 | 104 | 70 | 1.5 | Aluminium | |
| GGT-A20 DTee "T" With Clamping | 1708020029140 | 204 | 70 | 1.5 | Aluminium | |
| GGT-A30 DTee "T" With Clamping | 1708030039140 | 304 | 70 | 2 | Aluminium | |
| GGT-D GGT-A40 DTee "T" With Clamping | 1708040039140 | 404 | 70 | 2 | Aluminium | |
| GGT-A D GGT-A50 DTee "T" With Clamping | 1708050039140 | 504 | 70 | 2 | Aluminium | |
| GGT-A60 DTee "T" With Clamping | 1708060039140 | 604 | 70 | 2 | Aluminium | |
| GGT-B10 DTee "T" With Clamping | 1709010029140 | 104 | 100 | 1.5 | Aluminium | |
| GGT-B20 DTee "T" With Clamping | 1709020029140 | 204 | 100 | 1.5 | Aluminium | |
| GGT-B30 DTee "T" With Clamping | 1709030039140 | 304 | 100 | 2 | Aluminium | |
| GGT-B40 DTee "T" With Clamping | 1709040039140 | 404 | 100 | 2 | Aluminium | |
| GGT-B50 DTee "T" With Clamping | 1709050039140 | 504 | 100 | 2 | Aluminium | |
| GGT-B60 DTee "T" With Clamping | 1709060039140 | 604 | 100 | 2 | Aluminium | |
| GGDB-10 DCrossing With Clamping Lid | 1807010029140 | 104 | 60 | 1.5 | Aluminium |
