Cable Management Systems

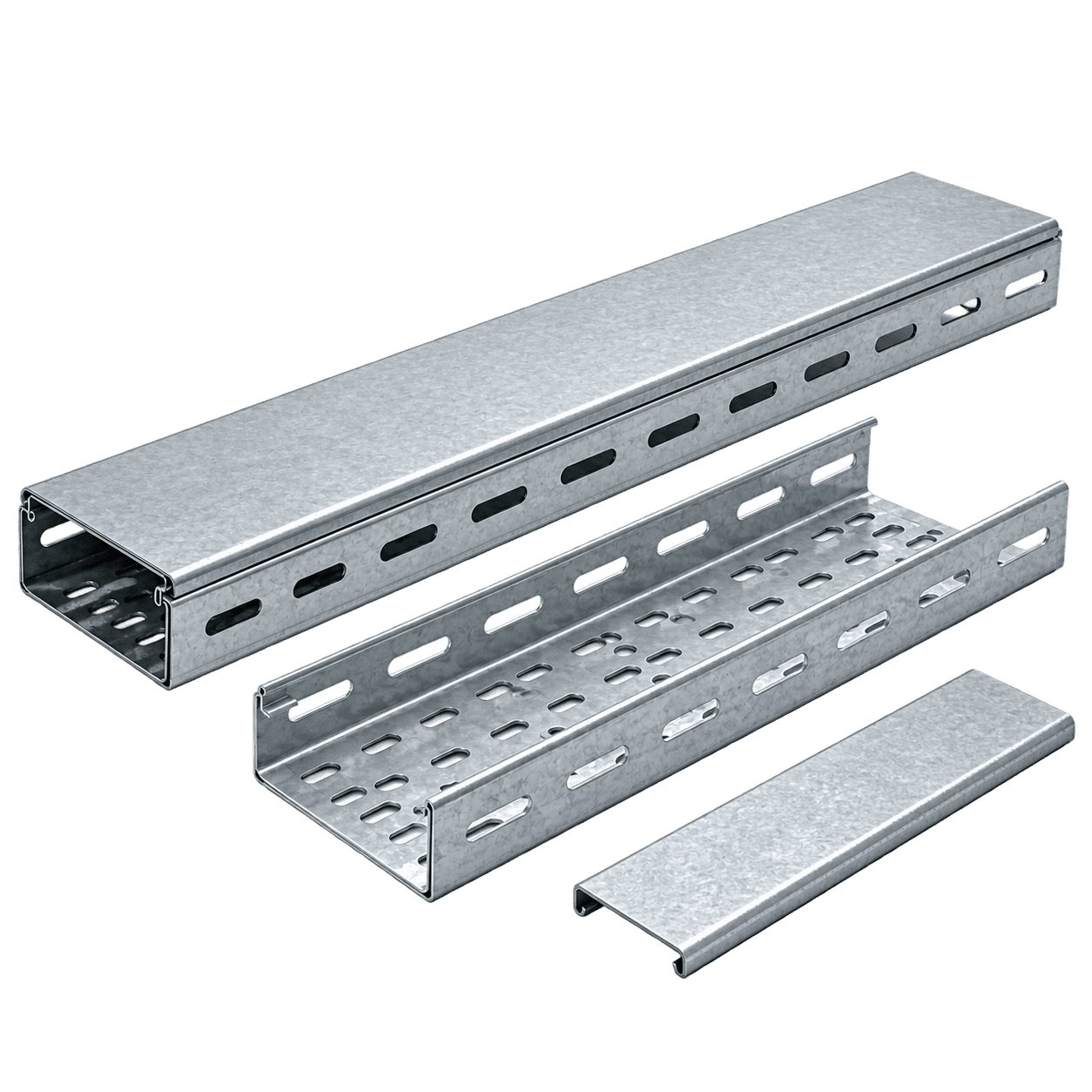

Two application-specific tray systems: low-profile Marine Type trays (h=15 mm) for shipboard and marine-environment routing, and Lighting Fixture Type trays (h=40–60 mm, 100 mm width) with threaded-rod mounting for suspended lighting installations.
Every model, stock code, dimension and weight below is drawn directly from the Gersan Cable Support catalogue.
| Model | Stock Code | Width (mm) | Height (mm) | Thickness (mm) | Material / Finish | Action |
|---|---|---|---|---|---|---|
| GGE-5 DMarine Type Cable Tray (h=15 mm) | 10040050119140 | 50 | 15 | 1 | Aluminium | |
| GGE-10 DMarine Type Cable Tray (h=15 mm) | 10040100119140 | 100 | 15 | 1 | Aluminium | |
| GGE-20 DMarine Type Cable Tray (h=15 mm) | 1004020019140 | 200 | 15 | 1 | Aluminium | |
| GGE-30 DMarine Type Cable Tray (h=15 mm) | 1004030029140 | 300 | 15 | 1.5 | Aluminium | |
| GGE-40 DMarine Type Cable Tray (h=15 mm) | 1004040029140 | 300 | 15 | 1.5 | Aluminium | |
| GGE-50 DMarine Type Cable Tray (h=15 mm) | 1004050029140 | 400 | 15 | 1.5 | Aluminium | |
| GGE-60 DMarine Type Cable Tray (h=15 mm) | 1004060029140 | 400 | 15 | 1.5 | Aluminium |
Standard-duty perforated cable trays for general power and control routing, plus the Strengthened line.
265 order codesHigh-load-capacity perforated and covered trays, H=40 to H=100 mm edge heights in one system.
682 order codesTray system with a clamp-fit cover for fully enclosed cable routing.
146 order codesQuick-fix pregalvanized trunking for fast, tool-light installation.
131 order codesMarine-rated and lighting-fixture-type trays for corrosive and coastal environments.
26 order codesLightweight aluminium tray system for corrosion-sensitive environments.
192 order codesOur technical team can support product selection, load requirements, installation coordination and project-specific configurations.
