Inspection Light
WavelengthUV 360 nm violet light
PurposeFabric and thread fault inspection
IlluminationUniform
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.
TEX-LED
Special & Hazardous Environment Lighting

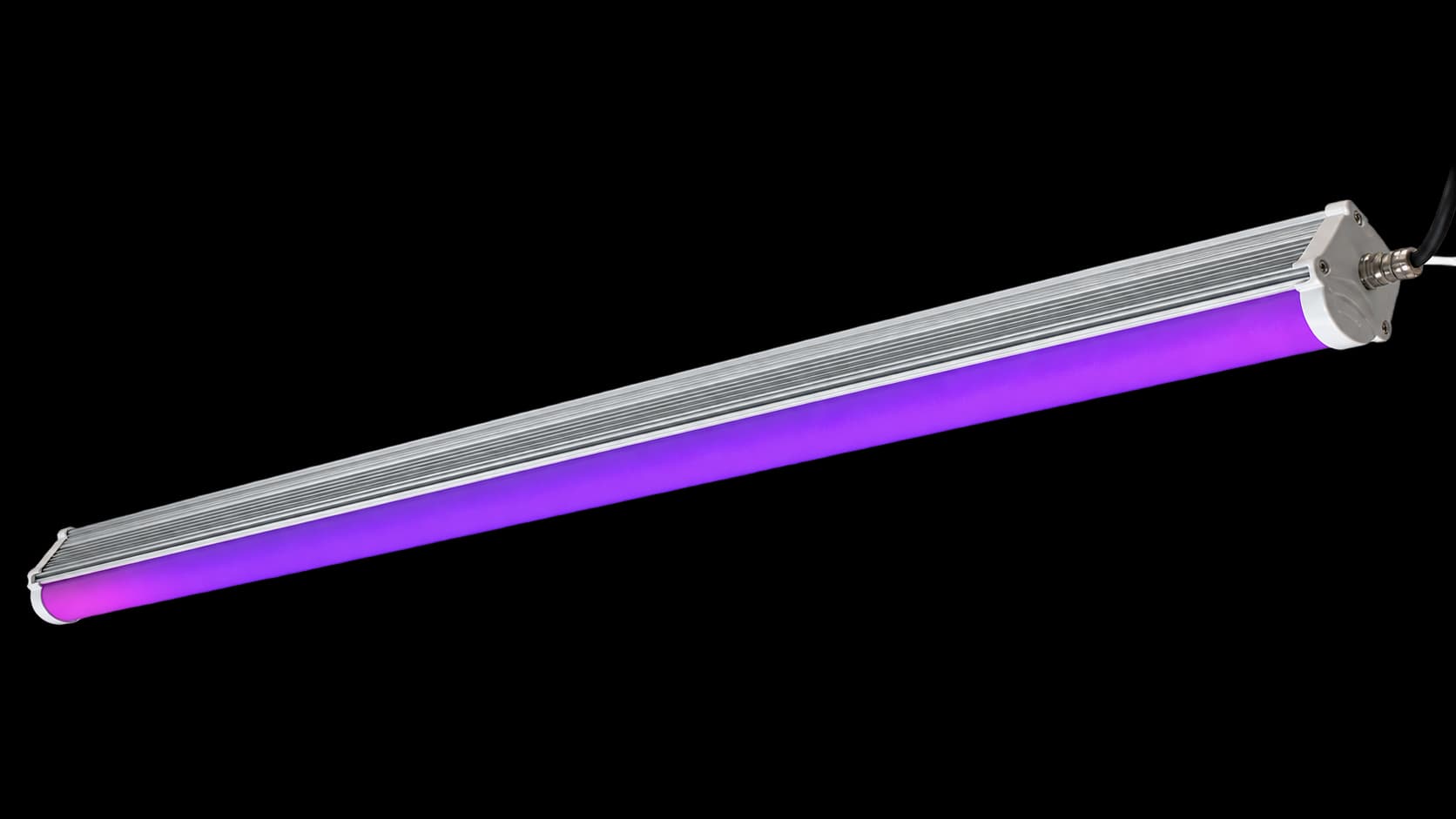

UV-based textile inspection lighting using catalogue-specified UV 360 nm violet light to identify fabric and thread faults.
Three exact TEX-LED catalogue models. Model suffixes and technical-table power values are kept separate.
| Model / Catalogue Code | Power | LED Qty | Voltage | Frequency | PF | Operating Temp. | Light | Length | IP | Weight | Enquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TEX-LED 3UV | 3 W | 3 | 100–240 Vac | 50–60 Hz | >0.95 | −30 to +60 °C | UV-360NM | 50 cm | IP66 | 3.0 kg | |
| TEX-LED 5UV | 5 W | 5 | 100–240 Vac | 50–60 Hz | >0.95 | −30 to +60 °C | UV-360NM | 50 cm | IP66 | 3.0 kg | |
| TEX-LED 10UV | 10 W | 10 | 100–240 Vac | 50–60 Hz | >0.95 | −30 to +60 °C | UV-360NM | 102 cm | IP66 | 3.0 kg |
TEX-LED is produced for checking faults in fabric and threads that may not be visible under normal light before the product progresses through manufacturing.

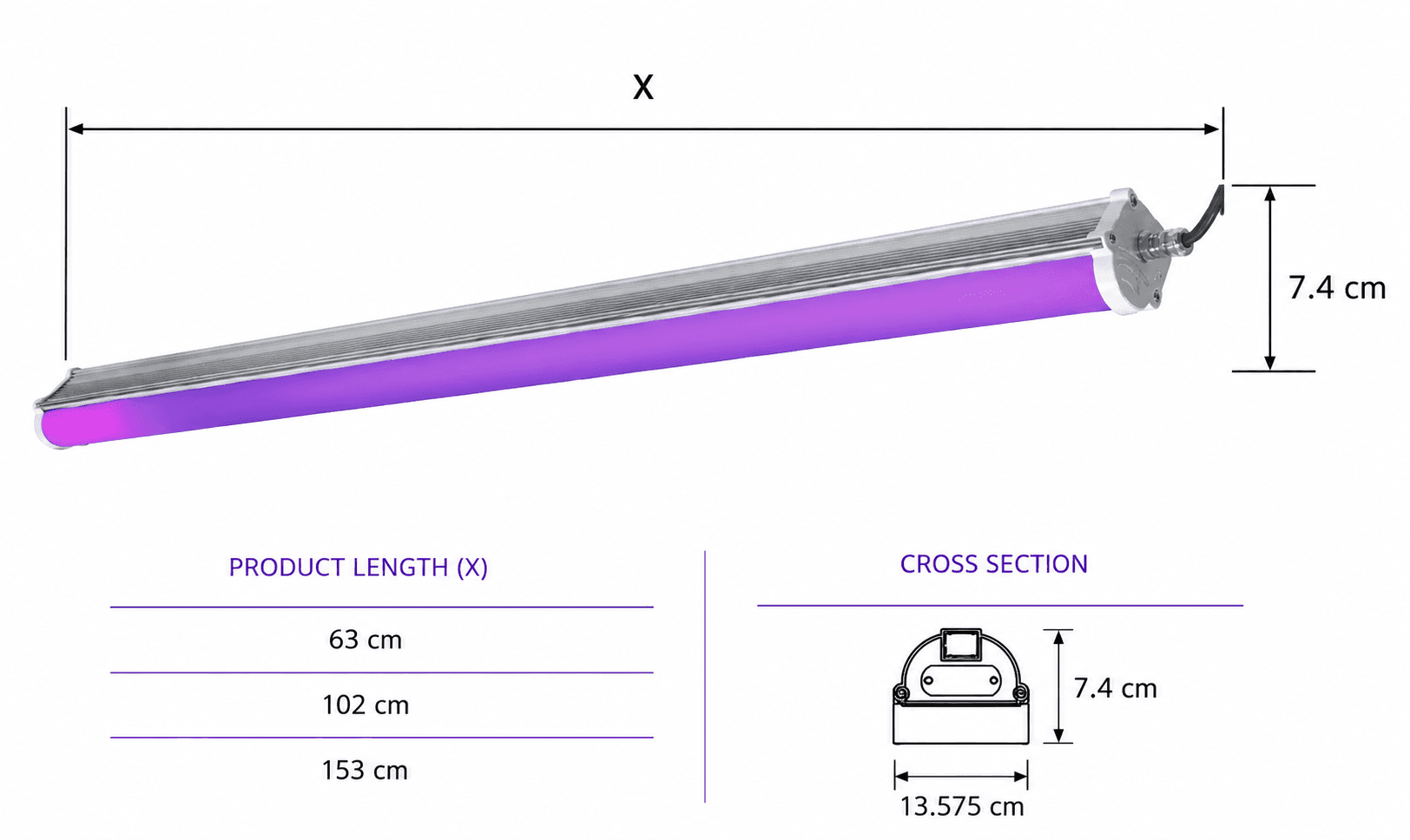

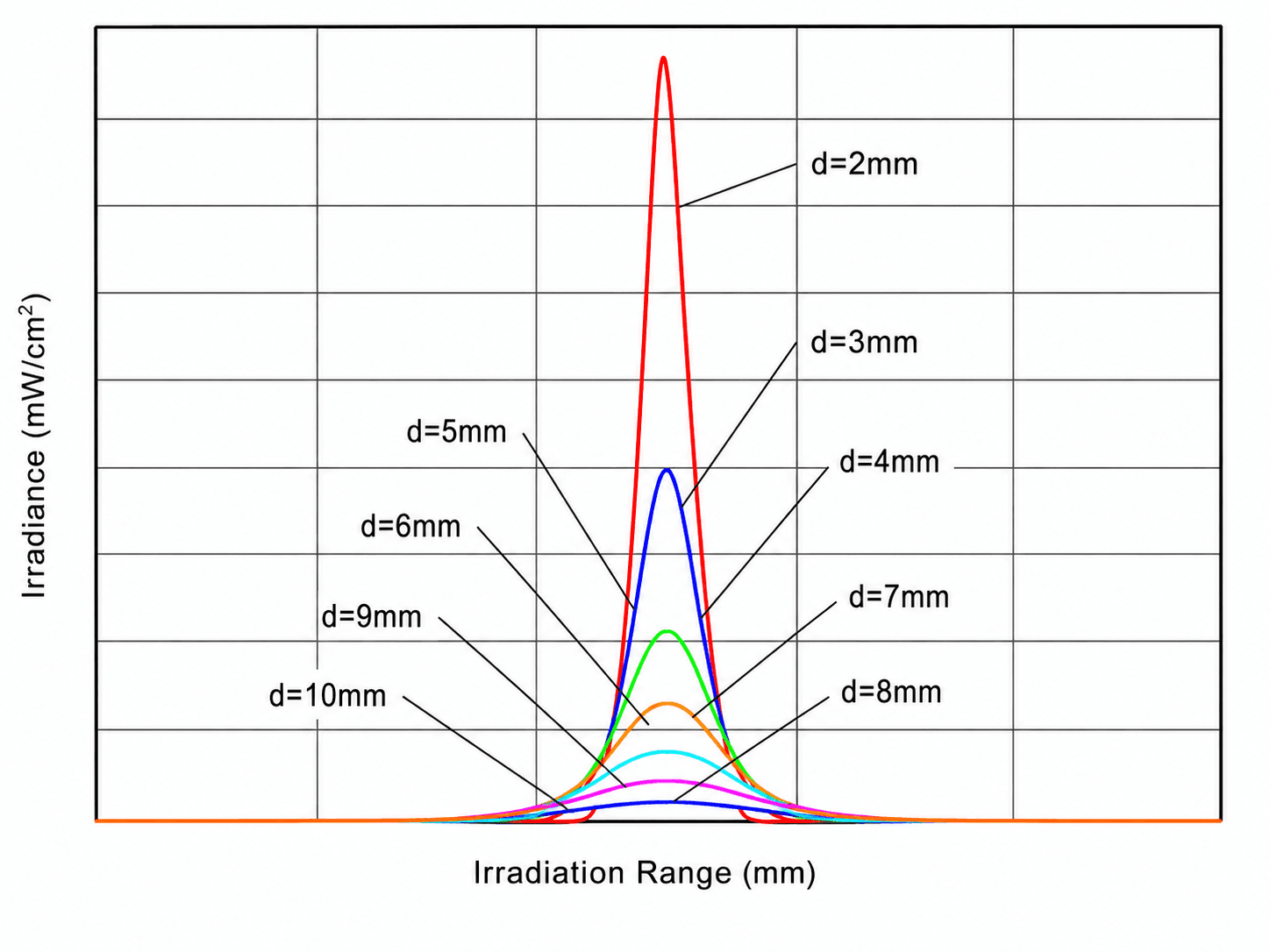

Technical assets extracted from the TEX-LED catalogue page.
Inspection for fabric faults under UV 360 nm violet light.
Inspection of thread faults not visible under normal light.
Quality checks before material progresses through manufacturing.

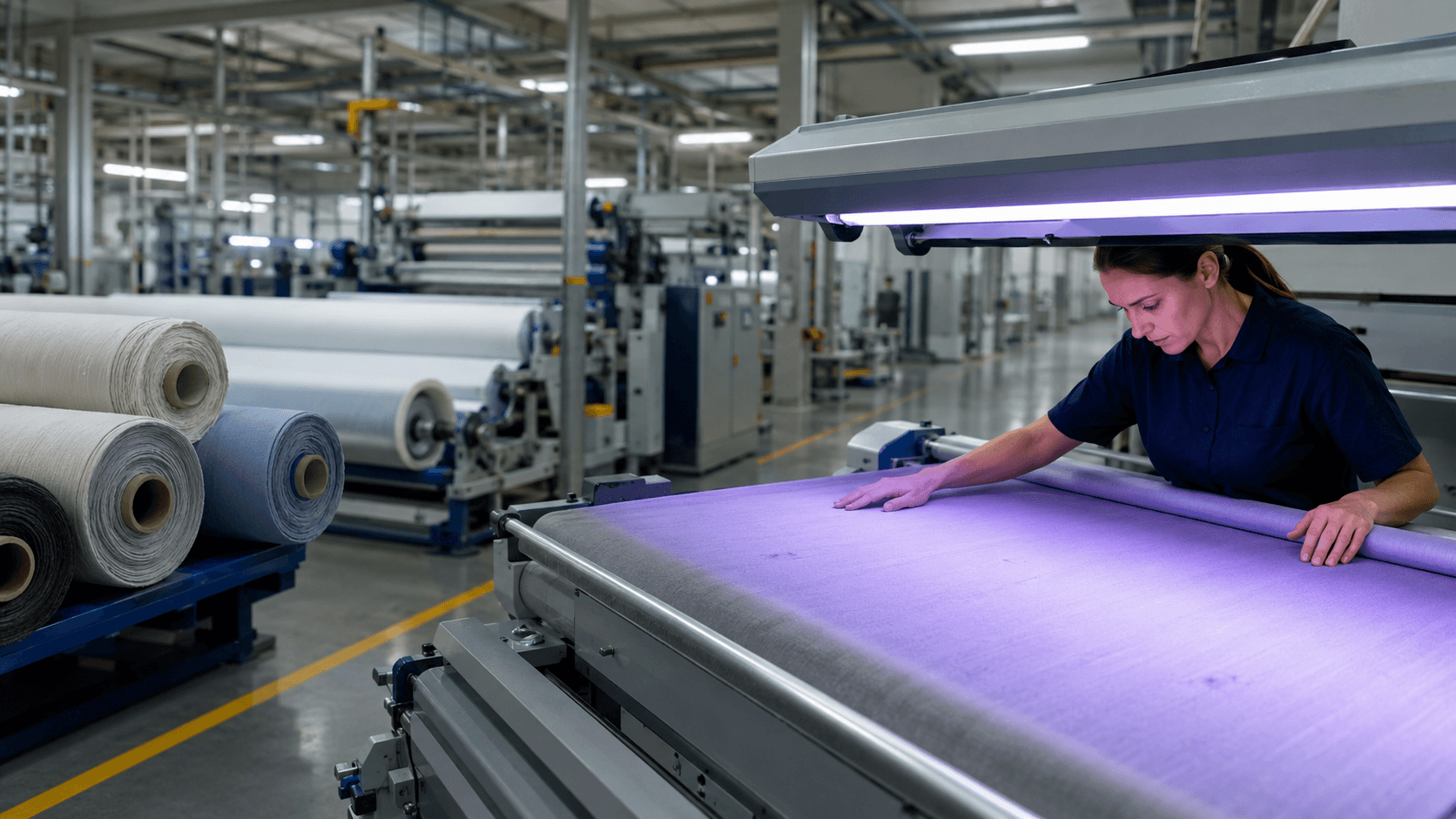

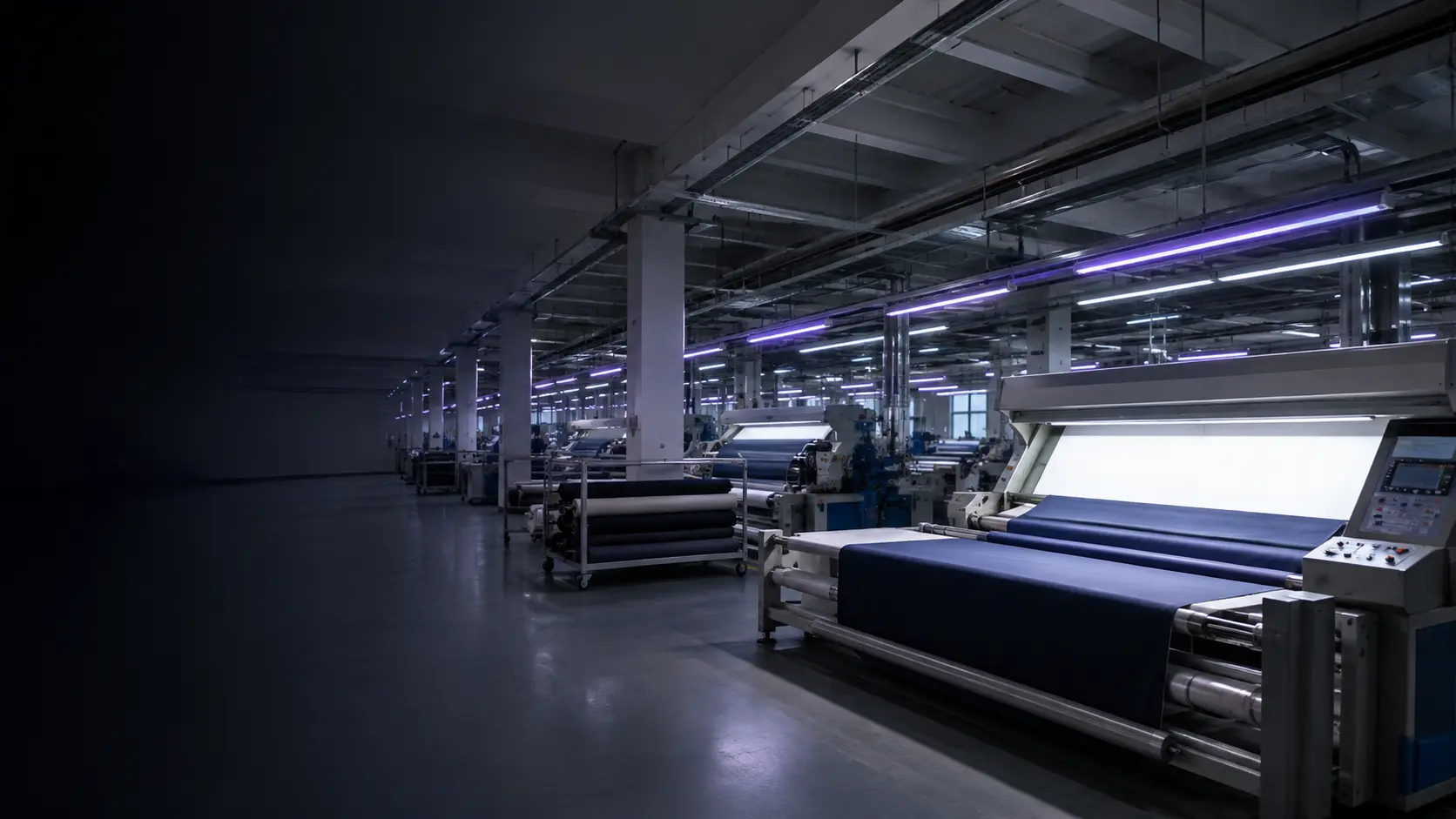

Dedicated fabric and thread inspection positions.
Inspection for fabric faults under UV 360 nm violet light.
Discuss the textile quality-control requirement with our technical team.
Talk to Our Technical Team
