AUTO-LED
Special & Hazardous Environment Lighting

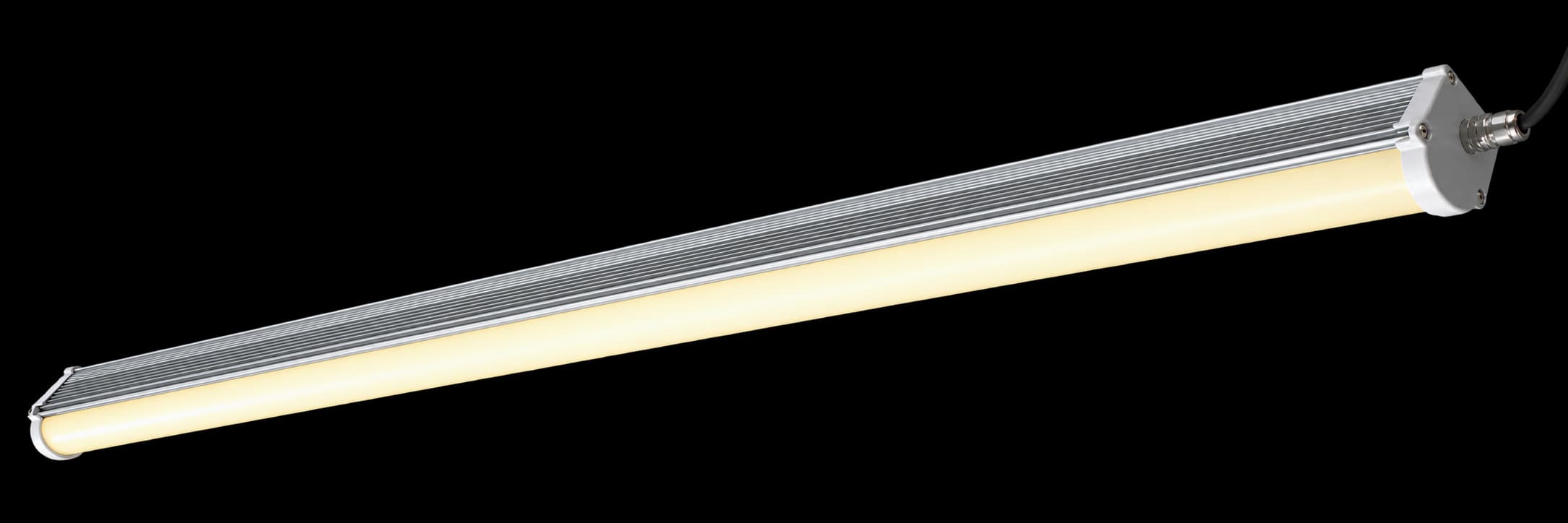

Controlled inspection lighting for automotive paint evaluation, colour matching and surface-quality control.
Three exact AUTO-LED catalogue models. Model suffixes and technical-table power values are kept separate.
| Model / Catalogue Code | Power | LED Qty | Voltage | Frequency | PF | Operating Temp. | Light | Length | IP | Weight | Enquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AUTO-LED 3UV | 10 W | 10 | 100–240 Vac | 50–60 Hz | >0.95 | −30 to +60 °C | UV-360NM | 50 cm | IP66 | 3.0 kg | |
| AUTO-LED 5UV | 20 W | 20 | 100–240 Vac | 50–60 Hz | >0.95 | −30 to +60 °C | UV-360NM | 50 cm | IP66 | 3.0 kg | |
| AUTO-LED 10UV | 30 W | 30 | 100–240 Vac | 50–60 Hz | >0.95 | −30 to +60 °C | UV-360NM | 102 cm | IP66 | 3.0 kg |
AUTO-LED is designed to support colour evaluation under controlled inspection lighting before, during and after automotive paint work.

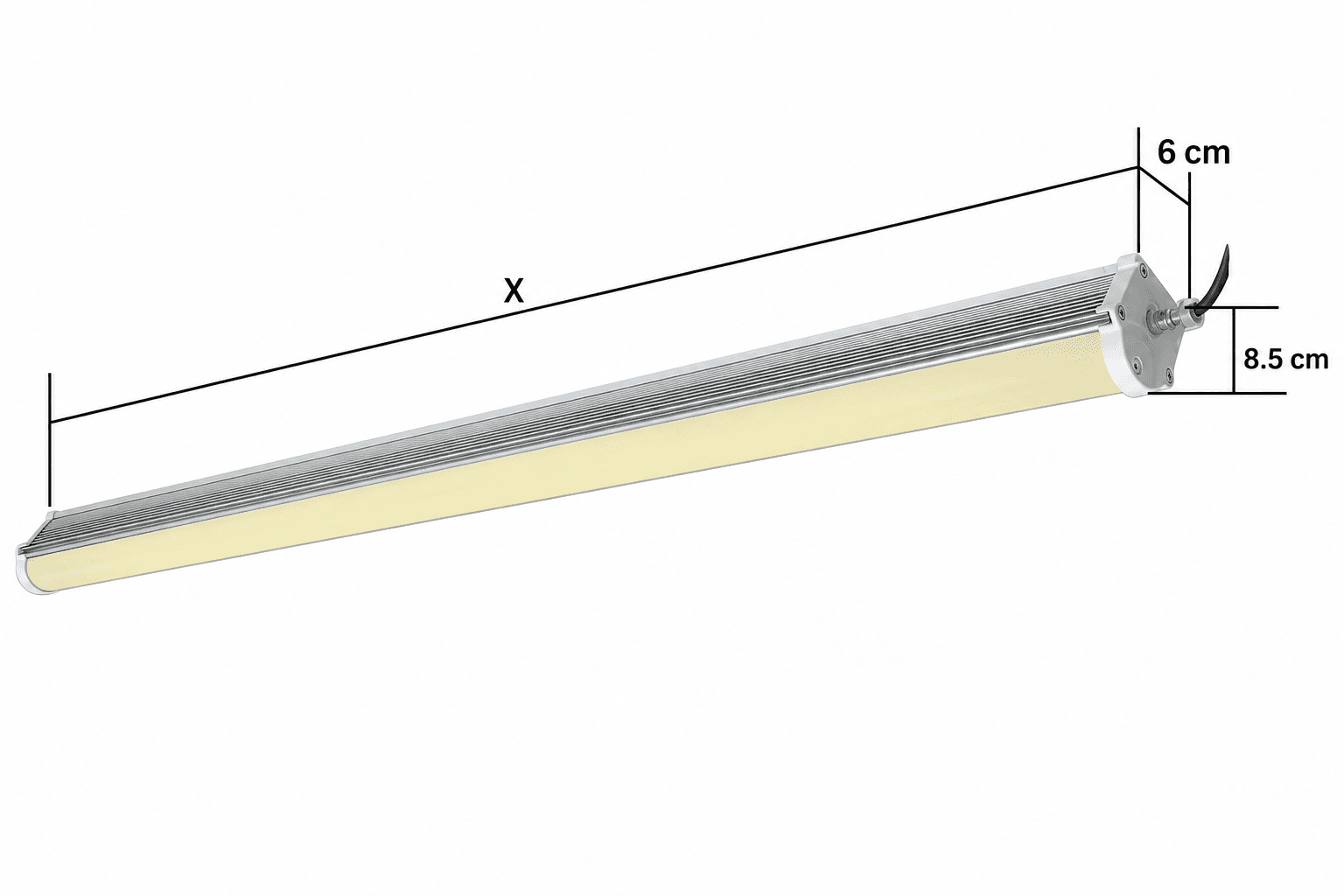

Technical assets extracted from the AUTO-LED catalogue page.

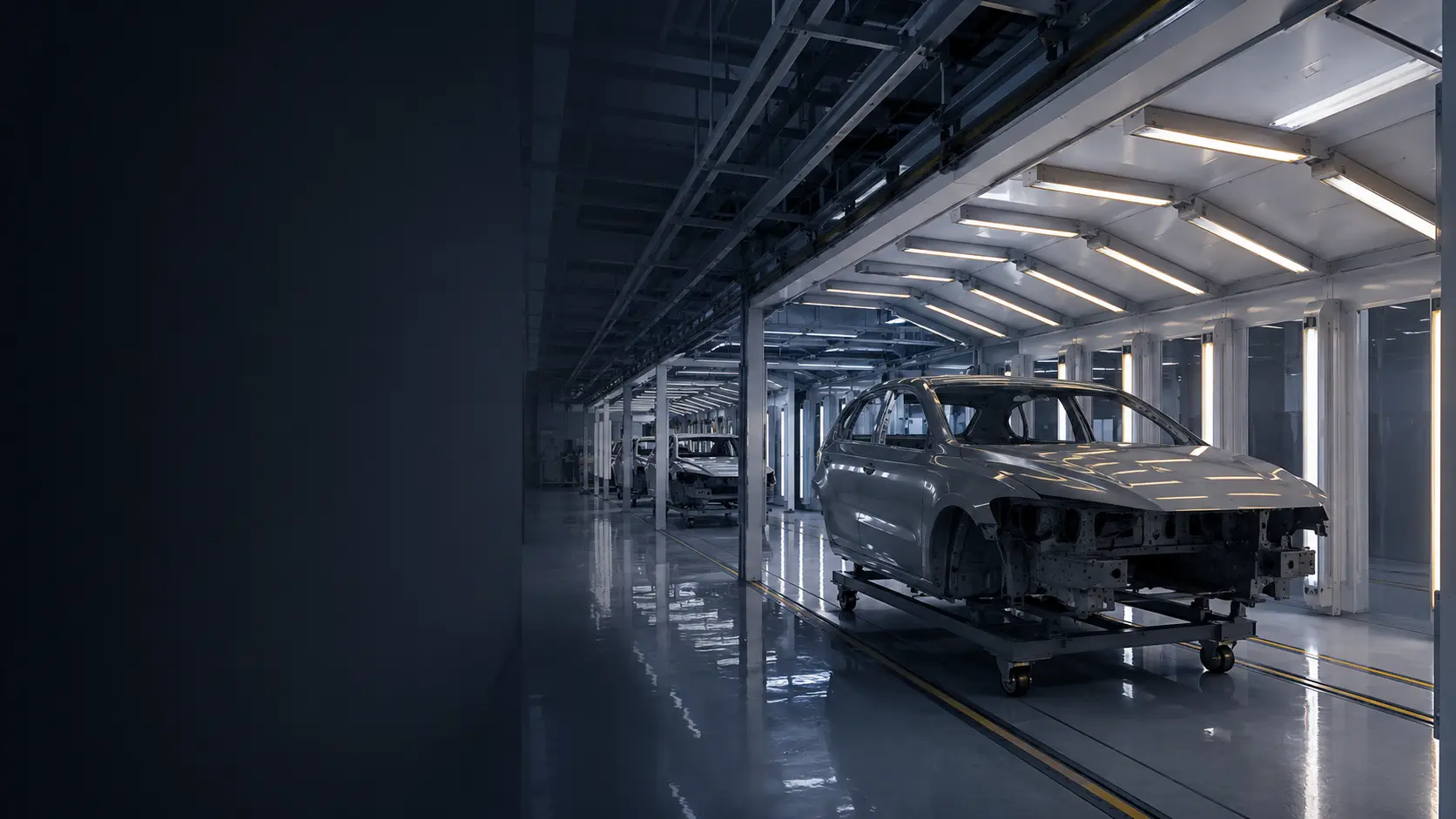

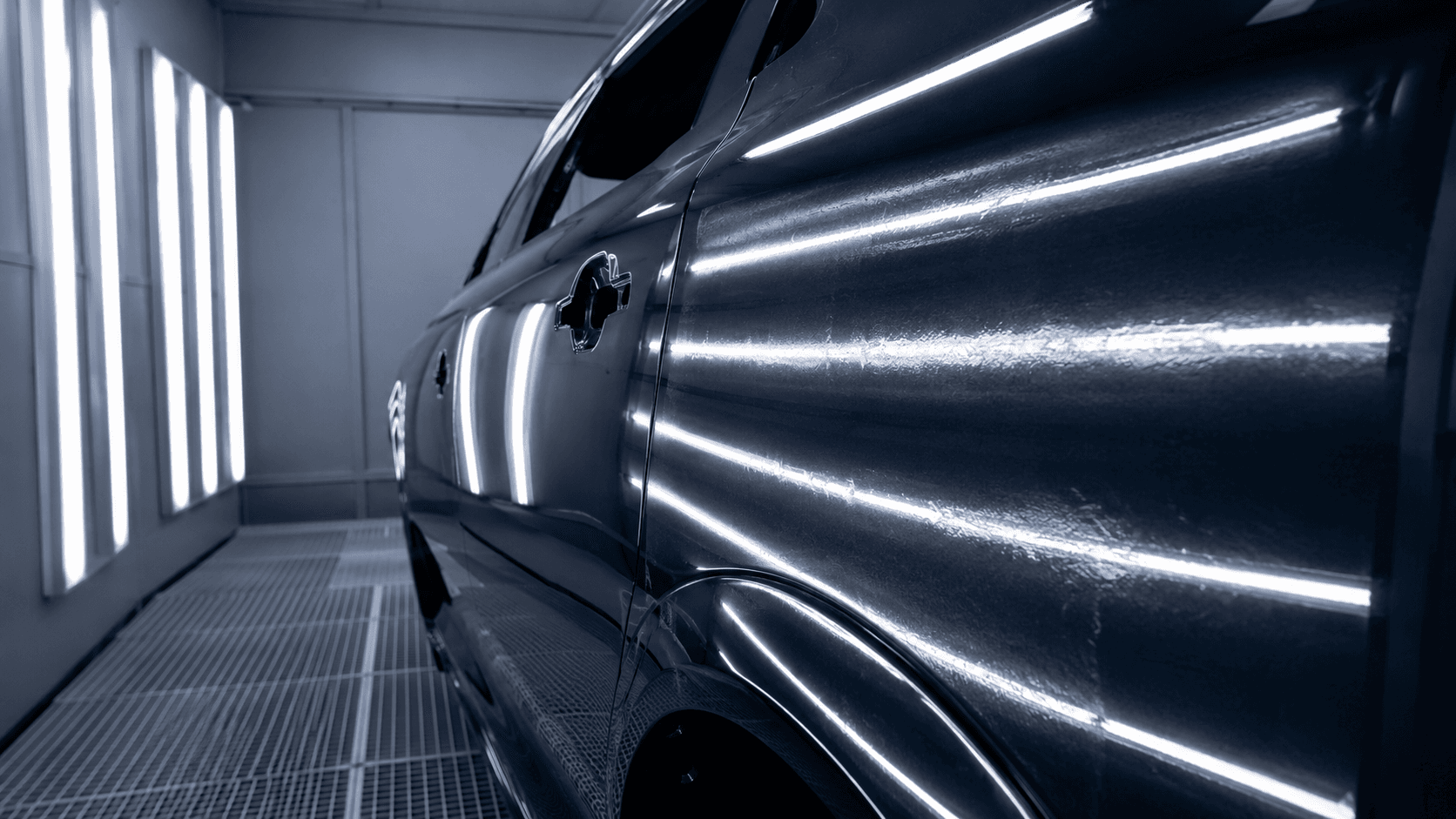

Controlled inspection of automotive paint finish.
Supports colour and variant evaluation under controlled light.

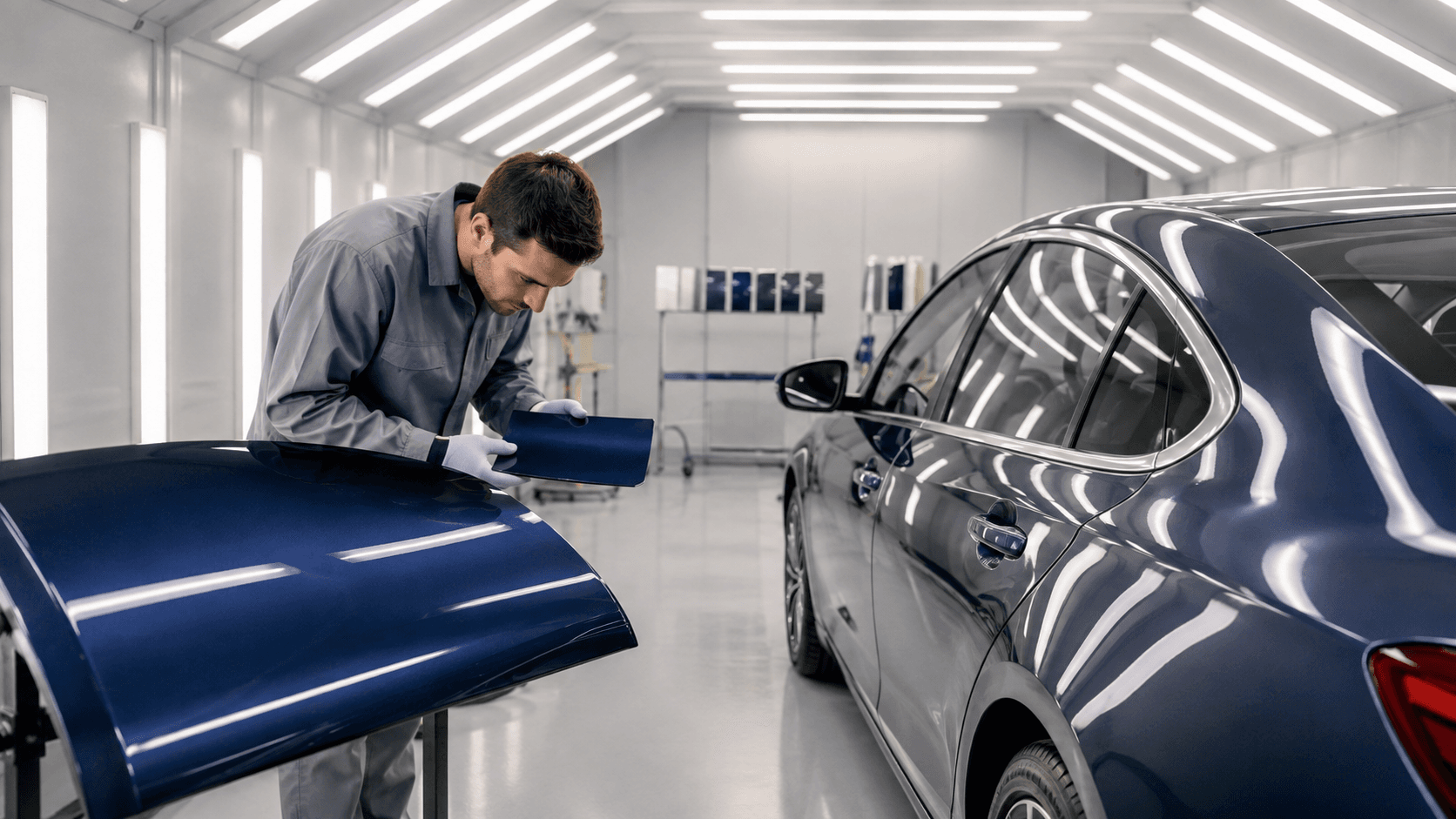

Surface checks before paint application.
Inspection for ripple, hologram and sanding marks.

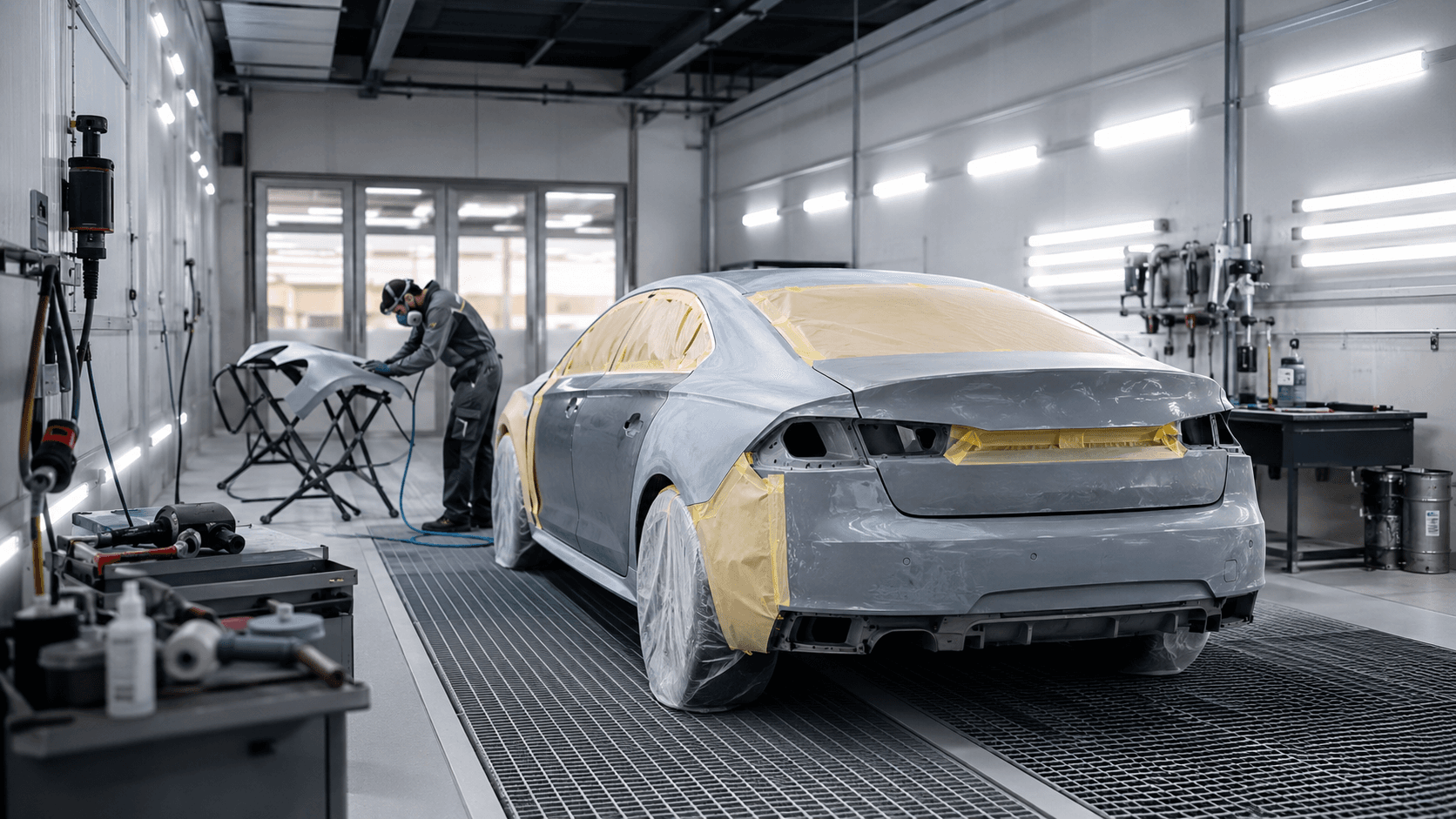

Paint repair and refinishing inspection areas.

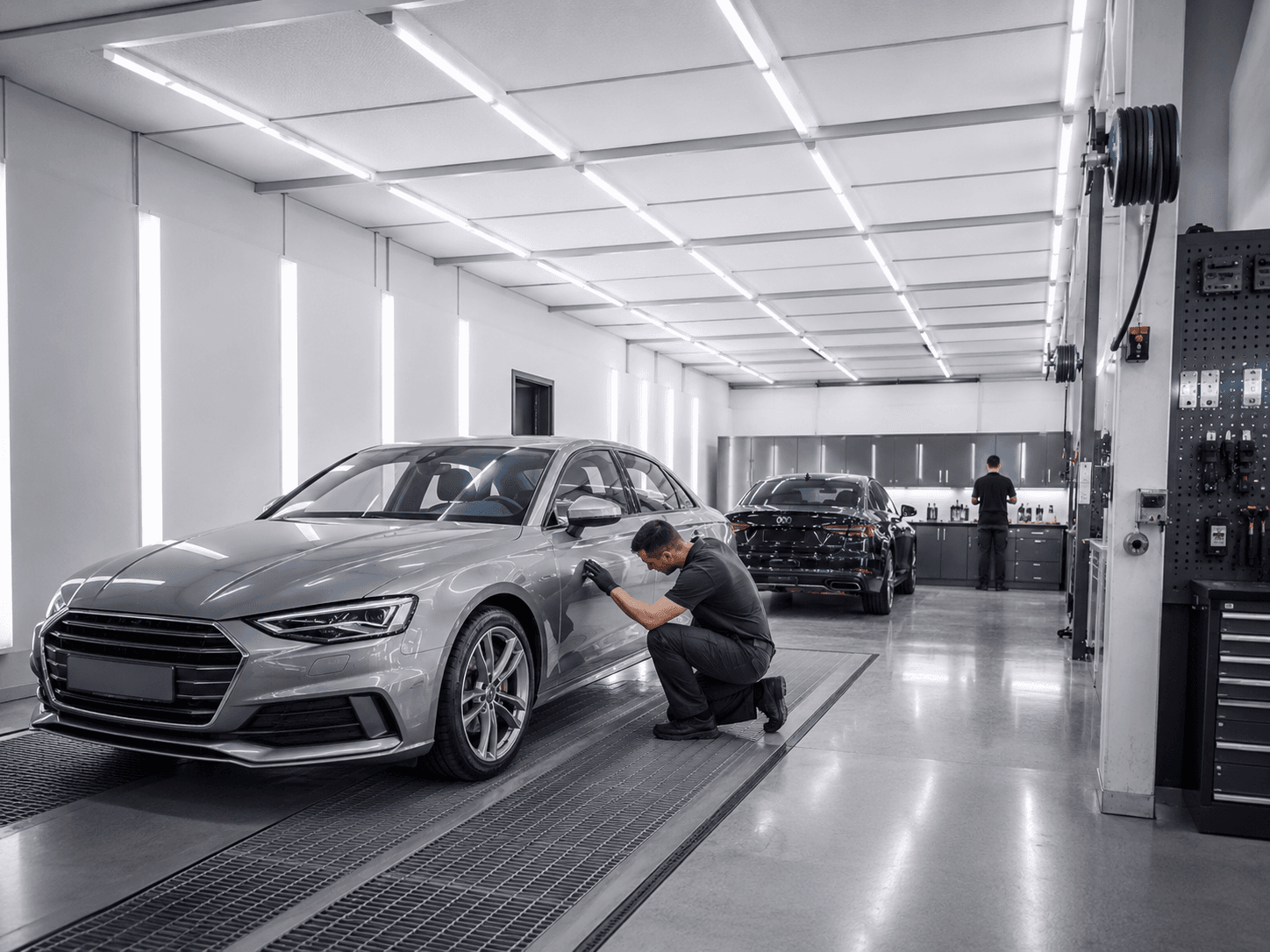

Controlled inspection lighting for service environments.
Controlled inspection of automotive paint finish.
Discuss the paint and colour-inspection requirement with our technical team.
