Performance
Power Range35–250 W
Luminous Flux5,000–29,500 lm
Catalogue Models9
Primary VisualGSL3 C70W · 12,250 lm
Loading
Please wait while the page is prepared.
Please wait while the page is prepared.
SMART STREET LIGHTING
Smart Lighting & Automation

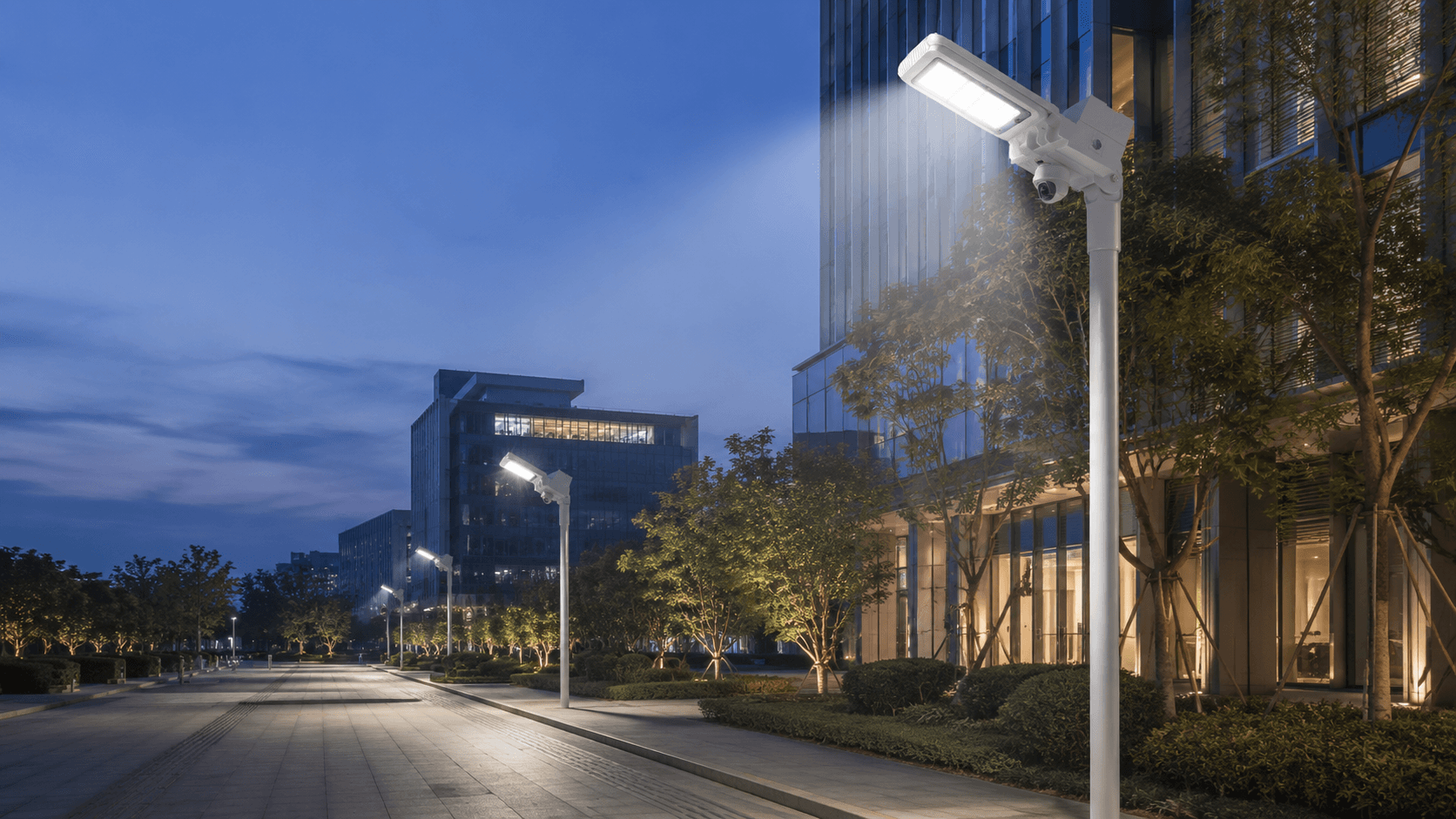

GER-LED street luminaires combining LED road lighting with a 360° camera mounted under glass, across nine catalogue C-series models for roads, transport, public-space and infrastructure applications.
The technical table states 110–240 Vac while page icons show 220–240 V. This page preserves the table value and does not resolve the catalogue discrepancy. Luminous-flux values are marked as reference values in the source catalogue.
The integrated camera is part of the C-series concept. Control and communication features shown as options depend on project configuration and are not presented as standard on every model.

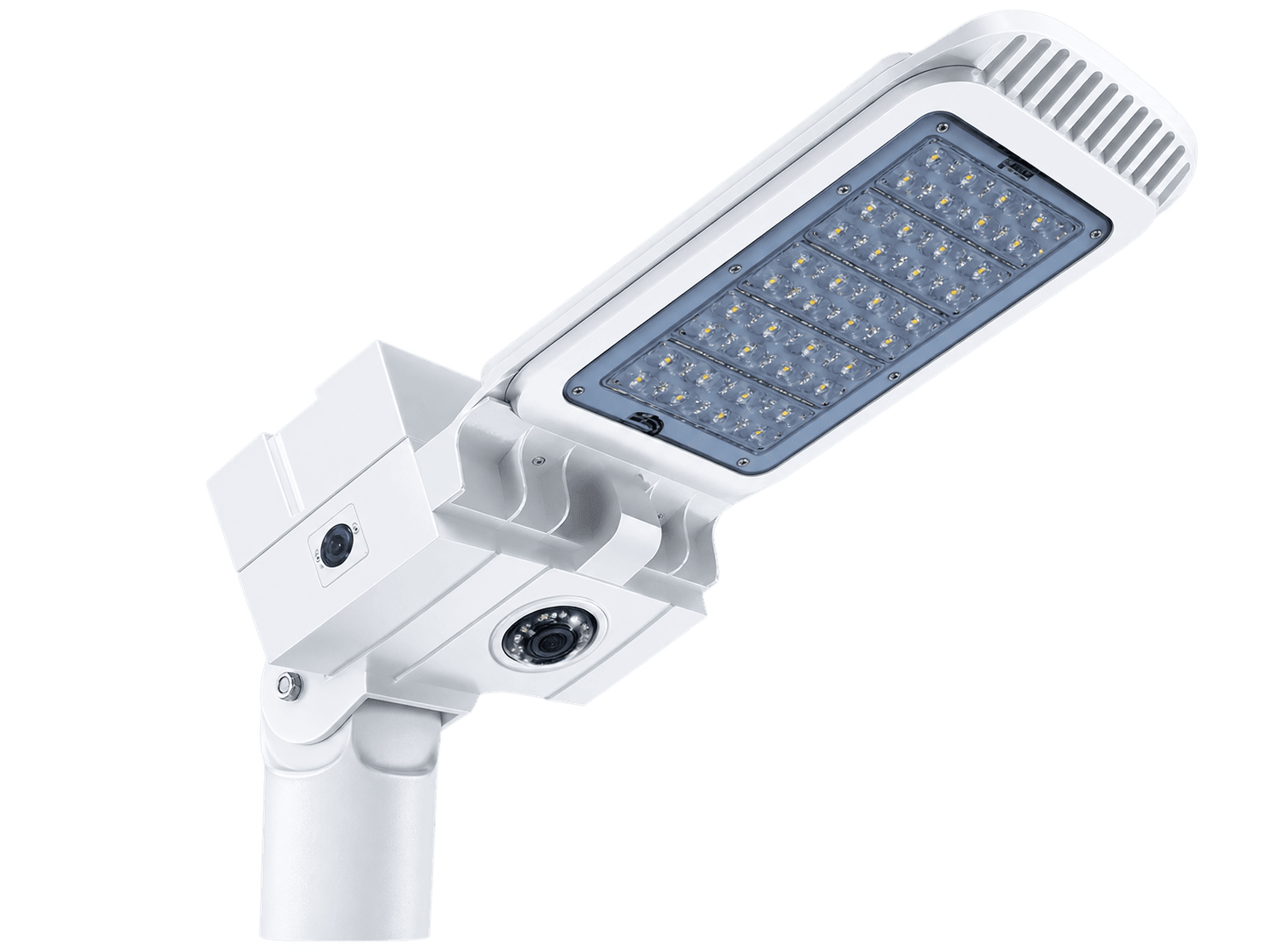

The catalogue shows the camera mounted under glass in the lower luminaire housing.
DALI, 1–10 V and SwitchDIM appear as catalogue-listed control options.
The wider GER-LED street-lighting pages list PLC, 3G and TCP/IP as project-dependent smart options.
The wider family catalogue lists sensor input, fault reading and scenario control as configurable capabilities.
Nine camera-equipped C-series catalogue models. Search or filter by exact model code, power, LED quantity or weight.
| Model / Catalogue Code | Power | LED Qty | Luminous Flux | Efficiency | CRI | CCT | IP | Weight | Enquiry |
|---|---|---|---|---|---|---|---|---|---|
| GSL1 C35W | 35 W | 8 | 5,000 lm | 142.9 lm/W | 75–85 | 3000–6500 K | IP66 | 8.0 kg | |
| GSL2 C50W | 50 W | 36 | 7,500 lm | 150.0 lm/W | 75–85 | 3000–6500 K | IP66 | 8.0 kg | |
| GSL3 C70W | 70 W | 48 | 12,250 lm | 175.0 lm/W | 75–85 | 3000–6500 K | IP66 | 8.0 kg | |
| GSL4 C105W | 100 W | 60 | 16,100 lm | 161.0 lm/W | 75–85 | 3000–6500 K | IP66 | 8.0 kg | |
| GSL5 C125W | 125 W | 64 | 20,500 lm | 164.0 lm/W | 75–85 | 3000–6500 K | IP66 | 9.0 kg | |
| GSL6 C150W | 150 W | 64 | 22,150 lm | 147.7 lm/W | 75–85 | 3000–6500 K | IP66 | 9.0 kg | |
| GSL7 C185W | 185 W | 80 | 24,500 lm | 144.86 lm/W | 75–85 | 3000–6500 K | IP66 | 9.0 kg | |
| GSL8 C200W | 200 W | 80 | 25,750 lm | 145 lm/W | 75–85 | 3000–6500 K | IP66 | 9.0 kg | |
| GSL9 C250W | 250 W | 80 | 29,500 lm | 144 lm/W | 75–85 | 3000–6500 K | IP66 | 9.0 kg |
GSL4 C105W is the exact catalogue model code, while its power column states 100 W. The GSL7–GSL9 luminous-flux and efficiency figures are reproduced exactly as printed, including their internal arithmetic inconsistency.
Catalogue-listed protocols and system icons; availability is configuration- and project-dependent. They are not implied as standard equipment on every C-series luminaire.
The wider GER-LED street-lighting catalogue explicitly lists these smart functions as options. Final availability must be confirmed for the project and selected model.

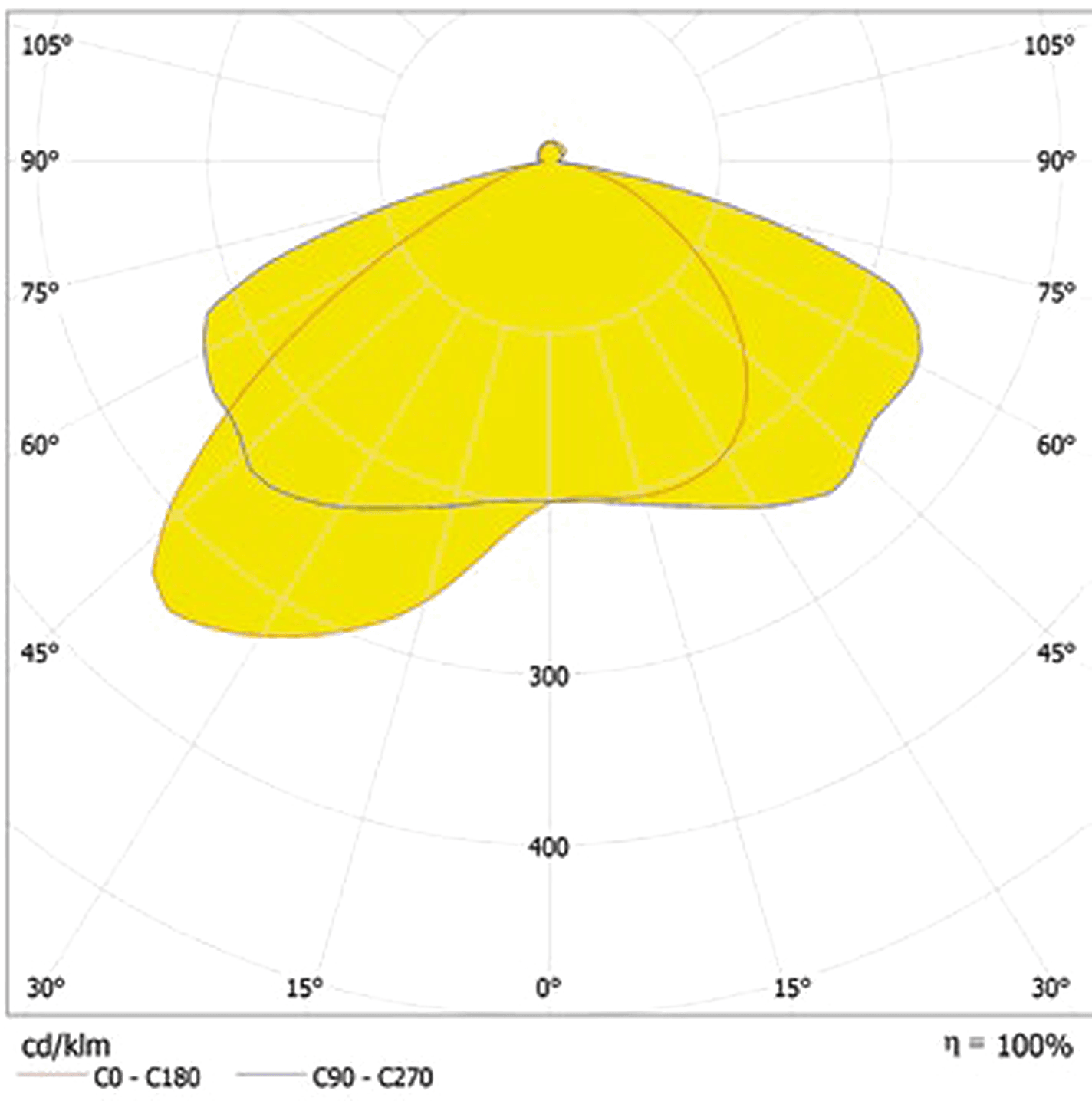

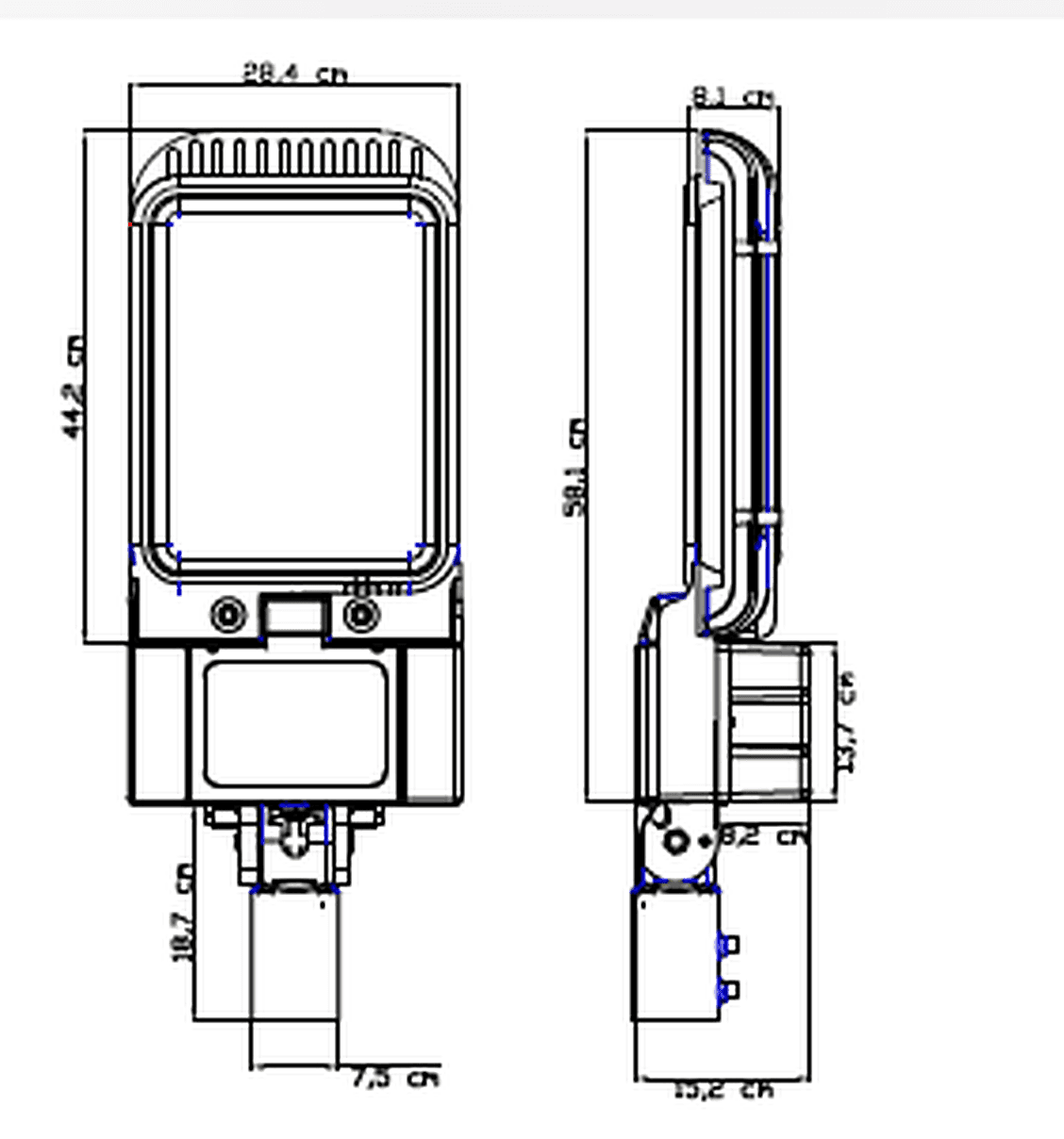

Technical assets extracted from the GER-LED Smart Street Lighting catalogue page; the model schedule above lists the exact per-model values.
Outdoor route and public-area lighting for port environments.

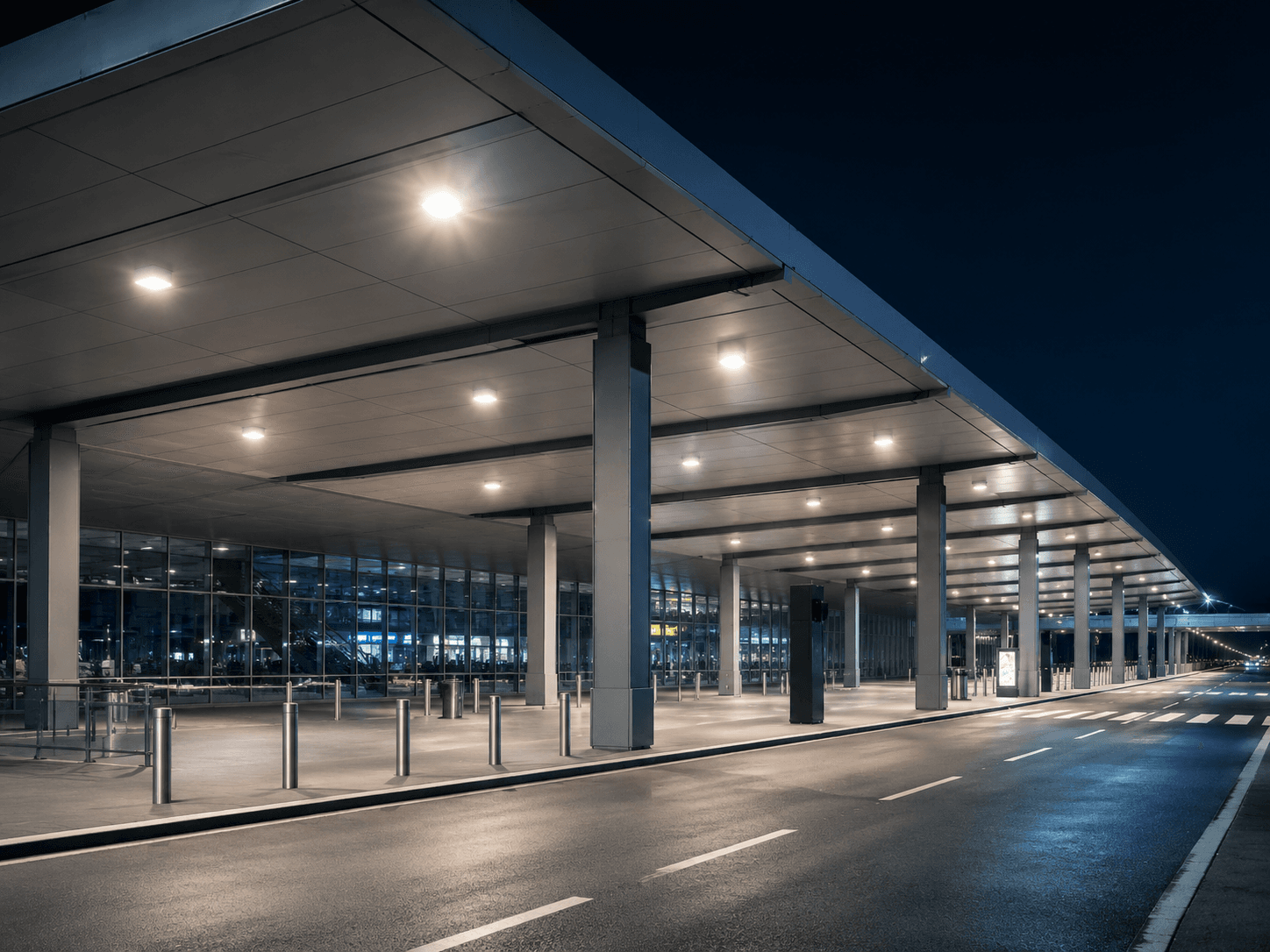

Road and public-area lighting around airport infrastructure.

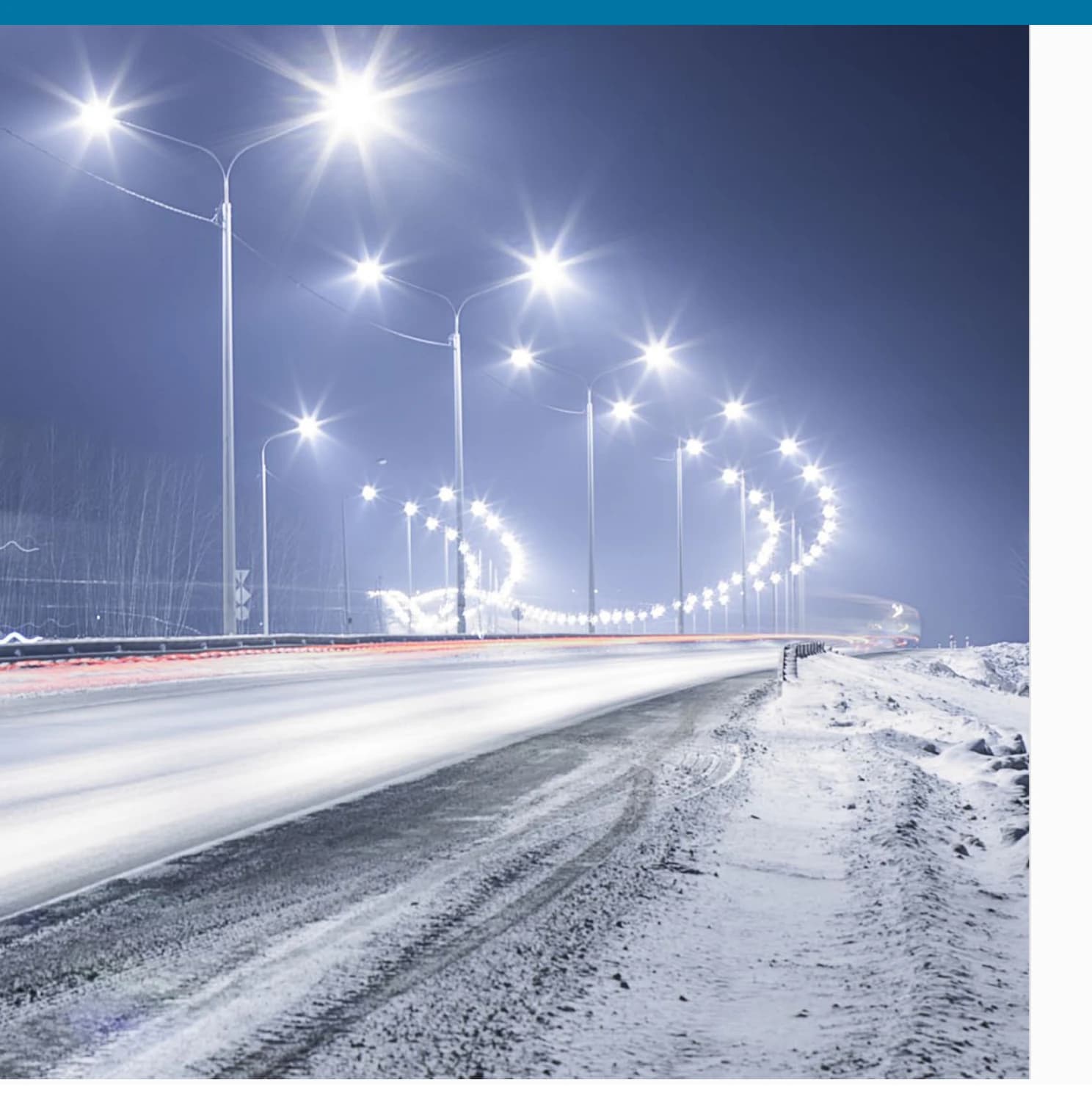

Structured, high-performance lighting for major routes and motorways.

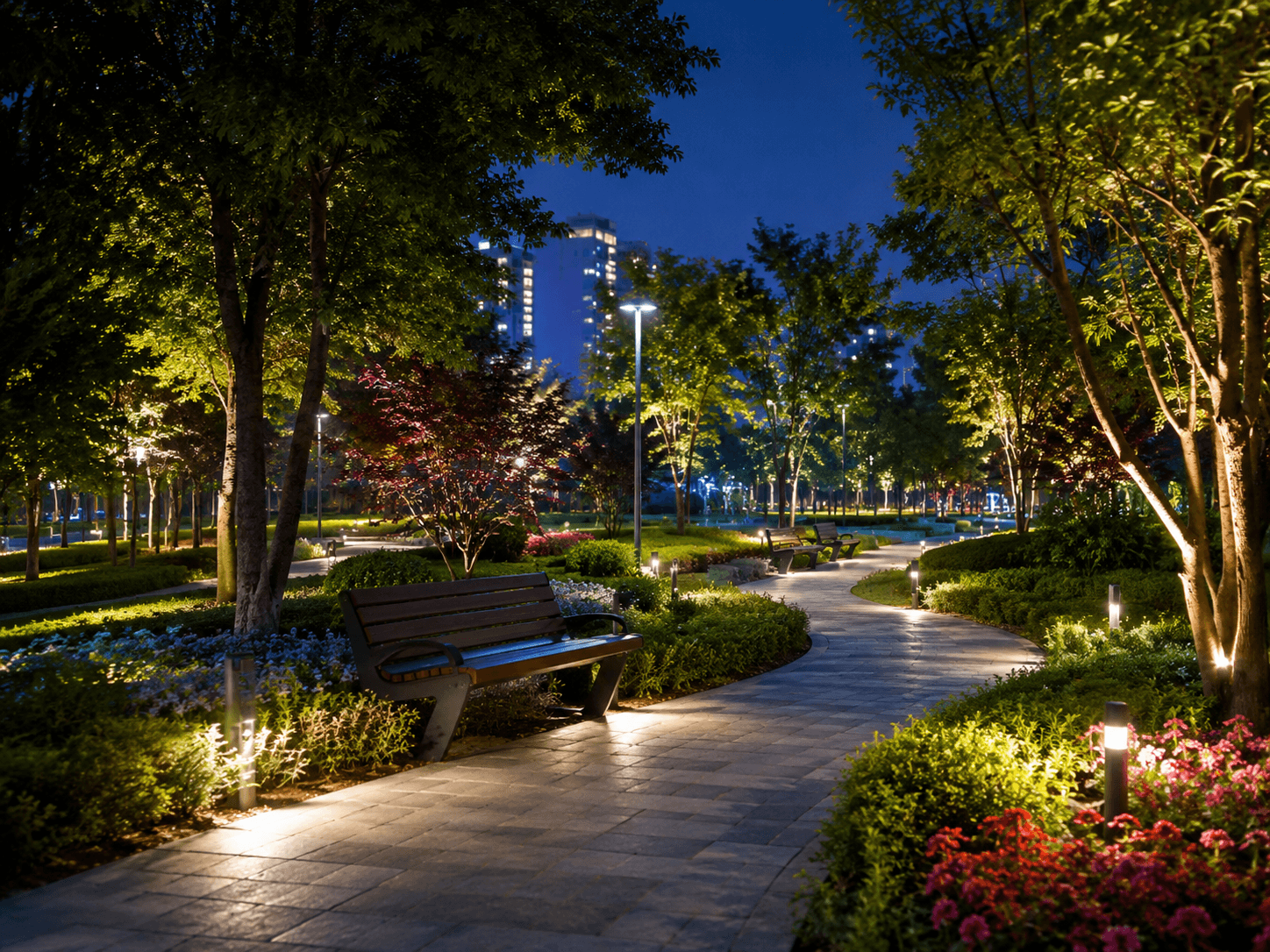

Public-realm lighting for landscaped parks and garden areas.
Internal roads, walkways and communal areas within residential developments.

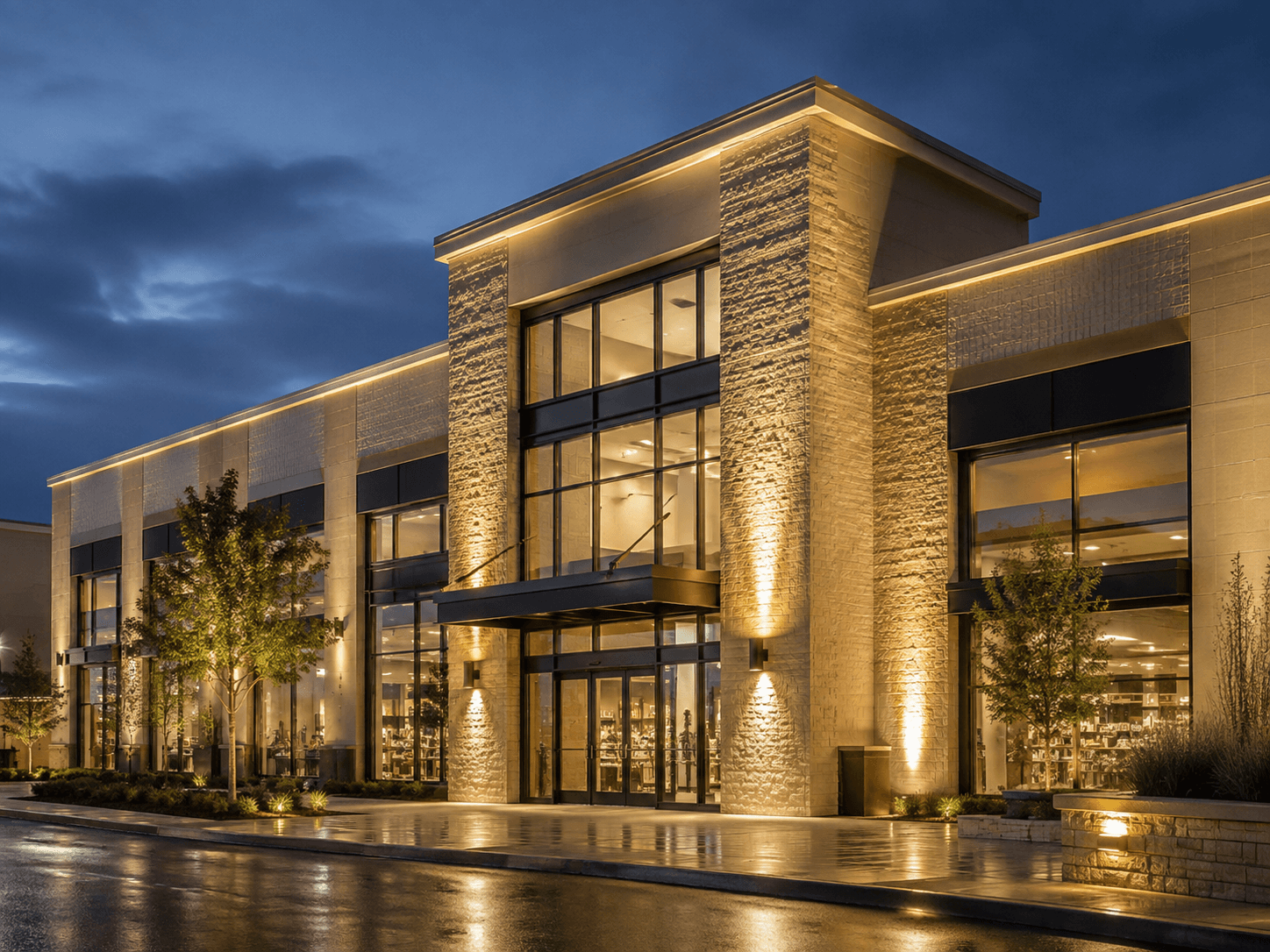

Access roads and circulation-area lighting for retail environments.

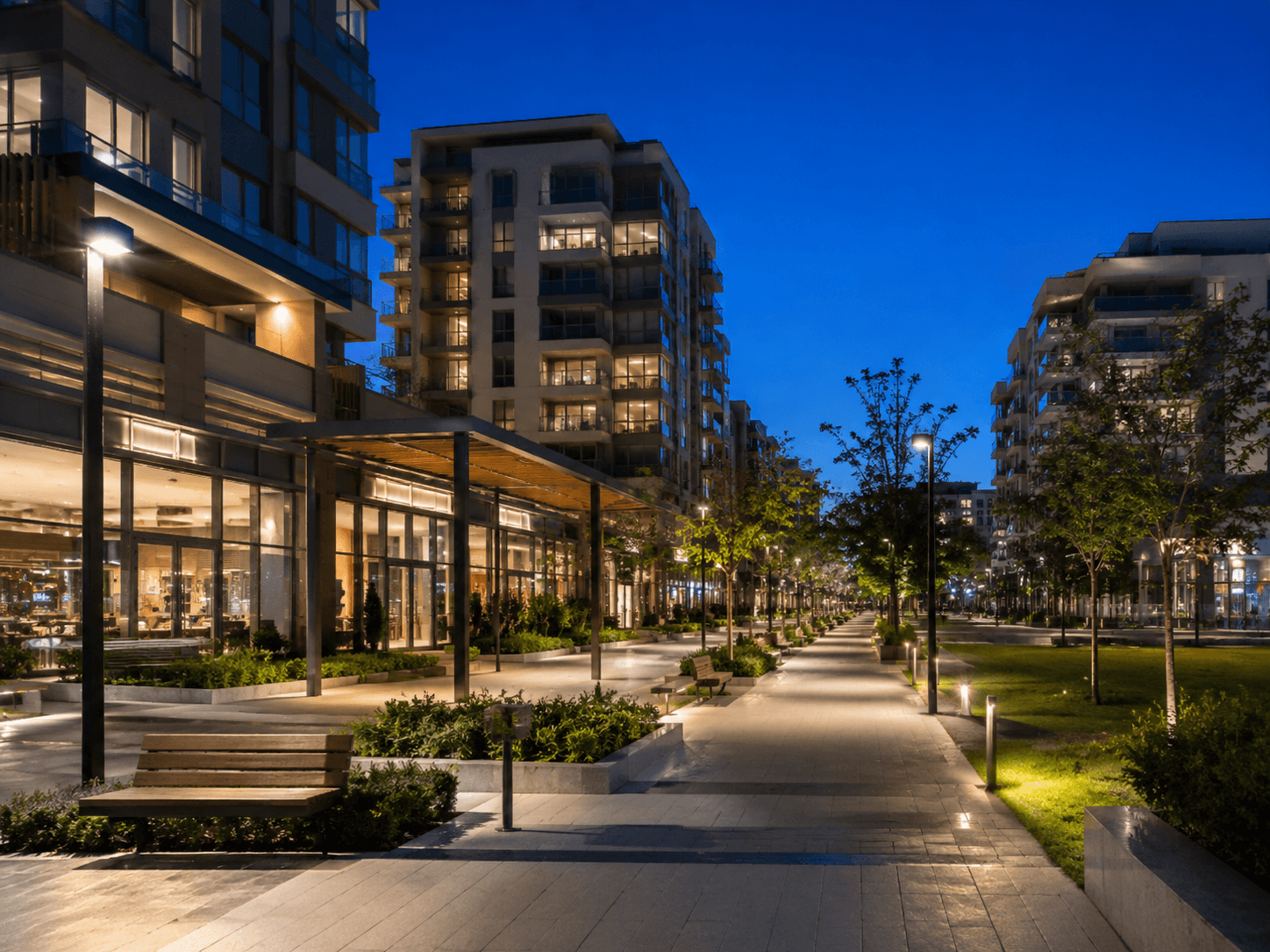

Lighting for urban squares and shared civic spaces.
Outdoor route and public-area lighting for port environments.
Request technical support for model selection, camera integration, controls, photometric data and project-dependent communication options.
