AUTOMATION & CONTROL SYSTEM
Smart Lighting & Automation
A busbar-integrated automation system that carries two-way control and feedback over the power line, linking addressed receivers, transmitters, control interfaces, sensors and central software without a separate data cable.
The catalogue gives no per-module voltage, IP/IK rating, dimensions or weight. The 25–6000 A figure is system-level busbar compatibility, not a module current rating.
Catalogue-supported system functions only; final architecture and component selection depend on the connected busbar and controlled loads.
Transmitters and addressed receivers exchange control and feedback over the existing power conductors.
Catalogue functions include on/off control and DIM ballast lighting control.
Stock-coded daylight and motion sensors are listed as system components.
The system can return temperature, humidity and electrical measurement information to central software.
All 17 stock-coded hardware, software, sensor and service entries shown in the G-BUS catalogue component table.
| Stock Code | Catalogue Description | Component Group |
|---|---|---|

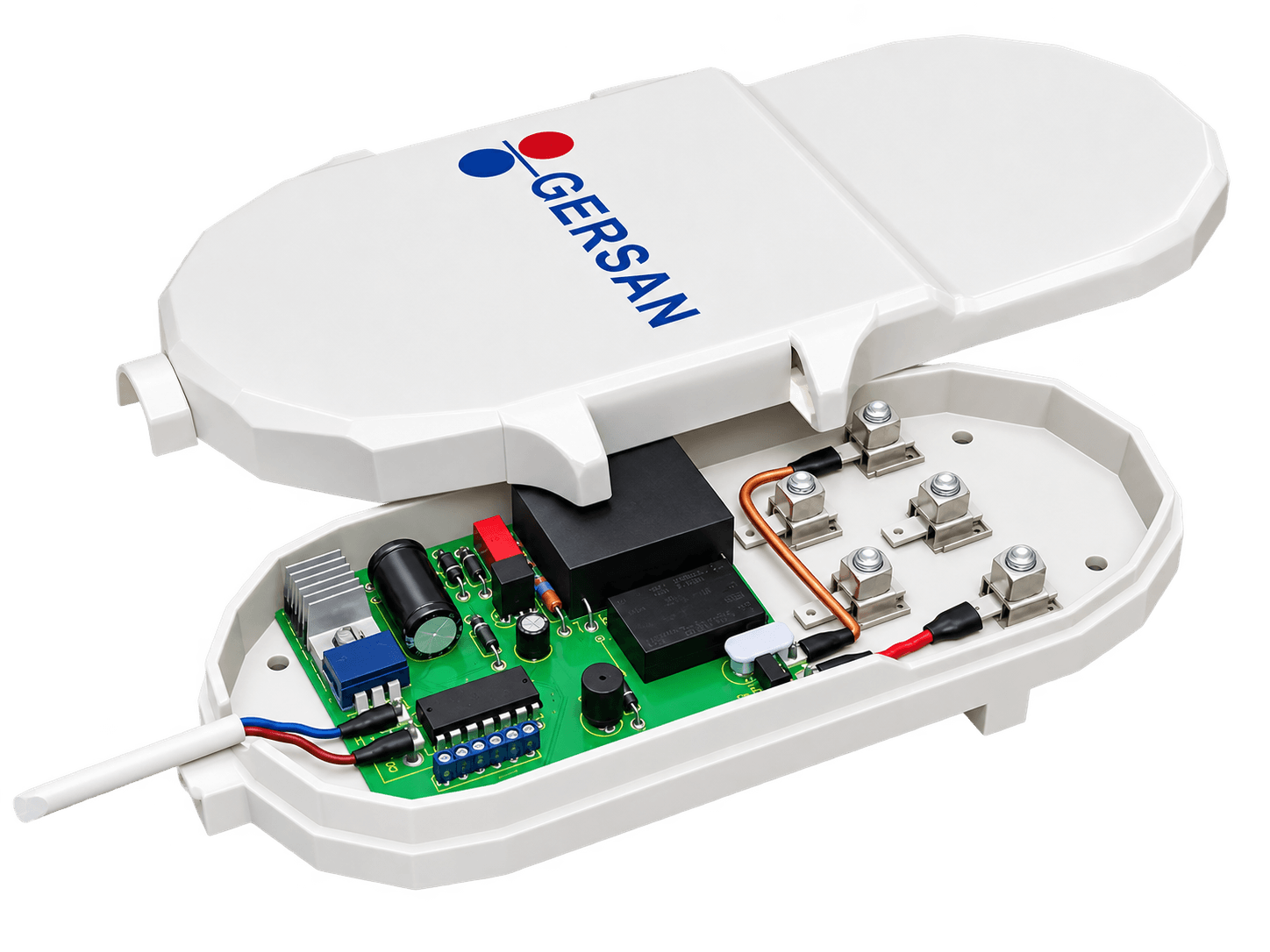

| 730-RCV |  G-Bus Automation Receiver Module (On/Off) | Receiver modules |
| 730-RCVRM |  G-Bus Automation Receiver DIN Rail Module (On/Off) | Receiver modules |
| 730-TRM |  G-Bus Automation Transmitter Module | Transmitter modules |
| 730-TRMRM |  G-Bus Automation Transmitter DIN Rail Module | Transmitter modules |
| 730-GBUSKP7 |  G-Bus Automation 7" TFT Touch Control Panel | Control interfaces |
| 730-GBUSTP7 |  G-Bus Automation 7" Tablet Control Panel | Control interfaces |
| 730-GBUSPLADP |  G-Bus Powerline Network Adapter | Powerline adapters |
| 730-GBUSPLADPRM |  G-Bus Powerline DIN Rail Network Adapter | Powerline adapters |
| 730-INP | G-Bus Automation Input Module | Input & communication |
| 730-RCV485 | G-Bus Automation RS485 Receiver Module | Input & communication |
| 730-DIM | G-Bus Automation DIM Ballast Control Module | Lighting control |
| 730-GBUSPC |  G-Bus Automation Control PC | Computers & software |
| 730-GIS |  Daylight Sensor (OSRAM) | Sensors |
| 730-HS | Move Sensor (OSRAM) | Sensors |
| 730-GBUSTP7SW | G-Bus Automation 7" TFT Touch Tablet PC Software | Computers & software |
| 730-GBUSPCSW | G-Bus Automation PC Control Software | Computers & software |
| 730-GBUSTDE | Testing, Commissioning and Training — per day (accommodation and travel excluded) | Services |
The catalogue reuses thumbnails for 730-RCV / 730-INP, 730-TRM / 730-RCV485 / 730-DIM, and 730-GIS / 730-HS. Codes and descriptions above follow the printed stock-code table exactly.
The G-BUS control chain combines powerline transmitters and addressed receivers with local or networked user interfaces.
Catalogue architecture shows PC software, server connection, local-network or internet access, touch interfaces and RS485 receiving.
Request technical support for busbar compatibility, component selection, control interfaces, sensing and system architecture.
